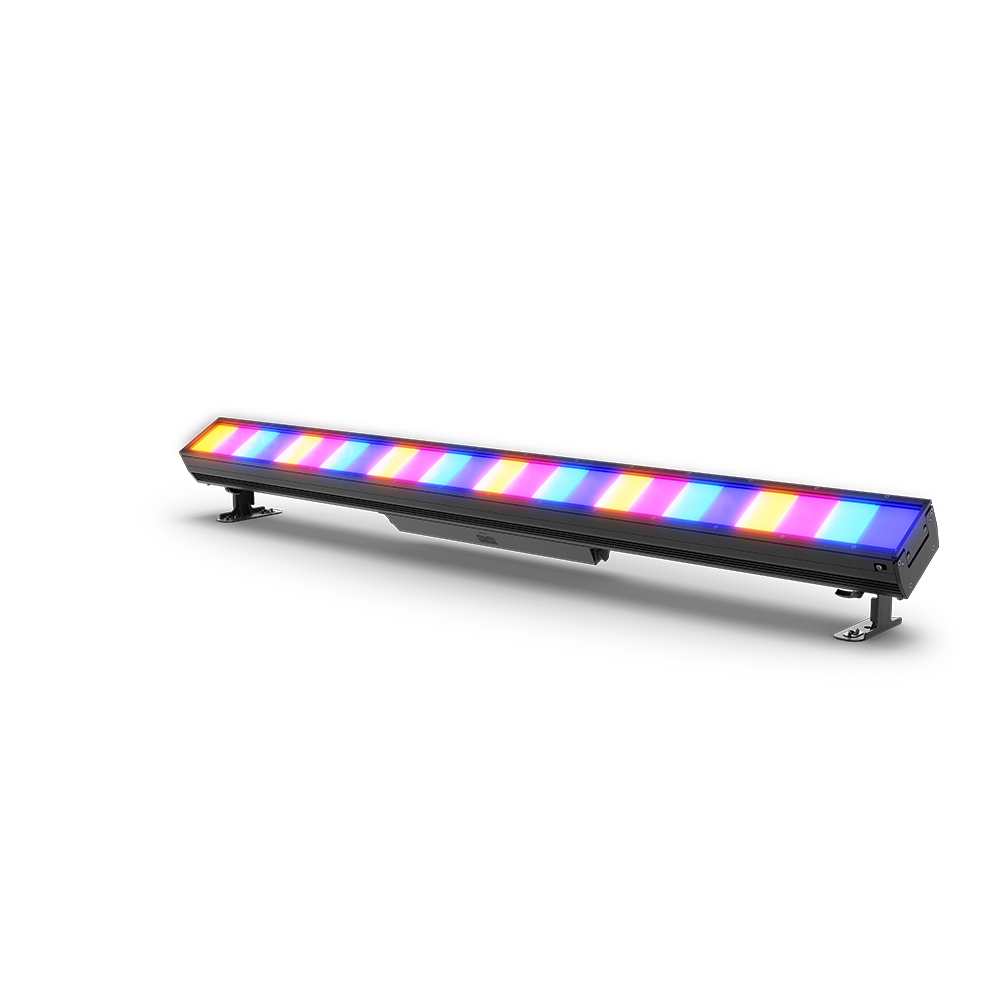

Chauvet-Professional-COLORado-Solo-Bar-6-Front-RightChauvet-Professional-COLORado-Solo-Bar-6-Front-Right

Chauvet Professional – COLORado Solo Bar 6

Chauvet Professional

A versatile, IP65-rated RGBwWL LED batten that delivers a full spectrum of color and high-quality whites from 24 homogenized cells, providing seamless pixel-mapping effects and powerful washes.

Ideal for touring, festivals, broadcast, and theatrical applications, its silent, all-weather, and camera-ready performance excels in both temporary and permanent installations.

Features

  • Delivers superior color rendering with a 95 CRI and linear CCT presets from 2800 K to 8000 K.
  • Built with an IP65-rated housing for durable, all-weather use in touring or permanent installs.
  • Supports DMX, RDM, CRMX, Art-Net, and sACN for flexible and comprehensive control.
  • Includes beam shaping filters and an integrated glare shield for enhanced optical control.
  • Provides smooth 18-bit dimming and silent operation ideal for broadcast and studio applications.
  • Features adjustable mounting brackets and guide pins for simple, seamless end-to-end alignment.
SKU: COLORADOSOLOBAR6 Categories: , , ,

Description

COLORado Solo Bar 6 is a 24-cell IP65-rated RGBwWL LED batten that produces a full range of color and perfect whites from a fixture offering LDs the flexibility to easily create beautiful whites with RGBwW or take control of all five colors in the full RGBwWL array. COLORado Solo Bar 6 seamlessly combines homogenized squares for phenomenal end-to-end direct-view pixel-mapped looks, with the high output and long throw to perform equally well as a cyc, footlight, or traditional batten down light. Its advanced IP65 design brings lighter weight and all-weather durability together in one fixture at home both on the road and in permanent installations. A selection of beam shaping filters is included to broaden the choice of projection effects. Control is via DMX, ArtNet or sACN. With improved and simplified rigging options, virtually silent operation, and flawless performance live or on camera, COLORado Solo Bar 6 brings new versatility to touring, festivals, televised and theatrical productions.

Features

Versatile LED Batten

This full-spectrum LED batten is perfectly suited for rental, production, broadcast, film, and special events.

All Weather IP65 Rating

An IP65 rating provides protection from dust, fog, and haze for reliable use in any indoor or outdoor weather conditions.

High Quality Color Temperature

Features linear color temperature presets from 2800 K to 8000 K with high TM-30, CRI, and CQS for superior color rendering.

Edge to Edge Color Blending

Delivers perfectly blended and even color across the entire cell, eliminating the common “circle in a square” effect.

Advanced Color Control

Offers plus/minus green adjustment and emulated red-shift effects accessible via DMX or on-board controls.

Flexible Control Options

Control the fixture using a wide variety of methods including DMX, RDM, CRMX, Art-Net, and sACN.

Silent Studio Operation

Its virtually silent operation makes it an ideal choice for noise-sensitive studio and broadcast applications.

Adjustable Mounting Brackets

Easily adjustable sliding brackets on a standard T-rail allow for optimal placement around truss supports.

Simple End-to-End Alignment

Integrated guide pins ensure quick and easy alignment when connecting multiple units end-to-end.

Integrated Filter Slot and Glare Shield

Includes a slide-in slot for filters and an on-board stowable glare shield for enhanced beam control.

Smooth 18-Bit Dimming

Achieve ultra-smooth fades with 18-bit dimming curves and speeds that complement any lighting design.

Video

COLORado Solo Bar Family – Elevate Your Performance | CHAUVET Professional

Seamlessly go from beautiful whites to precise colors. Show amazing eye candy effects, mix smoothly blended colors, and experience excellent color rendering. All from a lightweight IP65-rated fixture created to elevate lighting designs across numerous applications.

What’s Included

  • COLORado Solo Bar 6
  • Seetronic Powerkon IP65
  • Omega brackets with mounting hardware
  • 50/50 Filter, Cyc Filter, Stealth Filter, Clear Protective Filter (Installed)
  • Short Mount Accessory Feet
  • Glare Shield

Additional information

Optical

Light Source: 24 (RGBWwL) LED Engines
Color Temperature (range): 2800 to 8000 K
Color Temperature (at full): 9167 K
CRI: 95
Beam Angle: 16.7°
Beam Angle (w/CYC Diffusion): 40.7°
Beam Angle (w/Half Diffusion): 18.9°
Beam Angle (w/Stealth Diffusion): 25°
Field Angle: 36.1°
Field Angle (w/CYC Diffusion): 84.4°
Field Angle (w/Half Diffusion): 46.8°
Field Angle (w/Stealth Diffusion): 61.2°
Lumens: 25,198
Lumens (w/CYC Diffusion): 32,913
Lumens (w/Half Diffusion): 23,920
Lumens (w/Stealth Diffusion): 8,571
Illuminance: 5,834 lux @ 5 m
Illuminance (w/CYC Diffusion): 1,739 lux @ 5 m
Iluminance (w/Half Diffusion): 3,788 lux @ 5 m
Iluminance (w/Stealth Diffusion): 932 lux @ 5 m
Selectable PWM: 1,000 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 12,000 Hz, 25,000 Hz
Control

Control Protocol: Art-Net, sACN, DMX, CRMX, RDM
DMX Channels:
1 CELL: CCT 4ch, HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch
2 CELL: CCT 7ch, HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch
4 CELL: CCT 13ch, HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch
6 CELL: CCT 19ch, HSV 19ch, RGB 18ch, RGBW 24ch, RGBWL 30ch, RGBWL-16bit 60ch, RGB Ext. 45ch, RGBW Ext. 51ch, RGBWL Ext. 57ch, RGBWL Full 99ch
8 CELL: CCT 25ch, HSV 25ch, RGB 24ch, RGBW 32ch, RGBWL 40ch, RGBWL-16bit 80ch, RGB Ext. 59ch, RGBW Ext. 67ch, RGBWL Ext. 75ch, RGBWL Full 131ch
12 CELL: CCT 37ch, HSV 37ch, RGB 36ch, RGBW 48ch, RGBWL 60ch, RGBWL-16bit 120ch, RGB Ext. 87ch, RGBW Ext. 99ch, RGBWL Ext. 111ch, RGBWL Full 195ch
24 CELL: CCT 73ch, HSV 73ch, RGB 72ch, RGBW 96ch, RGBWL 120ch, RGBWL-16bit 240ch, RGB Ext. 171ch, RGBW Ext. 195ch, RGBWL Ext. 219ch, RGBWL Full 387ch
Art-Net / sACN Channels:
1 CELL: CCT 4ch, HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch
2 CELL: CCT 7ch, HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch
4 CELL: CCT 13ch, HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch
6 CELL: CCT 19ch, HSV 19ch, RGB 18ch, RGBW 24ch, RGBWL 30ch, RGBWL-16bit 60ch, RGB Ext. 45ch, RGBW Ext. 51ch, RGBWL Ext. 57ch, RGBWL Full 99ch
8 CELL: CCT 25ch, HSV 25ch, RGB 24ch, RGBW 32ch, RGBWL 40ch, RGBWL-16bit 80ch, RGB Ext. 59ch, RGBW Ext. 67ch, RGBWL Ext. 75ch, RGBWL Full 131ch
12 CELL: CCT 37ch, HSV 37ch, RGB 36ch, RGBW 48ch, RGBWL 60ch, RGBWL-16bit 120ch, RGB Ext. 87ch, RGBW Ext. 99ch, RGBWL Ext. 111ch, RGBWL Full 195ch
24 CELL: CCT 73ch, HSV 73ch, RGB 72ch, RGBW 96ch, RGBWL 120ch, RGBWL-16bit 240ch, RGB Ext. 171ch, RGBW Ext. 195ch, RGBWL Ext. 219ch, RGBWL Full 387ch
Modes/Personalities: 72 personalities
Certifications / Qualifications

Certifications: CE, MET, FCC, UKCA
IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
Noise Levels:
Noise Level (Idle): 25.0 dB(A) level @ 1 m
Noise Level (Auto): 25.2 dB(A) level @ 1 m
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
Construction / Physical

Dimensions: 69.61 x 7.87 x 8.36 in (1768 x 200 x 212.4 mm)
Weight: 49 lb (22.3 kg)
Exterior Color: Black
Housing Material: Aluminum diecast, aluminum profile
Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65: Power Input
Seetronic Powerkon IP65: Power Output
Seetronic Powerkon IP65: Data Connectors
5-pin IP65 XLR, Seetronic etherCON® compatible
Cable Length (power): 5 ft (1.5 m)
Software Connection: USB
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 0 units @ 100 V; 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V, 4 units @ 240 V
Power and Current: 610 W, 6.10 A @ 100 V, 60 Hz [10 A inrush]
Power and Current: 600 W, 4.98 A @ 120 V, 60 Hz [12 A inrush]
Power and Current: 590 W, 2.78 A @ 208 V, 60 Hz [17 A inrush]
Power and Current: 575 W, 2.55 A @ 230 V, 50 Hz [34 A inrush]
Power and Current: 573 W, 2.50 A @ 240 V, 60 Hz [27 A inrush]
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
IP Rated Seetronic® Powerkon Extensions
IP Rated DMX cables
UPLOAD 03 software uploader

Downloads

Data Sheet Download
User Guide Download
