Chauvet Professional - COLORado Solo Bar 4 Front rightChauvet Professional - COLORado Solo Bar 4 Front right

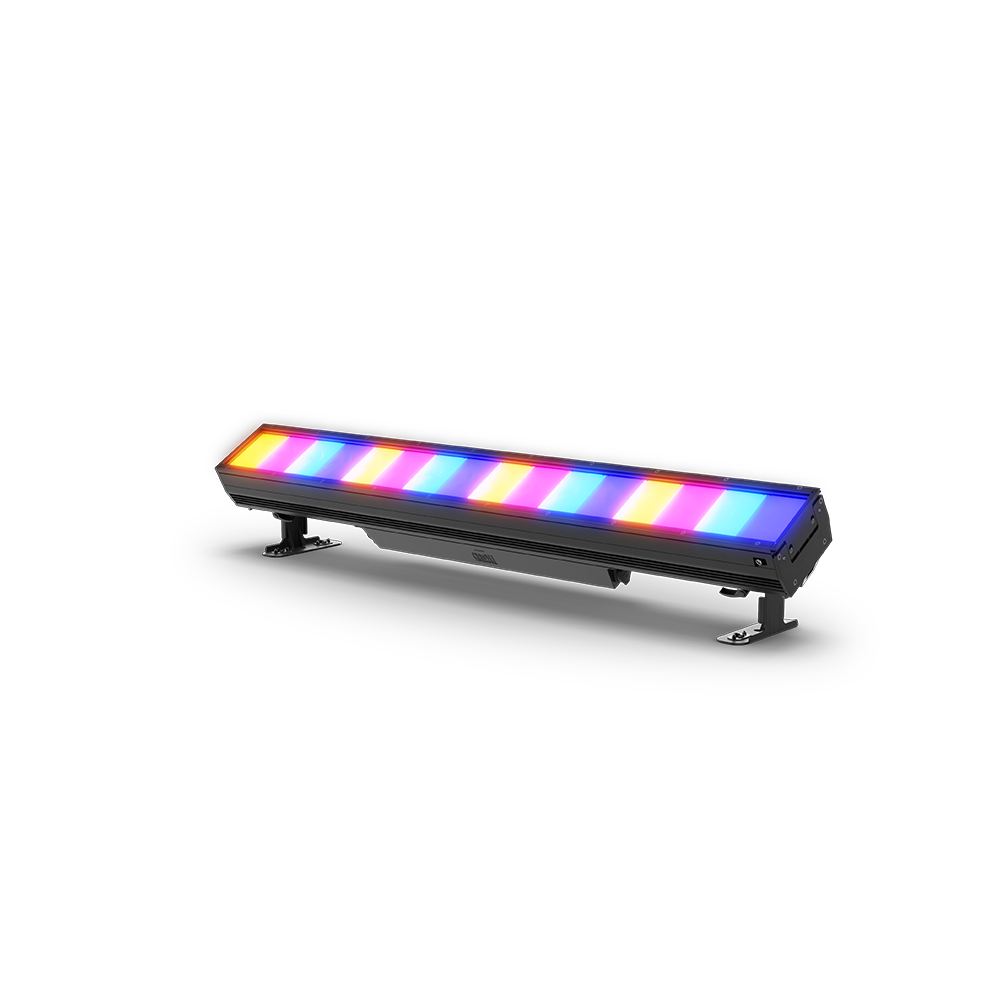

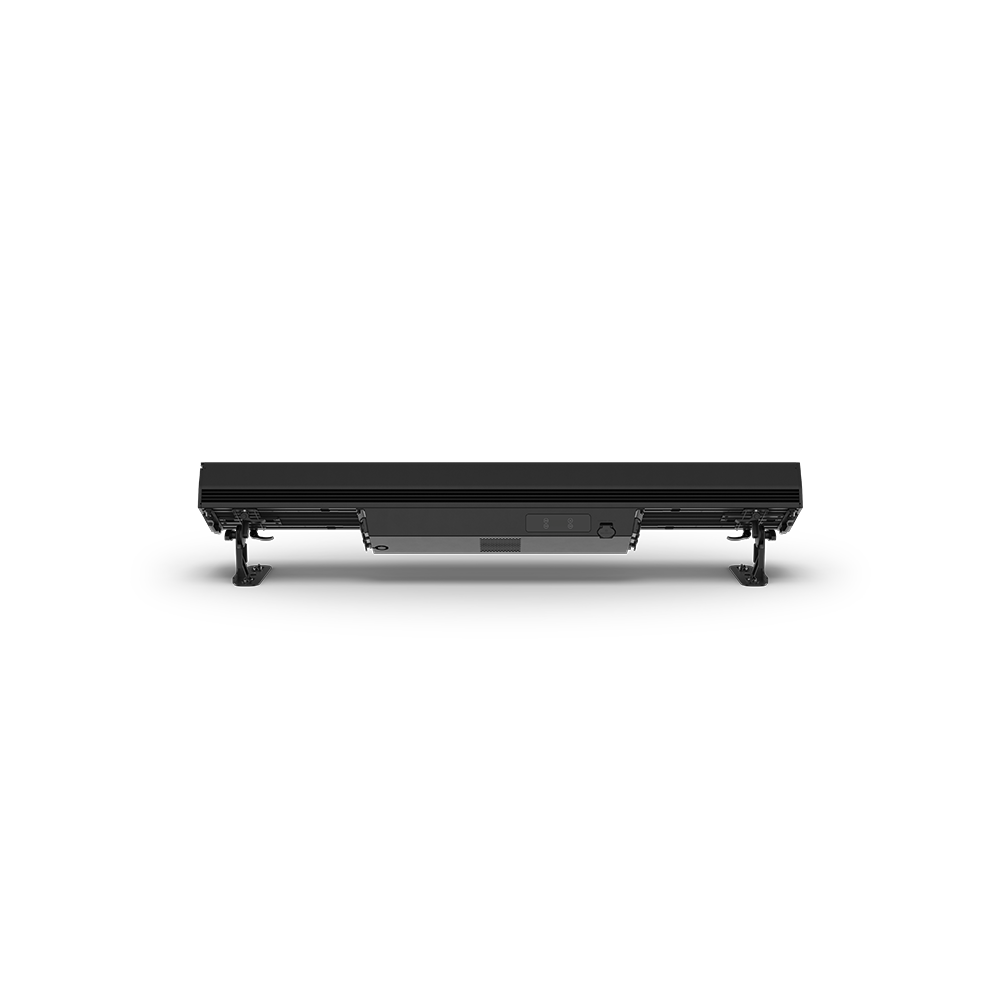

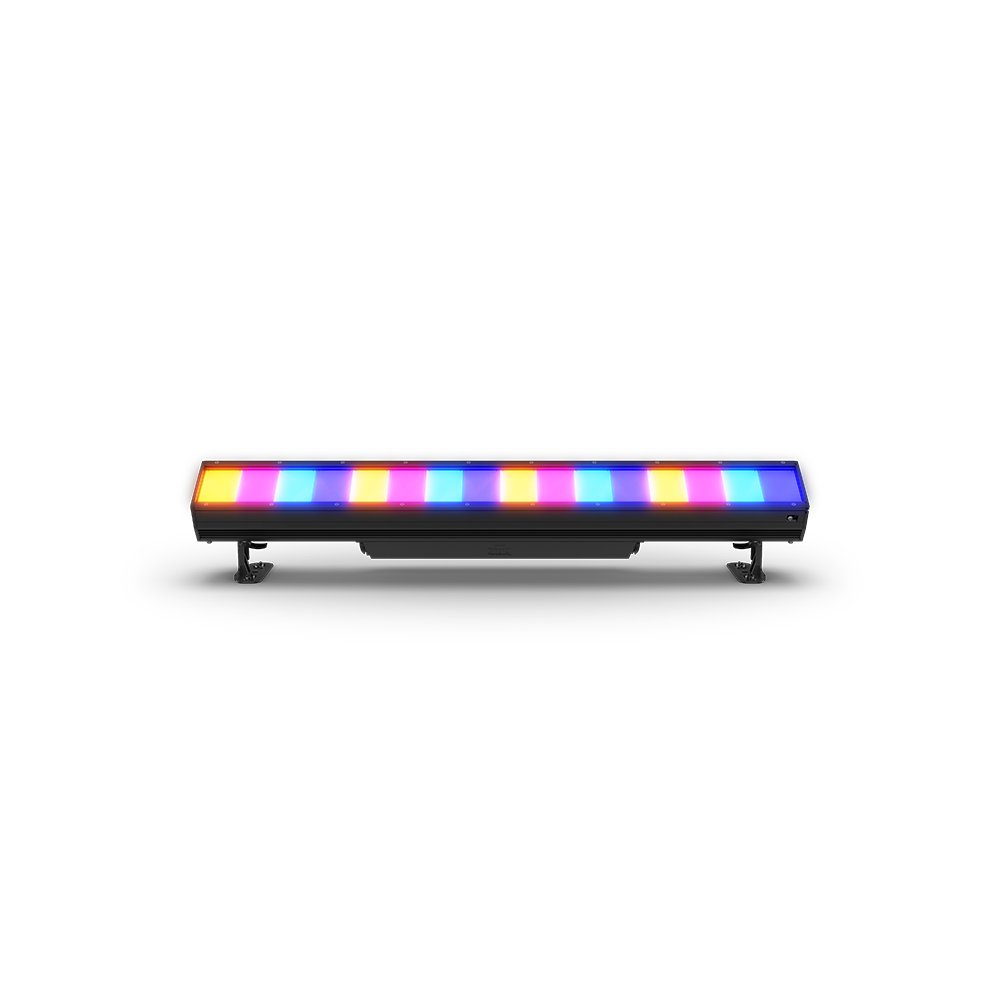

Chauvet Professional – COLORado Solo Bar 4

Chauvet Professional

A versatile, IP65-rated RGBwWL LED batten featuring 16 homogenized cells that produces seamless pixel-mapped looks, a full spectrum of color, and high-quality whites.

Ideal for touring, festivals, theatrical, and televised productions, this fixture provides silent, all-weather, and camera-ready performance for both temporary events and permanent installations.

Features

  • Provides advanced color control with plus/minus green adjustment and emulated red-shift.
  • Features a lightweight, IP65-rated design for all-weather durability in any environment.
  • Supports versatile control options including DMX, RDM, Art-Net, sACN, and CRMX.
  • Operates silently and offers ultra-smooth 18-bit dimming for broadcast and studio use.
  • Includes an integrated filter slot and a stowable glare shield for enhanced beam control.
  • Simplifies setup with adjustable mounting brackets and pins for easy end-to-end alignment.
SKU: COLORADOSOLOBAR4 Categories: , , ,

Description

COLORado Solo Bar 4 is a 16-cell IP65-rated RGBwWL LED batten that produces a full range of color and perfect whites from a fixture offering LDs the flexibility to easily create beautiful whites with RGBwW or take control of all five colors in the full RGBwWL array. COLORado Solo Bar 4 seamlessly combines homogenized squares for phenomenal end-to-end direct-view pixel-mapped looks, with the high output and long throw to perform equally well as a cyc, footlight, or traditional batten down light. Its advanced IP65 design brings lighter weight and all-weather durability together in one fixture at home both on the road and in permanent installations. A selection of beam shaping filters is included to broaden the choice of projection effects. Control is via DMX, ArtNet or sACN. With improved and simplified rigging options, virtually silent operation, and flawless performance live or on camera, COLORado Solo Bar 4 brings new versatility to touring, festivals, televised and theatrical productions.

Features

Versatile LED Batten

A full-spectrum LED batten designed for rental, production, broadcast, film, and special events.

All Weather IP65 Rating

Provides protection from all weather conditions, dust, fog, and haze for both indoor and outdoor use.

High Quality Color Rendering

Features linear color temperature presets from 2800 K to 8000 K with excellent TM-30, CRI, and CQS scores.

Seamless Color Blending

Delivers perfectly blended and even color from edge to edge without any visual inconsistencies.

Advanced Color Control

Offers plus/minus green adjustment and emulated red-shift control directly via DMX or the on-board interface.

Flexible Control Options

Supports a wide range of control methods including on-board DMX, RDM, CRMX, Art-Net, and sACN.

Silent Studio Operation

Operates virtually silently, making it ideal for noise-sensitive studio and broadcast applications.

Adjustable Mounting Brackets

Includes easily adjustable sliding brackets on a standard T-rail for optimal placement on truss.

Simple End to End Alignment

Integrated guide pins ensure quick and easy end-to-end alignment when linking multiple units.

Integrated Filter Slot and Glare Shield

Features a convenient slide-in slot for filters and includes an on-board, stowable glare shield.

Ultra Smooth 18-Bit Dimming

Provides ultra-smooth 18-bit dimming curves and speeds to complement any lighting design.

Video

COLORado Solo Bar Family – Elevate Your Performance | CHAUVET Professional

Seamlessly go from beautiful whites to precise colors. Show amazing eye candy effects, mix smoothly blended colors, and experience excellent color rendering. All from a lightweight IP65-rated fixture created to elevate lighting designs across numerous applications.

What’s Included

  • COLORado Solo Bar 4
  • Seetronic Powerkon IP65
  • Omega brackets with mounting hardware
  • 50/50 Filter, Cyc Filter, Stealth Filter, Clear Protective Filter (Installed)
  • Short Mount Accessory Feet
  • Glare Shield

Additional information

Optical

Light Source: 16 (RGBWwL) LED Engines
Color Temperature (range): 2800 to 8000 K
Color Temperature (at full): 8,810 K
CRI: 95
Beam Angle: 17.4°
Beam Angle (w/CYC Diffusion): 37.9°
Beam Angle (w/Half Diffusion): 18.5°
Beam Angle (w/Stealth Diffusion): 24.8°
Field Angle: 38.8°
Field Angle (w/CYC Diffusion): 81.3°
Field Angle (w/Half Diffusion): 45.7°
Field Angle (w/Stealth Diffusion): 60.9°
Lumens: 17,090
Lumens (w/CYC Diffusion): 14,038
Lumens (w/Half Diffusion): 14,998
Lumens (w/Stealth Diffusion): 5,090
Illuminance: 3,339 lux @ 5 m
Illuminance (w/CYC Diffusion): 911 lux @ 5 m
Iluminance (w/Half Diffusion): 2,380 lux @ 5 m
Iluminance (w/Stealth Diffusion): 501 lux @ 5 m
Selectable PWM: 1,000 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 12,000 Hz, 25,000 Hz
Control

Control Protocol: Art-Net, sACN, DMX, CRMX, RDM
DMX Channels:
1 CELL: CCT 4ch, HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch
2 CELL: CCT 7ch, HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch
4 CELL: CCT 13ch, HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch
8 CELL: CCT 25ch, HSV 25ch, RGB 24ch, RGBW 32ch, RGBWL 40ch, RGBWL-16bit 80ch, RGB Ext. 59ch, RGBW Ext. 67ch, RGBWL Ext. 75ch, RGBWL Full 131ch
16 CELL: CCT 49ch, HSV 49ch, RGB 48ch, RGBW 64ch, RGBWL 80ch, RGBWL-16bit 160ch, RGB Ext. 115ch, RGBW Ext. 131ch, RGBWL Ext. 147ch, RGBWL Full 259ch
Art-Net / sACN Channels:
1 CELL: CCT 4ch, HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch
2 CELL: CCT 7ch, HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch
4 CELL: CCT 13ch, HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch
8 CELL: CCT 25ch, HSV 25ch, RGB 24ch, RGBW 32ch, RGBWL 40ch, RGBWL-16bit 80ch, RGB Ext. 59ch, RGBW Ext. 67ch, RGBWL Ext. 75ch, RGBWL Full 131ch
16 CELL: CCT 49ch, HSV 49ch, RGB 48ch, RGBW 64ch, RGBWL 80ch, RGBWL-16bit 160ch, RGB Ext. 115ch, RGBW Ext. 131ch, RGBWL Ext. 147ch, RGBWL Full 259ch
Modes/Personalities: 52 personalities
Certifications / Qualifications

Certifications: CE, MET, FCC, UKCA
IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
Noise Levels:
Idle: 28.0 dB(A) level @ 1 m
Auto: 27.5 dB(A) level @ 1 m
Full: 37.0 dB(A) level @ 1 m
Silent: 27.1 dB(A) level @ 1 m
Off: 7.1 dB(A) level @ 1 m
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
Construction / Physical

Dimensions: 46.63 x 7.87 x 8.36 in (1184.5 x 200 x 212.4 mm)
Weight: 38.0 lb (17.0 kg)
Exterior Color: Black
Housing Material: Aluminum diecast, aluminum profile
Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR, Seetronic etherCON® compatible
Cable Length (power): 5 ft (1.5 m)
Software Connection: USB
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 3 units @ 100 V; 3 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V, 7 units @ 240 V
Power and Current: 375 W, 3.79 A @ 100 V, 60 Hz
Power and Current: 370 W, 3.11 A @ 120 V, 60 Hz
Power and Current: 363 W, 1.80 A @ 208 V, 60 Hz
Power and Current: 363 W, 1.63 A @ 230 V, 50 Hz
Power and Current: 364 W, 1.57 A @ 240 V, 60 Hz
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
IP Rated Seetronic® Powerkon Extensions
IP Rated DMX cables
UPLOAD 03 software uploader
