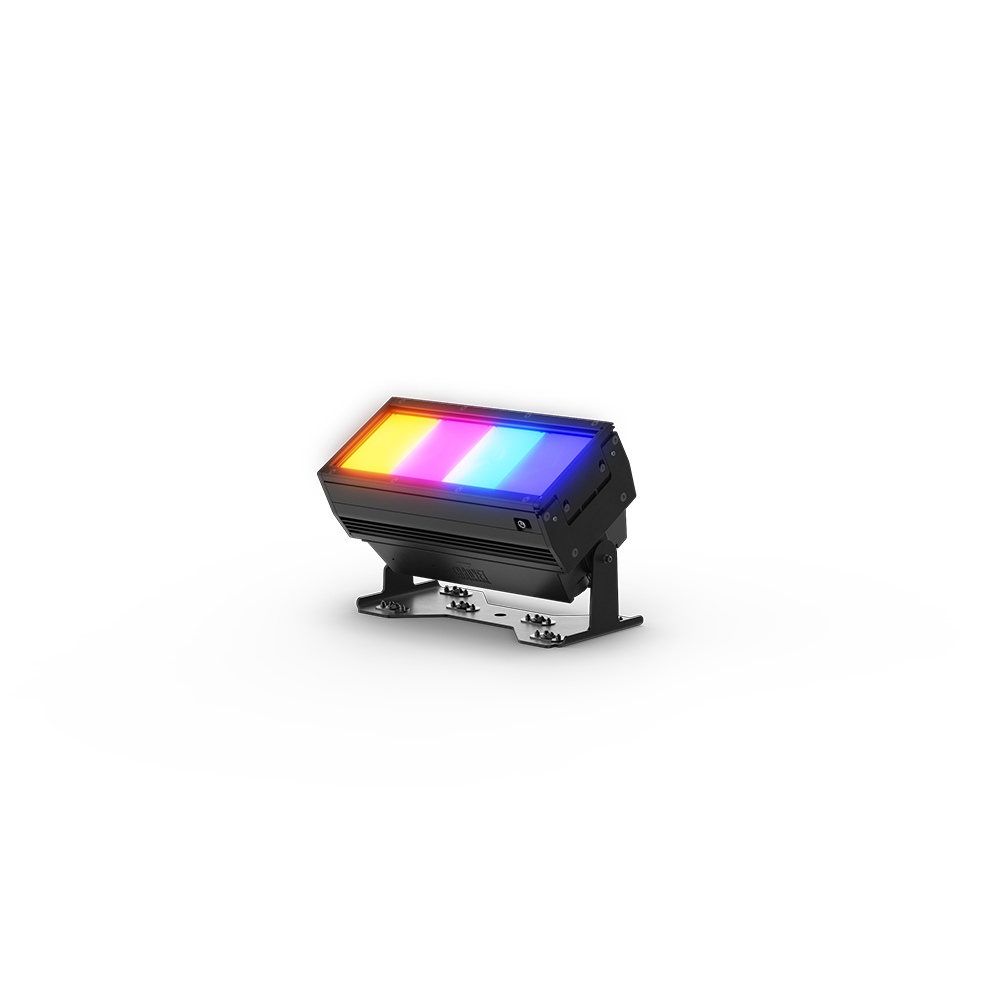

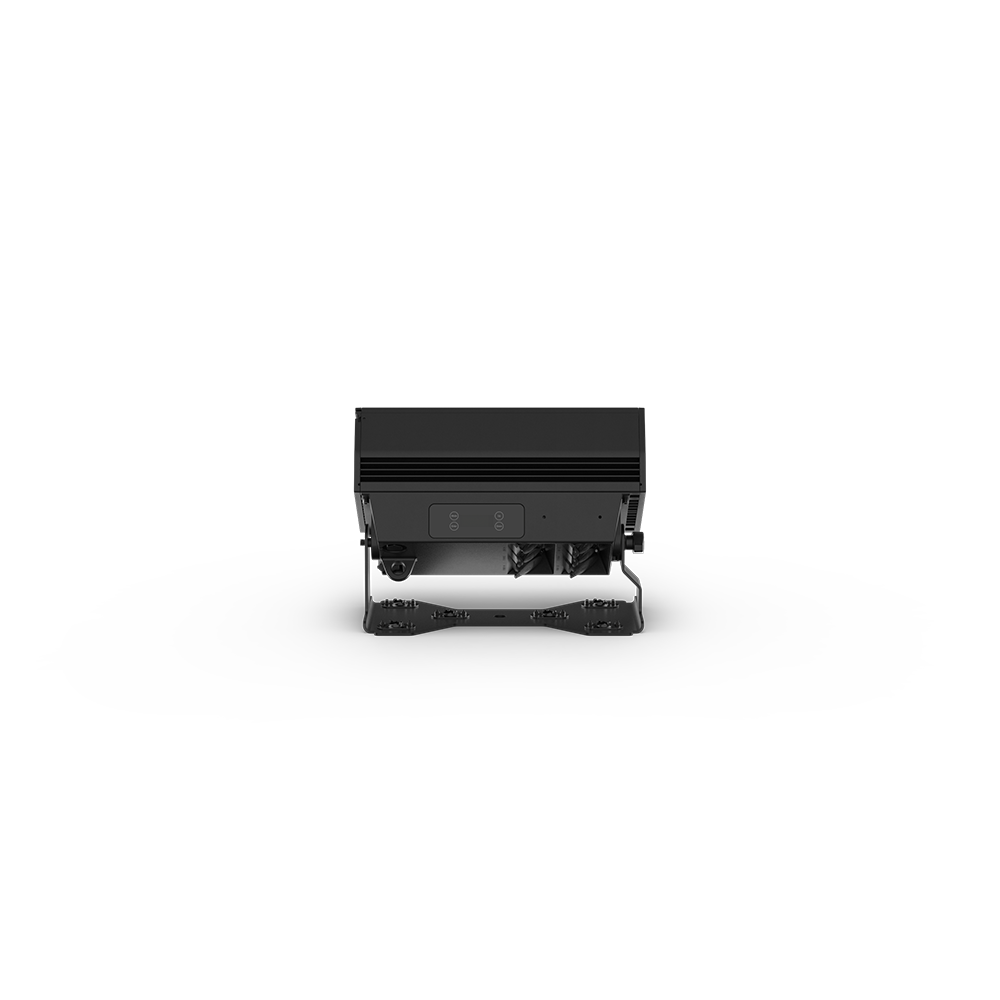

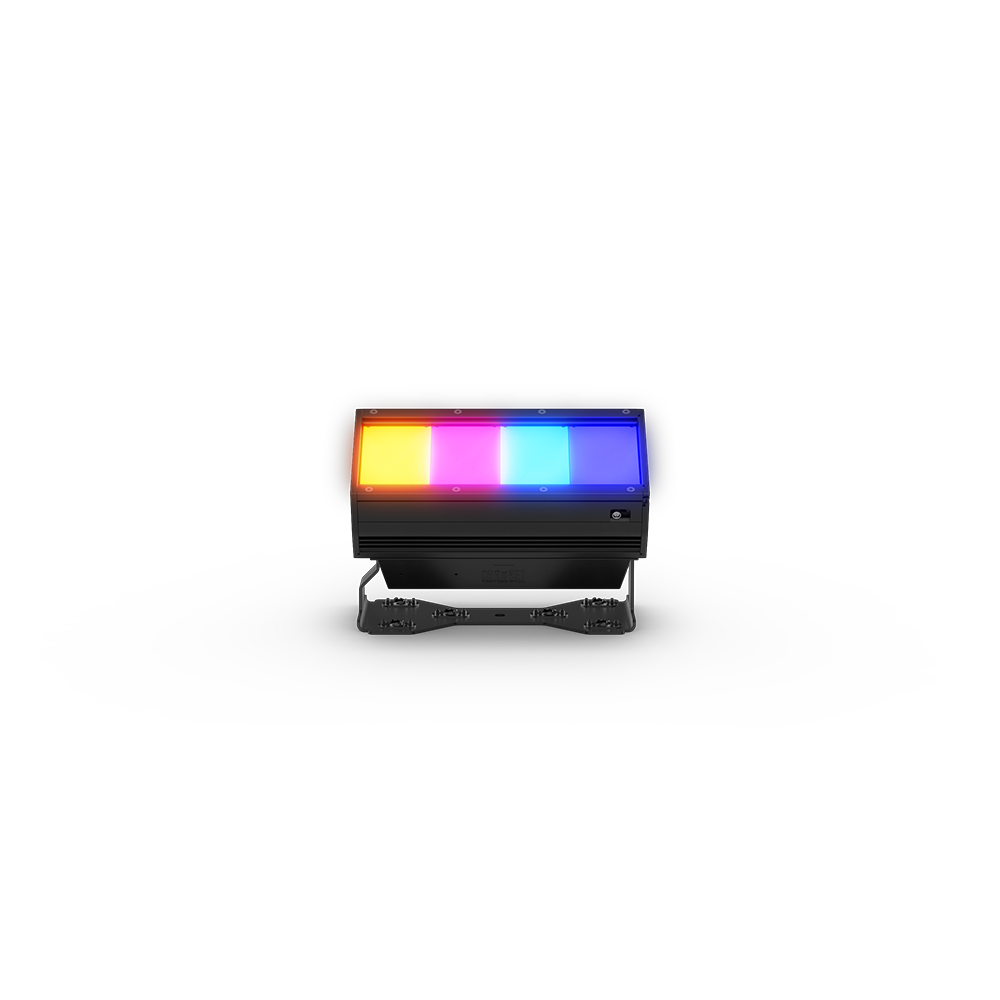

Chauvet Professional – COLORado Solo Bar 1

Chauvet Professional

A versatile, 4-cell IP65-rated RGBwWL LED batten that produces a full spectrum of color, high-quality whites, and seamless pixel-mapped looks for use as a cyc, footlight, or downlight.

Its all-weather durability and silent, camera-friendly operation make it ideal for touring, festivals, broadcast, theatre, and permanent installations.

Features

  • Delivers exceptional color fidelity with a high CRI of 95 and excellent TM-30 values.
  • Provides linear color temperature presets from 2800 K to 8000 K for precise white balancing.
  • Homogenized optics create seamless edge-to-edge color blending without visual artifacts.
  • Offers comprehensive control flexibility with DMX, RDM, CRMX, Art-Net, and sACN protocols.
  • Integrated guide pins and a stowable glare shield simplify rigging and light spill control.
  • Achieve flawless fades with ultra-smooth 18-bit dimming curves and multiple dimming modes.
SKU: COLORADOSOLOBAR1 Categories: , , ,

Description

Powerful member of our award-winning Silens range. 760W 94+ CRI LED source in an uncompromising design that offers the highest quality of light, flawless 16-bit dimming with selectable red shift and dimming curves, precise 4-blade shutter framing, and accurate color rendering. Completely fanless operation makes this totally silent fixture ideal for the most demanding theatre and studio applications. Featuring dual gobo wheels (rotating + static), variable CMY + CTO and a full effects wheelhouse. Control via Art-Net, sACN, DMX, RDM or CRMX.

Features

Versatile LED Batten

This full-spectrum LED batten is perfectly suited for rental, production, broadcast, film, and special events.

All-Weather IP65 Rating

An IP65 rating ensures reliable use in all weather and protects against dust, fog, or haze indoors and out.

High-Quality Color Temperature Control

Access linear color temperature presets from 2800 K to 8000 K with high TM-30, CRI, and CQS values.

Seamless Color Blending

Enjoy perfectly blended and even color from edge to edge, eliminating the common “circle in a square” visual artifact.

Advanced Color Adjustment

Fine-tune your lighting with plus/minus green adjustment and an emulated red-shift, accessible via DMX or on-board controls.

Flexible Control Options

Integrate the fixture into any setup using multiple control methods including on-board DMX, RDM, CRMX, Art-Net, and sACN.

Silent Studio Operation

Its virtually silent operation makes it an ideal choice for noise-sensitive studio and broadcast applications.

Adjustable Mounting Brackets

Easily position the fixture around truss supports using adjustable sliding brackets on a standard T-rail.

Effortless End-to-End Alignment

Integrated guide pins ensure quick and precise end-to-end alignment when connecting multiple units.

Integrated Filter Slot and Glare Shield

A slide-in slot accommodates various filters and an on-board stowable glare shield helps control light spill.

Ultra-Smooth 18-Bit Dimming

Achieve seamless fades with ultra-smooth 18-bit dimming curves and speeds to complement any lighting scheme.

Video

COLORado Solo Bar Family – Elevate Your Performance | CHAUVET Professional

Seamlessly go from beautiful whites to precise colors. Show amazing eye candy effects, mix smoothly blended colors, and experience excellent color rendering. All from a lightweight IP65-rated fixture created to elevate lighting designs across numerous applications.

What’s Included

  • COLORado Solo Bar 1
  • Seetronic Powerkon IP65
  • Omega brackets with mounting hardware
  • 50/50 Filter, Cyc Filter, Stealth Filter, Clear Protective Filter (Installed)
  • Glare Shield

Additional information

Optical

Light Source: 4 (RGBWwL) LED Engines
Color Temperature (range): 2800 to 8000 K
Color Temperature (at full): 9056 K
CRI: 95
Beam Angle: 16.5°
Beam Angle:
(w/CYC Diffusion): 27.3°
(w/Half Diffusion): 17.7°
(w/Stealth Diffusion): 25.3°
Field Angle: 33.4°
Field Angle:
(w/CYC Diffusion): 74.3°
(w/Half Diffusion): 43.7°
(w/Stealth Diffusion): 59.7°
Lumens: 4,285
Lumens (w/CYC Diffusion): 3,795
Lumens (w/Half Diffusion): 4,372
Lumens (w/Stealth Diffusion): 1,257
Illuminance: 874 lux @ 5 m
Illuminance (w/CYC Diffusion): 276 lux @ 5 m
Iluminance (w/Half Diffusion): 595 lux @ 5 m
Selectable PWM: 1,000 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 12,000 Hz, 25,000 Hz
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 110 W, 1.12 A @ 100 V, 60 Hz
Power and Current: 108 W, 0.93 A @ 120 V, 60 Hz
Power and Current: 106 W, 0.59 A @ 208 V, 60 Hz
Power and Current: 105 W, 0.48 A @ 230 V, 50 Hz
Power and Current: 107 W, 0.46 A @ 240 V, 60 Hz
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
IP Rated Seetronic® Powerkon Extensions
UPLOAD 03 software uploader
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
Construction / Physical

Dimensions: 12.13 x 6.30 x 8.36 in (308 x 160 x 212.4 mm)
Weight: 13.1 lb (6.1 kg)
Exterior Color: Black
Housing Material: Aluminum diecast, aluminum profile
Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR, Seetronic etherCON® compatible
Software Connection: USB
Control

Control Protocol: Art-Net, sACN, DMX, CRMX, RDM
DMX Channels:
1 CELL: CCT 4ch,HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch
2 CELL: CCT 7ch,HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch
4 CELL: CCT 13ch,HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch
Art-Net / sACN Channels:
1 CELL: CCT 4ch,HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch
2 CELL: CCT 7ch,HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch
4 CELL: CCT 13ch,HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch
Modes/Personalities: 32 personalities
Certifications / Qualifications

CE, MET, FCC, UKCA
IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
