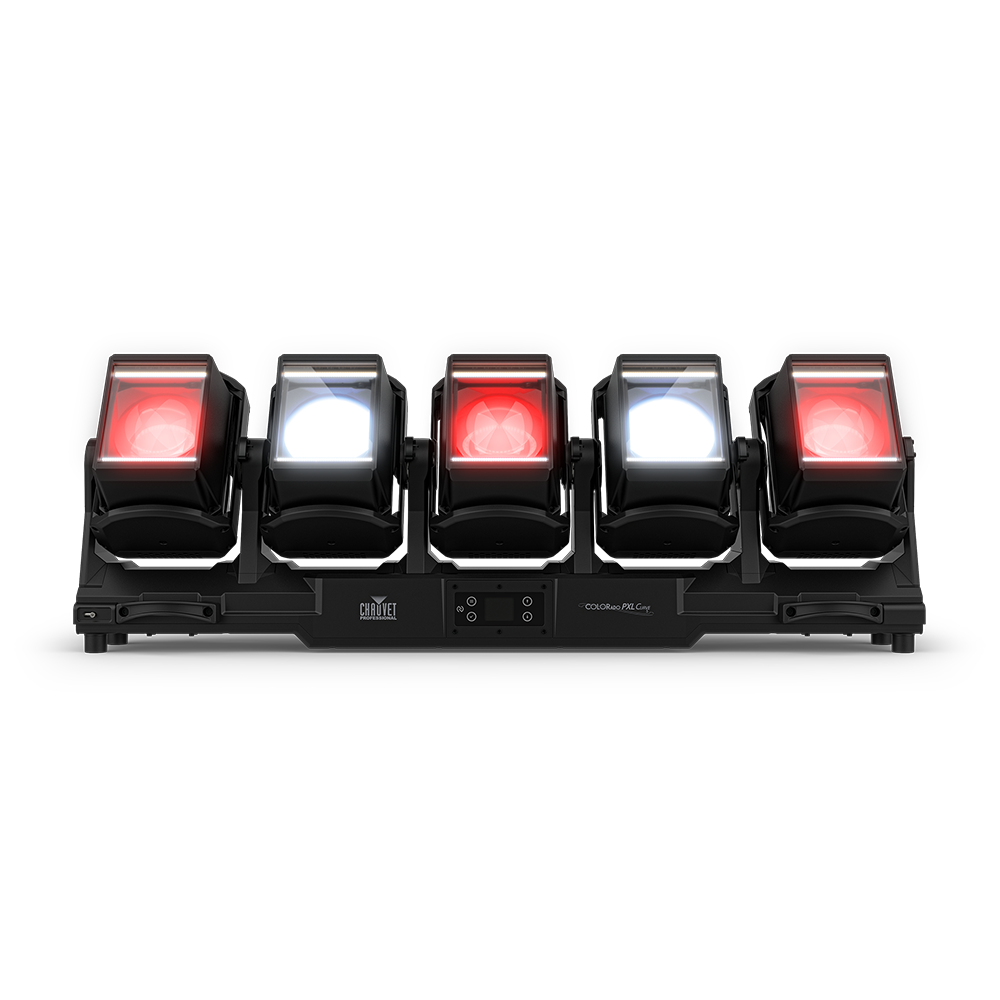

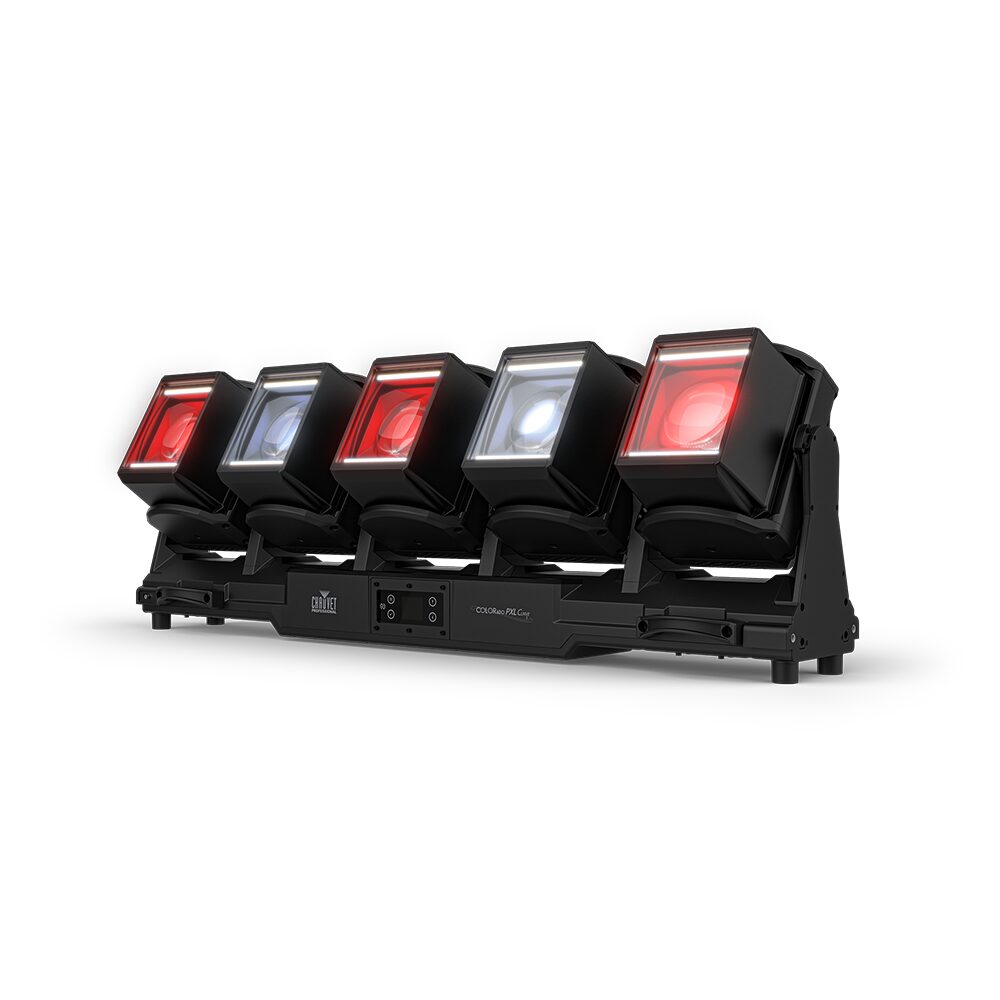

Chauvet Professional - COLORado PXL Curve 5 Front left of five connected moving headsChauvet Professional - COLORado PXL Curve 5 Front left of five connected moving heads

Chauvet Professional – COLORado PXL Curve 5

Chauvet Professional

An IP65-rated RGBW arrayable batten featuring five independent motorized heads with zoom, pan, and tilt, plus dual linear cool and warm white strobes per head for dynamic effects.

Optimized for seamless side-by-side mounting, alignment pins keep spacing consistent across linked fixtures for cohesive looks on touring stages, theatrical productions, and temporary outdoor events.

Features

  • Fully featured IP65 rated Bar style fixture with (5) heads, each consisting of single (120W) RGBW LEDs, and two linear four cell CW and WW Strobe LEDs
  • Wash and beam fixtures with pan and tilt functionality and the ability to maintain pixel pitch when using multiple fixtures together
  • Quick and quiet operation of 200° of tilt and 60° of pan per head
  • 8 section control of Warm White and Cool White strobe cells per head
  • DMX, SACN, and Art-Net control for full flexibility
  • RDM and NFC Enabled for remote addressing and trouble shooting
  • IP65-rated 5-pin DMX and TCP/IP input and output ports
  • NFC functionality (COMING SOON)
  • Software update over Bluetooth (COMING SOON)
  • Slotted Omega bracket for easy hanging on truss
SKU: COLORADOPXLCURVE5 Categories: , , , ,

Description

COLORado PXL Curve 5 features motorized pan, tilt and zoom in an IP65-rated LED batten form factor with five RGBW beam/wash heads that bring the added punch of dual linear cool and warm white LED strobe cells. Designed for seamless pixel mapping with COLORado PXL Curve 1, its color blending and rectangular heads perfectly match other COLORado PXL models in the rig. Flexible DMX, sACN, and Art-Net control along with RDM and NFC support round out this versatile addition to the COLORado PXL family.

Features

Individual Pixel Control

Five independently controlled RGBW pixels empower you to create intricate pixel-mapped effects, animated graphics, and vibrant, multi-layered color washes.

All Weather Reliability

A rugged, IP65-rated housing protects against water and dust, ensuring consistent, reliable performance for outdoor concerts, festivals, and permanent installations.

Powerful Moving Wash

Delivers smooth, fast pan and tilt movement combined with a powerful wash output, perfect for covering large areas with rich, saturated color.

What’s Included

  • COLORADO PXL Curve 5
  • Seetronic Powercon IP65 power cord
  • (2) Omega Brackets

Additional information

Weight 32.4 kg
Optical

Light Source: 5 LEDs (RGBW) 120 W, (4.5A) 50,000 hours life expectancy
Color Temperature (range): 3200 to 7500 K
Beam Angle:
Spot: 8.3°
Flood: 30.4°
50% Zoom: 14.7°
Field Angle:
Spot: 10.3°
Flood: 115.8°
50% Zoom: 24.1°
Cutoff Angle:
Spot: 10.7°
Flood: 155.1°
50% Zoom: 132.2°
Zoom Range: 8.3° to 155.1°
Lumens: 42,172 lm
Illuminance:
Spot: 18,062 lux @ 5 m
Flood: 2,166 lux @ 5 m
Selectable PWM: 600, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz
Control

Control Protocol: Art-Net, sACN, DMX, RDM
DMX Channels: 120 ch, 155 ch, 195 ch,355 ch
Art-Net Channels: 120 ch, 155 ch, 195 ch,355 ch
sACN Channels: 120 ch, 155 ch, 195 ch,355 ch
Modes/Personalities: 4 personalities: 120 ch, 155 ch, 195 ch,355 ch
Certifications/Qualifications

CE, MET, UKCA, FCC
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
Dynamic Effects

Pant and Tilt: 60°/200°
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 25Hz
Standalone Color Mixing: No
Color Temperature Presets: Yes
Dim Modes: 2
Built-in Automated Programs: Yes
Construction/Physical

Dimensions: 39.33 x 8.86 x 13.50 in (999 x 225 x 343 mm)
Weight: 71.4 lb (32.4 kg)
Exterior Color: Black
Housing Material: Aluminum diecast, High-Impact flame-retardant polymer, Steel
Connections

Power Connection: Edison (Local) plug to Seetronic Powercon IP65
Power Input: Seetronic Powercon IP65
Power Output: Seetronic Powercon IP65
Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
Cable Length (power): 5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: ; 1 units @ 120 V; 2 units @ 208 V; 2 units @ 230 V
Power and Current: 1136 W, 9.49 A @ 120 V, 60 Hz
Power and Current: 1105 W, 5.44 A @ 208 V, 60 Hz
Power and Current: 1113 W, 4.87 A @ 230 V, 50 Hz
Compatible Accessories

CTC-50HC – Clamp
CTC-50HCN – Narrow Clamp
CTC-SLC – Lightweight Clamp
CTC-50G – Trigger Clamp
SC08 – Safety Cable
RIGLINKTR1 – Powerkon IP65
RIGLINK powerKON cables
RIGLINK etherKON cables
RIGLINKDMX – DMX 5 Pin
RIGLINKCOMBO – IP65 Power and DMX
POWERSTREAM4IP – Power distribution
CPRACK

Downloads

Data Sheet Download
User Guide Download
