Chauvet Professional - COLORado PXL Curve 1 Front right of beam wash strobe fixtureChauvet Professional - COLORado PXL Curve 1 Front right of beam wash strobe fixture

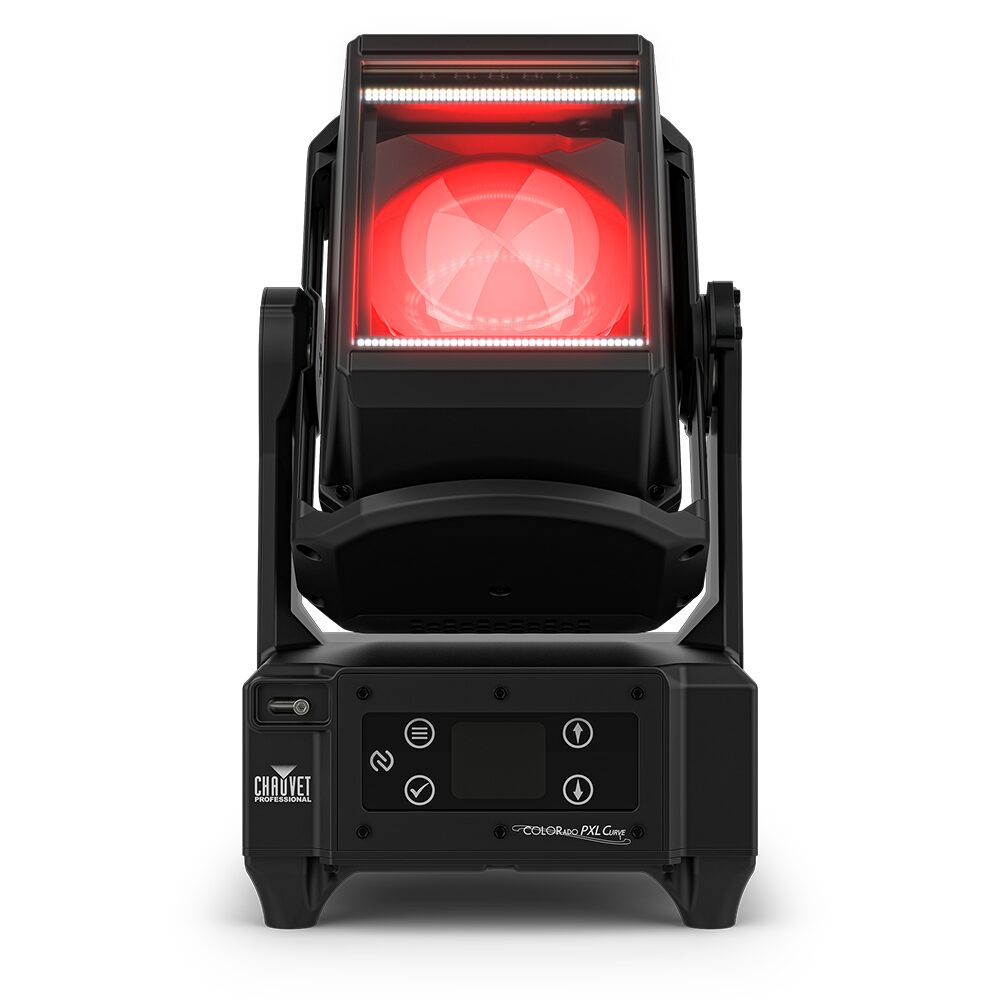

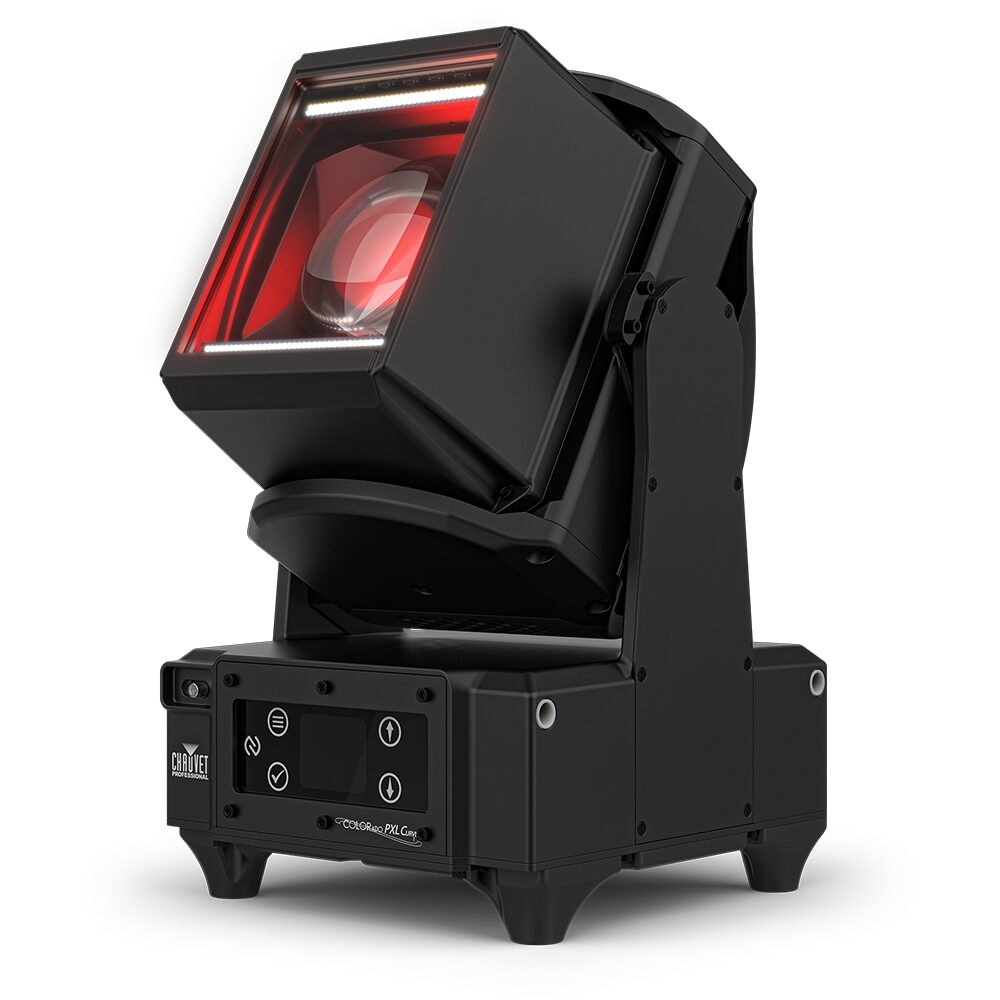

Chauvet Professional – COLORado PXL Curve 1

Chauvet Professional

A compact, IP65-rated RGBW arrayable batten featuring motorized pan, tilt, and zoom, plus a powerful dual linear cool and warm white strobe for dynamic effects.

Optimized for side-by-side pixel mapping, alignment pins maintain consistent spacing as uniform color blending ties large arrays together visually.

Features

  • Fully featured IP65 rated with single (120W) RGBW LED and two linear four cell CW and WW Strobe LEDs wash and beam fixture with pan and tilt functionality with the ability to maintain pixel pitch when using multiple fixtures together
  • Quick and quiet operation of 200° of tilt and 60° of pan
  • 8 section control of Warm White and Cool White strobe cells.
  • Lightweight and compact makes fixtures easily rigged together in any environment
  • DMX, SACN, and Art-Net, control for full flexibility
  • RDM and NFC Enabled for remote addressing and trouble shooting
  • IP65-rated 5 pin DMX and TCP/IP input/output ports
  • Slotted Omega bracket for easy hanging on truss
SKU: COLORADOPXLCURVE1 Categories: , , , ,

Description

COLORado PXL Curve 1 features motorized pan, tilt and zoom in a compact IP65-rated RGBW LED beam and wash fixture that brings the added punch of dual linear cool and warm white LED strobe cells. Designed for seamless pixel mapping with multiple fixtures, alignment pins maintain pixel pitch while its color blending and rectangular head perfectly match other COLORado PXL models in the rig. Flexible DMX, sACN, and Art-Net control along with RDM and NFC support round out this versatile addition to the COLORado PXL family.

Features

All Weather Creative Power

An IP65-rated RGBW wash, beam, and dual strobe delivers versatile effects with pan and tilt functionality for any indoor or outdoor environment.

Precise Articulation

Achieve quick and quiet positioning with 60° of pan and 190° of tilt, perfect for creating dynamic, articulating arrays and animated looks.

Advanced Strobe Control

Command eight independent sections of the warm and cool white strobe cells to generate unique pixel-mapped chases and other dynamic visual effects.

Compact And Lightweight Design

A compact and lightweight body allows for faster rigging and enables the creation of large, seamless arrays without excessive weight on your structure.

Flexible Control Options

Integrate seamlessly into any professional lighting system using your choice of DMX, sACN, or Art-Net for maximum control protocol flexibility.

Simplified Fixture Management

Use RDM for remote addressing and monitoring, or tap the fixture with your phone using NFC to configure settings without applying power.

Weatherproof Connections

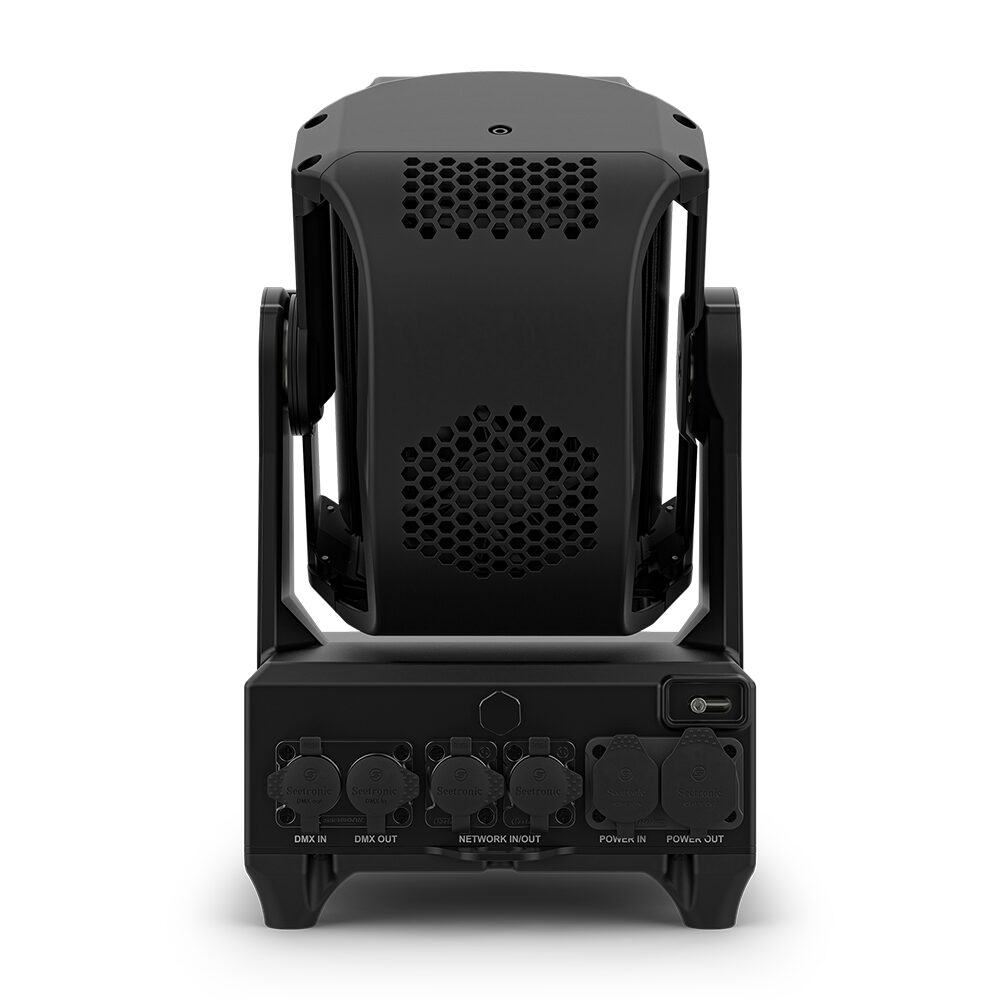

Maintain signal integrity in any weather with IP65-rated 5-pin DMX and TCP/IP connections for secure input and output linking.

Fast And Secure Rigging

Mount fixtures quickly and securely in any orientation with the included slotted Omega bracket, designed for effortless truss installation.

What’s Included

  • COLORado PXL CURVE 1
  • Power Cord – Edison to PowerKon IP
  • Omega bracket with mounting hardware

Video

Light Snacks: COLORado PXL Curve 1 Dynamic Strobe Effects

Built to stand apart, this singular fixture introduces dual warm white and cool white strobe tubes that give designers full control over intensity, tone, and timing. From subtle fades to high-impact bursts, transitions between warm and cool are seamless and expressive.

Additional information

Optical

Light Source(s):
Light Source (Cell): 1 LEDs (quad-color RGBW) 120 W, (5 A), 50,000 hours life expectancy
Light Source (Strobe/Blinder): 160 SMD-LEDs (80 CW, 80 WW), 50,000 hours life expectancy
Color Temperature (at full): 22,089 K
Beam Angle(s):
Beam Angle (without strobe): 3.4 – 30.2°
Beam Angle (with strobe): 3.4 – 32.1°
Field Angle(s):
Field Angle (without strobe): 4.4 – 38.7°
Field Angle (with strobe): 4.3 – 66.3°
Cutoff Angle(s):
Cutoff Angle (without strobe): 4.7 – 40.8°
Cutoff Angle (with strobe): 4.6 – 144.3°
Zoom Range(s):
Zoom Range (without strobe): 3.4 – 40.8°
Zoom Range (with strobe): 3.4 – 144.3°
Lumens:
Lumens (without strobe): 1,558
Lumens (with strobe): 4,630
Illuminance without strobe (3.4°): 14,009 lux @ 5 m
Dynamic Effects

Pan and Tilt: 60°/190°
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized/Manual
Strobe Rate: 0 to 25 Hz
Color Temperature Presets: Yes
Move-in-Black: Yes
Dim Modes: 2
Dim Curves: 4
Construction/Physical

Dimensions: 7.83 x 8.46 x 12.99 in (199 x 215 x 330 mm)
Weight: 15 lb (6.8 kg)
Connections

Power Input: Seetronic Powerkon
Power Output: Seetronic Powerkon
Data Connectors: 5-pin IP65 XLR, etherCON
Cable Length (power): 5 ft (1.5 m)
Control

Control Protocol: [Art-Net, sACN, DMX, RDM, NFC]
DMX Channels: 24 or 45
Art-Net Channels: 24 or 45
Modes/Personalities: 2 personalities (24, 45)

Downloads

Data Sheet Download
User Guide Download
