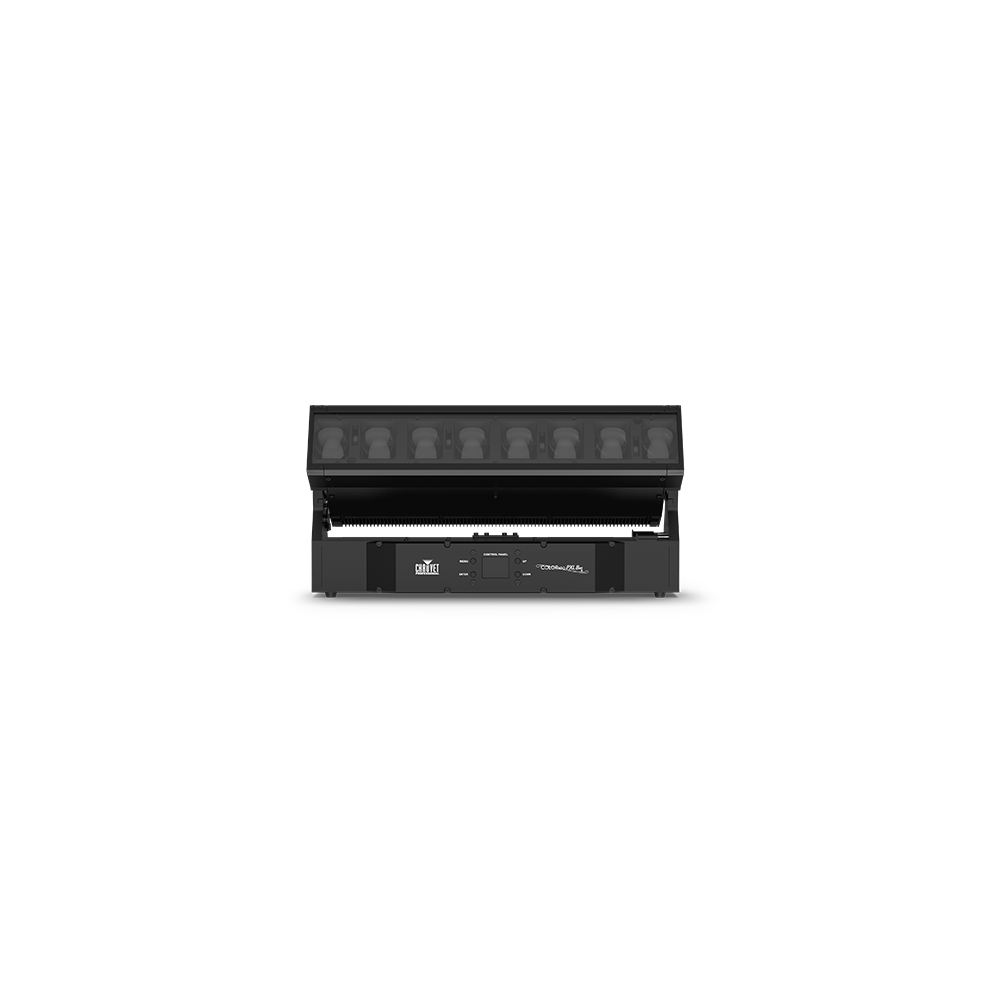

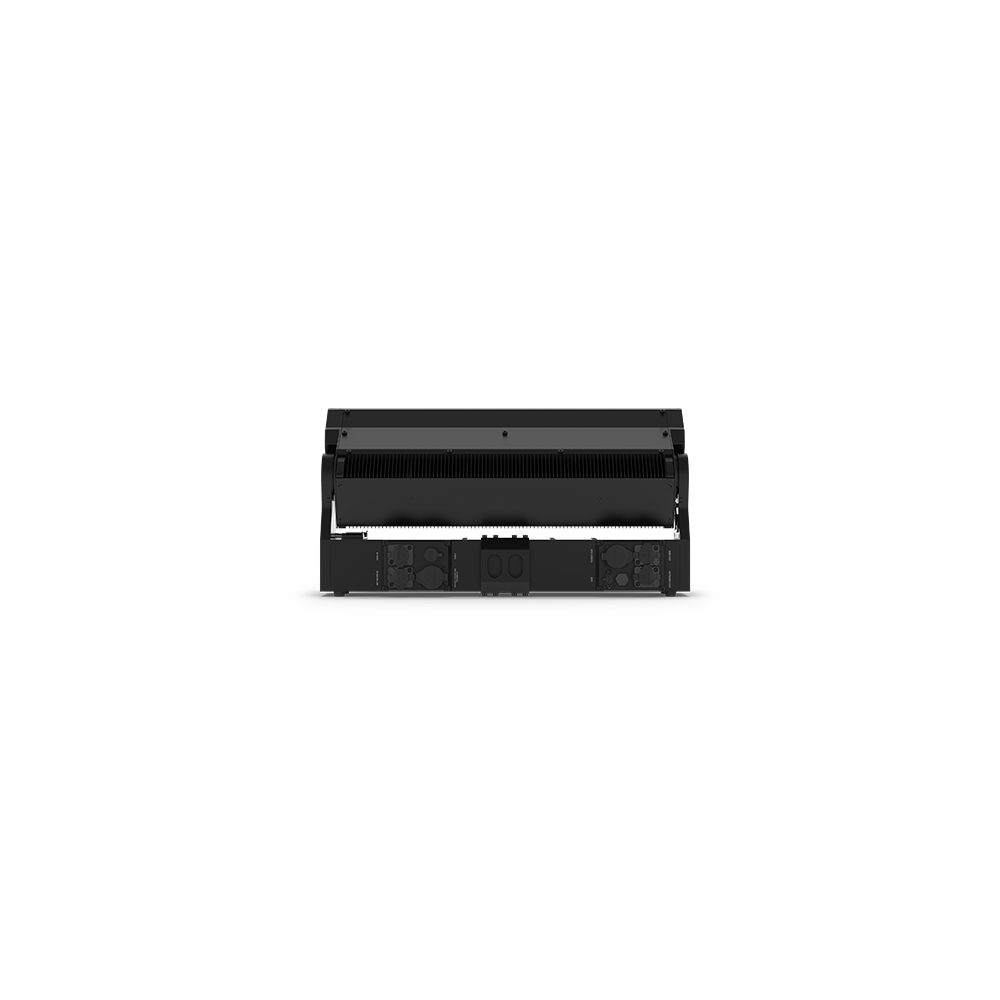

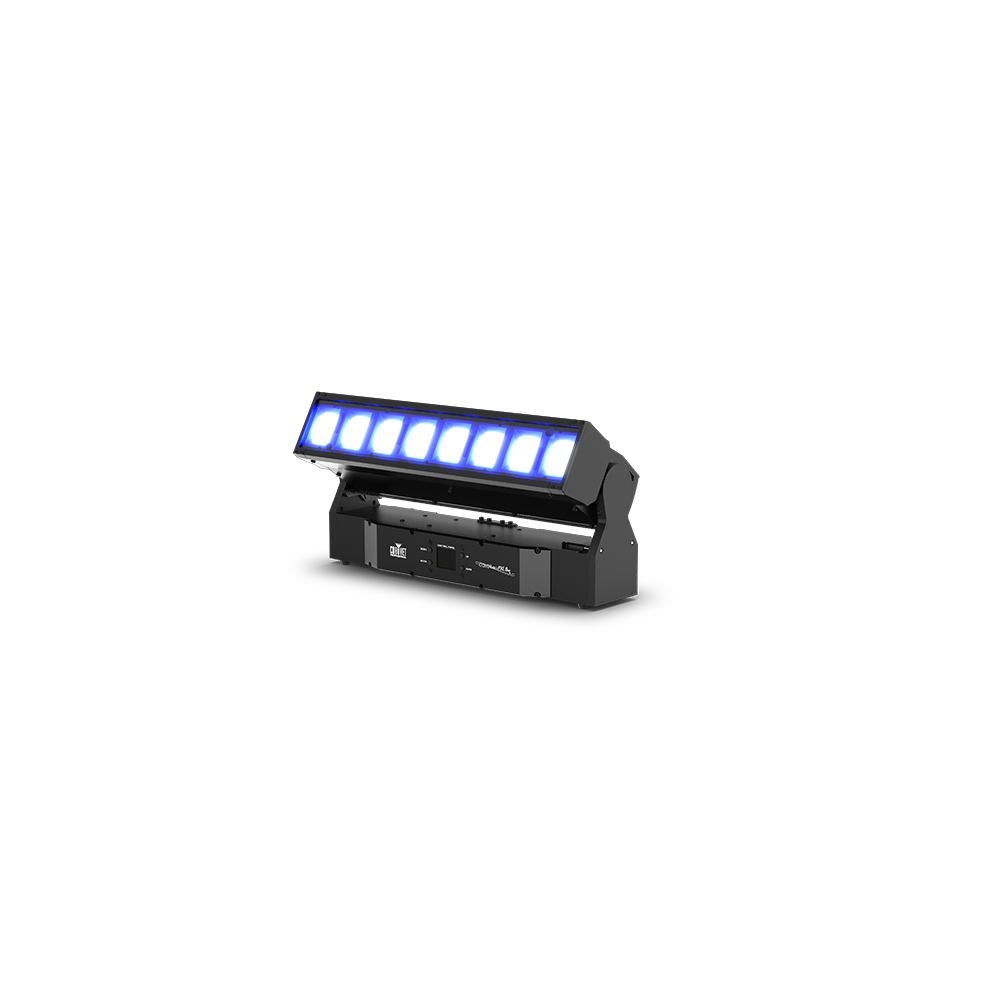

Chauvet Professional – COLORado PXL Bar 8

Chauvet Professional

A motorized, outdoor-ready tilting batten that features zoom control for creating versatile, pixel-mappable looks with advanced color and movement macro effects.

Designed for flexible use in touring, festival, and event applications, this fixture can be quickly hung on truss or positioned on the ground for a variety of lighting angles.

Features

  • Features eight powerful 45W RGBW LEDs for intense, vibrant color mixing and effects.
  • Offers a versatile motorized zoom range from a tight 3.5° beam to a wide 42.7° wash.
  • Provides fast and quiet 200° motorized tilt for dynamic sweeping and positioning effects.
  • Allows seamless edge-to-edge mounting to create uniform, gapless linear arrays.
  • Built with an IP65-rated housing and connections for reliable performance in any weather.
  • Supports DMX, Art-Net, sACN, and Kling-Net protocols for flexible system integration.
SKU: COLORADOPXLBAR8 Categories: , , ,

Description

COLORado PXL Bar 8 is a motorized, outdoor-ready tilting batten with capabilities to zoom for tight and wide pixel-mappable looks. This bright, moving pixel bar also features seamless edge-to-edge mounting and includes virtual gobo and movement macros with separate foreground and background color control for more design options than ever before. Slotted Omega brackets make it quick and easy to hang the fixture on truss. The COLORado PXL Bar 8 can also be positioned on the ground, which allows for a variety of different light angles. The power is in your hands and the possibilities are endless!

Features

Powerful 45W RGBW LEDs

Features eight powerful 45W RGBW LEDs for intense, vibrant color mixing and effects.

Versatile Motorized Zoom

Offers a versatile motorized zoom range from a tight 3.5° beam to a wide 42.7° wash.

Fast and Quiet Motorized Tilt

Provides fast and quiet 200° motorized tilt for dynamic sweeping and positioning effects.

Seamless Array Mounting

Allows seamless edge-to-edge mounting to create uniform, gapless linear arrays.

IP65 Weatherproof Design

Built with an IP65-rated housing and connections for reliable performance in any weather.

Flexible Control Protocols

Supports DMX, Art-Net, sACN, and Kling-Net protocols for flexible system integration.

Video

COLORado PXL Bar 8 & 16 by Chauvet Professional

Meet the rugged, outdoor-rated and motorized LED wash lights that match any mood. Tight, bold bars of saturated color swing to expansive Lucious pixel mappable looks in seconds.

What’s Included

  • COLORado PXL Bar 8
  • Seetronic Powerkon IP65 power cable to bare end
  • 1 Omega bracket with mounting hardware

Additional information

Optical

Light Source: 8 LEDs (quad-color RGBW) 45 W, (3.0 A),50,000 hours life expectancy.
Color Temperature: 6121 K (calibrated white)
CRI: 64
Beam Angle: 3.5° to 30.8°
Beam Angle single cell: 4° to 29.9°
Field Angle: 5.2° to 42.7°
Field Angle single cell: 5.4° to 42.3°
Cutoff Angle: 8.5° to 47.3°
Cutoff Angle single cell: 6.1° to 45.5°
Zoom Range: 3.6° to 47.3°
Zoom Range single cell: 4° to 45.5°
Lumens: 3,503
Illuminance:
3.6°: 12,109 lux @ 5 m
47.3°: 563 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Control

Control Protocol: Art-Net, Kling-Net, DMX, sACN, RDM
DMX Channels: (Single Mode) 19, 51, 89 or 105, (Dual Mode LED) 24,32,64, (Dual Mode Movement) 25,19,7)
Art-Net Channels: (Single Mode) 19, 51, 89 or 105, (Dual Mode LED) 24,32,64, (Dual Mode Movement) 25,19,7)
Modes/Personalities: 10 personalities (Single Mode) 19, 51, 89 or 105, (Dual Mode LED) 24,32,64, (Dual Mode Movement) 25,19,7)
Certifications / Qualifications

Certifications: CE, MET, FCC
IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories

Neutrik powerCONC cables
Neutrik etherCON cables
DMX cables
Upload_08 software uploader
Road Case
Dynamic Effects

Tilt: 200°
Tilt Ranges: 60°, 180°, 200° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Dim Modes: 2
Dim Curves: 4
Construction / Physical

Dimensions: 19.69 x 5.47 x 10.75 in (500 x 139 x 273 mm)
Weight: 25.2 lb (11.5 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer
Connections

Power Connection: Bare end to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP rated, Seetronic IP rated RJ45 connectors in/out: Cable Length (power)
5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 3 units @ 120 V, 5 units @ 208 V, 6 units @ 230 V
Power and Current: 422 W, 3.497 A @ 120 V, 60 Hz
Power and Current: 409 W, 2.013 A @ 208 V, 60 Hz
Power and Current: 407 W, 1.830 A @ 230 V, 50 Hz
