Chauvet Professional – COLORado PXL Bar 16

Chauvet Professional

Motorised, outdoor-ready batten featuring virtual gobo and movement macros with separate foreground and background colour control.

SKU: COLORADOPXLBAR16 Categories: , ,

Description

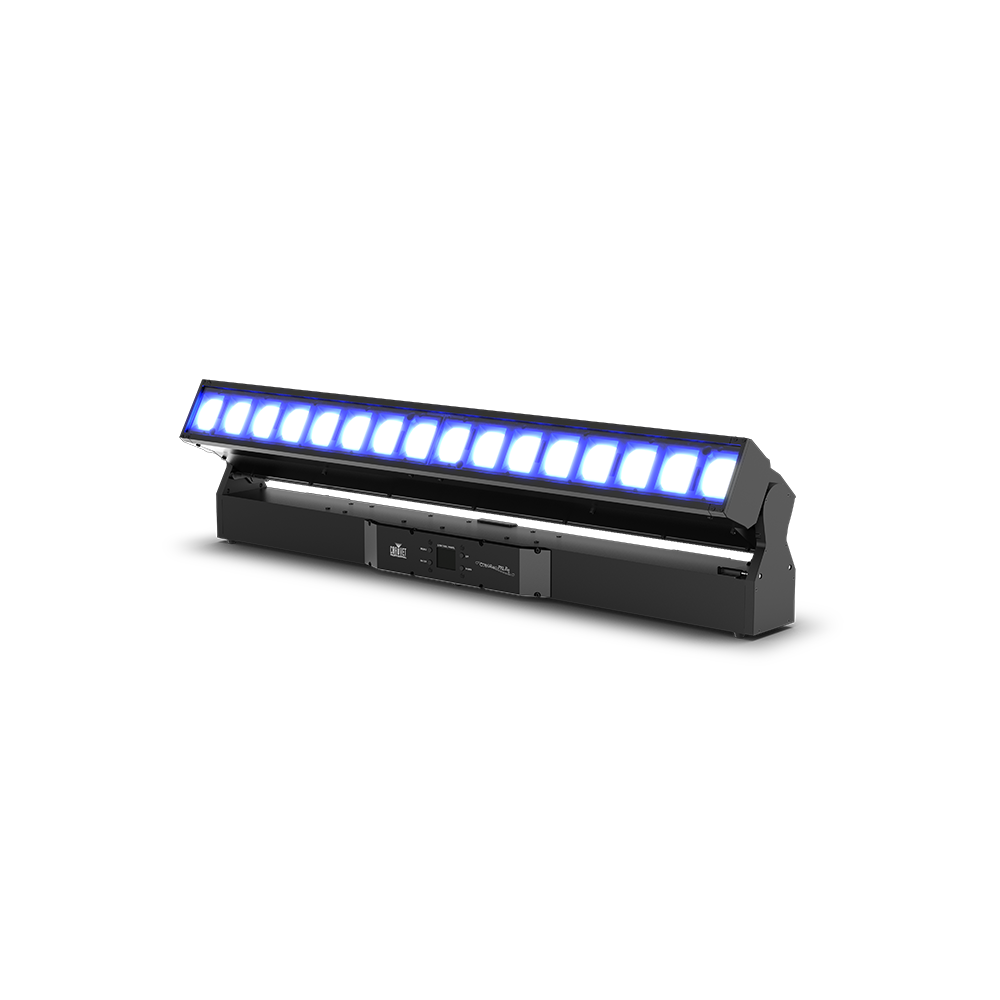

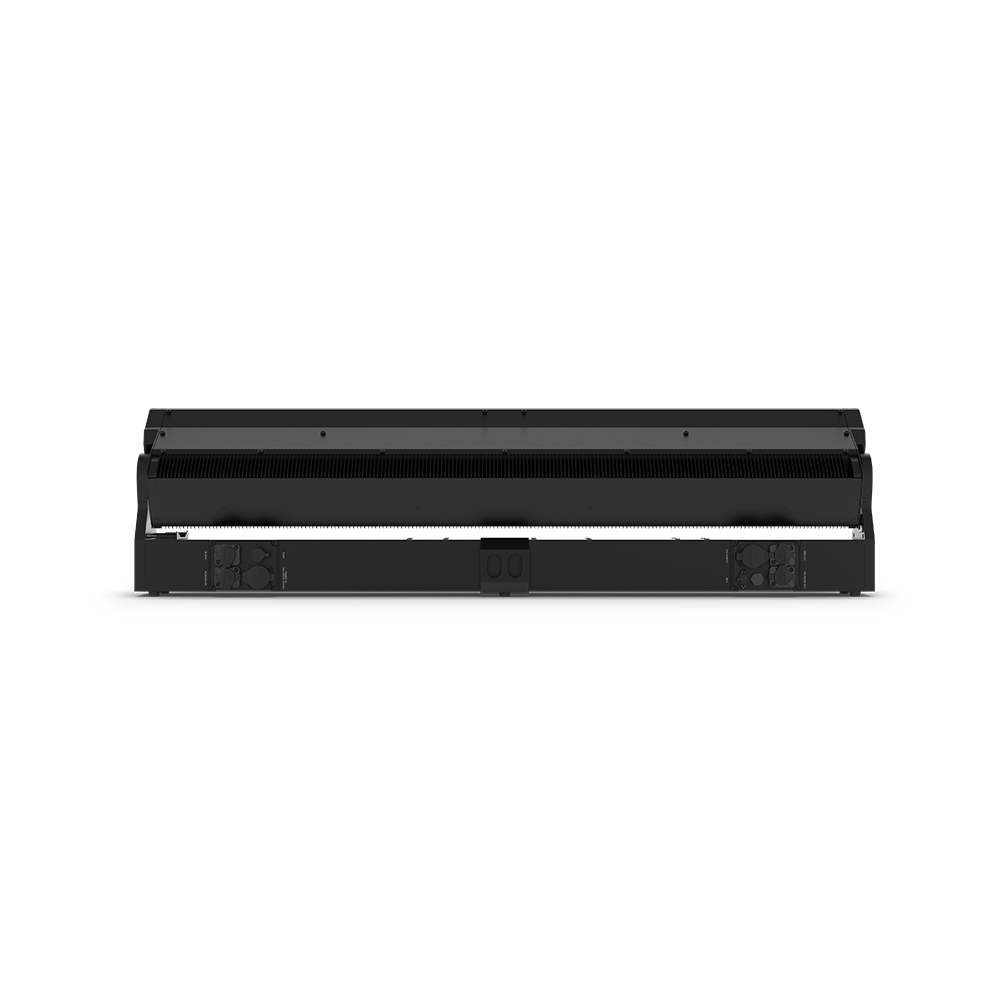

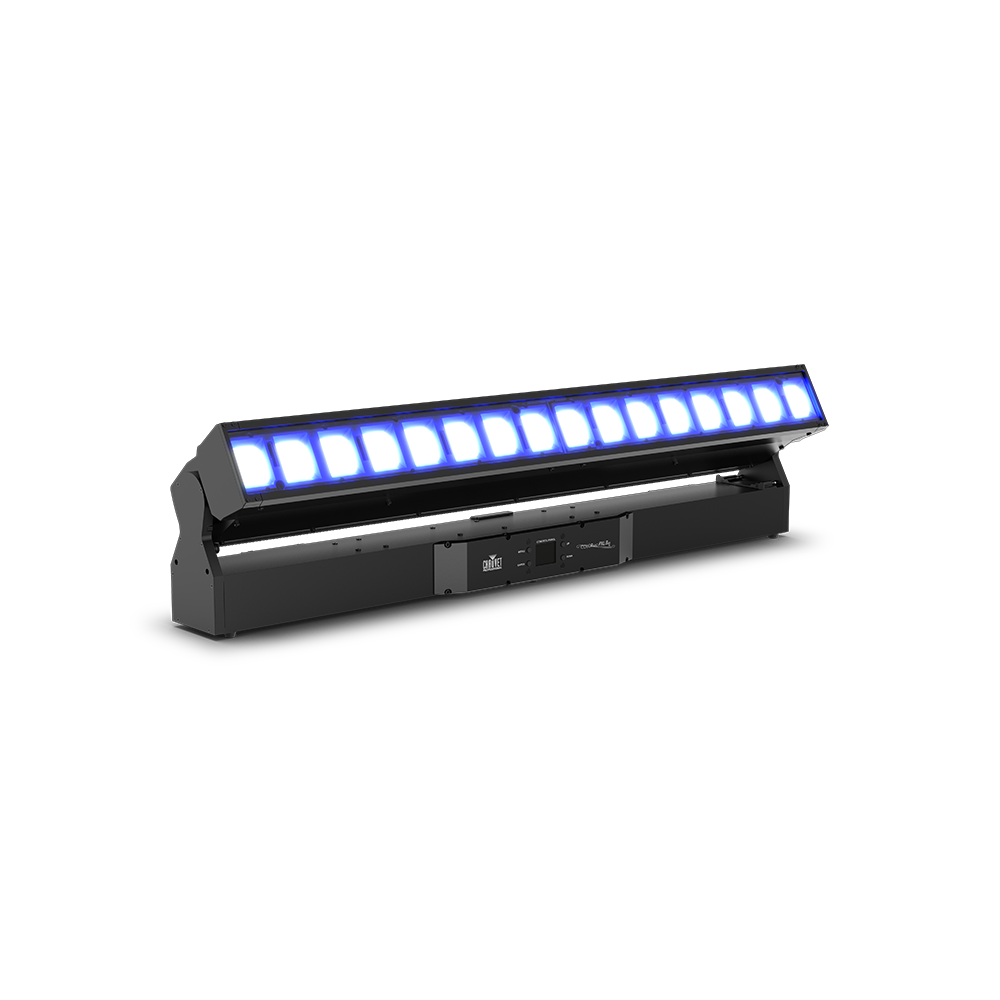

COLORado PXL Bar 16 is a motorized, outdoor-ready tilting batten with capabilities to zoom for tight and wide pixel-mappable looks. This bright, moving pixel bar also features seamless edge-to-edge mounting and includes virtual gobo and movement macros with separate foreground and background color control for more design options than ever before. Slotted Omega brackets make it quick and easy to hang the fixture on truss. The COLORado PXL Bar 16 can also be positioned on the ground, which allows for a variety of different light angles. With two zones of control, the power is in your hands and the possibilities are endless!

Features

High Output Tilting Batten

An IP65-rated motorized fixture equipped with sixteen powerful 45W RGBW LEDs.

Consistent Pixel Pitch

Maintains perfect pixel alignment when multiple fixtures are used together for seamless visual effects.

Fast Motorized Tilt

Offers swift and quiet 200-degree tilt operation for dynamic positioning.

Versatile Motorized Zoom

Features a quiet, two-section motorized zoom with a 5.8 to 47.9-degree range for variable beam sizes.

Full Pixel Mapping

Every LED is individually controllable for creating stunning, customized animations and effects.

Built In Effects

Includes virtual gobos and movement macros with color control for easy pixel animation.

Flexible Control Options

Offers full flexibility with DMX, sACN, Art-Net, and Kling-Net control protocols.

Remote Device Management

RDM is enabled for convenient remote addressing and troubleshooting.

Professional Power Linking

Equipped with TRUE1 compatible input and output ports for secure power daisy-chaining.

All Weather Connections

Features IP65-rated 5-pin DMX and TCP/IP input and output ports for reliable operation.

Protected Software Port

An IP65-rated USB-C port allows for safe and easy firmware updates.

Easy Truss Mounting

Slotted Omega brackets are included for quick and straightforward rigging.

Video

COLORado PXL Bar 8 & 16 by Chauvet Professional

Meet the rugged, outdoor-rated and motorized LED wash lights that match any mood. Tight, bold bars of saturated colour swing to expansive Lucious pixel mappable looks in seconds.

What’s Included

  • COLORado PXL Bar 16
  • Seetronic Powerkon IP65
  • 2 Omega bracket with mounting hardware

Additional information

Optical

Light Source: 16 LEDs (quad-color RGBW) 45 W, (3.0 A), 8875 K, 50,000 hours life expectancy.
Color Temperature (calibrated white): 6122 K
CRI: 61.6
Beam Angle: 5.8° to 30.4°
Beam Angle single cell: 4° to 29.9
Field Angle: 8.9° to 42.2°
Field Angle single cell: 5.4° to 42.3°
Cutoff Angle: 10° to 47.9°
Cutoff Angle single cell: 6.1° to 45.5°
Zoom Range: 5.8° to 47.9°
Zoom Range single cell: 4° to 45.5°
Lumens (43.3°): 8,959
Illuminance:
Illuminance (5.7°): 27,415 lux @ 5 m
Illuminance (43.3°): 1,294 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Control

Control Protocol: Art-Net, Kling-Net, DMX, RDM, sACN
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Fuse: 12 A, 250 V
Power Linking: 0 unit @ 120 V; 3 units @ 208 V; 3 units @ 230 V
Power and Current: 790 W, 6.60 A @ 120 V, 60 Hz
Power and Current: 771 W, 3.821 A @ 208 V, 60 Hz
Power and Current: 768 W, 3.485 A @ 230 V, 50 Hz
Compatible Accessories

Clamps
Neutrik powerCON cables
Neutrik etherCON cables
DMX Cables
Upload_08 software uploader
Flight cases
Dynamic Effects

Tilt: 200°
Tilt Ranges: 60°, 180°, 200°
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Dim Modes: 2
Dim Curves: 4
Construction / Physical

Dimensions: 39.37 x 5.47 x 10.75 in (1000 x 139 x 273 mm)
Weight: 45.6 lb (20.7 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum diecast, High-impact flame-retardant polymer
Connections

Power Connection: Bare end to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP rated, Seetronic IP rated RJ45 Connectors in/out: Cable Length (power)
5 ft (1.5 m)
Certifications / Qualifications

Certifications: CE, MET, FCC
IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
