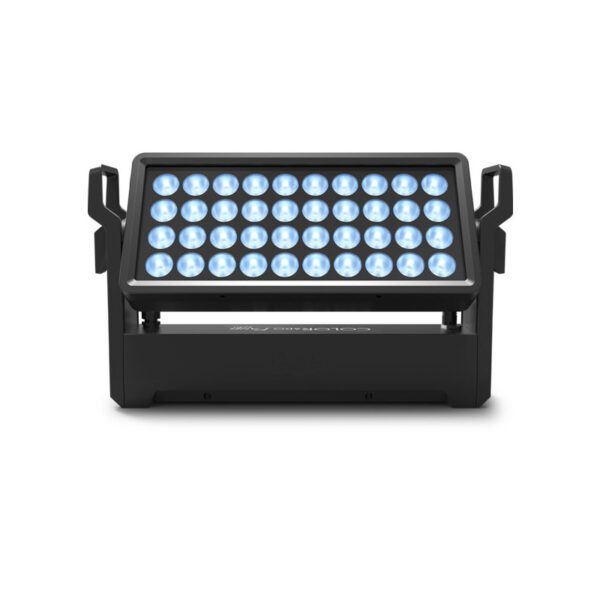

Chauvet Professional - COLORado Panel Q40 Front Face of PanelChauvet Professional - COLORado Panel Q40 Front Face of Panel

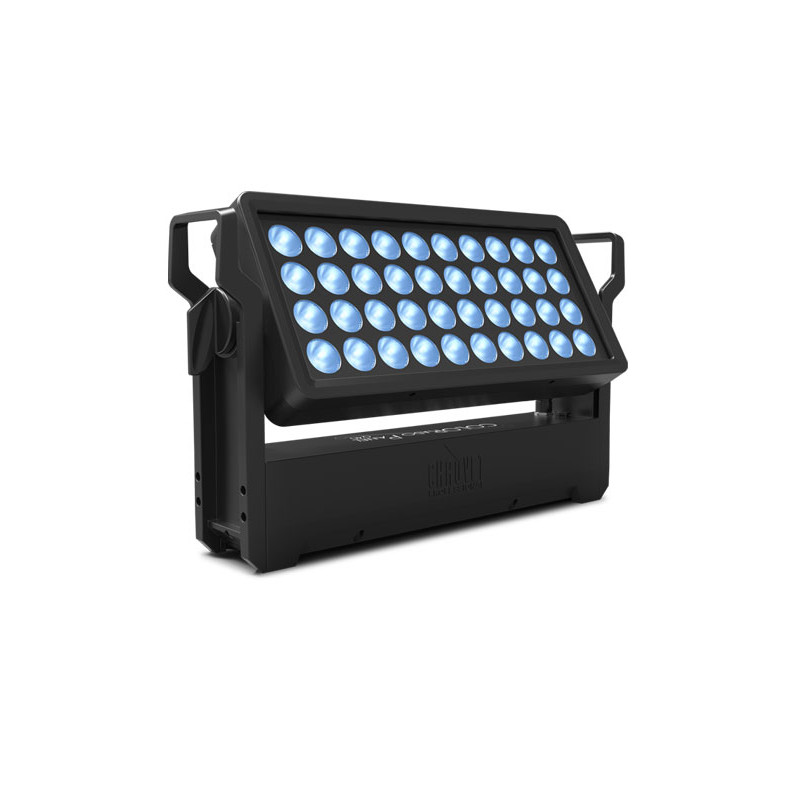

Chauvet Professional – COLORado Panel Q40

Chauvet Professional

A powerful IP65-rated rectangular wash light featuring 40 15W RGBW LEDs that delivers flawless edge-to-edge color mixing with an adjustable beam and wireless control.

Perfect for indoor or outdoor productions, events, and architectural installations requiring a durable and versatile wide-area wash of color.

Features

  • Delivers a broad CCT range from 2800 to 10000 K for flexible white light control.
  • Includes a magnetic flood filter to easily widen the beam for broad area washes.
  • Features onboard W-DMX and RDM for versatile wireless setup and remote device management.
  • Eliminates on-camera flicker with adjustable PWM, making it ideal for broadcast applications.
  • Achieve exceptionally smooth fades with selectable dimming curves that eliminate choppiness.
  • Simplifies setup with IP-rated power linking for multiple units on a single circuit.
SKU: COLORADOPANELQ40 Categories: , , ,

Description

COLORado Panel Q40 is a powerful IP65-rated rectangular wash light that features 40 15 W RGBW LEDs capable of flawless edge-to-edge color mixing. This rugged indoor/outdoor unit can be manipulated through adjustable beam angles and includes a magnetic flood filter to produce a wider, but still even area wash. Its outdoor rated power and data connectors allow for easy connections without propriety cabling. Control it as you see fit with W-DMX and RDM.

Features

Indoor/Outdoor RGBW Wash

This rugged RGBW LED wash provides ultimate flexibility for events that require both indoor and outdoor use.

Superior Color Mixing

Experience flawless, even color from one edge of the beam to the other.

All Weather Operation

IP-rated power and DMX connections ensure reliable performance in any weather conditions.

Magnetic Flood Filter

The included magnetic filter attaches easily to create a wide and even area wash.

Flicker Free Performance

Adjustable Pulse Width Modulation (PWM) eliminates on-camera flickering for broadcast applications.

Wireless Control and Management

Integrated WDMX and RDM provide added flexibility for control and remote device management.

Smooth Dimming Curves

Selectable dimming curves eliminate flicker and choppiness for exceptionally smooth fades.

OLED Touchscreen Display

An easy-to-read OLED display with a password-protected touchscreen allows for simple setup and navigation.

Advanced Optics

High-efficiency optics provide both exceptional color mixing and a powerful light output.

Quick Rigging

Mount the fixture quickly and easily to any truss or pipe with the included omega bracket.

Video

COLORado Panel Q40 IP65 Wash Light | CHAUVET Professional

COLORado Panel Q40 is a powerful IP65-rated rectangular wash light that features 40 15 W RGBW LEDs capable of flawless edge-to-edge color mixing.

What’s Included

  • Seetronic Powerkon IP65 power cord
  • Color Blending Filter lens
  • Omega bracket with mounting hardware

Additional information

Optical

Light Source: 40 LEDs (quad-color RGBW) 15 W, (970 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10000 K
Installed Optics: 15°
Beam Angle (w/o filter): 20.4°
Beam Angle (w/filter): 24.6°
Field Angle (w/o filter): 33.8°
Field Angle (w/ filter): 50.4°
Lumens: 29,407
Lumens (w/filter): 17,992
Illuminance:
Illuminance (w/o filter): 8,347 lux @ 5 m
Illuminance (w/ filter): 2,590 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65: Power Input
Seetronic Powerkon IP65: Power Output
Seetronic Powerkon IP65: Data Connectors
5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
Power and Current: 566 W, 4.729 A @ 120 V, 60 Hz
Power and Current: 559 W, 2.701 A @ 208 V, 60 Hz
Power and Current: 560 W, 2.439 A @ 230 V, 50 Hz
Dynamic Effects

Tilt Ranges: 0° to 150°
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical

Dimensions: 20.27 x 7.71 x 11.96 in (515 x 196 x 304 mm)
Weight: 28.2 lb (12.8 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Filter Size: 16.75 x 8 in (425.45 x 203.2 mm)
Control

Control Protocol: DMX, W-DMX, RDM
DMX Channels: 4, 7, 11, 16 or 22
Modes/Personalities: 5 personalities (4ch, 7ch, 11ch, 16ch, 23ch)
Certifications/Qualifications

Certifications: CE, MET, FCC
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories

COLORado Panel Q40 Barndoor
Professional Clamps: CTC-50HC, CTC-50HCN
Seetronic Powerkon power linking cables
5-pin IP or Non-IP DMX Cables
COLORado Panel Q40 Filter Pack

Downloads

Data Sheet Download
User Guide Download
