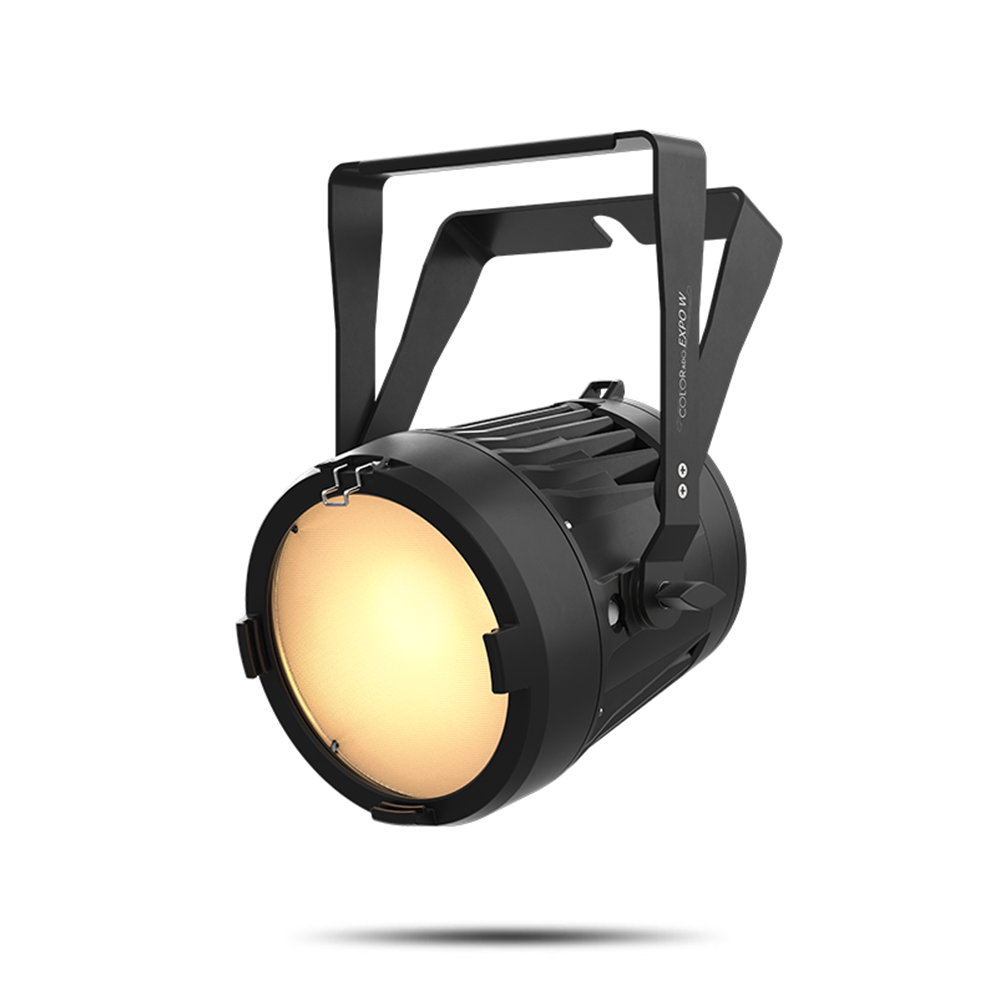

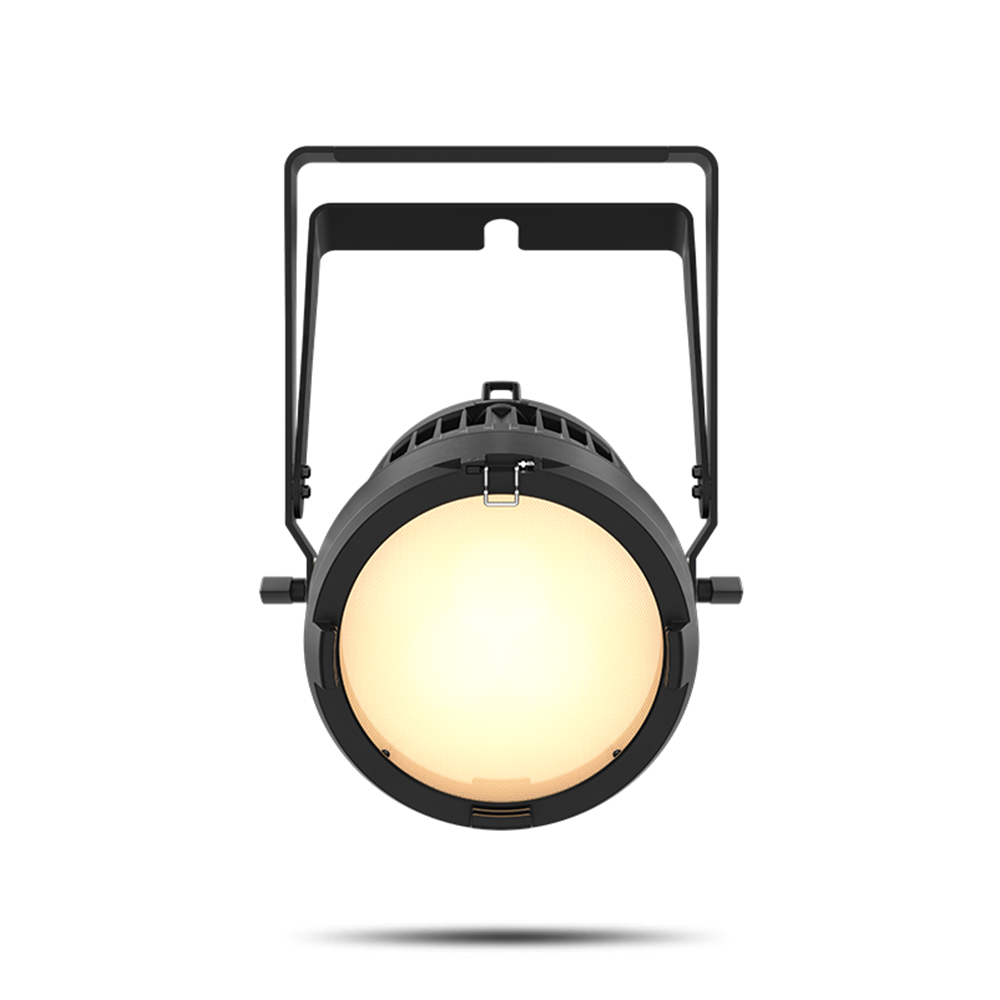

Chauvet Professional – COLORado Expo W

Chauvet Professional

A rugged IP65-rated wash light projecting over 5,000 lumens of high-quality 3200K warm white light, featuring smooth 16-bit dimming and superior color rendering.

Perfectly suited for broadcast, theatre, trade shows, and architectural applications requiring high-quality, flicker-free warm white illumination in any environment.

Features

  • Delivers exceptional color rendering for broadcast with a CRI of 97.9 and TLCI of 98.
  • Projects a focused wash with a 12.7° beam angle and 23.4° field angle.
  • Offers an onboard rotary dimming dial for intuitive, manual control without a console.
  • Selectable PWM provides flicker-free performance, ideal for broadcast and on-camera applications.
  • Simplifies setup by power linking up to 18 units at 230V on a single circuit.
  • Supports DMX and RDM control with four channel personalities for operational flexibility.
SKU: COLORADOEXPOW Categories: , , ,

Description

COLORado Expo W is a rugged IP65-rated indoor/outdoor wash light that projects over 5,000 lumens of extremely high quality 3200K warm white light with a 12° beam angle. High-resolution 16-bit dimming is perfectly smooth and manually adjusting output is intuitively easy with its onboard rotary dimming dial. Phenomenal CRI and TLCI scores, selectable PWM, and included gel accessories make the COLORado Expo W a versatile instrument, on-site or on camera, in any setting.

Features

Professional Rigging Clamps

Includes professional-grade clamps, models CTC-50HC and CTC-50HCN, for secure mounting.

5-pin DMX Cables

Connect your fixtures with the included professional 5-pin DMX cables for reliable data transmission.

What’s Included

  • COLORado Expo W
  • Seetronic Powerkon IP65 power cord
  • Gel Frame
  • Omega Bracket
  • Warranty Card
  • Quick Reference Guide

Additional information

Optical

Light Source: 1 LED (WW) 117 W, (2.187 mA), 3283 K 50,000 hours life expectancy.
Color Temperature (at full): 3283
CRI: 97.9
TLCI: 98
Beam Angle: 12.7°
Field Angle: 23.4°
Lumens: 5237
Illuminance:
Illuminance (49°): 254 lux @ 5 m
Illuminance (total): 2403 lux @ 5 m
Selectable PWM: 600Hz, 1200Hz, 2000Hz, 2400Hz, 6000Hz, 18,000 Hz

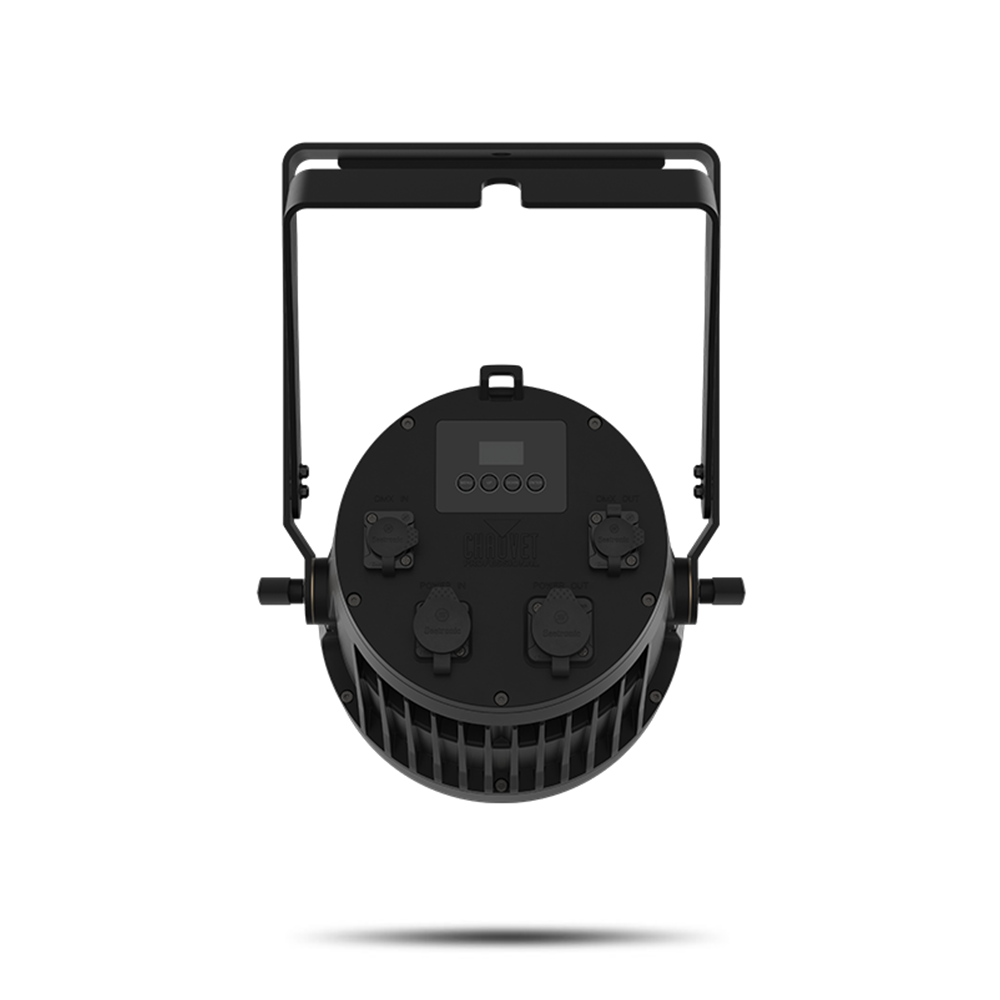

Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Cetrifications / Qualifications

Certifications: CE, MET, FCC, ETL, cULus, UKCA
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 25Hz
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical

Dimensions: 11.42 x 9 x 15.83 in (290 x 228 x 402 mm)
Weight: 16.4 lb (7.4 kg)
Exterior Color: Black
Housing Material: Magnesium alloy
Accessory Holder/Gel Frame Size: 7.5 in (190 mm)
Control

Control Protocol: DMX, RDM
DMX Channels: 1, 2, 3 or 4
Modes/Personalities: 4 personalities (1ch, 2ch, 3ch, 4ch)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 8 units @ 100 V; 9 units @ 120 V; 16 units @ 208 V; 18 units @ 230 V; 18 units @ 240 V
Power and Current: 150 W, 1.495 A @ 100 V, 60 Hz [9.6 A inrush]
Power and Current: 149 W, 1.234 A @ 120 V, 60 Hz [7.4 A inrush]
Power and Current: 145 W, 0.723 A @ 208 V, 60 Hz [6.4 A inrush]
Power and Current: 145 W, 0.657A @ 230 V, 50 Hz [6.8 A inrush]
Power and Current: 145 W, 0.633 A @ 240 V, 50 Hz [7.0 A inrush]
Power and Current (resting): 7 W, 0.100 A @ 100 V, 60 Hz
Power and Current (resting): 7 W, 0.098 A @ 120 V, 60 Hz
Power and Current (resting): 6 W, 0.115 A @ 208 V, 60 Hz
Power and Current (resting): 6 W, 0.121 A @ 230 V, 50 Hz
Power and Current (resting): 6 W, 0.125 A @ 240 V, 50 Hz

Downloads

Data Sheet Download
User Guide Download
