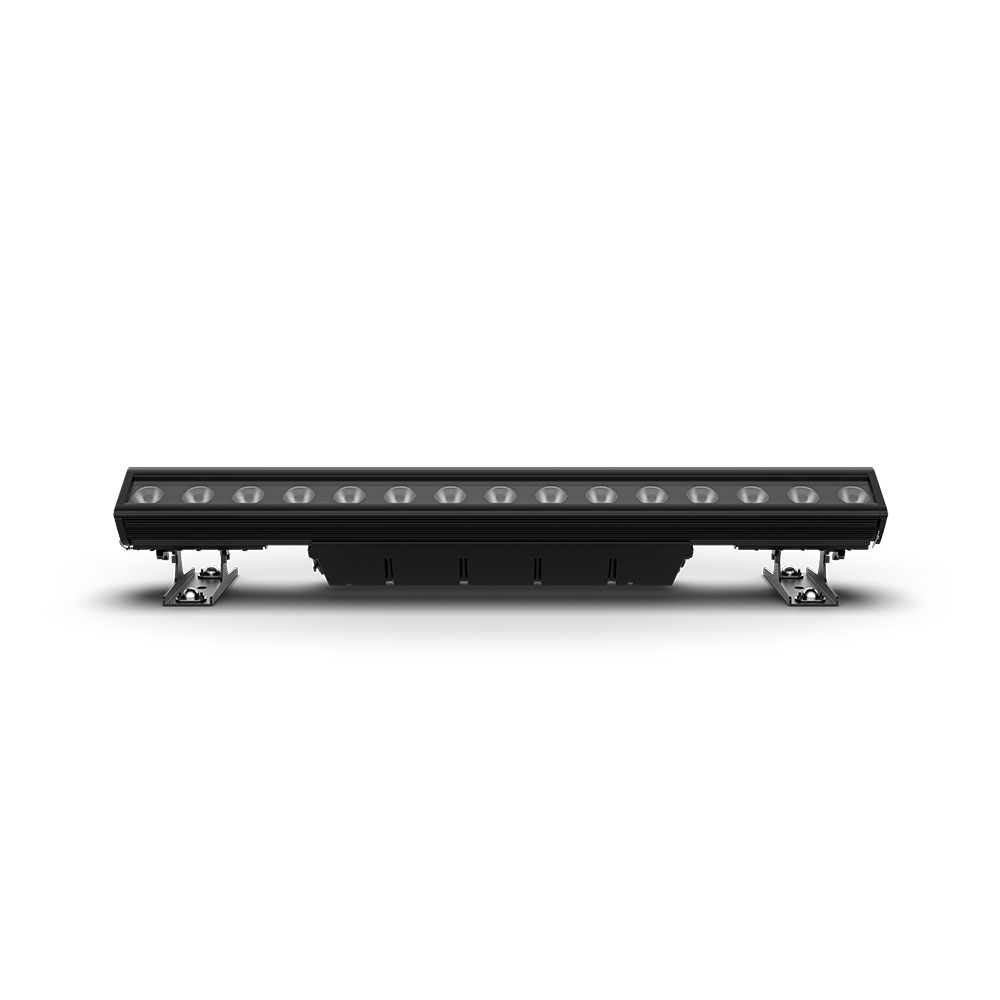

Chauvet Professional - COLORado Batten Q15 Front RightChauvet Professional - COLORado Batten Q15 Front Right

Chauvet Professional – COLORado Batten Q15

Chauvet Professional

The COLORado Batten Q15 is a rugged, IP65-rated RGBW LED batten featuring 15 individually controllable LEDs for creating powerful pixel-mapping effects and smooth, even color washes.

Perfect for touring productions, live events, and architectural installations, this versatile fixture excels at providing vibrant pixel effects and broad, even washes in both indoor and outdoor settings.

Features

  • Houses fifteen 20W quad-color RGBW LEDs for intense output and superior color mixing.
  • Includes a wall wash filter to transform the native 16° beam into a wide 43° wash.
  • Offers an expansive color temperature range with presets adjustable from 1800 K to 8000 K.
  • Built with versatile mounting options and a stowable glare shield for flexible, clean installations.
  • Features five selectable dimming curves for exceptionally smooth fades and programming versatility.
  • Supports DMX and RDM with personalities for simple washes or full 15-cell pixel control.
SKU: COLORADOBATTENQ15 Categories: , , ,

Description

COLORado Batten Q15 is a rugged, tour-ready, quad-color RGBW LED batten with 15 individually controllable LEDs that eliminate the appearance of “skittles” and allow for awesome pixel-mappable looks. The IP65-rated unit features tremendous output with selectable, smooth dimming curves, convenient color temperature presets and an extraordinary reach with a native 16° beam angle. An included wall wash filter creates a 16° by 43° beam spread for guaranteed smoothness. Mount it your way by adjustable trunnions with ¼ turn adaptors for the Omega Bracket, innovative end-cap, or back plate mounting for seamless row alignment, icicles, and floor mounting. The unit also includes a stowable glare shield.

Features

Versatile LED Batten

A quad-color RGBW LED batten designed for touring, rental, and production use, both indoors and out.

All Environment Operation

Features IP-rated power and DMX connections to ensure reliable performance in any setting.

Flexible Mounting Options

Unique end-cap and back plate designs provide versatile mounting possibilities for easy installation.

Wide Color Temperature Range

Includes a broad spectrum of color temperature presets, adjustable from a warm 1800 K to a cool 8000 K.

Selectable Dimming Curves

Choose from multiple smooth dimming curves to enhance programming versatility and visual control.

Secure Onboard Display

A large, easy-to-navigate display with password protection simplifies setup and secures your settings.

Video

COLORado Batten Q15 | CHAUVET Professional

IP65-rated COLORado Batten Q15 is a rugged, tour-ready, quad-colour RGBW LED batten with 15 individually controllable LEDs that eliminate the appearance of “skittles” and allow for awesome pixel-mappable looks. The outdoor-ready batten features tremendous output with selectable, smooth dimming curves, convenient colour temperature presets, and an extraordinary reach with a native 16° beam angle. An included wall wash filter creates a 16° by 43° beam spread for guaranteed smoothness. Mount it your way from adjustable trunnions with ¼ turn adaptors for the Omega Bracket or use the innovative end-cap and backplate mounting for seamless row alignment, icicles, and floor mounting. The unit also includes a stowable glare shield.

What’s Included

  • Colorado Batten Q15
  • Seetronic powerKON® IP65 power cord
  • 2 Omega Bracket
  • Base Plate
  • 2 Retaining Pins
  • 2 Safety Cable
  • Glare Shield
  • Filter

Additional information

Optical

Light Source: 15LEDs (quad-color RGBW) 20 W, (800 mA), 50,000 hours life expectancy.
Color Temperature (range): 1800 to 8000 K
Installed Optics: 16°
Beam Angle:
(Horizontal): 15.5°
w/Filter (Horizontal): 41.9°
(Vertical): 14.7°
w/Filter (Vertical): 15.3°
Field Angle:
(Horizontal): 28.6°
w/Filter (Horizontal): 77.9°
(Vertical): 28.1°
w/Filter (Vertical): 32.1°
Lumens: 6,324
Lumens w/Filter: 5,547
Illuminance (total): 2399 lux @ 5 m
Illuminance w/Filter (total): 653 lux @ 5 m
Selectable PWM: 1,200 Hz, 2,000, 2,400 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 6 units @ 100 V; 8 units @ 120 V; 14 units @ 208 V; 15 units @ 230 V; 16 units @ 240 V
Power and Current: 194 W, 1.606 A @ 120 V, 60 Hz
Power and Current: 197 W, 0.951 A @ 208 V, 60 Hz
Power and Current: 197 W, 0.860 A @ 230 V, 50 Hz
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik TRUE1 power linking cables
5-pin IP DMX Cables
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 25 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 5
Built-in Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes
Construction / Physical

Dimensions: 41.22 x 7.28 x 6.55 in (1047 x 185 x 166.4 mm)
Weight: 28.8 lb (13 kg)
Exterior Color: Black
Housing Material: Aluminum alloy
Control

Control Protocol: DMX, RDM
DMX Channels: 1 Cell: 4, 6, 8, 10
15 Cell: 45, 60, 64, 66, 76
Modes/Personalities: 9 personalities
Certifications / Qualifications

Certifications: CE, MET, FCC
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Downloads

Data Sheet Download
User Guide Download
