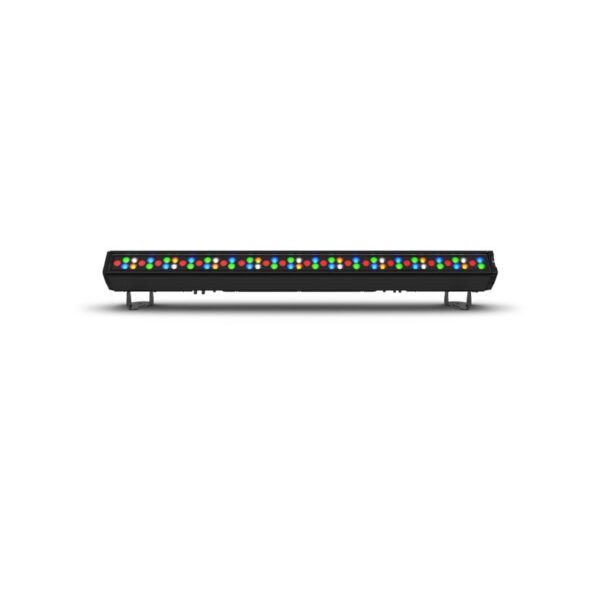

Chauvet Professional - COLORado Batten 72X Front face of batten fixtureChauvet Professional - COLORado Batten 72X Front face of batten fixture

Chauvet Professional – COLORado Batten 72X

Chauvet Professional

A powerful, IP65-rated batten-style wash light powered by 72 calibrated RGBWA LEDs, offering superb color rendering and smooth dimming capabilities.

Its compact, tour-ready design is perfectly suited for providing versatile vertical or horizontal color washes in demanding theatrical, event, and touring applications.

Features

  • Achieves a CRI of 80 at 3200 K for high-quality warm white rendering.
  • Offers selectable color temperature presets from a warm 3200 K to a cool 10000 K.
  • Delivers a precise wash with a 22° horizontal and 18° vertical beam angle.
  • Features 16-bit dimming and five selectable curves for exceptionally smooth fades.
  • Provides extensive programming versatility with 18 DMX personalities and RDM support.
  • Simplifies setup by power linking up to 19 units on a single 230 V circuit.
SKU: COLORADOBATTEN72X Categories: , , ,

Description

COLORado Batten 72X is a class leading, powerful IP65 batten-style wash light powered by 72 calibrated RGBWA LEDs. The compact, tour-ready unit produces superb color rendering and a vast palette from soft pastels to saturated hues. Its 16-bit dimming capability, as well as five selectable dimming curves provides smooth fades and facilitate its incorporation into aging traditional rigs. Integrated trunnions accommodate clamps for vertical or horizontal hanging.

Features

Versatile RGBAW LED Batten

A linear fixture designed for touring, rental, and production applications, both indoors and out.

All Environment Operation

Features IP rated power and DMX connections to ensure reliable performance in any setting.

Color Temperature Presets

Select from a wide range of color temperatures, from a warm 3200 K to a cool 10000 K.

Selectable Dimming Curves

Offers smooth, selectable dimming curves that provide enhanced programming versatility.

Professional Application Design

Built specifically to meet the demands of touring, live events, television, and theatrical productions.

Easy Navigation Display

Includes a large, password-protected display for simple and secure menu navigation.

Video

COLORado Batten 72X by CHAUVET Professional

COLORado Batten 72X is a class leading, powerful IP65 batten-style wash light powered by 72 calibrated RGBWA LEDs. The compact, tour-ready unit produces superb colour rendering and a vast palette from soft pastels to saturated hues. Its 16-bit dimming capability, as well as five selectable dimming curves provides smooth fades and facilitate its incorporation into aging traditional rigs. Integrated trunnions accommodate clamps for vertical or horizontal hanging.

What’s Included

  • COLORado Batten 72X
  • Seetronic powerKON® IP65 power cord
  • (2) Omega bracket

Additional information

Optical

Light Source: 72 LEDs (18 red, 18 green, 18 blue, 9 white, 9 amber) 3 W, (690 mA), 50,000 hours life expectancy
Color Temperature (range): 3200 to 10000 K
CRI (3200 K): 80
Installed Optics: 24°
Beam Angle (Horizontal): 22°
Beam Angle (Vertical): 18°
Field Angle (Horizontal): 39 °
Field Angle (Vertical): 34°
Lumens: 3,631
Illuminance (total): 1730 lux @ 5 m
Selectable PWM: 600, 1200 Hz, 2000, 2400 Hz, 4000 Hz, 6000 Hz, 25000 Hz
Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 10 units @ 120 V; 17 units @ 208 V; 19 units @ 230 V
Power and Current: 161 W, 1.33 A @ 120 V, 60 Hz
Power and Current: 164 W, 0.79 A @ 208 V, 60 Hz
Power and Current: 163 W, 0.71 A @ 230 V, 50 Hz
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 25 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 5
Built-in Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes
Construction / Physical

Dimensions: 39.37 x 6.14 x 2.95 in (1000 x 156 x 75 mm)
Weight: 18.6 lb (8.4 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Control

Control Protocol: DMX, RDM
DMX Channels: 1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 16
3 Cell: 9, 12, 15, 21, 22, 24, 27, 30, 43
Modes/Personalities: 18 personalities
Certifications / Qualifications

Certifications: CE, MET
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik TRUE1 power linking cables
5-pin IP DMX Cables

Downloads

Data Sheet Download
User Guide Download
