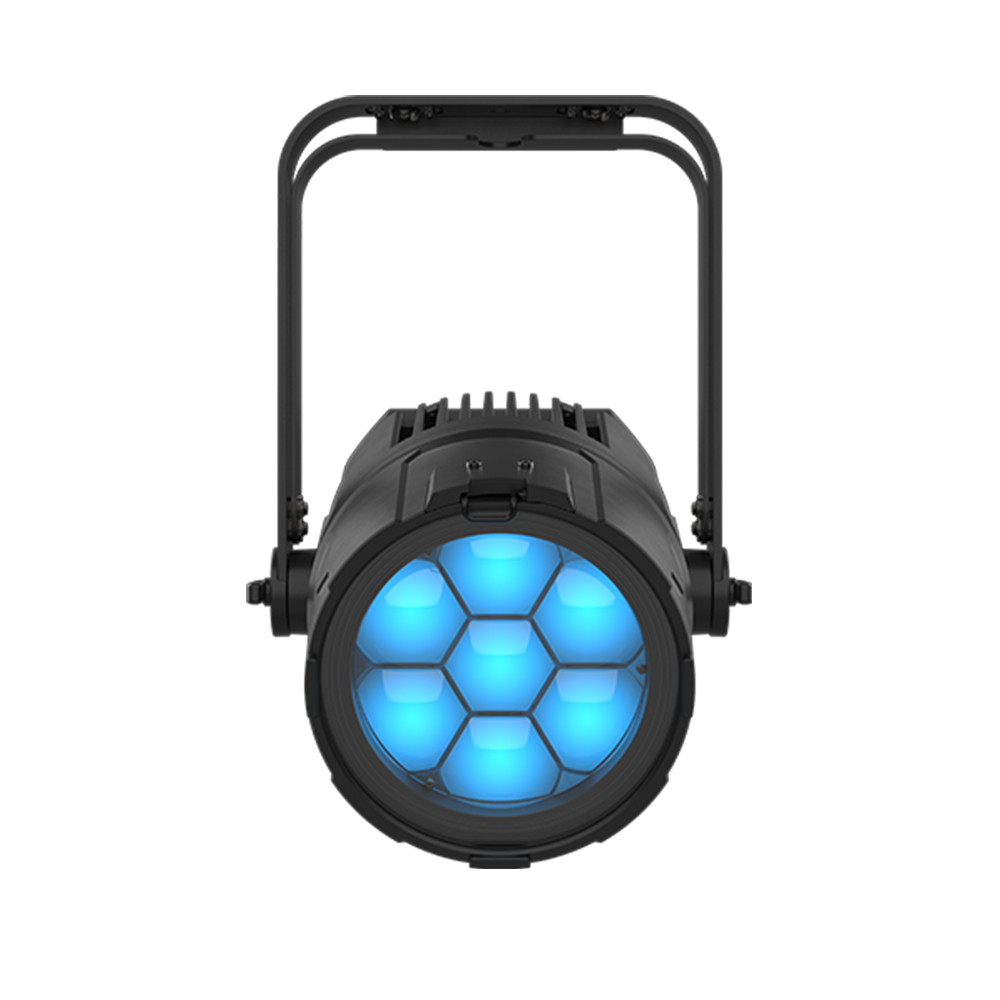

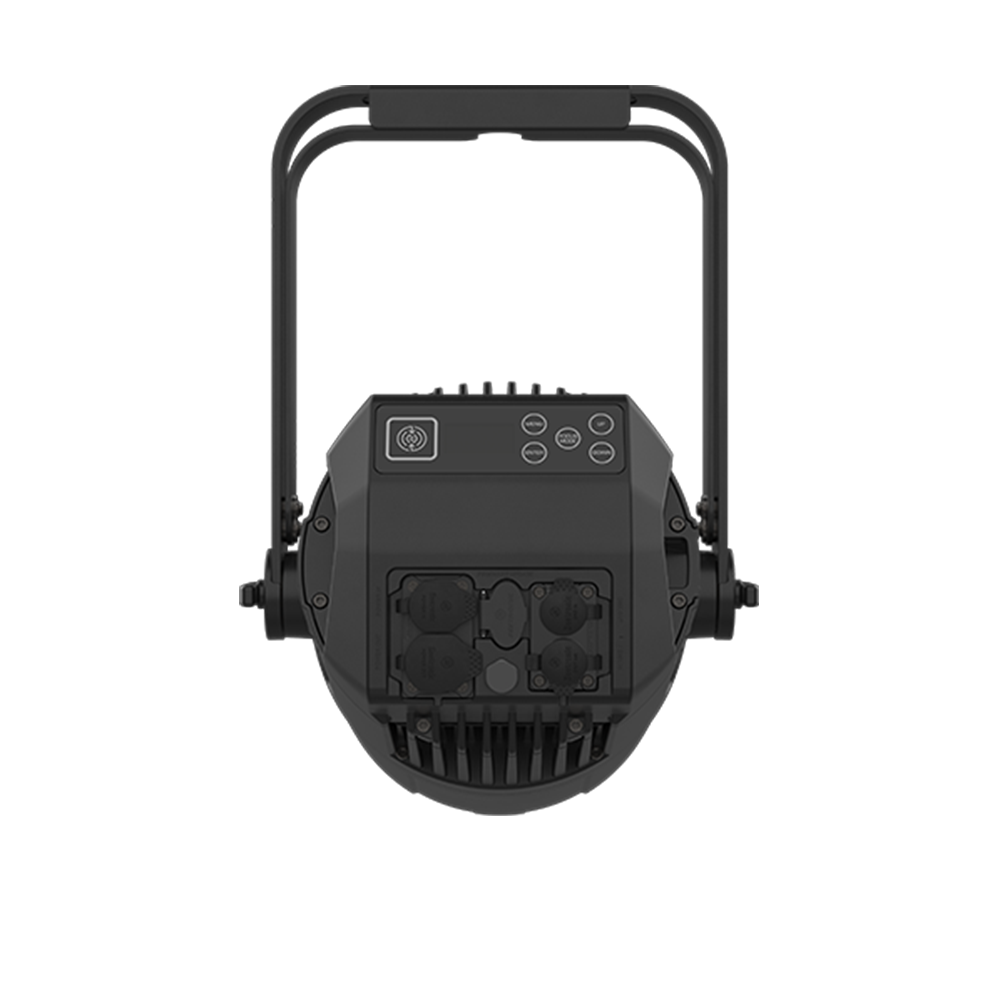

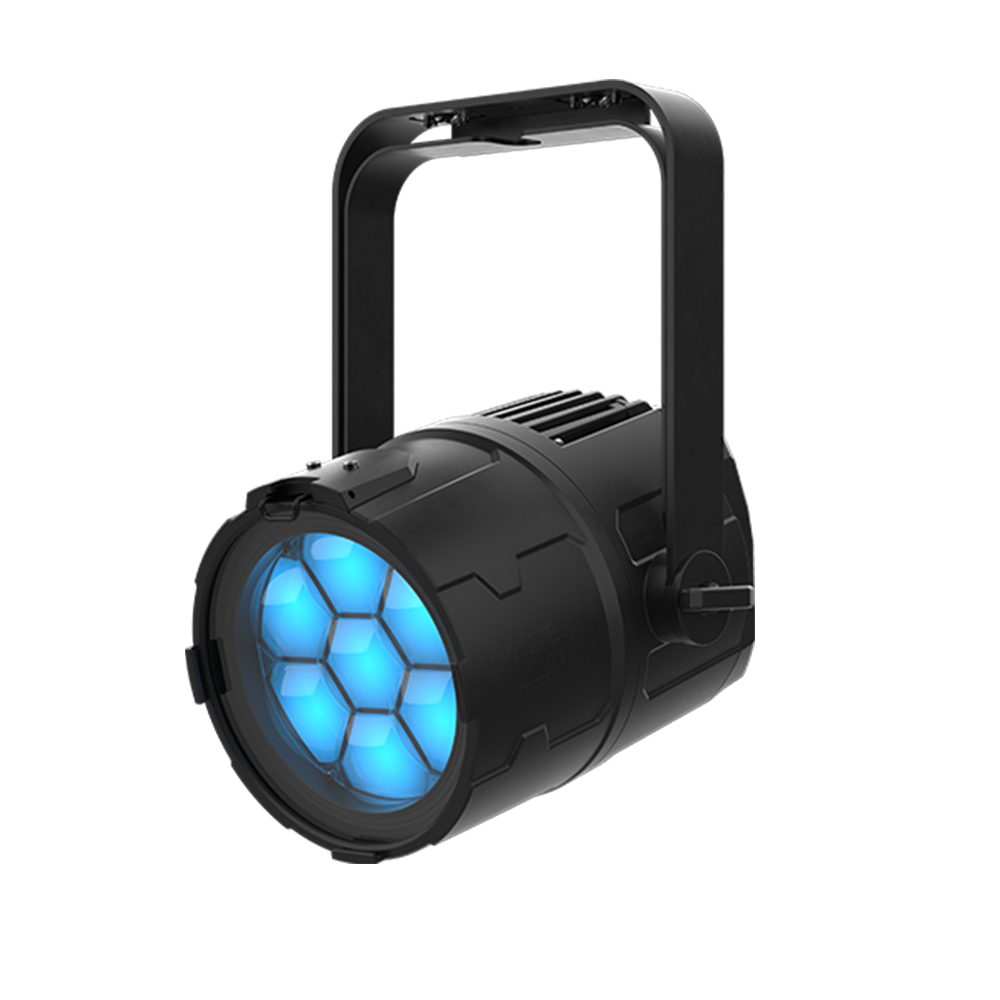

Chauvet Professional – COLORado 3 Quad Zoom

Chauvet Professional

A rugged, IP65-rated RGBL LED fixture delivering high-output performance, superior color rendition with enhanced whites, and an upgraded zoom system in a tour-ready design.

Perfect for touring productions, outdoor festivals, and any event requiring a durable, powerful, and color-accurate wash light that can withstand the elements.

Features

  • Utilizes a powerful RGBL LED engine for enhanced whites and a CCT range of 2800K to 8000K.
  • Provides a wide 3.9° to 52.6° motorized zoom for flexible beam shaping and coverage.
  • Features IP65-rated power and data connections for dependable operation in any environment.
  • Offers versatile control via DMX and RDM with nine selectable channel personalities.
  • Simplifies setup with an OLED display, backlit buttons, and a dedicated focus mode.
  • Features selectable dimming curves to achieve exceptionally smooth fades and visual effects.
SKU: COLORADO3QUADZOOM Categories: , , ,

Description

All the rugged IP65 reliability of our production-grade COLORado family in a fixture featuring the power of lime to achieve better whites and more accurate color rendition. A new RGBL LED source paired with optics optimized for its upgraded zoom system delivers higher output than ever before, from a road-tested design with new touring-friendly features that include backlit buttons for easier work in the dark.

Features

Versatile RGBL LED Zoom Wash

A high-performance fixture designed for touring, rental, and production applications in any environment.

Superior Color Mixing

Experience high-power output with exceptionally smooth and even color blending.

Wide Zoom Range

Achieve a smooth and fast zoom from a tight 3.9° beam to a wide 52.6° wash.

All-Environment Operation

IP-rated power and DMX connections ensure reliable performance in any indoor or outdoor setting.

Flexible Mounting Options

Mount the fixture effortlessly with traditional clamps, a quick-connecting omega bracket, or a split yoke floor stand.

Selectable Dimming Curves

Choose from multiple smooth dimming curves for enhanced programming versatility.

>Advanced Onboard Control

An OLED display with backlit buttons provides easy navigation, a dedicated focus mode, and password protection.

What’s Included

  • COLORado 3 Quad Zoom
  • Seetronic Powerkon IP65 power cord
  • Omega bracket
  • Gel frame holder (7.5 in/190.5 mm accessories)

Additional information

Optical

Light Source: 7 LEDs (quad-color RGBL), 8.4 to 13 W, (2.7 A), 50,000 hours life.
Color Temperature (range): 2800 to 8000 K
Color Temperature (at full): 5882 K
CRI (3200K): 83
Beam Angle: 3.9° to 38.5°
Field Angle: 6° to 52.6°
Cutoff Angle: 7.3° to 58.9°
Zoom Range: 3.9° to 52.6°
Lumens (3.2°): 3350
Lumens (39.9°): 5974
Illuminance (3.9°): 27,567 lux @ 5 m
Illuminance (38.5°): 657 lux @ 5 m
Selectable PWM: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 25,000Hz
Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Software Connection: USB
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: units @ 120 V; units @ 208 V; units @ 230 V
Power and Current: 258 W, 2.17 A @ 120 V, 60 Hz
Power and Current: 255 W, 1.28 A @ 208 V, 60 Hz
Power and Current: 260 W, 1.20 A @ 230 V, 50 Hz
Compatible Accessories

Professional Clamps : CTC-50HC, CTC-50HCN
Riglink TR1 Cables
Riglink IP DMX Cables
Ovation 7.5 Barndoor
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
Construction / Physical

Dimensions: 16.34 x 10.94 x 8.30 in (415 x 278 x 210.84 mm)
Weight: 14.2 lb (6.4.0 kg)
Exterior Color: Black
Housing Material: Magnesium diecast
Accessory Holder/Gel Frame Size: 7.5 in (190.5mm)
Control

Control Protocol: DMX, RDM
DMX Channels: 1CH, 5CH1, 5CH2, 7CH, 11CH, 12CH, 13CH, 16CH or HSV
Modes/Personalities: 9 personalities (1CH, 5CH1, 5CH2, 7CH, 11CH, 12CH, 13CH, 16CH, HSV)
Certifications / Qualifications

Certifications: CE, MET, FCC
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
Noise Levels:
Noise Level (Idle): 20.0 dB(A) @ 1 m
Noise Level (Auto): 30.3 dB(A) @ 1 m
Noise Level (On): 40.9 dB(A) @ 1 m
Noise Level (Off): 19.4 dB(A) @ 1 m
Noise Level (Silent): 21.0 dB(A) @ 1 m
Noise Level (Max): 37.3 dB(A) @ 1 m
Temperature (Ambient): -4 °F to 122 °F (-20 °C to 50 °C)
