Chauvet-Professional_Amhaze-Eco_1Chauvet-Professional_Amhaze-Eco_1

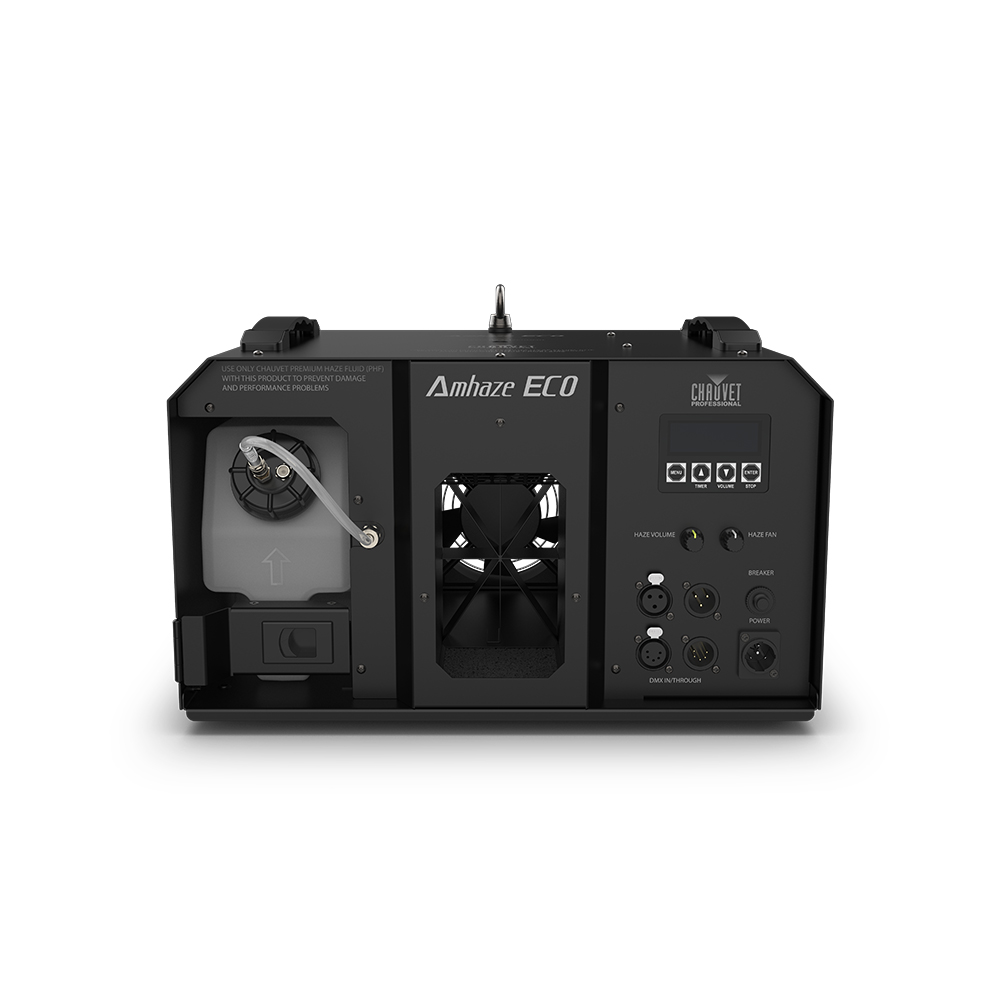

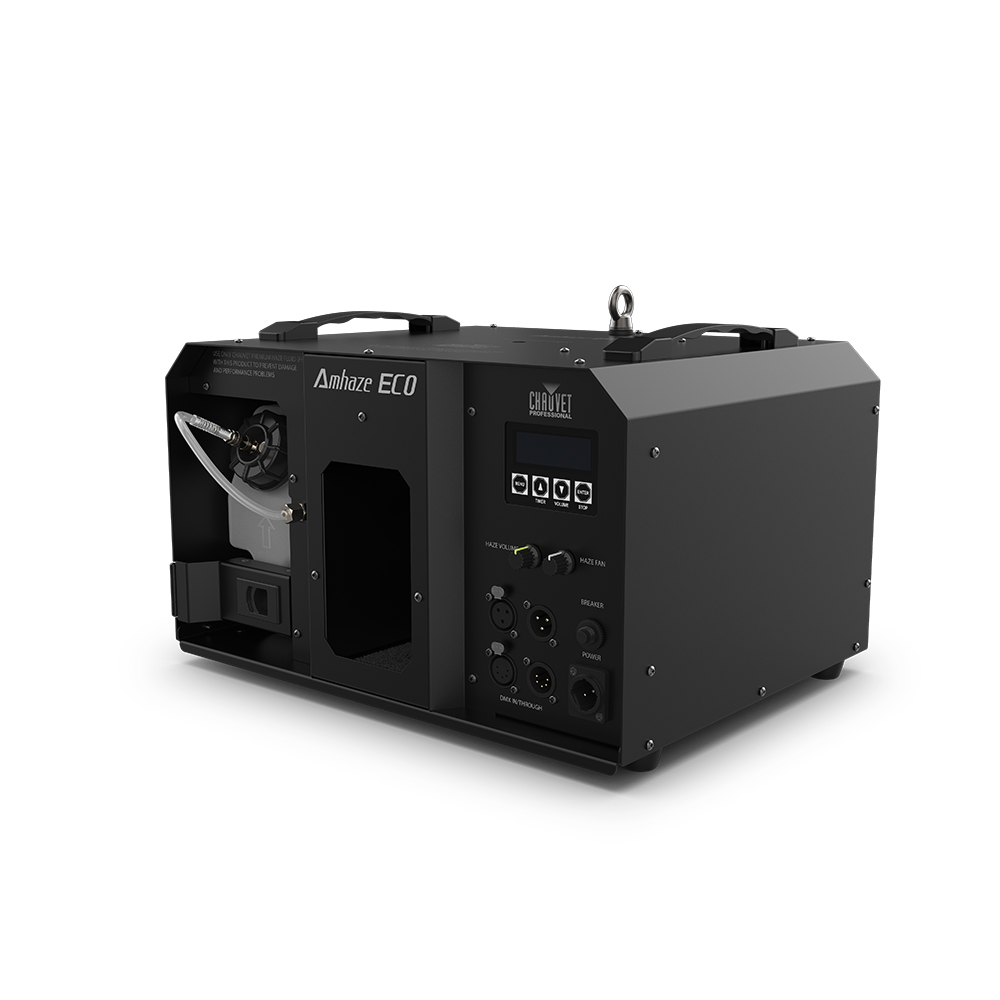

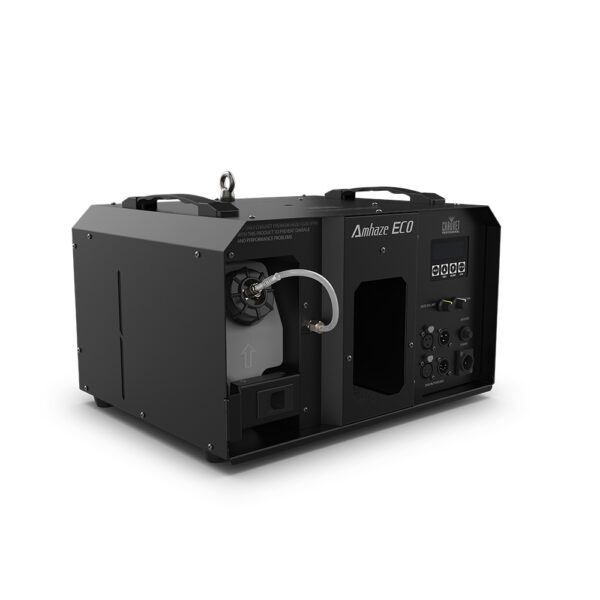

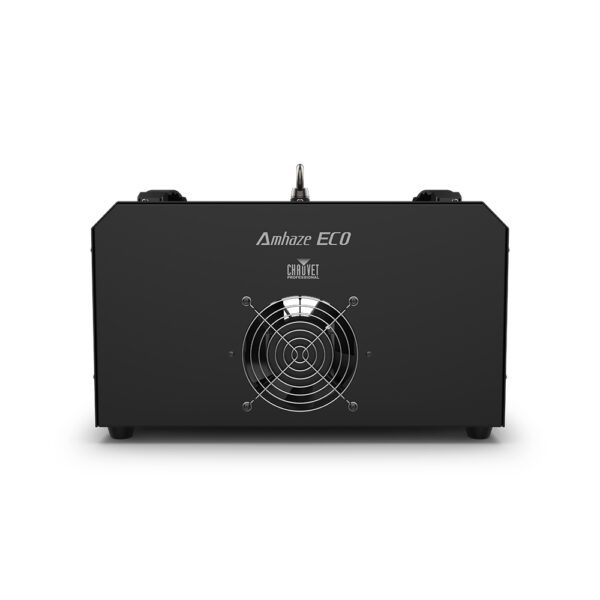

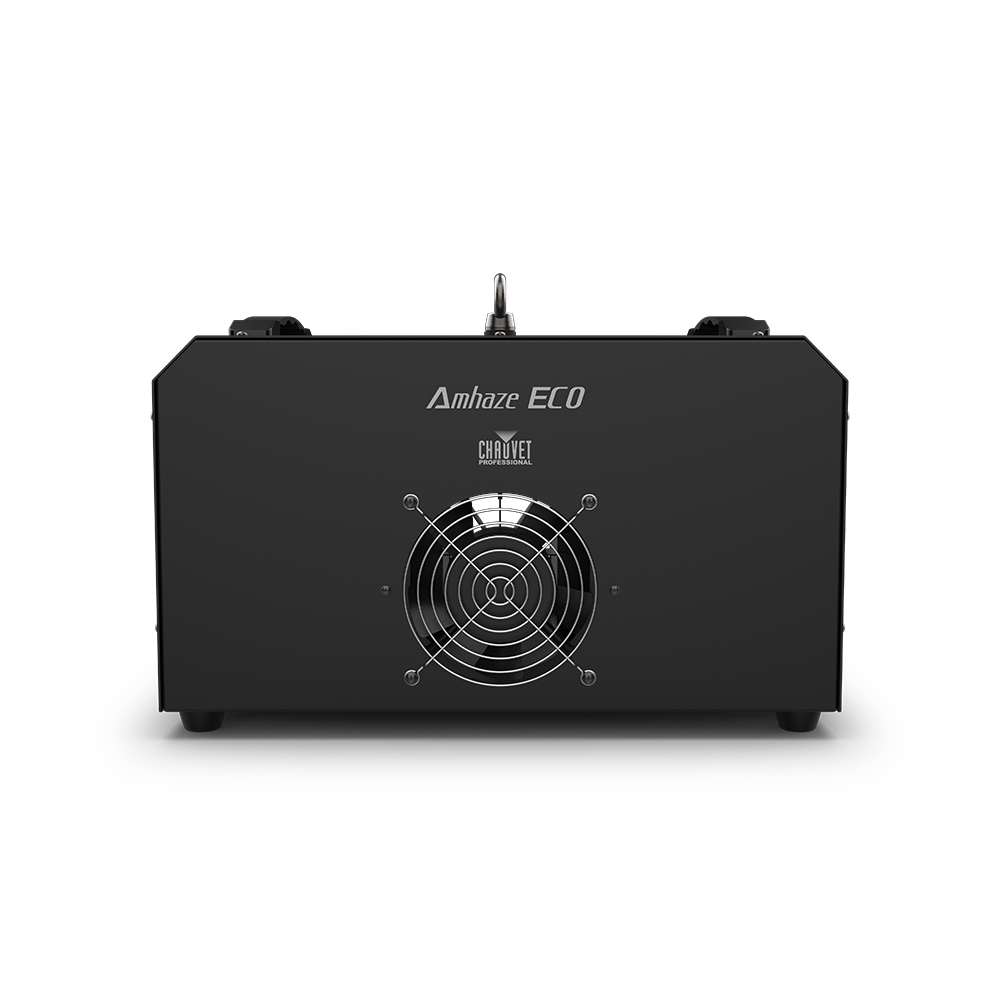

Chauvet Professional – Amhaze Eco

Chauvet Professional

A professional, water-based haze machine designed for high-output, continuous operation with efficient fluid consumption and versatile DMX or manual control.

This unit provides a complete atmosphere solution for medium to large venues such as theaters, concert halls, and event productions requiring floor-based or truss-mounted operation.

Features

  • Reaches operational temperature in 30 seconds for rapid deployment on demand.
  • Produces a consistent 120 cfm of haze with no reheating downtime.
  • Maximizes uptime with over eight hours of run time per fluid container.
  • Supports 3-channel DMX and RDM protocols for flexible system integration.
  • Features M12 threaded inserts for easy and secure mounting to any truss system.
  • Includes an automatic low-fluid shutdown to protect the pump from damage.
SKU: AMHAZEECO Categories: , , ,

Description

Amhaze Eco is a professional water-based haze machine that delivers high output while utilizing economic fluid consumption. With a rapid 30-second heat up time, and continuous output that doesn’t require any reheating, you can quickly get the maximum output of 120 cfm with a single fluid container lasting you over 8 hours. Easily control the output and fan speed via DMX or on the onboard control knobs. Amhaze Eco comes ready to rest on the floor and is also equipped with M12 threaded inserts for truss clamps, an easy way to mount the 25lb machine. Amhaze Eco combines high output with efficient operation for a complete atmosphere solution for medium to large venues.

Features

Professional Haze Generation

This is a professional-grade machine designed to create a fine, water-based haze effect.

Rapid Heat Up Time

A 30-second heat-up time means the machine is ready for operation almost instantly.

Uninterrupted Continuous Output

The machine can produce haze continuously without any need to stop and reheat.

Tour Ready Construction

Features an M12 threaded insert for easy and secure mounting to truss systems.

Efficient Fluid Consumption

Operates for over eight hours on a single container of fluid for extended use.

Precise Haze Control

Adjust the haze output and blower speed continuously using either DMX or the manual control knobs.

What’s Included

  • Amhaze Eco
  • Seetronic Powerkon IP65 power cord

Additional information

Dynamic Effects

Fan Speed: 120 cfm
Low Fluid Shutdown: Yes

Connections

Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Controls

Control Protocol: DMX, RDM DMX Channels: 3
DMX Channels: 3
Modes/Personalities: 1 personality
On-Board Control: Yes

Certification and Qualifications

Certifications: MET, CE
MET Listing Number: E115095
US Safety: UL 499
Canadian Safety: CSA C22.2 No. 64-10
IP Rating: IP20, dry location
Minimum distance from flammable material to all exterior surfaces of the product: 3.3 ft (1 m)
Maximum exterior surface temperature (Tc): 127 °F (53 ℃)

Construction / Physical

Dimensions: 15.86 in (403 mm) x 12.20 in (310 mm) x 10.07 (256 mm)
Dimensions (shipping size): 20.27 x 16.53 x 12.80 in (515 x 420 x 325 mm)
Weight: 25 lb (11.4 kg)
Weight: (shipping weight): 28.8 lb (13.5 kg)
Threaded Bolt: M12
Exterior Color: Black
Tank Capacity: 0.92 gal (3.5L)
Fluid Consumption: 7.5 ml/min (0.12 gallons/hour)
Maximum Run time: >7.5 hours @ full volume
Mounting Options: Rest on the floor or mount in the rig with the M12 threaded insert for truss clamps

Electrical

Input Voltage: 120 VAC, 60 Hz or 230 VAC, 50 Hz
Power and Current: 1,230 W, 10.25 A @ 120 V, 60 Hz
Power and Current: 2,430 W, 10.56 A @ 230 V, 50 Hz
Heat-up Time: 30 sec

Required Accessories

Compatible Mounting Options: M12 Bolt/Clamp
PHF5L Haze Fluid

Compatible Accessories

Clamps
Neutrik® powerCON® cables
DMX Cables

Downloads

Data Sheet Download
User Guide Download
