Chauvet Professional – COLORdash Par H7X IP

Chauvet Professional

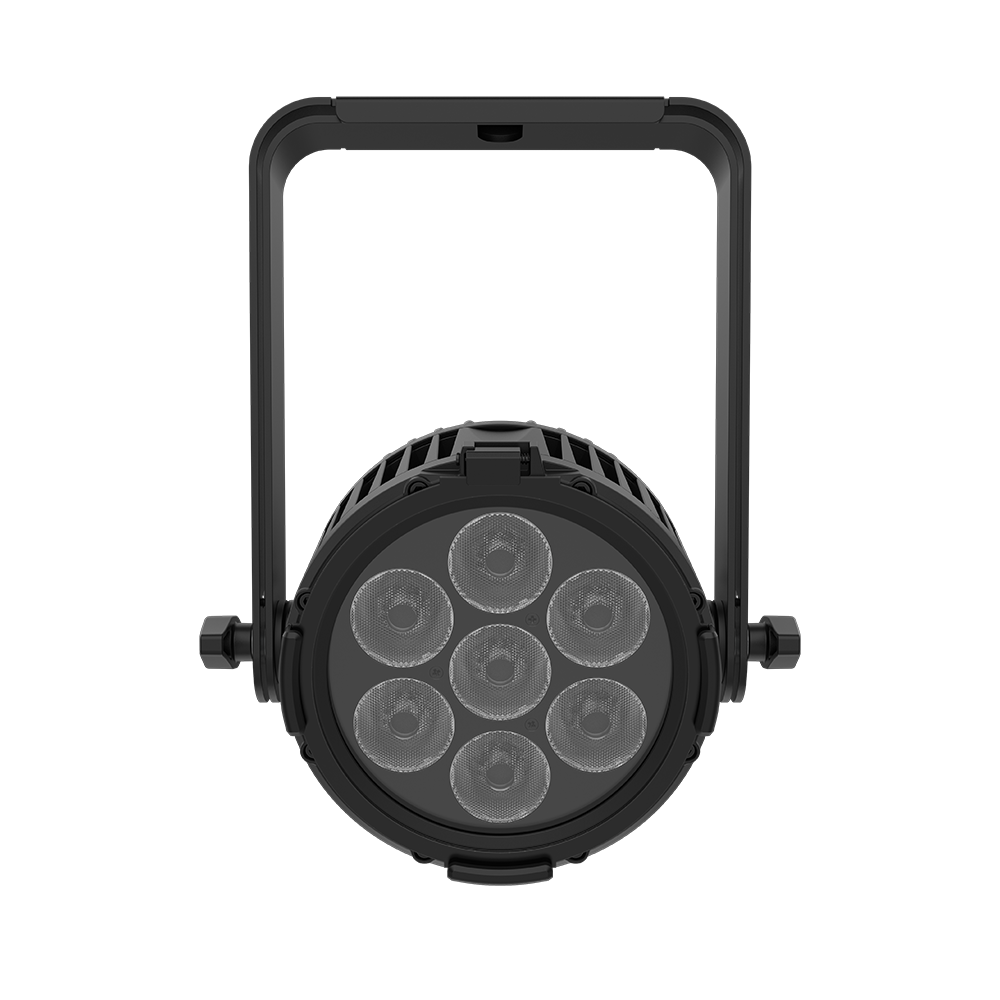

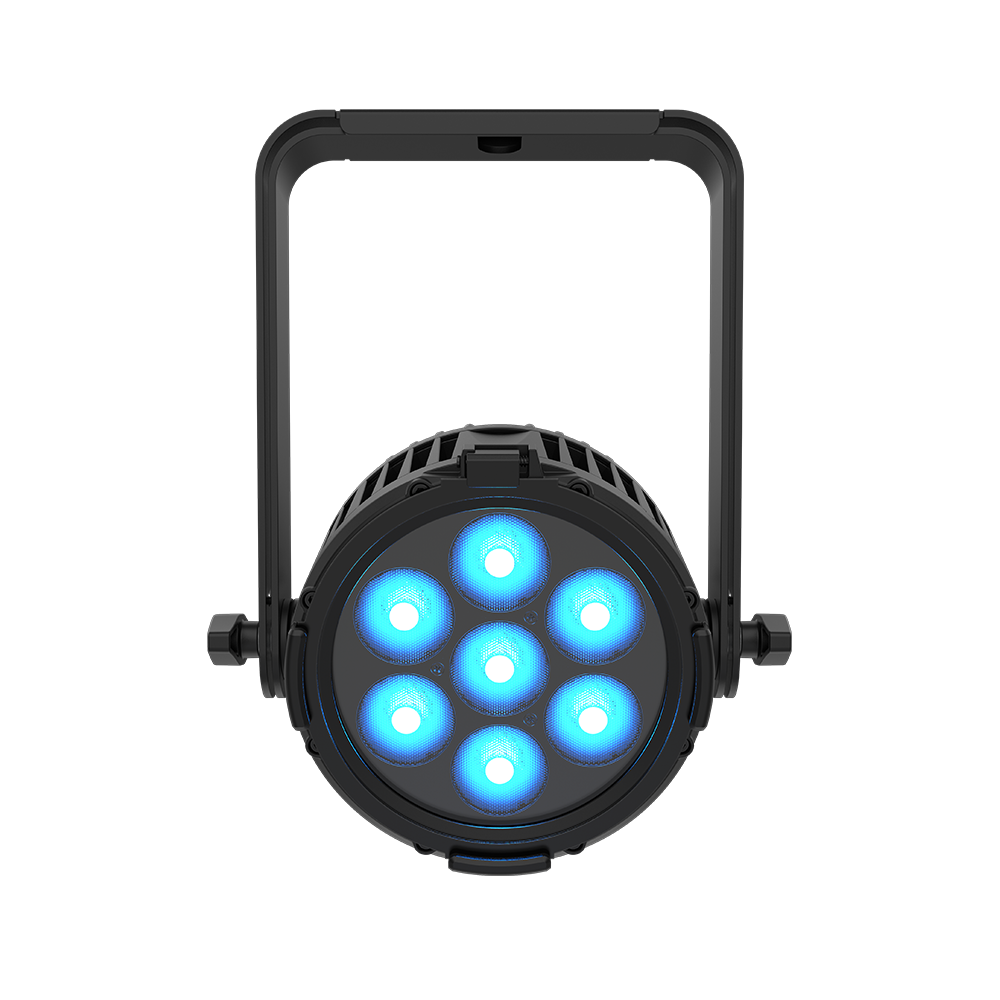

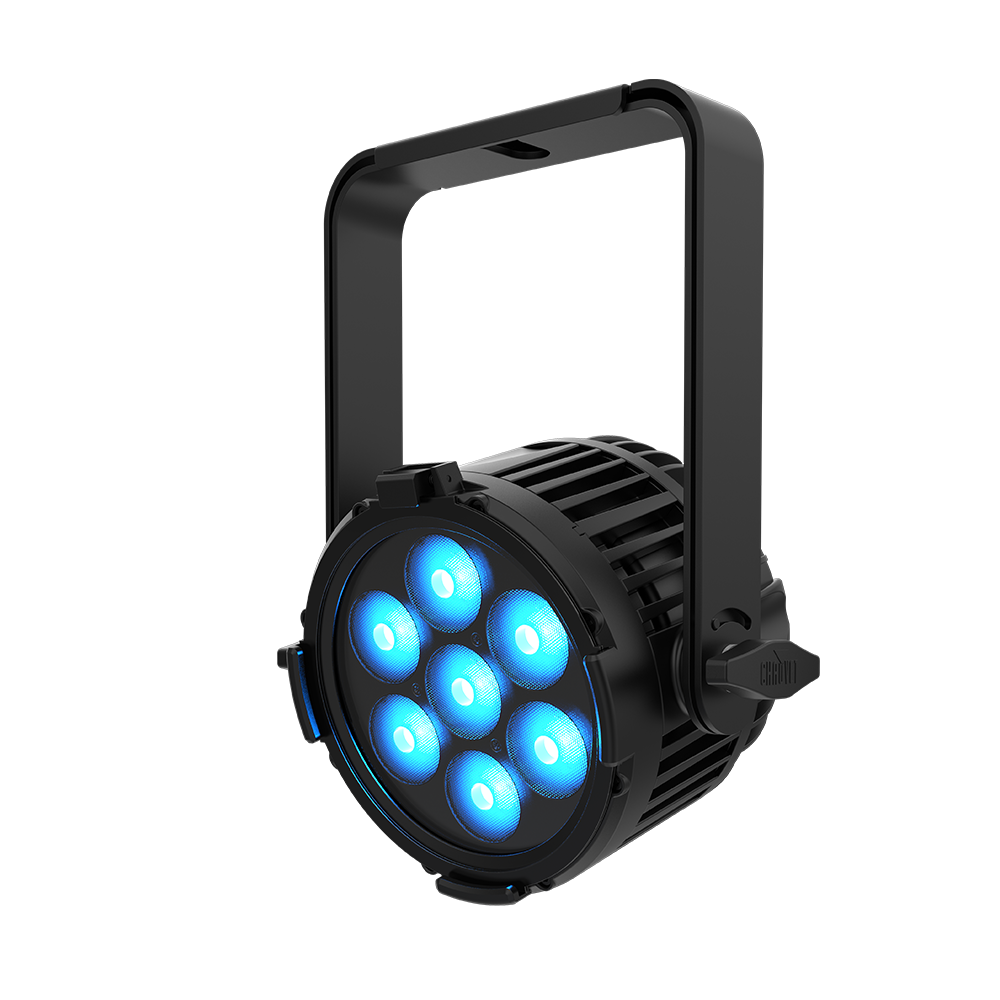

The COLORdash PAR H7X IP is a compact, all-weather RGBWAUV LED wash light that delivers a broad palette of high-output, flicker-free color with smooth 16-bit dimming.

Perfect for a wide range of applications from live events and broadcast to theatrical productions, this fixture excels in any indoor or outdoor environment where a compact, high-performance color wash is required.

Features

  • Features 7 hex-color (RGBAW+UV) LEDs that produce a powerful 2,664-lumen output.
  • Achieve precise color mixing with hex-color LEDs and a 2800K to 10,000K CCT range.
  • Built with a rugged, IP65-rated die-cast housing for reliable all-weather operation.
  • Supports both DMX and RDM protocols for flexible remote addressing and control.
  • Ensures flicker-free on-camera performance with adjustable Pulse Width Modulation settings.
  • Offers four selectable dimming curves for exceptionally smooth, professional-grade fades.
SKU: COLORDASHPARH7XIP Categories: , , ,

Description

In the rig or on the floor, live or on camera, indoor or out, the compact COLORdash PAR H7X IP RGBWAUV LED wash efficiently delivers a broad palette of subtle to saturated color with beautiful precision, weighing in under 8 lbs while delivering over 2,600 lumens of output. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Punch up a hot pink, mix a delicate pastel, pick a perfectly calibrated Kelvin color temperature, or trigger intense strobe effects. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, the COLORdash PAR H7X IP offers convenient operation and excellent performance as an IP65-rated all-weather die-cast workhorse at home in any environment.

Features

Versatile RGBWA-UV LED Wash

A rugged and flexible LED wash light with six-in-one color technology for any indoor or outdoor event.

Weatherproof Design

Features IP-rated power and DMX connections, making it suitable for use in all weather conditions.

Flicker-Free Operation

Adjustable Pulse Width Modulation (PWM) ensures there is no flickering when filming.

Remote Device Management

RDM capability allows for remote addressing and troubleshooting for enhanced operational flexibility.

Smooth Dimming Curves

Selectable dimming curves provide smooth, professional-grade fades without flicker or choppiness.

Intuitive Touchscreen Display

An easy-to-read OLED touchscreen display with password protection allows for simple and secure configuration.

Advanced Optics

The advanced optical system delivers exceptional color mixing and high-efficiency light output.

Flexible Mounting Options

A double-bracketed yoke also functions as a floor stand for versatile setup and positioning.

What’s Included

  • Colordash Par H7XIP
  • Seetronic powercon IP65 power cord
  • Gel frame
  • Quick Reference Guide

Additional information

Optical

Light Source: 7 LEDs (hex-color RGBAW+UV) 84 W, (513 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10,000 K
Color Temperature (at full): 11,477 K
Beam Angle: 23°
Field Angle: 37.9°
Lumens: 2664
Illuminance (total): 583 lux @ 5 m
Selectable PWM: 600, 1.2k, 2k, 4k, 6k, 25k Hz
Connections

Power Connection: Edison (Local) plug to Seetronic Powercon IP65: Power Output
Seetronic Powercon IP65: Data Connectors
3- and 5-pin XLR, 3- and 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 19 units @ 120 V; 34 units @ 208 V; 37 units @ 230 V
Power and Current: 71 W, .604 A @ 120 V, 60 Hz
Power and Current: 69 W, .352 A @ 208 V, 60 Hz
Power and Current: 68 W, .318 A @ 230 V, 50 Hz
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Seetronic Powercon power linking cables
5-pin IP or Non-IP DMX Cables
COLORdash Par H7X Barndoor
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Customizable Programs: No
Construction / Physical

Dimensions: 6.7 x 9.6 x 9.8 in (170 x 243.4 x 248.1 mm)
Weight: 7.4 lbs (3.4 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Control

Control Protocol: DMX, RDM
DMX Channels: 6ch ,8ch ,9ch ,13ch, or 14ch
Modes/Personalities: 5 personalities (6ch ,8ch ,9ch ,13ch, or 14ch)
Certifications / Qualifications

Certifications: CE, MET, FCC, UKCA
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
