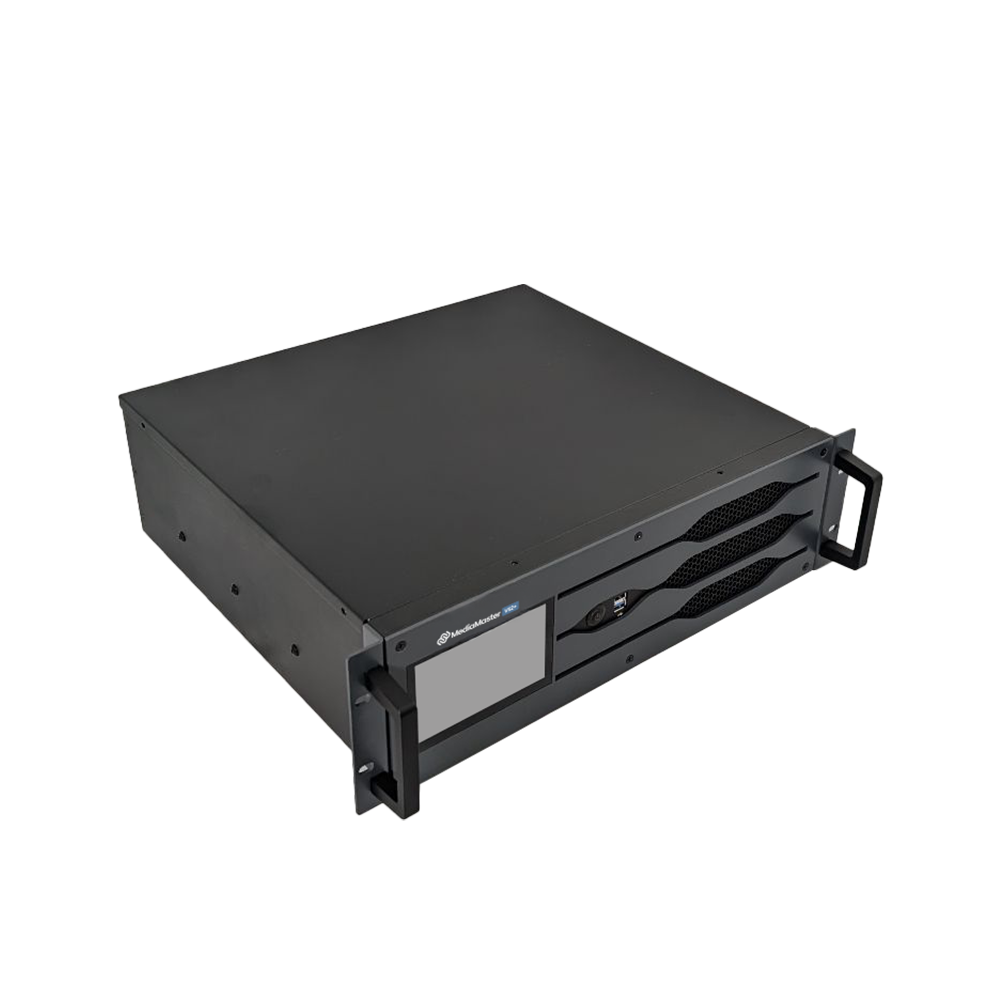

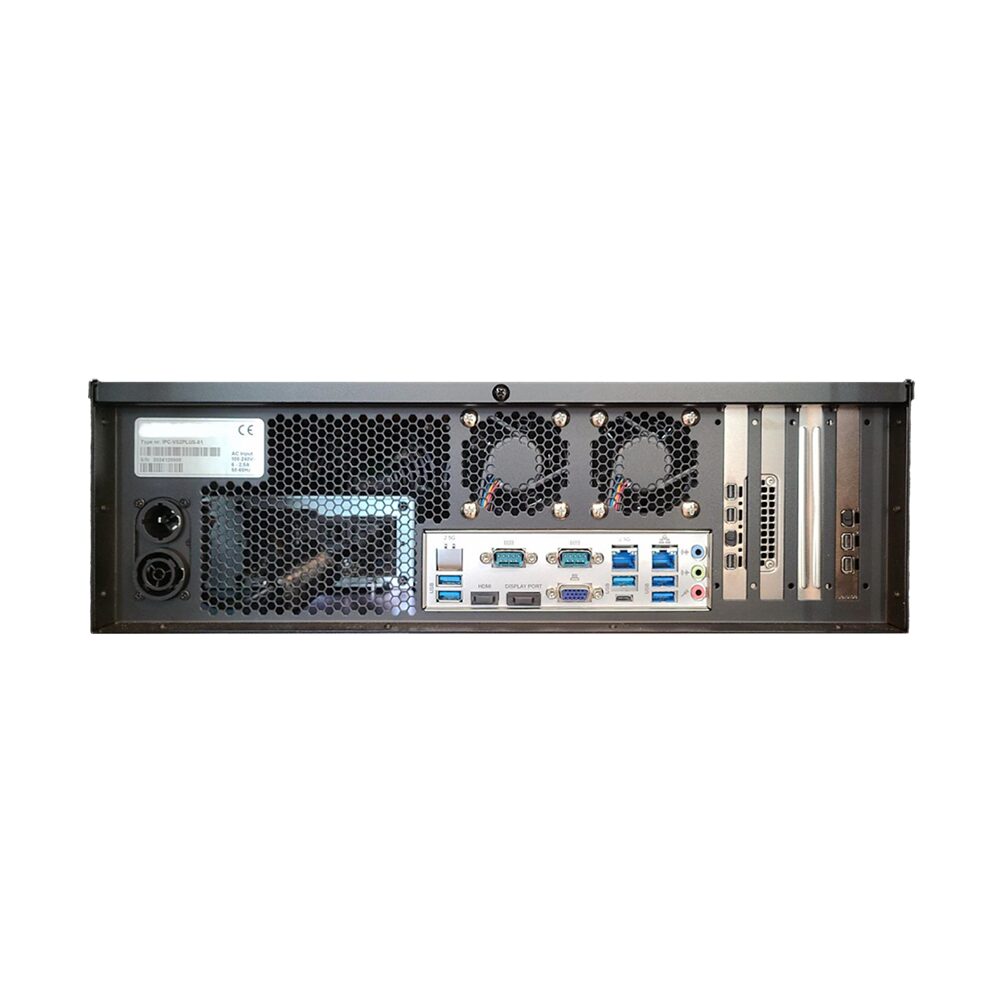

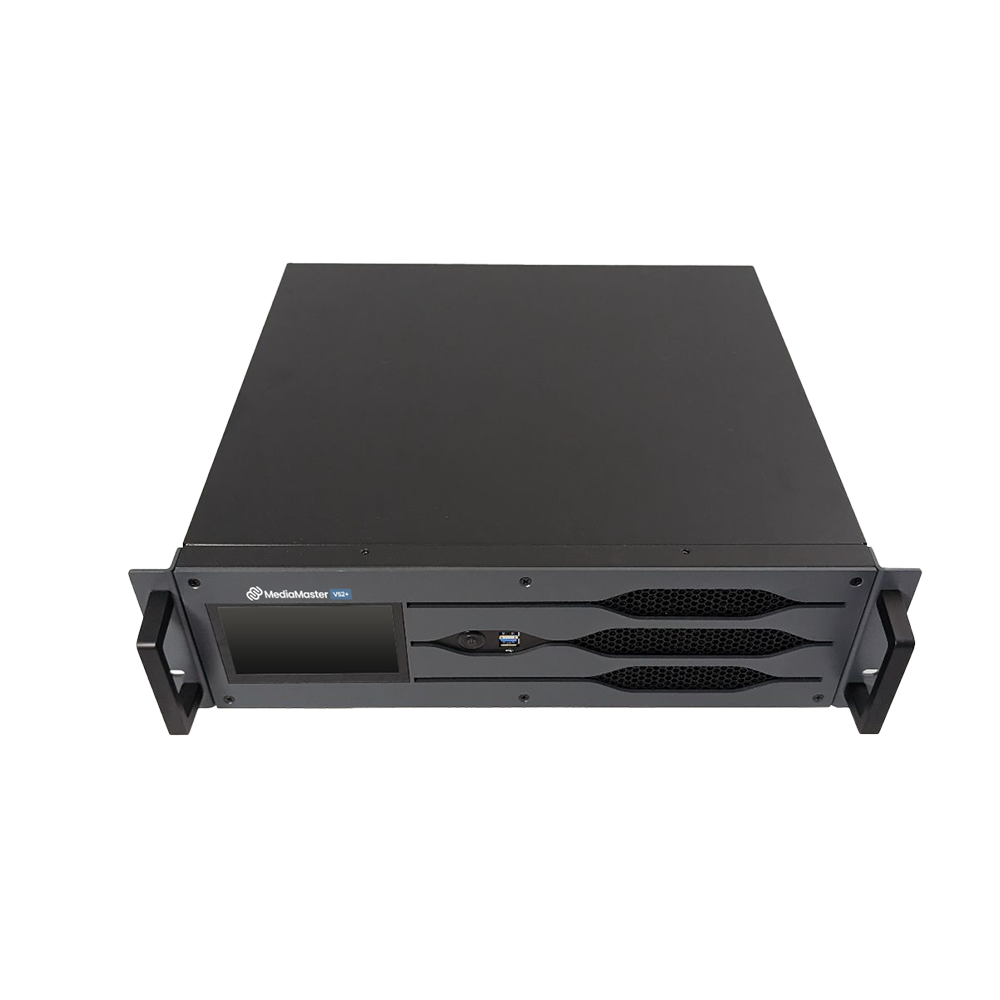

Chamsys – MediaMaster VS2+

Chamsys

Built for the demands of rental houses, this system is strong, reliable, and effortless to operate. Featuring 2 x 4K outputs powered by MediaMaster Pro, it delivers exceptional performance with uncompromising dependability.

SKU: CHACS500002 Categories: , ,

Description

Built to handle the toughest rental and live production environments, this system combines rugged design with a lightning-fast graphics engine for flawless playback every time. Powered by MediaMaster Pro, it delivers up to 48 playback layers, support for multiple surfaces and outputs, and advanced tools like LED Mapper, Video Mapper, Soft Edge & Geometric Correction, and full NDI®5 / CITP / MSEX compatibility.

Under the hood, an Intel i5 13500 processor with 20 threads, 16GB DDR4 RAM, and NVIDIA RTX A2000 12GB graphics ensure smooth, responsive performance, while dual 4K outputs guarantee pristine visuals. Connectivity is extensive, with 2.5Gb Ethernet, multiple USB 3.0/USB-C ports, and optional 2x/4x SDI or HDMI inputs. A 1TB SSD system drive plus factory restore options provide fast storage and reliability for demanding workflows.

Strong, reliable, and simple to use, this system is the perfect choice for rental houses and touring productions needing maximum performance in a compact, road-ready package.

Features

  • 2 x 4K Video Output
  • MediaMaster Pro Software
  • Includes LED Mapper & Video Mapper
  • NDI Support

Additional information

Hardware Specifications

Processor: Intel i5, 13500
Threads (Cores): 20 (14)
RAM: 16gb (2x 8GB) Crucial
RAM Type: DDR4 3200 MHz SODIMM
Graphics Card: NVIDIA RTX A2000 12GB NVIDIA T400 4GB
Power Input: powerCON TRUE1 110 to 240 VAC
Max Power Consumption (mains): TBC
System Drive: SSD 1 TB
Storage Drive: Uses System Drive
System Restore Drive: USB 128 Gb
Interface Output: 2 x MDP – 4K
Media Output: 2 x MDP – 4K
Ethernet Output: 2 x RJ45 2.5 Gigabit Lan
Front USBs: 2 – USB3
Rear USBs: 5 x USB 3.0 A Type , 1 x USB-C
Inputs: 2x/4x SDI (Optional) 2x/4x HDMI (Optional)
Control

Art-Net: Yes
sACN: Yes
Stand Alone Keyboard Control: Yes
DMX Control: Optional MagicDMX
Front Panel Control: Yes
Unit Weights and Dimensions

Width: 430mm (5.63 inches)
Depth: 405mm (7.68 inches)
Height: 135mm (1.69 inches) – 3U High
Weight: 10.4 kg (22.92 lb)
Software Specifications

Operating System: Windows 11 Pro
MediaMaster Software: Pro
Playback Layers: 48
Surfaces: 250
Outputs: 2
Presets: 4096
LED Mapper: Yes
King Net Mapper: Yes
Video Mapper: Yes
Soft Edge / Geometric Correction: Yes
NDI®5 : Yes
CITP/MSEX: Yes
GDTF Personality Export: Yes
Factory System Restore: Yes
Boxed Weights and Dimensions

Width: 600mm (23.62 inches)
Depth: 550mm (21.65 inches)
Height: 300mm (11.81 inches)
Weight: 14.2 kg (31.30 lb)
