Chamsys – MediaMaster VS1+

Chamsys

VS1+ delivers stunning 4K video playback in a highly flexible, intuitive control package.

Fatures

  • 4K Video Output

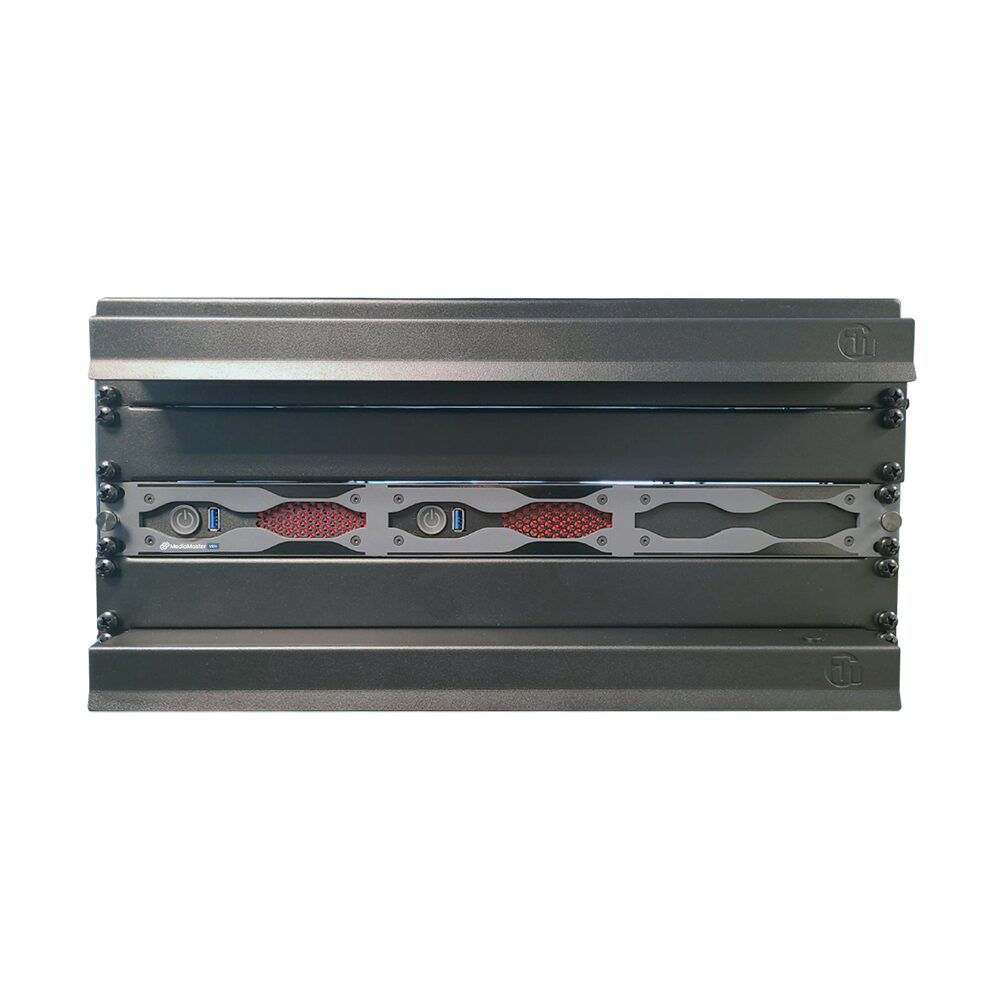

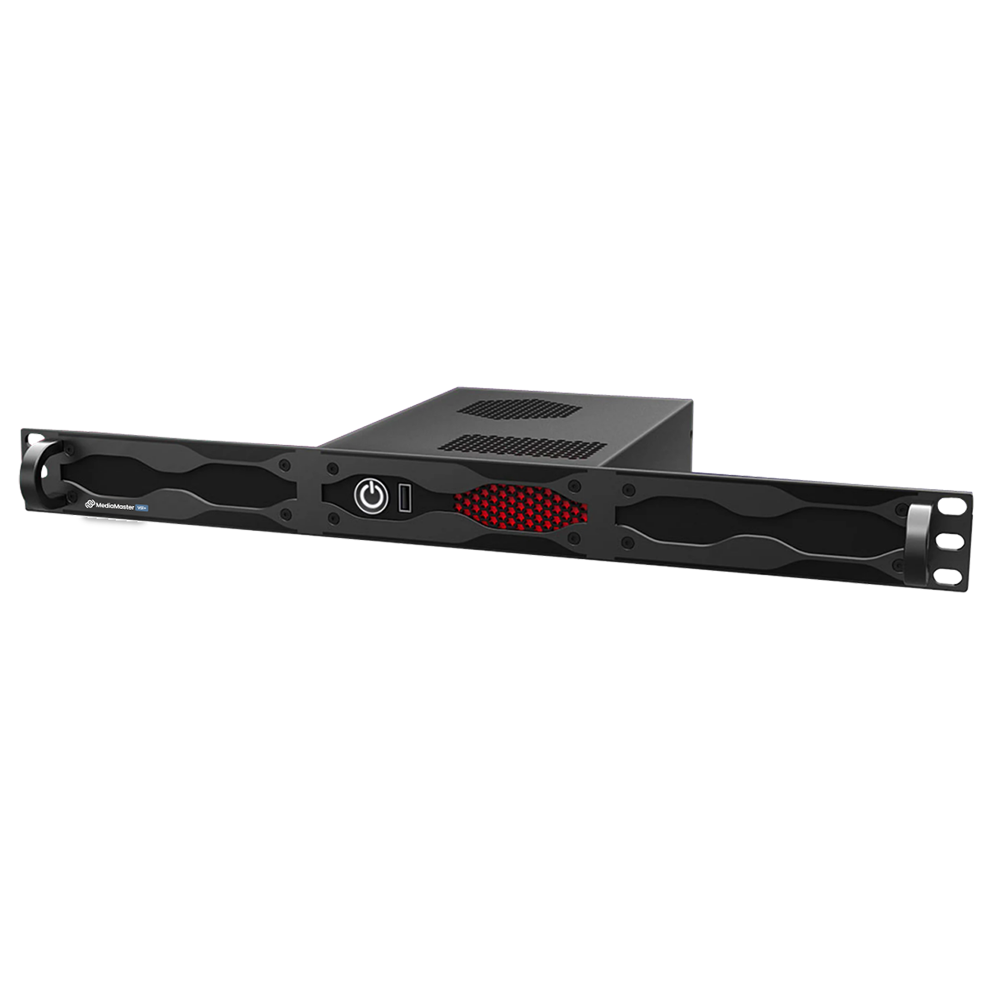

  • Mount 3 Units in a 1U Rack Footprint
  • MediaMaster Pro Software
  • Includes LED Mapper & Video Mapper
  • NDI Support
SKU: CHACS500001 Categories: , ,

Description

VS1+ delivers stunning 4K video playback in a highly flexible, intuitive control package. With compact dimensions of just 143.2 x 195 x 43 mm, three units fit neatly into a 1U rack footprint—ideal for maximizing space in professional setups. Weighing only 1.28 kg, the VS1+ combines lightweight portability with robust, precision engineering, making it the perfect choice for touring lighting operators, VJs, and DJs who demand reliability and performance on the road.

Additional information

Hardware Specifications

Processor: Intel i7, 2.8 GHz
Threads (Cores): 8 (4)
RAM: 16GB (2x 8GB Crucial)
RAM Type: DDR4 3200 MHz SODIMM
Graphics Card: Intel Integrated Graphics
Power Input: powerCON TRUE1 110 to 240 VAC
Max Power Consumption (mains): TBC
System Drive: 500GB SSD
Storage Drive: Uses System Drive
System Restore Drive: No

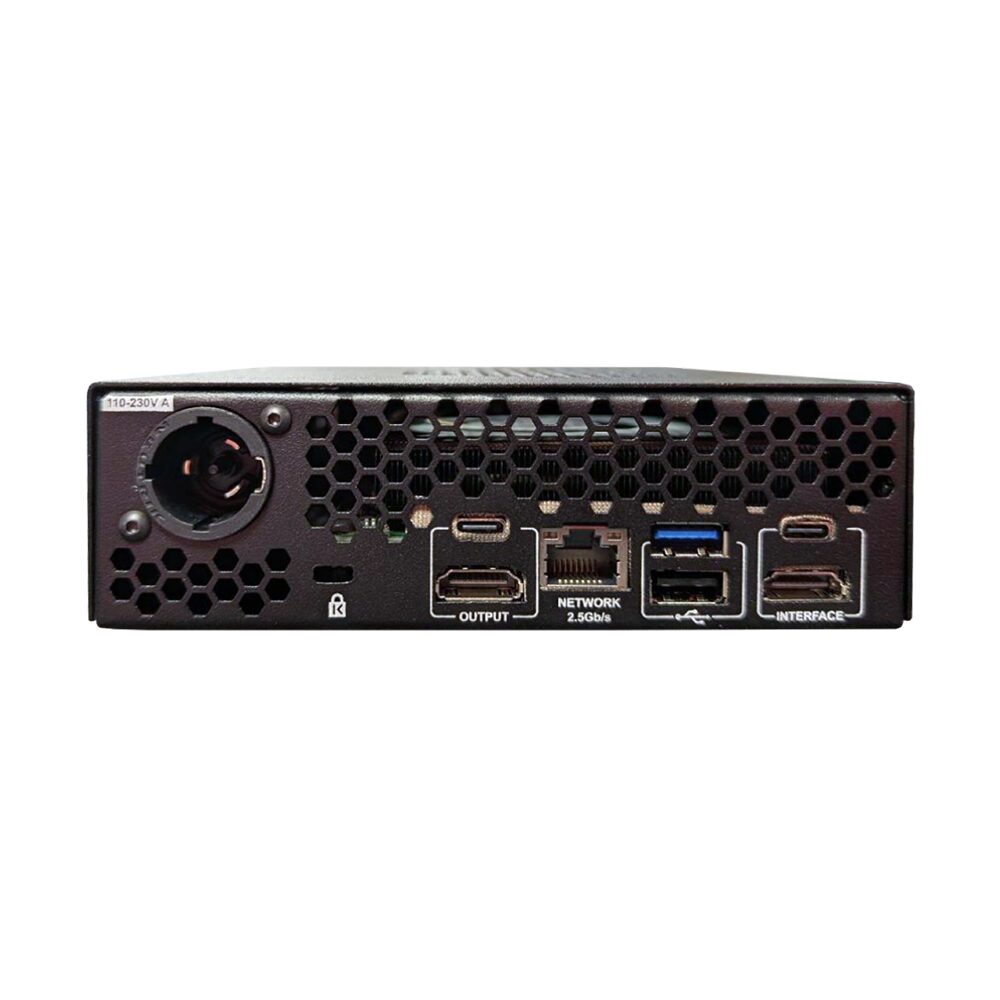

Interface Output: 1 x HDMI 2K
Media Output: 1 x HDMI 4K
Ethernet Output: 1 x 2,5 GB/s
Front USBs: 1 – USB 3.0 A Type
Rear USBs: 2 x USB 3.0 A Type , 2 x USB-C

Control

Art-Net: Yes
sACN: Yes
Stand Alone Keyboard Control: Yes
DMX Control: Optional MagicDMX
Front Panel Control: No

Unit Weights and Dimensions

Width: 143mm (5.63 inches)
Depth: 195mm (7.68 inches)
Height: 43mm (1.69 inches) – 1U High
Weight: 1.28 kg (2.82 lb)

Software Specifications

Operating System: Windows 11 Pro
MediaMaster Software: Pro
Playback Layers: 48
Surfaces: 250
Outputs: 1
Presets: 4096
LED Mapper: Yes
King Net Mapper: Yes
Video Mapper: Yes
Soft Edge / Geometric Correction: Yes
CITP/MSEX: Yes
NDI®5 : Yes
GDTF Personality Export: Yes
Factory System Restore: Yes

Boxed Weights and Dimensions

Width: 515mm (20.28 inches)
Depth: 235mm (9.25 inches)
Height: 100mm (3.93 inches)
Weight: 1.66 kg (3.66 lb)

Downloads

Data Sheet Download
