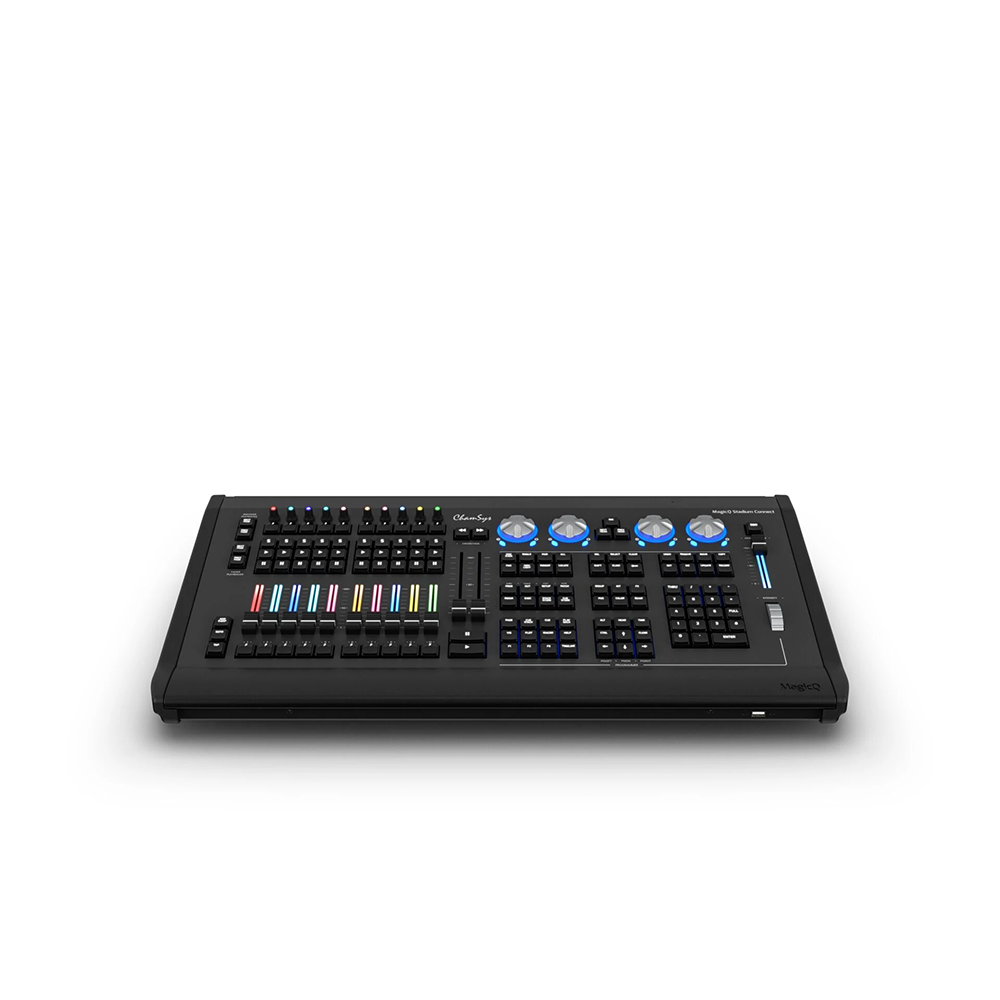

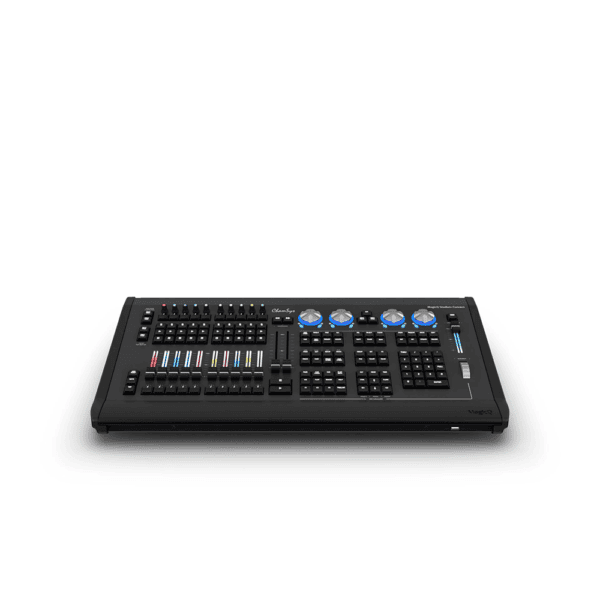

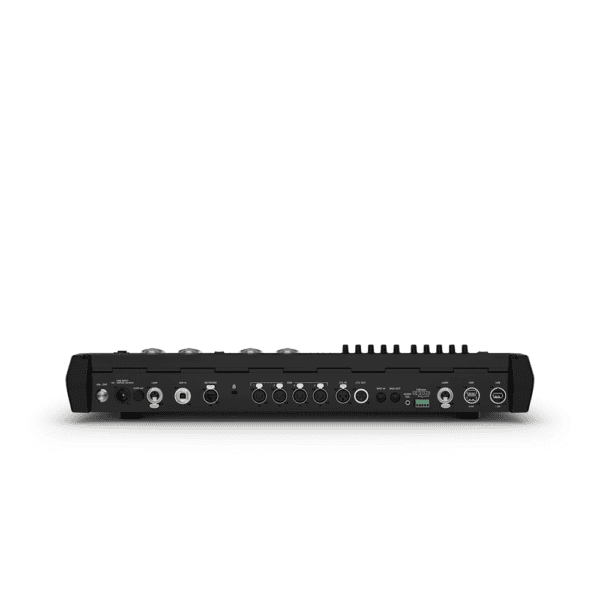

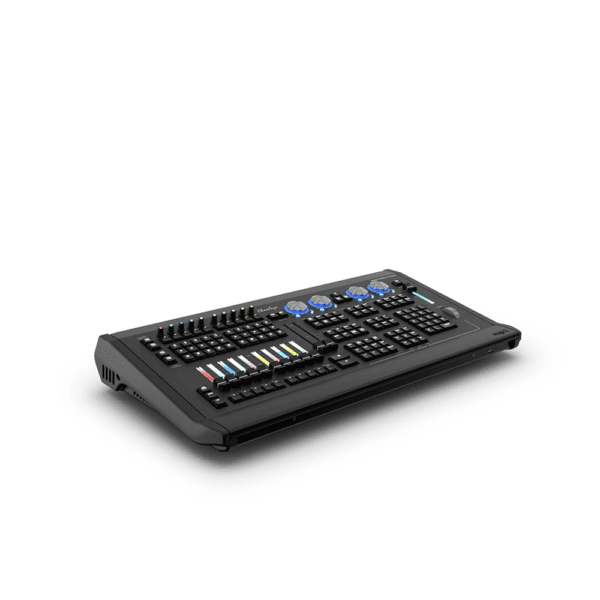

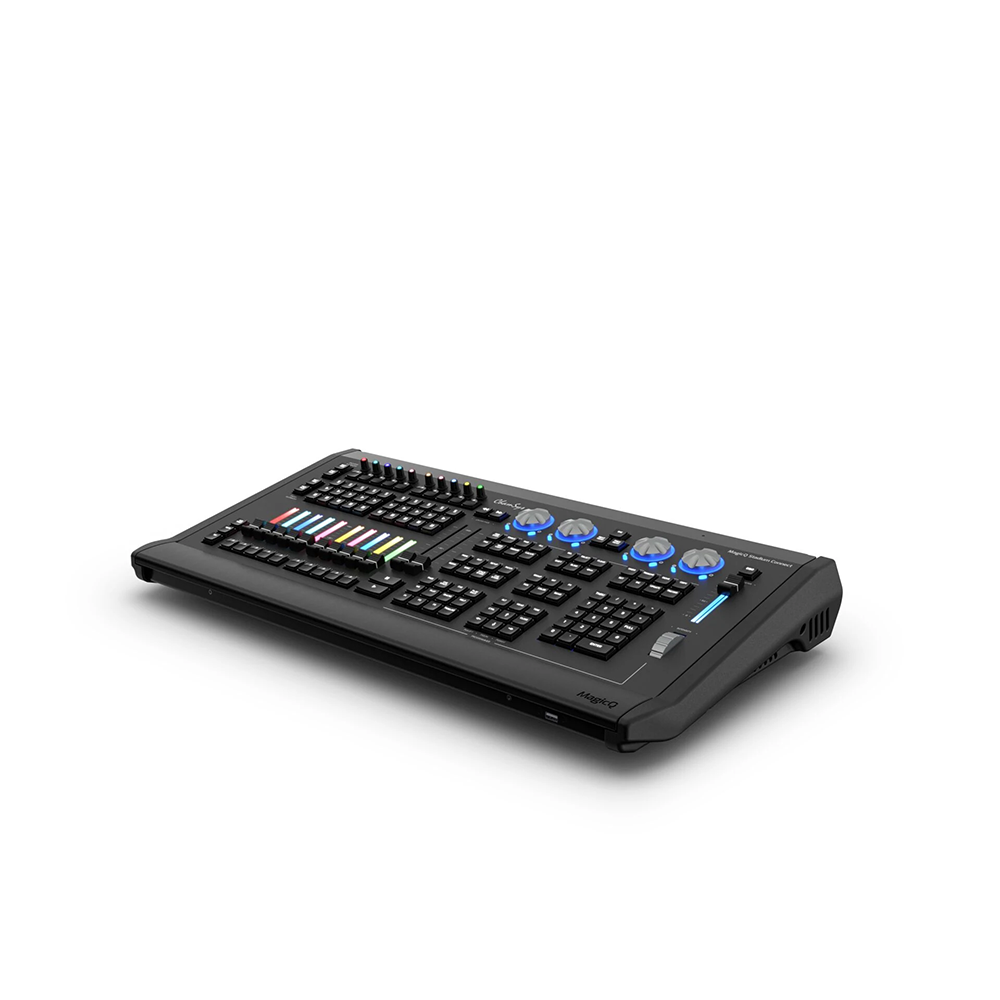

Chamsys- MagicQ Stadium Connect

Chamsys

MagicQ Stadium Connect is a PC-based programming interface with the same programming keyset and dual crossfaders as the MQ250M and MQ500M.

Features

  • 10 fully motorised fader playbacks
  • 10 encoder playbacks
  • RGB illumination of playbacks
  • Backlit buttons
  • 64 universes direct from MagicQ for Art-net/sACN output
  • 400 visualisation universes for pre-programming
  • Network port acts as network interface for PC
  • Dual 100mm Manual Cross Faders
  • 2 dedicated high power USBs for charging of phones/tablets
SKU: CHA200-025 Categories: , , ,

Description

MagicQ Stadium Connect is a PC-based programming interface with the same programming keyset and dual crossfaders as the MQ250M and MQ500M. Outputting 64 universes directly from the Connect, and the ability to pre-vis up to 400 universes, MagicQ Stadium Connect is the ultimate solution for complete control on-the-go. With 10 backlit and motorised faders and 10 backlit playback encoders with executors, the MagicQ Stadium Connect provides plenty of programmable real estate for your show.

Additional information

Hardware Specifications:

Direct DMX Outputs: 4
Motorised Playbacks: 10
Encoder Playbacks: 10
Total no of Playbacks: 20 (10+10)
Dual Cross Faders: Yes
Attribute Encoders: 4
Backlit Keys: Yes
Illuminated Playback/Encoders with RGB control: Yes
Intensity Wheel: 1
Network Ports: 1
USB Ports : 4
Audio Input Sound to Light: Yes
MIDI Ports 1 in and out: Yes
LTC Timecode Ports in and out: Yes
10Scene Port: 1
Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
Max Power Consumption (mains): 360w

Software Specifications:

Universes direct from software (via Artnet/sACN/Pathport): 64
Visualisation Universes: 400
Max Number of DMX Channels: 204,800
Max Number of Fixtures Supported: 204,800
Max Number of Cues: 5000
Max Number of Cue Stacks: 2000
Max Number of Groups: 5000
Max Number of Palettes: 4096
Number of Media Server Layers Supported: 50 (each different content)
Supported on Windows (8.1 or higher), macOS (12 or higher) and Linux

Included Accessories:

Dual Colour Desk lights: 2
Dust cover: 1
Neutrik powerCON TRUE1 Power Cable: 1
USB Cable: 1

Stadium Connect Weights and Dimensions:

Width: 680mm (26.8″)
Depth: 364mm (14.3″)
Height: 85mm (3.3″)
Weight: 8.7kg (19.1bs)

Flight Cased Weights and Dimensions

Width: 761mm (29.9″)
Depth: 467mm(18.3″)
Height: 197mm (7.7″)
Weight (stadium connect in flightcase): 20.0kg (44.1lbs)

Downloads

Data Sheet Download
