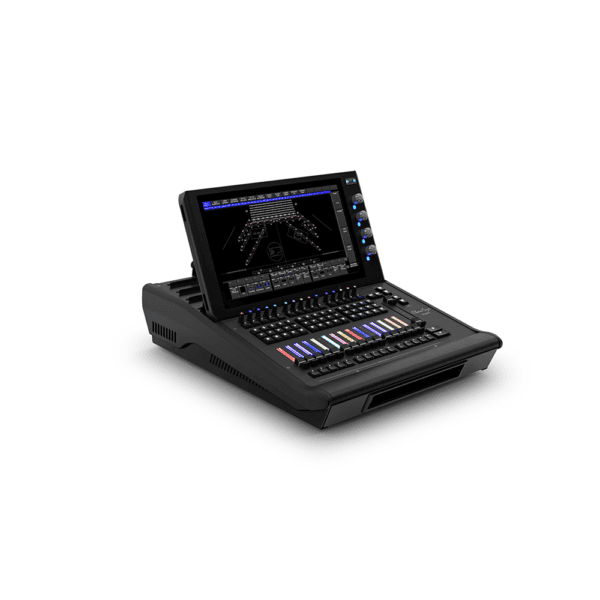

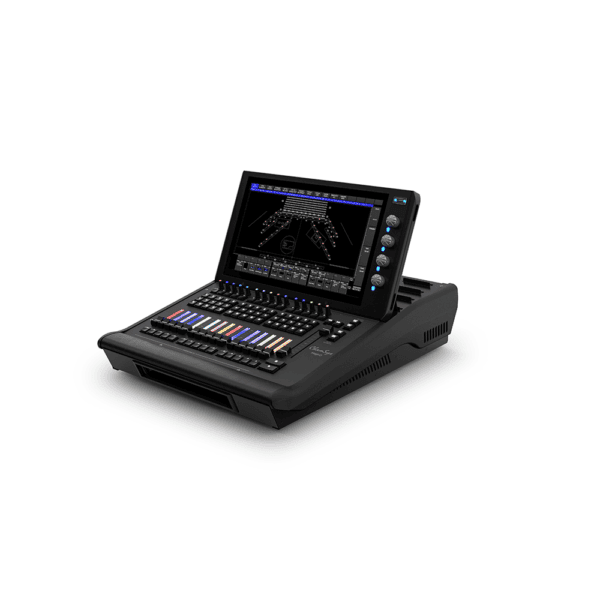

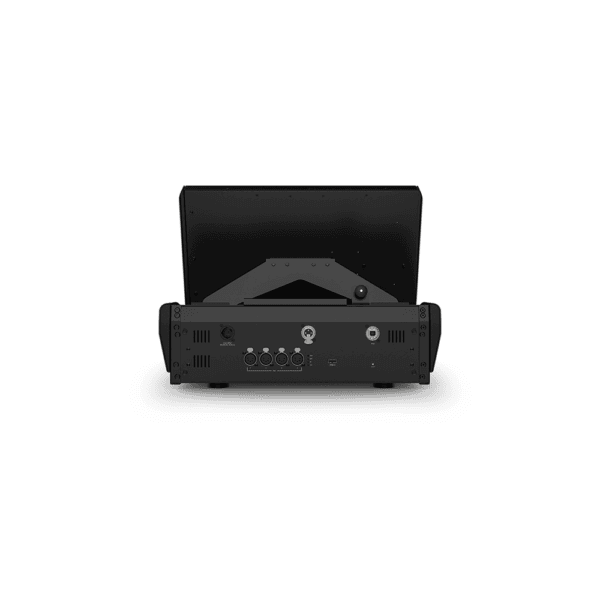

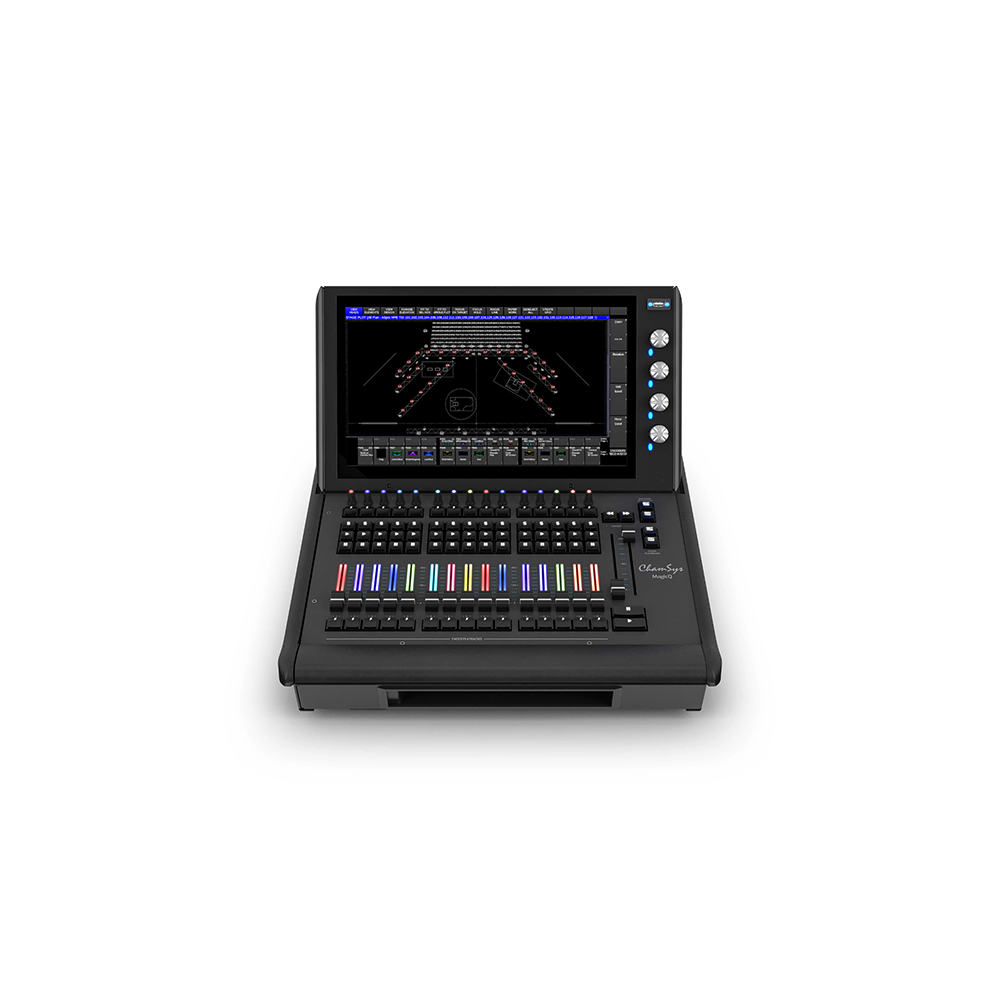

Chamsys – MagicQ MQ500M Stadium Wing

Chamsys

Designed to operate with the MagicQ MQ500M Stadium console at the highest level of show control.

SKU: CHA100-434 Categories: , , ,

Description

MagicQ MQ500M Stadium Wing is designed to operate with the MagicQ MQ500M Stadium console at the highest level of show control. MQ500M Stadium Wing features 30 playbacks in total: 15 motorised faders and 15 encoder playbacks all with RGB illumination. The wing also incorporates a full HD multitouch display, 4 DMX outputs, and in-built UPS.

Features

  • Compatible with MagicQ MQ500M Stadium console
  • 15 fully motorised fader playbacks
  • 15 encoder playback with RGB indicators
  • RGB illumination of playbacks
  • Backlit buttons
  • 15″ Multi touch HD display
  • Dual motorised 100mm crossfaders ideal for Theatre
  • 4 assignable DMX ports

Video

MagicQ MQ500M Stadium – Virtual World Premier by ChamSys

MagicQ evolved, body and soul. Join ChamSys Product Specialists for the introduction of the new MagicQ MQ500M Stadium Console. The powerful console features a robust array of significantly enhanced features and capabilities that gives designers greater programming flexibility than ever. Witness firsthand a massively improved look and feel that enables 256 universes of control direct from the console and motorised faders with customisable back lit RGB illumination.

Additional information

Hardware Specifications

Motorised Playbacks: 15
Encoder Playbacks: 15
Total no of Playbacks: 30 (15+15)
Dual Motorised Cross Faders: Yes
Execute Encoders: 4
Backlit Keys: Yes
Direct DMX Outputs: 4
Illuminated Playback/Encoders with RGB control: Yes
Inbuilt 15" HD Multi-Touch Display: 1
High Power USB Port: 1
Inbuilt UPS: Yes, uses 12v Lead-Acid Battery
Front Storage Pocket: 1
Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
Boxed Weights and Dimensions

Width: 690mm (21 inches)
Depth: 590mm (23.3 inches)
Height: 340mm (13.3 inches)
Weight: 21kg (46.2 lb)
Console Weights and Dimensions

Width: 471mm (18.5 inches)
Depth: 587mm (23 inches)
Height: 85mm high at front (3.3 inches), 188mm high at rear (screens stored) (7.4 inches)
Weight: 19kg (41.9 lb)
Software Specifications

Max Number of DMX Channels: 131,072
Max Number of Fixtures Supported: 131,072
Max Number of Cues: 5000
Max Number of Cue Stacks: 2000
Max Number of Groups: 5000
Max Number of Palettes: 4096
Number of Media Server Layers Supported: 50 (each different content)
Included Accessories

Dual Colour Desk light: 1
Dust cover: 1
Neutrik powerCON TRUE1 Power Cable: 1
Neutrik USB A-B connection cable: 1
Standard USB A-B connection cable: 1
HDMI to HDMI connection cable: 1
HDMI to DVI connection cable: 1
Flight Cased Weights and Dimensions

Width: 690mm (21 inches)
Depth: 590mm (23.2 inches)
Height: 340mm (13.3 inches)
Weight (console in flight case): 36kg (79 lb)

Downloads

User Guide Download
Data Sheet Download
