Description

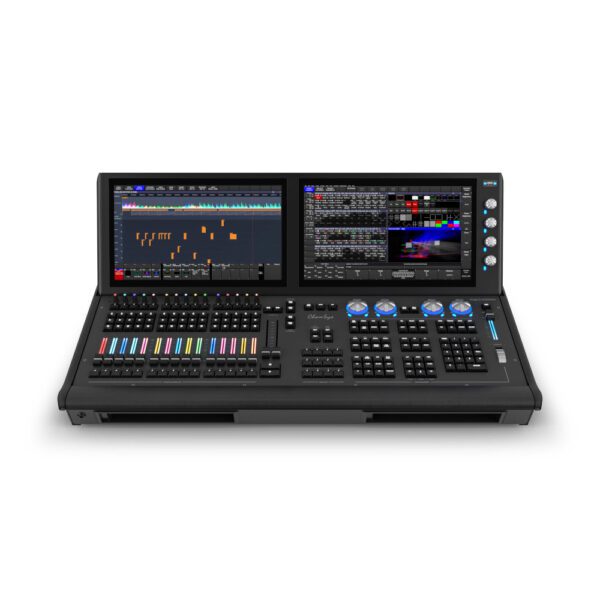

At home on the largest of shows, MagicQ MQ500M+ Stadium supports 400 universes direct from the console without the need for external processing. MQ500M+ introduces the ability to expand screen real estate via its two Display Port++ External Monitor ports, and adds inbuilt Wi-Fi for connection of Remote Focus application and an inbuilt 4-port Gigabit Network Switch.
MQ500M+ features RGB-illuminated faders and encoder playbacks, with 15 fully-motorised fader playbacks, 15 encoder playbacks and 12 backlit multi-purpose Macro/Execute/Playbacks/Palette keys, giving the console a total of 42 playbacks and providing programmers with a powerful work station well-suited for Concert & Touring, TV & Broadcast, Live Events, House of Worship and Theatre applications.
MQ500M+ also features dual HD resolution multi-touch 15” displays with adjustable viewing angles and multi-touch gesture support, for a more intuitive workflow. For additional control, connect a MagicQ MQ500M Stadium Wing and get even more playbacks and another touchscreen display as well.
MQ500M+ Stadium has inbuilt MagicVis 3D visualiser with high quality beam and gobo rendering, enabling you to pre-program shows offline and save time onsite. This versatile console comes with 4 DMX ports, an intensity wheel and 100-mm split crossfaders for theatre control.
Features
- 400 universes direct from the console
- 15 fully motorised fader playbacks
- 15 encoder playback with RGB indicators
- 12 multi-purpose Macro/Executes/Playbacks keys
- RGB illumination of playbacks
- Backlit buttons
- Dual Inbuilt 15″ Multi HD touch displays
- Two Display Port++ External Monitor Support
- Inbuilt Wi-Fi for connection of Remote Focus application
- Inbuilt 4-port Gigabit Network Switch
- 4 DMX ports
- Audio In/Out on the Rear Panel
- Power Out for MQ500M Stadium Wing
- Up to 8 touch displays support (2 Internal, 2 External, 4 via remote network)
- Dual motorised 100mm crossfaders ideal for Theatre
- Inbuilt MagicVis Visualiser with full rendering of beams and gobos
Video
MagicQ MQ500M Stadium – Virtual World Premier by ChamSys
MagicQ evolved, body and soul. Join ChamSys Product Specialists for the introduction of the new MagicQ MQ500M Stadium Console. The powerful console features a robust array of significantly enhanced features and capabilities that gives designers greater programming flexibility than ever. Witness firsthand a massively improved look and feel that enables 256 universes of control direct from the console and motorised faders with customisable back lit RGB illumination.
