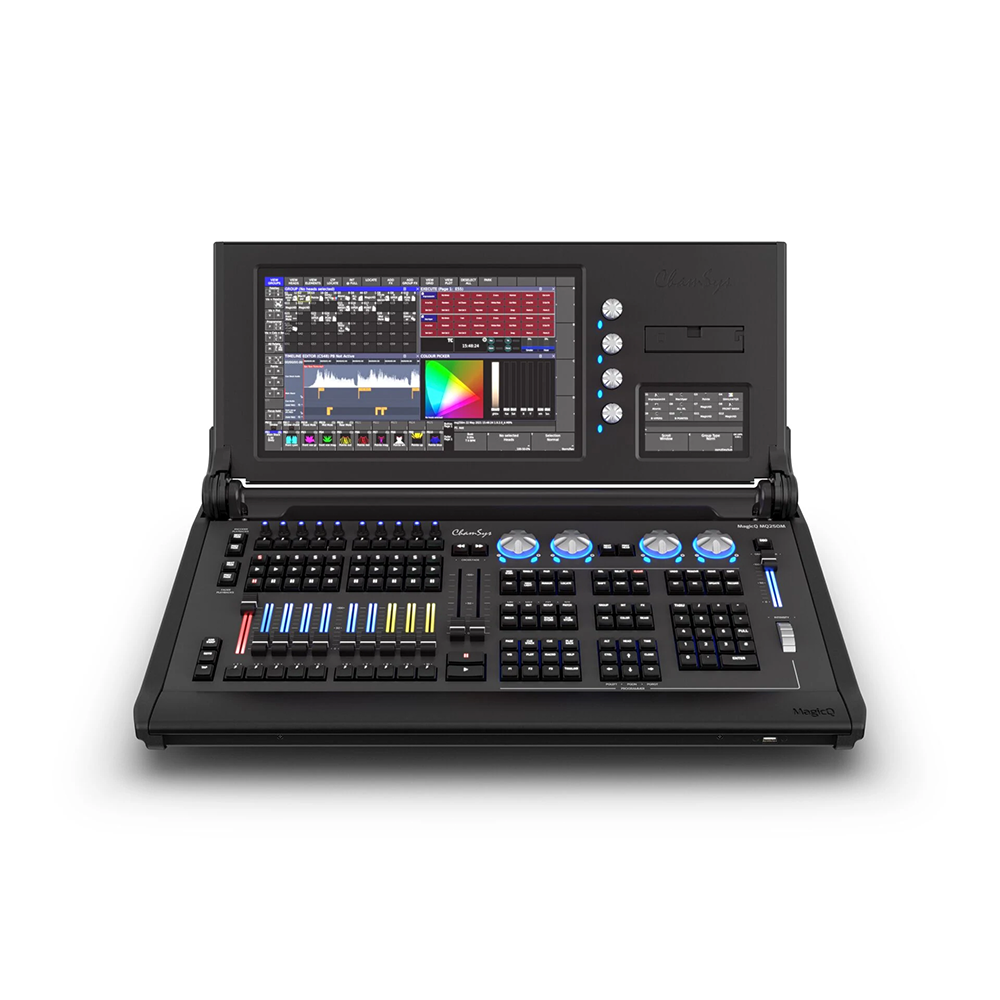

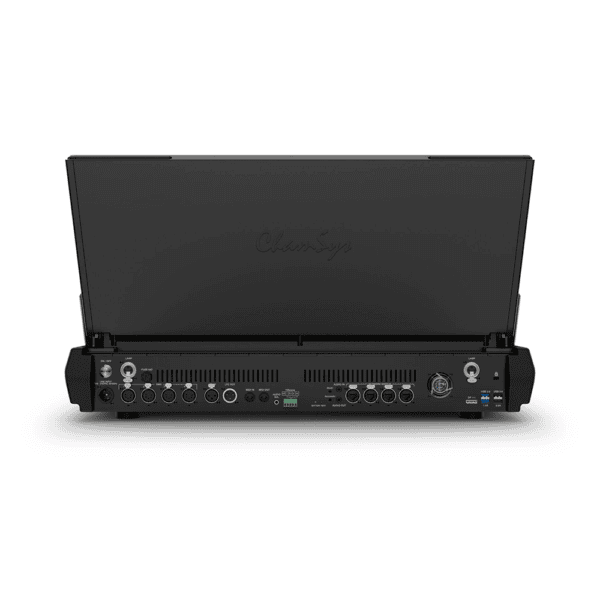

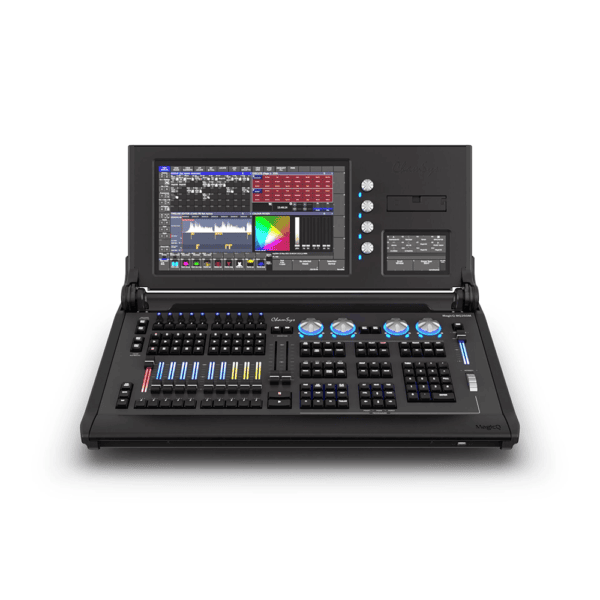

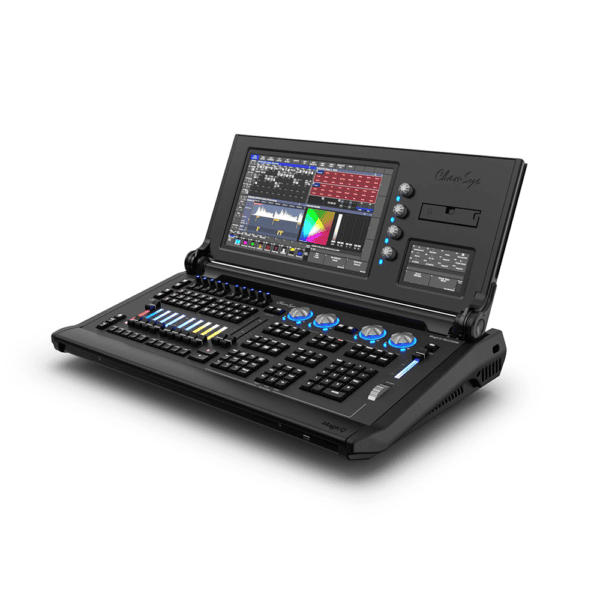

Chamsys – MagicQ MQ250M Stadium Console

Chamsys

A high capacity of show control with portability for a complete on-the-go console solution.

SKU: CHA100-250 Categories: , , ,

Description

MagicQ MQ250M Stadium combines a high capacity of show control with portability for a complete on-the-go console solution. MQ250M has the ability to control up to 128 universes without any additional processing equipment with the ready-to-go MagicQ software you are already familiar with. 10 backlit and motorised faders and 10 backlit playback encoders with executors give you a lot of programming real estate in the small frame MQ250M is designed in.

Features

  • 64 universes direct from the console, with 128 universe upgrade option
  • 10 fully motorised fader playbacks
  • 10 encoder playbacks
  • RGB illumination of playbacks
  • Backlit buttons
  • Inbuilt 15″ Multi HD touch display
  • Dedicated 5″ Attribute/Encoder touch display
  • Dual 100mm Manual Cross Faders
  • 2 dedicated high power USBs for charging of phones/tablets
  • Inbuilt Wi-Fi connects to MagicQ Remote control app

Video

Meet The MagicQ MQ250M Stadium Console

Meet the new MagicQ MQ250M Stadium Console. The power and performance you already know, now more portable than ever before.

Additional information

Hardware Specifications

Universes direct from the console (via Artnet/sACN/Pathport): 64* expandable to 128
Direct DMX Outputs: 4
Motorised Playbacks: 10
Encoder Playbacks: 10
Total no of Playbacks: 20 (10+10)
Dual Cross Faders: Yes
Attribute Encoders: 8
Backlit Keys: Yes
Illuminated Playback/Encoders with RGB control: Yes
Intensity Wheel: 1
Network Ports: 4
Inbuilt 15" HD Multi-Touch Displays: 1
Inbuilt Attribute/Execute display: 1
External Monitor up to 1920×1200 Resolution – Display Port: 1
USB Ports, including 2 High Power USBs: 6
Audio Input (1 channel, 7 band): Yes
Audio Input Sound to Light: Yes
Audio Output: Yes
MIDI Ports 1 in and out: Yes
LTC Timecode Ports in and out: Yes
10Scene Port: 1
Inbuilt UPS: Yes, uses 12v Lead-Acid Battery
Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
Flight Cased Weights and Dimensions

Width: 810mm (31.9 inches)
Depth: 530mm (20.9 inches)
Height: 320mm (12.6 inches)
Weight (console in flightcase): 26kg (57.3lbs)
Software Specifications

Max Number of DMX Channels: 32,768 *expandable to 65,536
Max Number of Fixtures Supported: 32,768 *expandable to 65,536
Max Number of Cues: 5000
Max Number of Cue Stacks: 2000
Max Number of Groups: 5000
Max Number of Palettes: 4096
Number of Media Server Layers Supported: 50 (each different content)
Numbers of Shows: Virtually unlimited (500GB SSD)
Included Accessories

Dual Colour Desk lights: 2
Dust cover: 1
Neutrik powerCON TRUE1 Power Cable: 1
Display port to HDMI Cable: 1
Console Weights and Dimensions

Width: 680mm (26.7")
Depth: 416mm (16.3")
Height: 159mm (6.25")
Weight: 13kg (28.6lbs)

Downloads

Data Sheet Download
