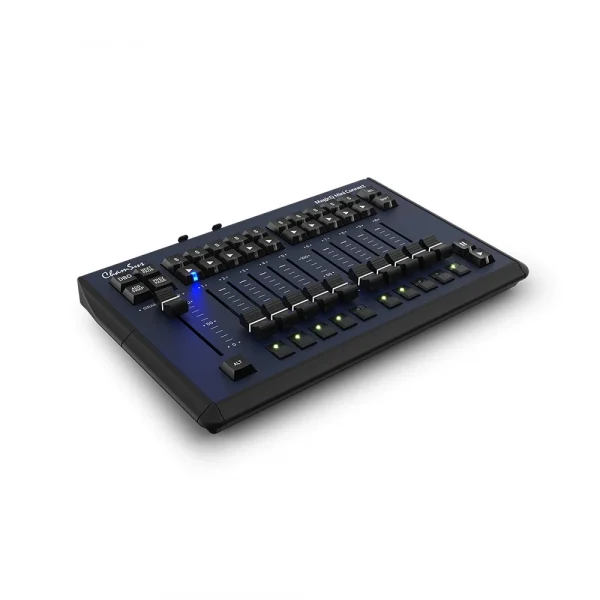

Chamsys_MagicQ-Compact-Mini-Connect_Front-RightChamsys_MagicQ-Compact-Mini-Connect_Front-Right

Chamsys – MagicQ Compact Mini Connect

Chamsys

The MagicQ Compact Mini Connect is a highly portable USB 3 powered control surface that couples physical playback with the power of MagicQ software.

Features

  • 10 Playbacks
  • USB Powered
  • Connects to Free MagicQ Software – PC, Mac or Linux
  • 1 Direct DMX Output supporting RDM
  • Kensington Lock Slot
  • Includes Lightweight Durable Case
  • 64 Universes via Art-net/sACN
Categories: , , ,

Description

The MagicQ Compact Mini Connect is a highly portable USB 3 powered control surface that couples physical playback with the power of MagicQ software.

Attached to a Windows, macOS or Linux system running MagicQ software, the Compact Mini Connect turns your computer into a powerful lighting, media and LED control center. Live show controls include 10 playback faders, Flash, Go and Select buttons, and a dedicated Grand Master fader.

The Compact Mini Connect is ideal for theatres, venues, clubs and installations. With 1 direct DMX512 output and an onboard network port that sends up to 64 universes of ArtNet and sACN, the Compact Mini Connect is also capable of commanding large shows as well as offering a cost-effective backup solution for users of larger MagicQ consoles.

Video

MagicQ Compact Connect & Mini Connect by ChamSys

Control that gets you moving. MagicQ Compact Connect and Compact Mini Connect are highly portable USB-powered control surfaces that couple physical playback with the power of MagicQ software.

Additional information

Hardware Specifications

Fader Playbacks: 10
Direct DMX Outputs: 1
Network Ports: 1
Kensington Security Lock Fixing: 1
USB Connector: Yes – USB-C
USB 3 Powered: Yes (Must be connected to a USB 3.0 or higher port)
Power Rating: 5v, 0.8A, 4W
Lightweight Durable Case Included

Included Accessories

USB A-C Cable: Yes
Lightweight Durable Case: Yes

Boxed Weights and Dimensions

Width: 380mm (15 inches)
Depth: 100mm (3.94 inches)
Height: 300mm (11.8 inches)
Weight: 3.0kg (6.6 lb)

Console Weights and Dimensions

Width: 327mm (12.9 inches)
Depth: 204mm (8.03 inches)
Height: 45mm (1.78 inches)
Weight: 1.85kg (4 lb)

Software Specifications

Universes: 64
Max Number of DMX Channels: 32768
Max Number of Fixtures Supported: 32768
Max Number of Cues: 5000
Max Number of Cue Stacks: 2000
Max Number of Groups: 5000
Max Number of Palettes: 4096
Number of Media Server Layers Supported: 50 (Each different content)
Supported on Windows (8.1 or higher), macOS (10.13 or higher) and Linux
