Chamsys – GeNetix GN4IP

Chamsys

The GeNetix Node 4 IP is a compact, rugged, IP65-rated DMX node with 4 configurable ports, PoE or mains power, and remote setup via webserver or Art-Net.

SKU: CHACS300067 Categories: , , , ,

Description

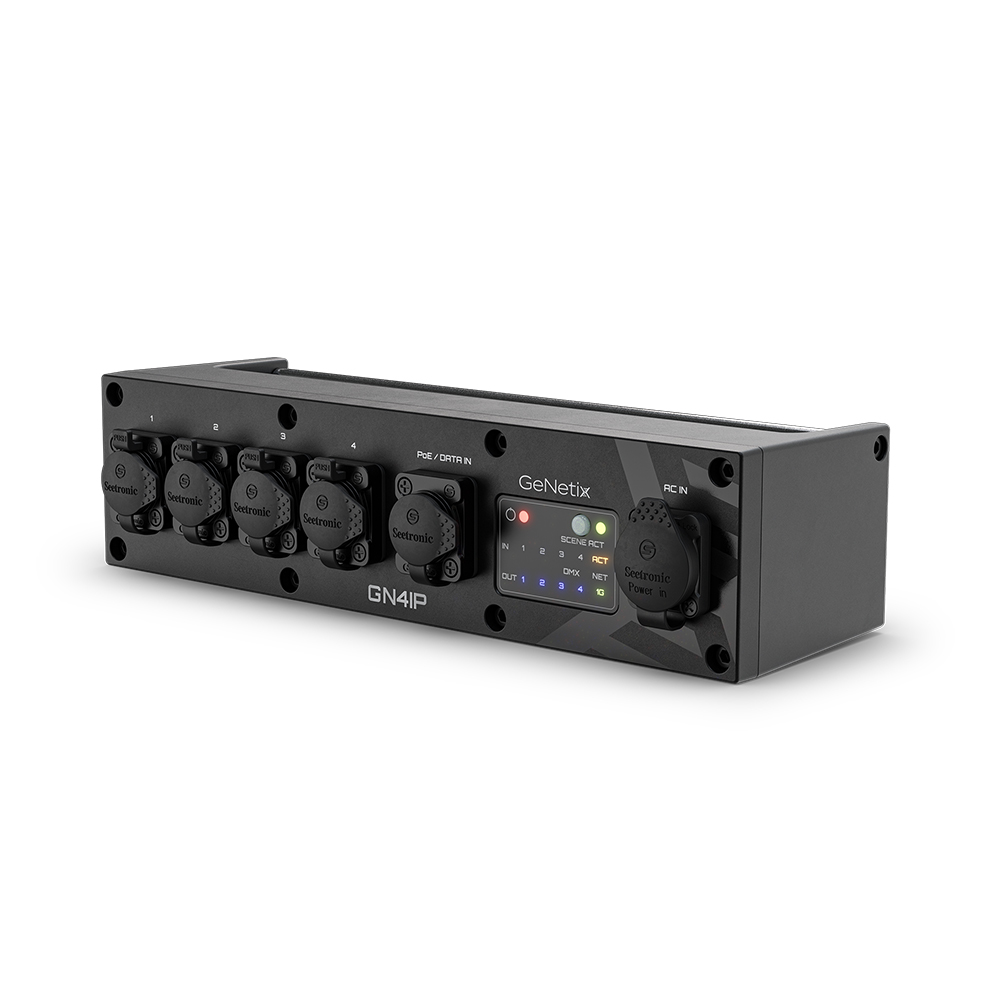

GeNetix Node 4 IP is a compact IP65-rated 4-port Ethernet-to-DMX Node that comes with multiple rigging options for easily mounting in your rig. Featuring 1 Network Port and 4 DMX Outputs that can be used as either DMX In or Out, Port Status LEDs, and the ability to be powered either via PoE or via Mains power to its PowerCon True1 Mains Input connector. This rugged and versatile device can be configured remotely over network via either its inbuilt Webserver, Art-Net or a ChamSys Console.

Features

  • 4 RDM DMX Ports supporting Input and Output
  • Supports Art-Net & sACN
  • IP65 Rated
  • Webserver for remote configuration
  • Can be Mains or PoE powered
  • Webserver for remote configuration
  • Core Mode Unlock of up to 2 MagicQ Instances when connected via Network
  • M12 Threaded Insert for Clamp Mounting
  • Built in Rail for secondary Safety bond when rigged

Additional information

Hardware Specifications

RDM Direct DMX Ports: 4
Network Ports: 1
Mains Input: PowerCon True1 Top
Can be PoE Powered: Yes
Port Status LEDs: Yes
M12 Clamp Fixing: Yes
Safety Bond Fixing Rail: Yes
Included Accessories

Neutrik powerCON TRUE1 Power Cable: 1
Software Specifications

Art-Net/sACN: Yes
ChamNet Support: Yes
Configurable DMX Timings: Yes
Web Server: Yes
DMX Redundancy Support: Yes
User Scene Store: Yes
Node Weights and Dimensions

Width: 274mm (10.81 inches)
Depth: 76mm (3,0 inches)
Height: 68mm (2.68 inches)
Weight: 1.40 KG (3.09 lb)

Downloads

Data Sheet Download
