Description

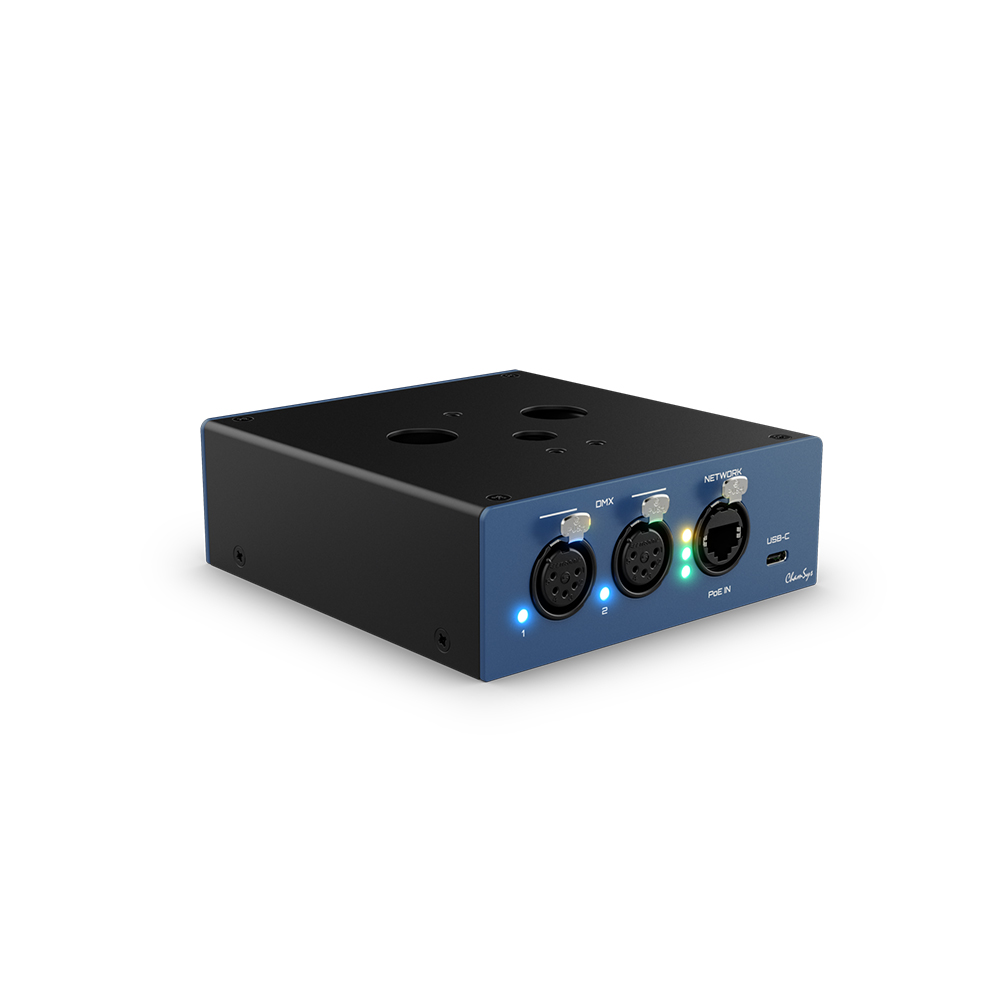

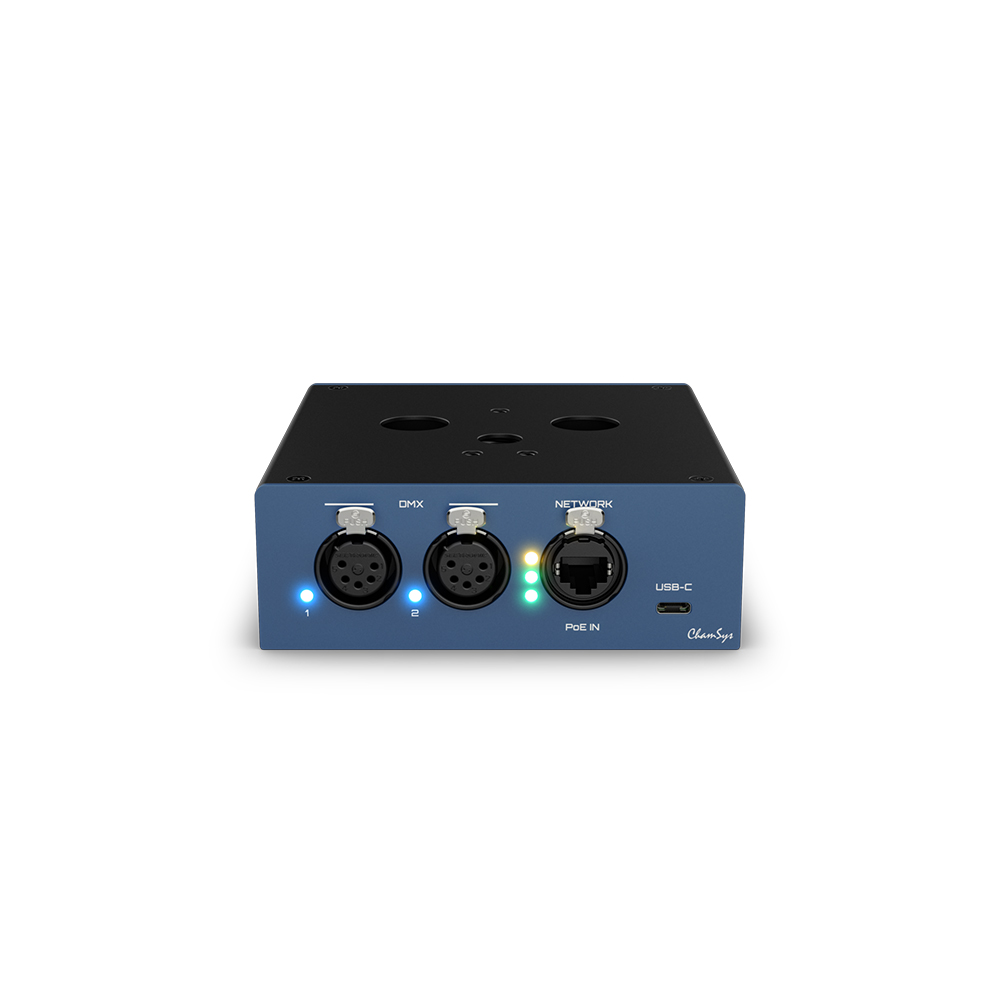

GeNetix Node 2 is a two-port Ethernet-DMX node that is compatible with any console supporting Art-Net and sACN. GeNetix Node 2 can also be used as a USB interface for MagicQ PC systems, unlocking MagicQ into reduced mode when connected via its USB-C or Network port.
Configuration is simple, whether done locally via its in-built display, remotely with its onboard web server or from the console. Powered by either PoE or its USB-C port, this versatile device is at home in many different environments as a standalone interface, truss-mounted in the rig via its M12 receiver or installed via its DIN rail mount.
GeNetix Node 2 supports Art-Net, sACN, RDM and supports both DMX input or output from its two DMX ports.
Features
- 2 RDM DMX Ports supporting Input and Output
- Supports Art-Net & sACN
- Webserver for remote configuration
- In-built display and encoder for local configuration
- Can be USB or PoE powered
- Unlocks MagicQ PC Systems into Core Mode via either USB or Network
Video
Introducing GeNetix: Our Growing Family of Intuitive Networking Devices by ChamSys
Introducing GeNetix! On the wall or in the rig, GeNetix simplifies data distribution with a complete range of Nodes, Gateways, Switches and PoE devices.
