Chamsys – GeNetix GD10

Chamsys

The GeNetix GD10 is a 19″ 1U rack-mountable 10-port DMX splitter built for flexibility and rugged reliability. Whether you’re running a permanent install or live show, the GD10 offers dual operating modes (1×10 or 2×5) with E1.20 RDM compliance, plus a physical RDM Disable button to clean up signal as needed. With a tough build and PowerCon True1 mains input, it’s ready for the rig or the rack.

SKU: CHACS300100 Categories: , , , ,

Description

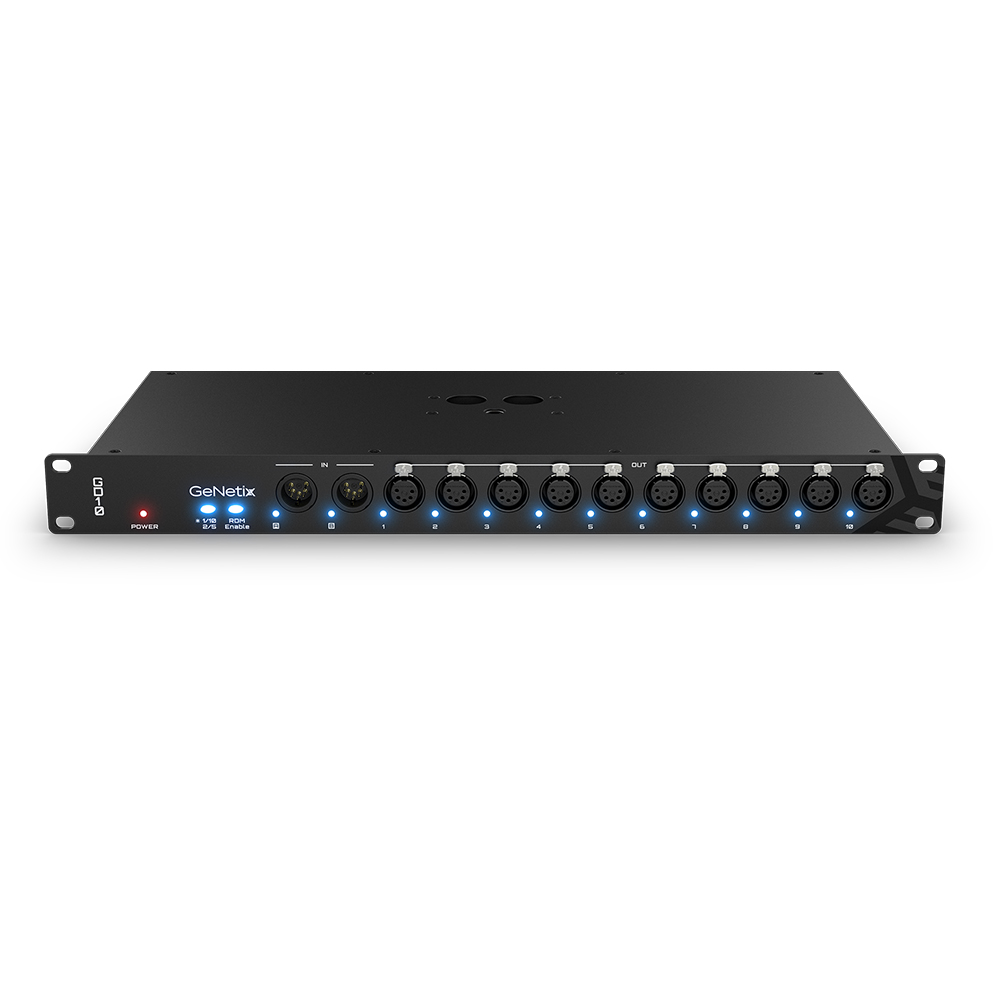

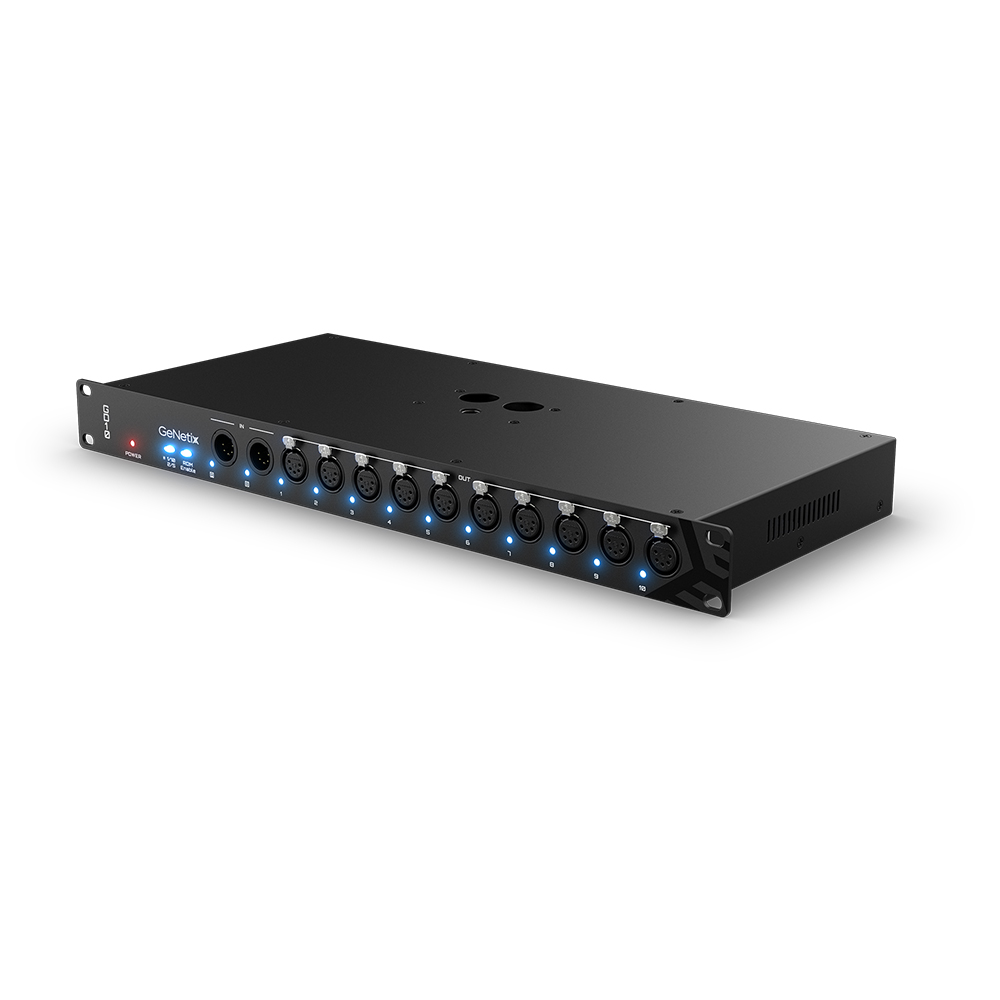

GeNetix GD10 is a 19″ 1U rack-mountable, RDM-capable 10-Port DMX Splitter at home in many different environments, with a design suited for both long-term installations and live events. Two selectable operating modes offer either 1×10 or 2×5 DMX signal distribution. GD10 features an ‘RDM Disable button’ to strip out RDM data and retime the DMX signal, and its ruggedly built construction includes a PowerCon True1 Mains Input connector.

Features

  • 10 Port RDM E1.20 Compliant DMX Splitter
  • 2 Input / 10 Output DMX Splitter
  • 1 In to 10 Ouput or 2 In to 5 Output Mode
  • 19” 1U Rack Mountable

Additional information

Hardware Specifications

5 Pin DMX Output Ports: 10
5 Pin DMX Input Ports: 2
RDM Enable/Disable Option: Yes
M12 Clamp Fixing: Yes

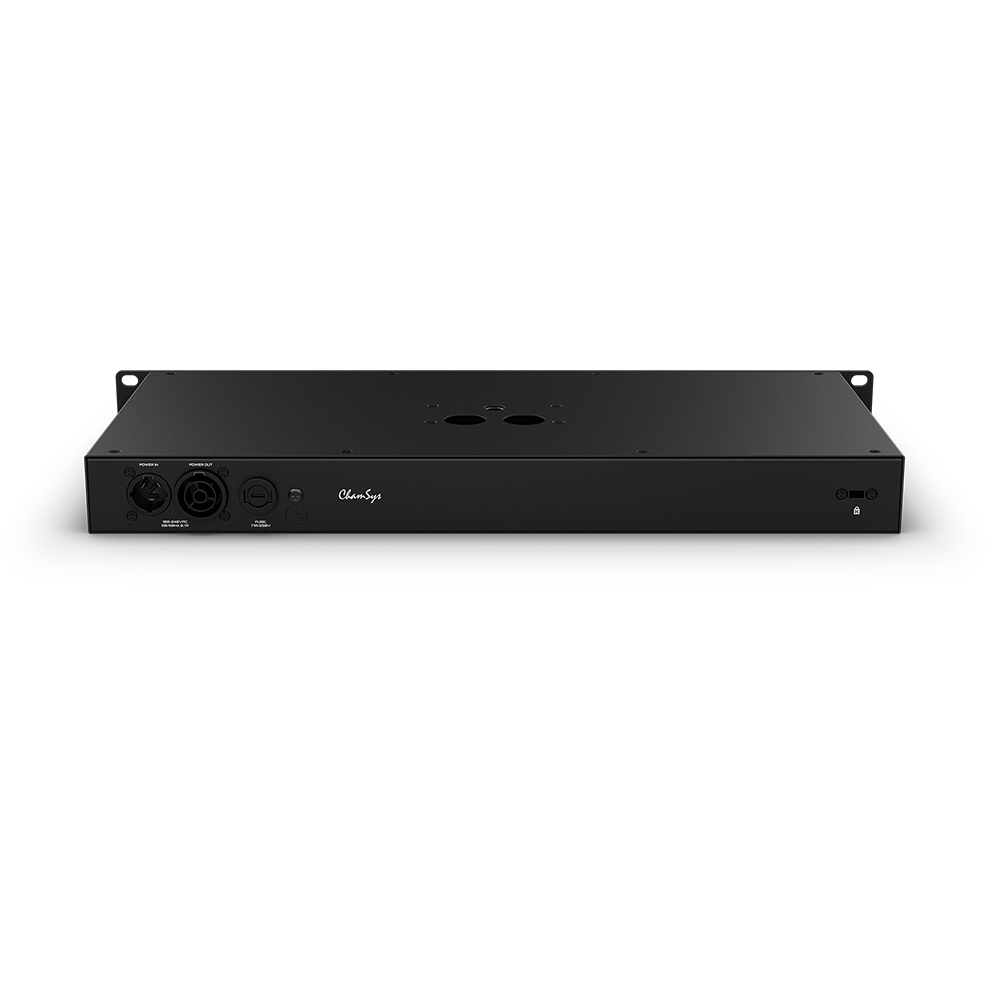

Power Input: Neutrik powerCON TRUE1 110 to 240 VAC
Max Power Consumption (mains): 6.5w
Included Accessories

Neutrik powerCON TRUE1 Power Cable: 1
Software Specifications

RDM E1.20 Compliant: Yes
Node Weights and Dimensions

Width: 480mm (18.9 inches)
Depth: 218mm (8.59 inches)
Height: 44.4mm (1.75 inches)
Weight: 2.75 KG (6.06 lb)

Downloads

Data Sheet Download
User Guide Download
