Cameo – P6 High Output Full-Spectrum Ellipsoidal

Cameo

The P6 is a powerful 600W RGBALC LED profiler with ultra-precise colour mixing, 16,000 lumens, and eco-conscious design—ideal for theatres and studios.

SKU: CAMCLP6 Categories: , , ,

Description

The P6 is a future-proof LED profiler with a powerful 600 W RGBALC engine and 16,000 lumens, making it the perfect energy-efficient replacement for traditional 2.5 kW halogen profile lights in theaters and venues. It unites excellent lighting quality and natural colour reproduction with flexible lighting design tools in a modern lighting solution, which not only impresses in theatres, musicals, and TV studios, but also at congresses or event stages in the live performance sector and corporate world.

Thanks to the XColour™ technology designed & engineered in Germany, the P6 works with an extremely precise colour calibration mixing system based on the RGBALC (RGB + Amber + Lime + Cyan) LED engine. At the same time, the high CRI of 98 @ 5,600 K and a TLCI value of 94 @ 5,600 K ensure that people and objects are always vibrantly presented in clear and dynamic colours. In the white light range, the colour temperature can be continuously adjusted between 1,800 K and 10,000 K.

To flexibly adapt the P6’s powerful light to different stage requirements, the LED profiler is equipped with an integrated zoom in the 5° to 50° range. In combination with the 360° rotatable four-blade framing system and the infinitely variable integrated frost filter (the iris and gobo holders supplied can be optionally added via a slot system), users have a wide array of creative light-shaping options at their disposal.

With an LED service life of around 50,000 hours and significantly reduced power consumption compared to old 2.5 kW halogen profile lights, the P6 is a future-proof lighting solution. This not only contributes to lower energy costs and reduced environmental impact but also aligns with the overarching ‘Green Deal’ (aiming for climate neutrality by 2050) and the harmonisation of eco-design guidelines for light sources within the European Union.

Features

  • Future-proof LED Profile Spotlight meeting coming EU regulations
  • 16,000 lm luminous flux replaces conventional 2.5 kW halogen profile lights
  • 600 W RGBALC LED (RGB, Amber, Lime, Cyan)
  • High CRI (98 @ 5,600 K) and TLCI (94 @ 5,600 K) for natural colour rendering
  • Seamless colour temperature adjustment from 1,800 K to 10,000 K
  • Extremely precise, calibrated XColour™ colour mixing
  • Manually operated zoom range (5° – 50°) and additional focus
  • Protected and registered stepless, linear frost for versatile and seamless beam shaping
  • 360° rotatable four-blade framing system
  • Dual slot-in system for flexible combination of iris and gobo holder, with manual rotation
  • Whisper-quiet operation

Additional information

Photometric values

Illuminant type: LED RGBALC
Illuminant power: 600 W
Luminous flux: 16,000 lm
Front lens diameter: 150 mm
Exchangable lens: Yes
Exchangable optics: No
Zoom range: 5 – 50 °
Focusing type: Manual
LED PWM frequency: 1,530 Hz, 3,600 Hz, 12 kHz, 18.9 kHz, 25 kHz
Dimmer resolution: 16 Bit
Dimmer curves: Linear, Exponential, Logarithmic, S curve, Tungsten

Colours

LED colours: Red, Green, Blue, Amber, Lime, Cyan
Correlated colour temperature (CCT): 1,800 – 10,000 K
Halogen simulation redshift/DTW: Yes
Calibration: Smart calibration
Colour rendering index (CRI): > 98
Min. TLCI: 94

Effects

Iris: Yes
Framing blades: Yes
Module rotation: 0 – 360 °

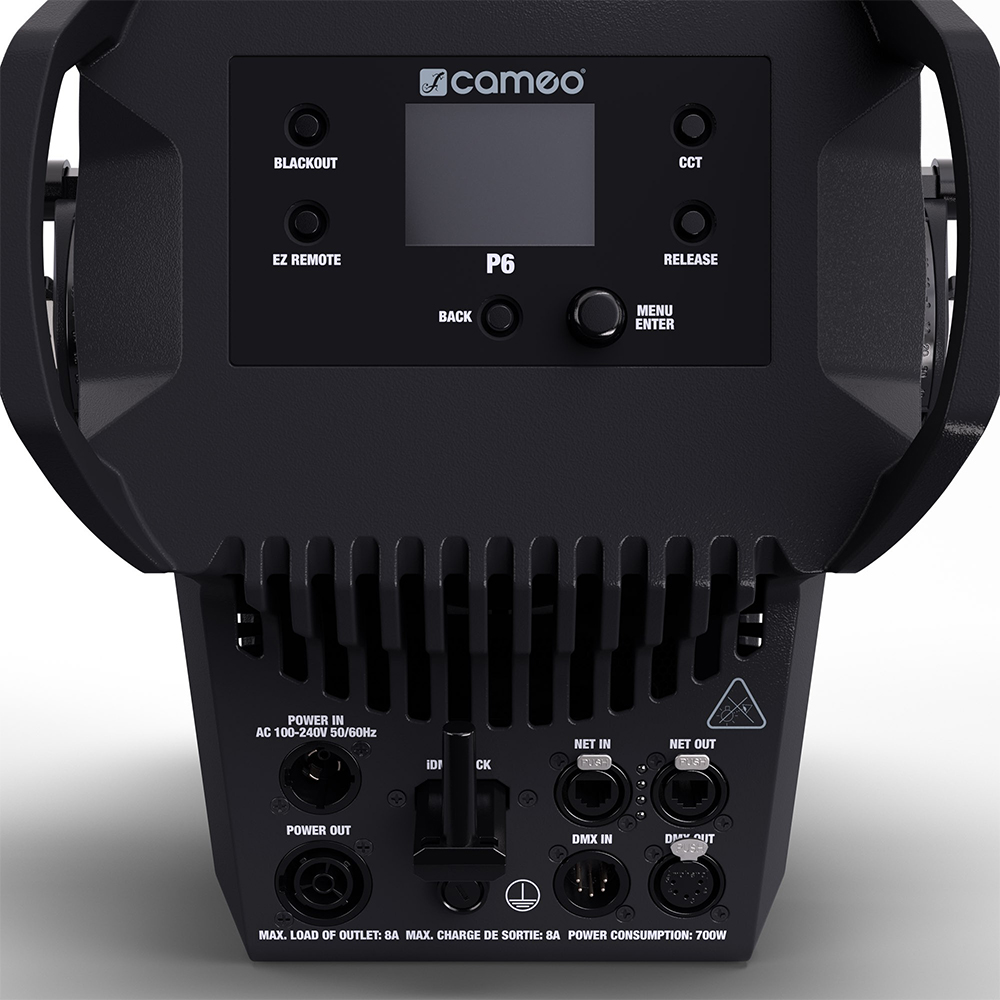

Control

Controller protocols: Art‑Net, DMX512, RDM, sACN, iDMX (Transceiver)
Number of DMX control modes: 17
Stand alone operating modes: Master/slave, Static
Data in connector: XLR 5-pole male, RJ-45 with housing
Data out connector: XLR 5-pole female, RJ-45 with housing

Mains operation

Operation voltage: 100 V AC – 240 V AC / 50 – 60 Hz
Rated power: 620 W
Rated current: 2.7 A
Mains fuse: T10AL/250 V
Fuse replacement: Possible from the outside without opening

Housing

Chassis material: Metal
Colour: Black

Cooling

Cooling system: Temperature controlled fan cooling
Cooling modes: Auto, On/Off, Constant Low, Constant Mid, Constant High

Environmental

Protection class: IP20
Risk group: 2
Ambient temperature: 0 – 40 °C

Dimensions & weight

Width: 730 mm
Height: 579 mm
Depth: 410 mm
Weight: 20.9 kg

Other properties

Included Accessories: Mains cable

Downloads

Data Sheet Download
