Cameo - ORON® H2Cameo - ORON® H2

Cameo – ORON® H2

Cameo

Meet the Cameo ORON® H2—the world’s first IP65 hybrid phosphor laser moving head. Featuring a wide 0.6°–32° zoom, CMY mixing, 31 gobos, dual effect wheels, and robust weatherproofing, it delivers unmatched creative flexibility for touring, broadcast, and events.

SKU: CAMCLORONH2 Categories: , , ,

Description

FUTURE UNLOCKED: With the ORON® H2, modern lighting designers are focusing on the future of lighting technology. The world’s first IP65 hybrid phosphor laser moving head is a pioneering hybrid light for all creative applications. Until now, anyone thinking of laser lights saw extremely narrow beams, but no effects, mid-air looks, or wash lights. With its exceptionally large zoom range of 0.6° to 32° for laser moving heads, the ORON® H2 covers all applications. A real game changer.

The Cameo ORON H2 is based on a 260-watt phosphor laser engine, which acts as an energy-efficient and long-lasting replacement for discharge lamps in the 480-watt class. This makes the hybrid moving head a future-proof investment. But the ORON® H2 can do much more!

With 19 fixed and 12 rotating gobos, as well as two combinable effect wheels with six prisms, beam ovalisers, and frost filters, the laser moving head leaves nothing to be desired when it comes to creative beam design. CMY colour mixing also gives users access to the full CMY colour space including white, supplemented by linear CTO correction for precise use on stage, in TV broadcasts, and more.

Rental companies expect investment security, while lighting designers appreciate the creative diversity. But simple values also count in everyday production: the ORON® H2 is light (32 kg), compact, and enables quick and easy handling. This is due not only to the full IP65 outdoor capability, but also to the flexible control via all market-relevant protocols. For safe transport, Cameo also supplies the ORON® H2 with a customised touring case insert that protects against impact.

Features

  • World’s first IP65 hybrid phosphor-laser moving head
  • 260 W phosphor-laser-engine
  • Replaces discharge lamps in the 480 watt class
  • High light output: 330,000 lux at 20 m
  • Zoom range: 0.6°-32°
  • CMY colour mixing + linear CTO correction
  • 19 fixed + 12 rotating gobos + open
  • 2 effect wheels with 6 prisms, beam ovaliser and frost filter
  • Flexible control via DMX/RDM, Art-Net, sACN, W-DMX, and CRMX
  • Including touring case insert to protect against impacts

Video

ORON® H2 – IP65 Hybrid Phosphor-Laser Moving Head

Experience the future of lighting with the ORON® H2 – the first-ever IP65 hybrid phosphor-laser moving head! With its 260 W laser engine, it outshines 480 W discharge lamps, offering unmatched efficiency.

Additional information

Photometric values

Illuminant type: Phosphor-Laser
Illuminant power: 260 W
Illuminance: 330,000 lx (20 m / 0.6 °)
Front lens diameter: 178 mm
Beam/Field angle: 0.6° / 32°
Zoom range: 0.6 – 32 °
Focusing type: Driven
LED PWM frequency: 650 Hz, 1,530 Hz, 3,600 Hz, 12 kHz, 18.9 kHz, 25 kHz
Dimmer resolution: 16 Bit
Dimmer curves: Linear, Exponential, Logarithmic, S curve

Colours

Colour mix functions: CMY + CTO
Laser colors: Cold white
Correlated colour temperature (CCT): 3,000 – 6,500 K
Colour rendering index (CRI): > 85
Colour wheels: 1 wheel with 19 colours

Movement

Pan: 540 °
Tilt: 270 °

Effects

Gobo wheels: 2
Gobo wheel 1 – functions: Rotatable
Gobo wheel 1 – gobos: 12
Gobo wheel 2 – functions: Fixed
Gobo wheel 2 – gobos: 19
Prism layers: 2
Strobe: 0 – 20 Hz
Frost: 3
Animation: Yes

Control

Controller protocols: Art Net, CRMX, DMX512, RDM, sACN, W DMX™ (Transceiver)
Number of DMX control modes: 3
Additional DMX features: System settings
Stand alone operating modes: Autorun, Master/slave, Static, Endless loop
Special features in the system settings: System settings can be made mains independently

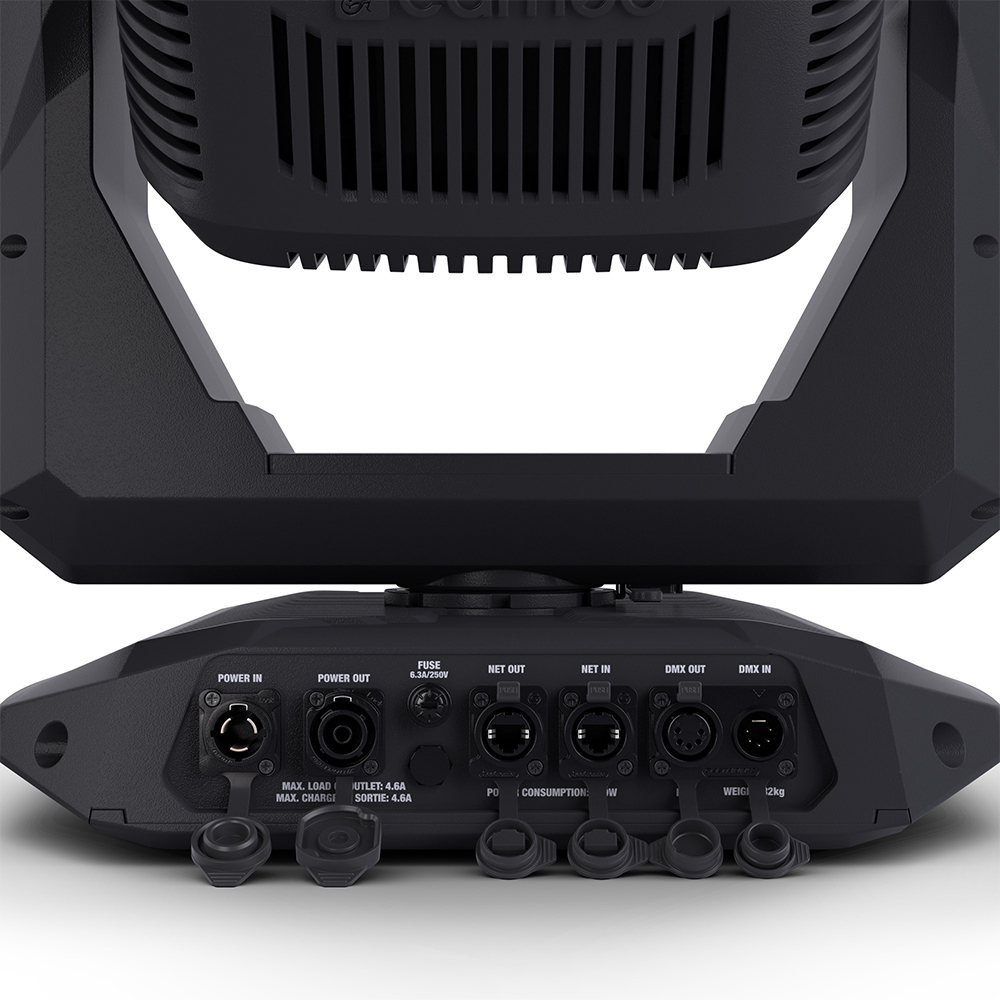

Data in connector: XLR 5-pole male, RJ-45 socket
Data out connector: XLR 5-pole female, RJ-45 socket

Mains operation

Rated power: 460 W
Min. Cos Phi power factor (230 V): 0.94
Rated current: 2.3 A
Inrush current: 13 A
Mains connector: Mains plug device male IP65
Power out: Mains plug device female IP65
Max. mains output current: 4.6 A
Mains fuse: T6.3A/250 V
Fuse replacement: Possible from the outside without opening

Housing

Chassis material: Magnalium
Coating: Powder coated
Colour: Black

Cooling

Cooling system: Temperature controlled fan cooling
Cooling modes: Auto, Max. intensity, Silent, On/Off

Environmental

Protection class: IP65
Risk group: 3
Ambient temperature
-20 – 45 °C:

Dimensions & weight

Width: 431 mm
Height: 676 mm
Depth: 330 mm
Weight: 32 kg

Included Accessories

Mains cable, Mounting bracket, Foam inlay (insert)

Downloads

Data Sheet Download
