Cameo – AZOR® S2

Description

Every year, countless artists, bands, actors and presenters stand on small to medium-sized stages and need light! For all these events, Cameo has developed the AZOR® S2. The compact spot moving head is the ideal partner for lighting designers and event service providers who are looking for a powerful and versatile LED show light that does not lack professional features despite its compact size.

The AZOR® S2 is based on a 300 W LED light source with 13,000 lumens of luminous flux and a wide zoom range of 5°-50° for precise adjustment of the light beam on any stage. The integrated rotating CMY colour mixing system is complemented by an additional colour wheel with 8 dichroic filters to perform lightning-fast colour changes and split colours in conjunction with the 630° pan and 270° tilt movement.

The AZOR® S2 is even more flexible thanks to the two gobo wheels with 8 rotating or 11 static gobos (each plus open). Additional effect options are created by the different prisms, both of which can be rotated and indexed.

Thanks to the adjustable PWM frequency (650 Hz – 25 kHz), the AZOR® S2 is also suitable for use in TV and broadcast applications as well as wherever a camera transmits the action and is dependent on flicker-free LEDs in the picture.

The compact spot moving head can be controlled via DMX512, RDM or wirelessly via W-DMX using the optional Cameo iDMX adapter. On the spotlight itself, buttons and an OLED display provide a convenient basic setup.

Features

• Compact spot moving head
• 300 W LED illuminant with 13,000 lm luminous flux
• Zoom range: 5° – 50°
• CMY colour mixing
• Additional colour wheel with 8 dichroic colour filters
• Rotating gobo wheel with 8 indexable/rotatable, exchangeable glass gobos + open
• Static gobo wheel with 11 gobos + open
• Selectable PWM frequencies up to 25 kHz for flicker-free operation

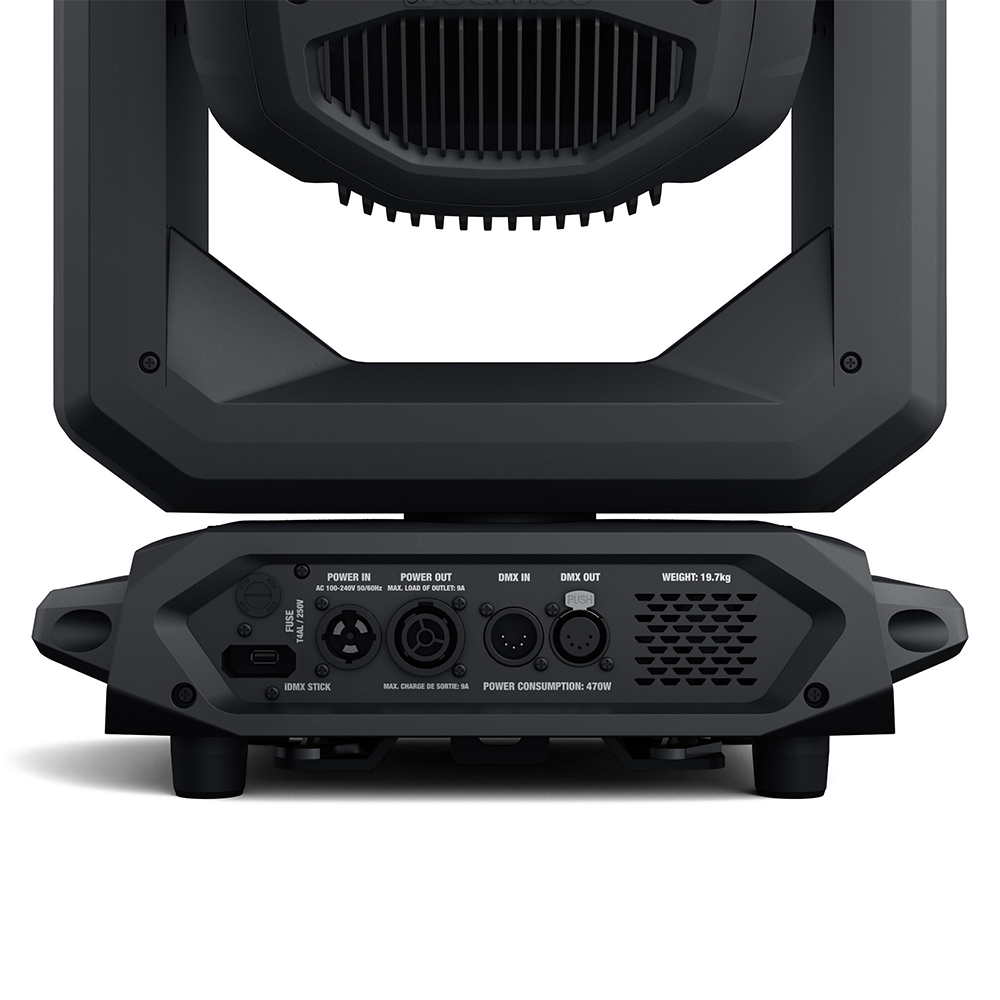

• Neutrik True1-compatible inputs/outputs
• OLED display with 4 buttons
