Cameo – AZOR® B1

Cameo

The AZOR® B1 is a 100W Beam Moving Head with a 2° beam, 17 gobos, dual rotating prisms, and intense output—built for high-impact light shows.

SKU: CAMCLAB1 Categories: , , ,

Description

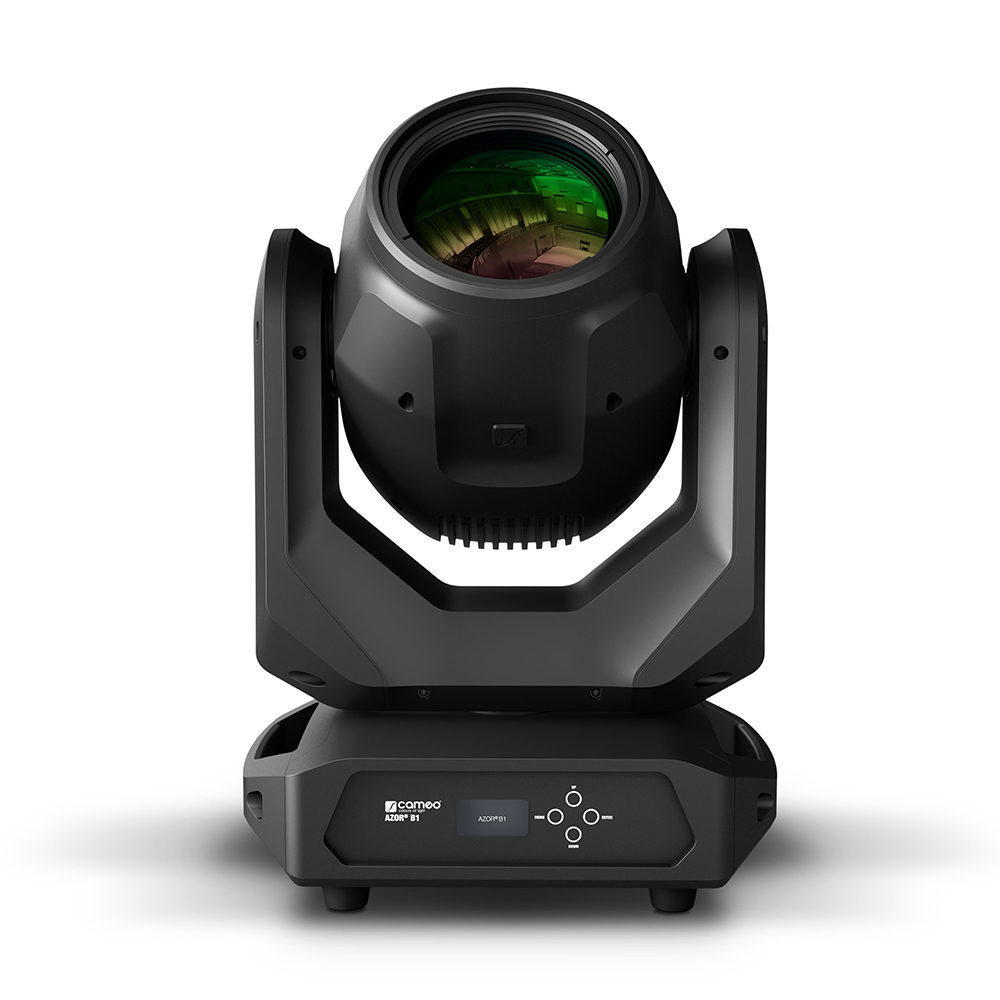

The Cameo AZOR B1 is a powerful Beam Moving Head featuring a high-quality glass lens, an extremely narrow 2° beam angle and motorised focusing. 16-bit, three-phase motors provide 540° panning and 270° tilting with automated position correction. A cold-white 100 W LED with 9,400 K colour temperature achieves incredible 180,000 lx light intensity at 3 metres, while the colour wheel offers 14 intense colours, plus white and split colours, to choose from.

Additional features of the AZOR B1 include 17 static gobos, a circular eightfold and a linear sixfold prism that are rotatable and indexable. When using as a standalone, four macros are available to freely program and can be perfectly synchronised in master-slave operation or inverted. The spotlight also features a rapid strobe function and a quiet, temperature-controlled fan.

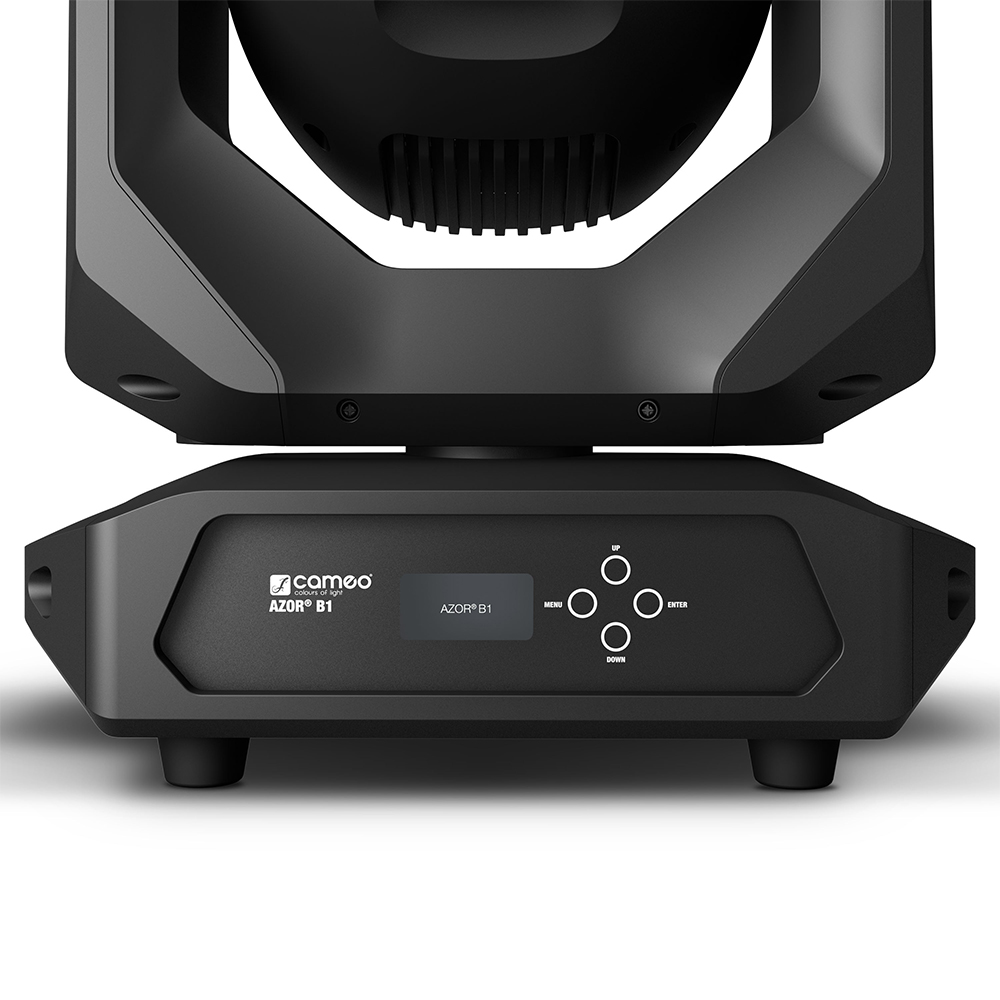

Easy configuration is facilitated by the AZOR B1’s OLED display and four buttons, 3- and 5-pin DMX inputs and outputs, while Power Twist sockets ensure unproblematic daisy chaining. The Beam Moving Head is supplied with three Omega brackets and a power cable.

Features

  • Beam Moving Head with 180,000 lx light intensity @ 3 m
  • Optical glass lens with extremely narrow 2° beam angle
  • 16-bit three-phase motors
  • 540° panning and 270° tilting with automated position correction.
  • Motorised focusing
  • 14 colours plus open and split colours
  • 17 static gobos plus open
  • Rotatable and indexable circular eightfold prism
  • Rotatable and indexable linear sixfold prism
  • 4 programmable macros for standalone and master-slave operation

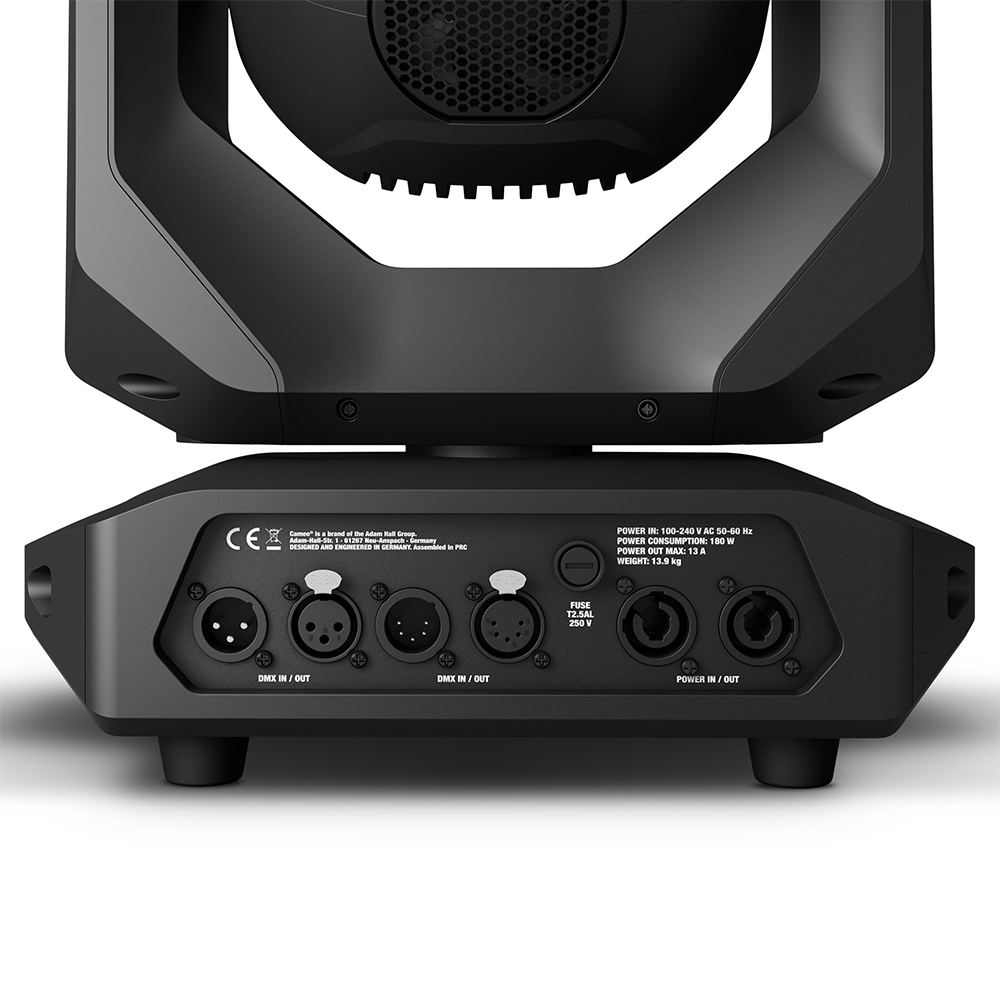

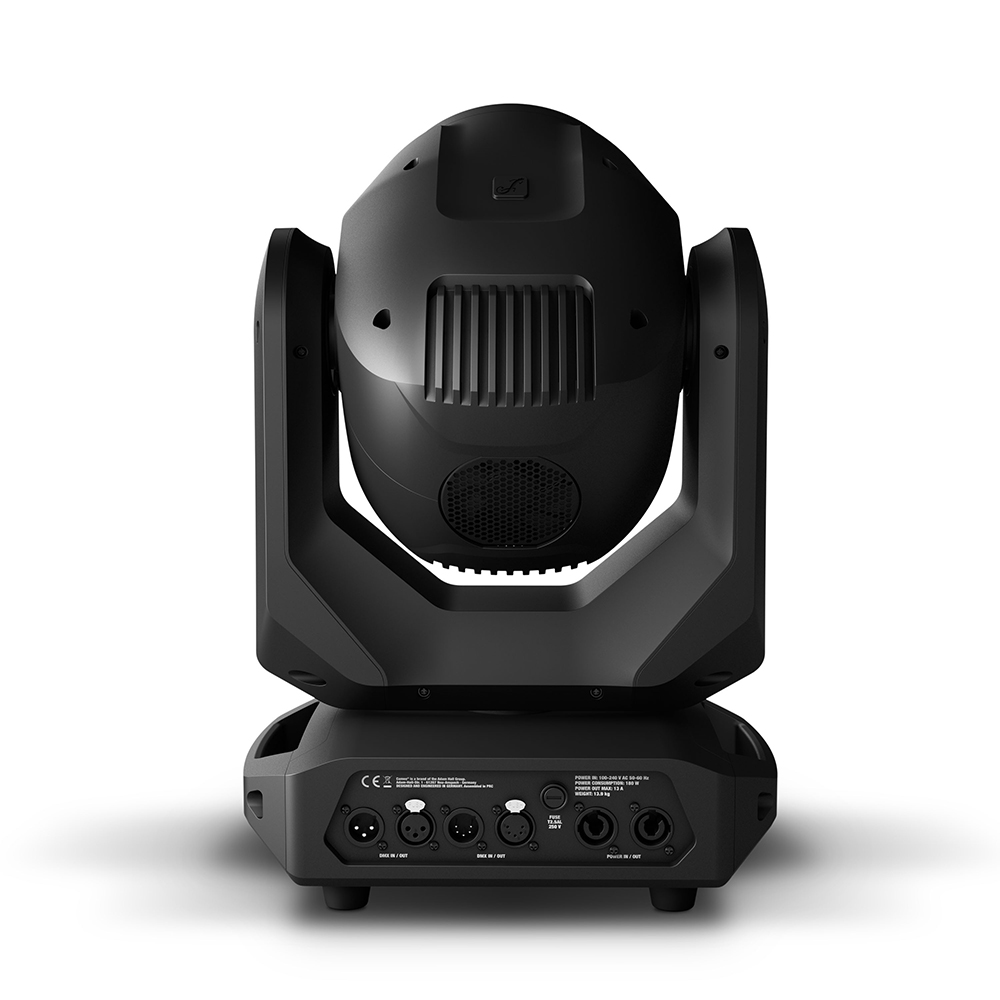

  • 3-pin & 5-pin DMX sockets and Power Twist power in and power out sockets
  • Two Omega brackets and power cable included

Video

Cameo AZOR® B1 – LED Beam Moving Head

The Cameo AZOR B1 is a powerful Beam Moving Head featuring a high-quality glass lens, an extremely narrow 2° beam angle and motorised focusing.

Additional information

General

Product type: LED Moving Lights
Type: Moving Head
Colour spectrum: Cold white
Number of LEDs: 1
Color temperature: 9400 K
Average LED lifetime: > 20000 hours
LED type: 100 W
Refresh rate: Adjustable up to 3,600 Hz
Dispersion: 2 °
DMX input: XLR 3-pin male, XLR 5-pin male
DMX output: XLR 3-pin female, XLR 5-pin female
DMX mode: 13-channel, 16-channel
DMX Functions: Colour wheel, Device Settings, Dimmer, Dimmer Fine, Focus, Gobo wheel, PAN, PAN FINE, Pan/Tilt Macros, Pan/Tilt Speed, Prism Rotation/Indexing, Prism Selection, Set Dimmer Curve, Strobe, TILT, TILT FINE
PAN movement: 540
TILT movement: 270
High Speed Strobe: > 20 Hz
Standalone modes: 4 x User Macros, Master / Slave mode, Settings
Controls: Enter, Mode, Value Down, Value Up
Indicators: OLED Display
Operating voltage: 100 V AC – 240 V AC, 50 – 60 Hz
Power consumption: 180 W
Power supply connector: Blue & White Power Twist I/O
Housing material: ABS plastic, Metal
Cabinet colour: Black
Protection class IP: IP20
Cooling: temperature-controlled fan
Illuminance: 180,000 lx @ 3 m
Luminous flux: 1800 lm
Maximum Ambient Temperature: -15 – 45 °C
Width: 306 mm
Height: 437 mm
Depth: 220 mm
Weight: 13,9 kg
Features: 2 x Omega Clamp, Power supply
