Supports all video formats including SD, HD, 6G and 12G-SDI rates

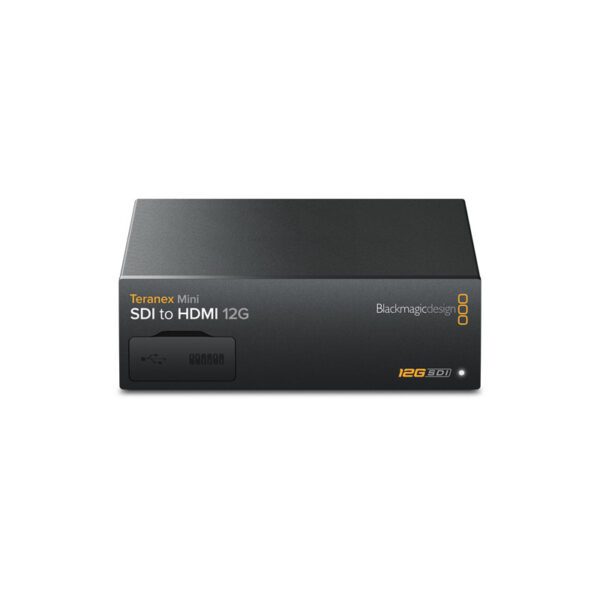

Convert from 12G-SDI to HDMI. Supports all video formats including SD, HD, 6G and 12G-SDI rates and includes down converter when working with a HDMI monitor, which will select the best format it can support. De-embed audio to balanced analog or AES/EBU formats and timecode output. Also includes Instant Lock on HDMI output as well as 33 point LUT. Perfect for using HDMI televisions as SDI broadcast monitors and for connecting to video projectors.
| SDI Video Inputs | 1 x 12G-SDI SD/HD/2K/4K auto switching. |
|---|---|
| SDI Video Outputs | 1 x 12G-SDI loop output. |
| HDMI Video Outputs | 1 x HDMI 2.0 type A connector with support for 2160p60. |
| Analog Audio Outputs | 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output. |
| Digital Audio Outputs | 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output. |
| Embedded Audio Support | 8 channels. |
| Multi Rate Support | 270MB, 1.5G, 3G, 6G and 12G. |
| Updates and Configuration | USB or Ethernet. |
| Reclocking | Yes |
