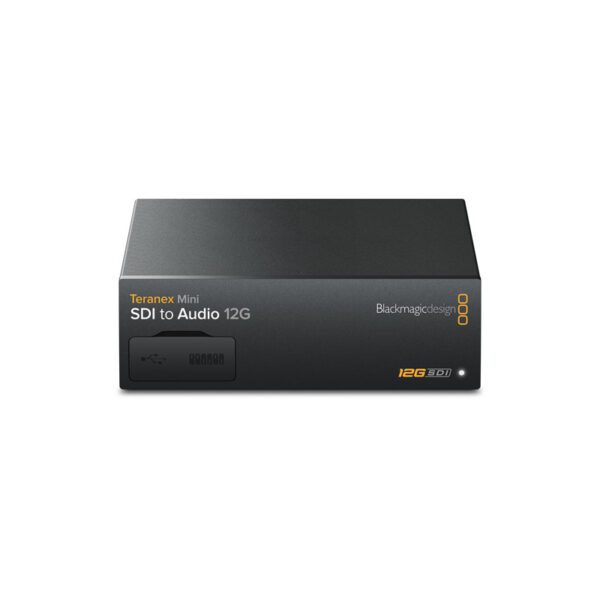

De-embed audio from any SD, HD or Ultra HD SDI video connection.
De-embed audio from any SD, HD or Ultra HD SDI video connection and output 2 channels of analog audio to balanced XLR, optical or HiFi RCA, or output up to 4 channels of AES/EBU digital audio. Perfect for converting and outputting SDI audio to a massive range of audio equipment such as audio mixers, iPods, analog broadcast decks, audio monitors and more.
| SDI Video Inputs | 1 x 12G-SDI SD/HD/2K/4K auto switching. |
|---|---|
| SDI Video Outputs | 1 x 12G-SDI loop output. |
| Analog Audio Outputs | 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode output. |
| Digital Audio Outputs | 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode output. |
| Embedded Audio Support | 16 channels. |
| Optical Audio Output | S/PDIF Signal with TOSLINK Connector. |
| Multi Rate Support | Automatic switching between SD/HD/2K and 4K. |
| Updates and Configuration | USB or Ethernet. |
| Reclocking | Yes |
