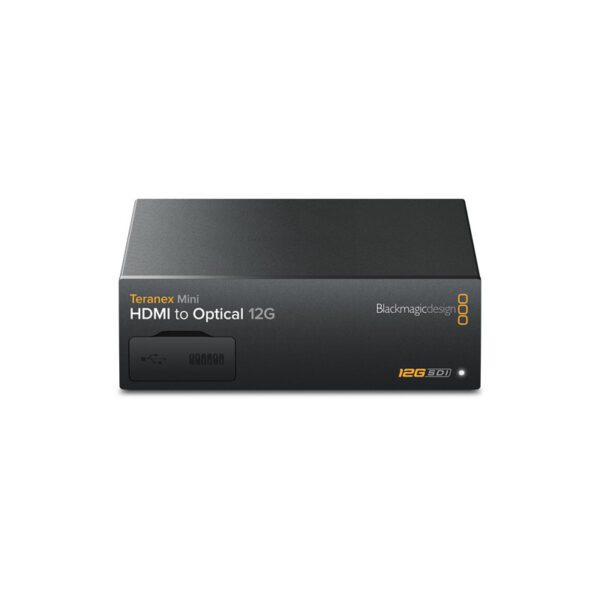

Blackmagic Design – Teranex Mini HDMI to Optical 12G

Blackmagic Design

Description

Now you can convert from HDMI to SDI and SMPTE optical fiber! Simply insert the SMPTE optical fiber module of your choice to send video and embedded audio over massive distances using 3G, 6G, or 12G-SDI optical fiber! You get professional 12G-SDI and XLR connections, an up converter for viewing SD and HD sources on Ultra HD displays plus ethernet for remote admin control. Optical fiber SFP module sold separately so you can purchase the SMPTE compatible 3G-SDI, 6G-SDI or 12G-SDI SFP to suit your workflow. You can even add an optional Smart Panel to add LCD monitoring and push button controls to your Teranex Mini!

Additional information

SDI Video Inputs

Optional 3G/6G/12G Optical SFP input.

SDI Video Outputs

1 x 12G‑SDI.

HDMI Video Inputs

1 x HDMI 2.0 type A connector with support for 2160p60.

Optical Fiber Connection (optional)

Optional 3G/6G/12G optical SFP output.

Optical Fiber Video Outputs

Automatically matches the SD, HD and 12G-SDI HDMI video input.

Analog Audio Inputs

2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.

Digital Audio Inputs

4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.

Embedded Audio Support

16 channels.

Multi Rate Support

Automatic switching between SD/HD/2K and 4K.

Updates and Configuration

USB and Ethernet.

Reclocking

Yes

Downloads

User Guide Download
Data Sheet Download
