| SDI Video Inputs |
1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
1x BNC (IN B) – 10-bit SD, HD, 2K, 3G HD and 6G Ultra HD auto switching. Usable as dual link input for 4:2:2 3G or 6G UHD.
|
| SDI Video Input Loops |
1x BNC (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.
1x BNC (IN B Loop) – Reclocked, 10-bit SD, HD, 2K, 3 Gb/s HD, 6G Ultra HD auto switching.
|
| SDI Video Outputs |
1x BNC (OUT A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
1x BNC (OUT B) – 10-bit SD, HD, 2K, 3G HD levels A and B and 6G Ultra HD auto switching. Usable as dual link output for 4:2:2 3G or 6G Ultra HD.
|
| Quad SDI Video Outputs |
SMPTE 435-1 – Quad HD Split (square division method) only. Utilizes SDI Out A for quadrant A, SDI Out B for quadrant B; reconfigures SDI In A Loop for quadrant C, SDI In B Loop for quadrant D.
|
| Optical Fiber Video Inputs |
1x 10bit SD, HD, 3G HD, 2K, Ultra HD auto switching.
|
| Optical Fiber Video Outputs |
1x 10bit SD, HD, 3G HD, 2K, Ultra HD auto switching. Not available while operating in Dual Link or Quad Link output modes.
|
| SDI Audio Inputs |
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
|
| SDI Audio Outputs |
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
|
| Optical Fiber Connection (optional) |
1x SMPTE optical fiber SFP socket.
|
| Optical Fiber Audio Inputs |
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
|
| Optical Fiber Audio Outputs |
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
|
| Dolby® Support Built In |
Dolby® AC-3 pass through in all conversions. Dolby® E pass through except during video frame rate conversions.
|
| Timecode Inputs |
Support for VITC/ATC. No support for LTC.
|
| Timecode Outputs |
Support for VITC/ATC. No support for LTC.
|
| Multi Rate Support |
SDI connections are switchable between standard definition, high definition and UltraHD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD.
|
| Reference Input |
1x BNC – Black Burst or Tri-level sync.
|
| Computer Interface |
1x USB 2.0 mini B port for software updates.
1x RJ45 10/100 Ethernet for remote control and configuration.
|
| Processor Interface |

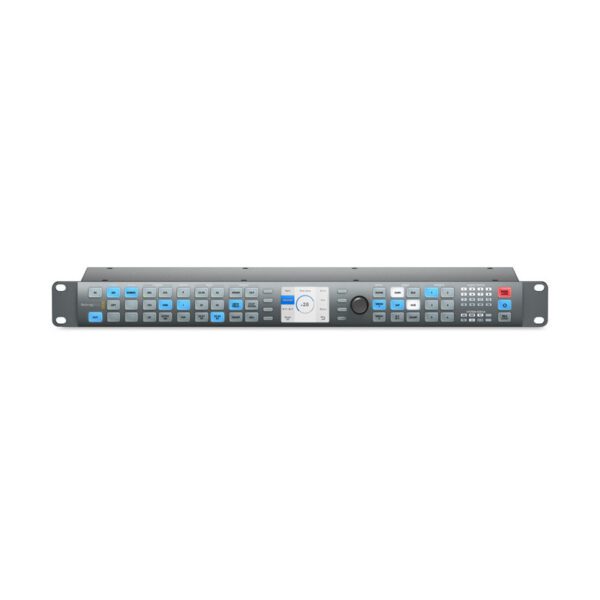

Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.
|
