| SDI Video Inputs |
1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
1x BNC (IN B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as 2nd input or for dual link input for 4:2:2 3G or 6G Ultra HD
|
| SDI Video Input L oops |
1x BNC (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.
1x BNC (IN B Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.
|
| SDI Video Outputs |
1x BNC (OUT A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
1x BNC (OUT B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as dual link output for 4:2:2 3G or 6G Ultra HD.
|
| Quad SDI Video Outputs |
4x BNC (Channels A, B, C, D) – 10-bit 3G-SDI Quad Link or Quad HD Split for Ultra HD p50/59.94/60; 10-bit 1.5G-SDI Quad HD Split for Ultra HD p23/24/25/29/30. For other output formats, these connectors will supply four replicated SDI outputs.
|
| HDMI Video Inputs |
1x HDMI 2.0 type A connector. YUV or RGB, auto switching.
|
| HDMI Video Loop Inputs |
1x HDMI 2.0 type A connector. Active Input loop.
|
| HDMI Video Outputs |
1x HDMI 2.0 type A connector. YUV or RGB, user selectable.
|
| SDI Audio Inputs |
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
|
| SDI Audio Outputs |
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
|
| HDMI Audio Inputs |
8 channels in SD, HD, 3G HD, 2K and Ultra HD.
|
| HDMI Audio Outputs |
8 channels in SD, HD, 3G HD, 2K and Ultra HD.
|
| Optical Fiber Connection (optional) |
1x SMPTE optical fiber SFP socket.
|
| Optical Fiber Video Inputs |
1x 10bit SD, HD, 3G HD, 2K, Ultra HD auto switching.
|
| Optical Fiber Video Outputs |
1x 10bit SD, HD, 3G HD, 2K, Ultra HD auto switching.
|
| Optical Fiber Audio Inputs |
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
|
| Optical Fiber Audio Outputs |
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
|
| Analog Audio Inputs |
2x XLR – 2 channels professional balanced analog audio (XLRs are shared with AES/EBU inputs) .
2x RCA – stereo unbalanced analog audio on RCA connectors for consumer equipment.
|
| AES/EBU Digital Audio Inputs |
2x XLR – 2 pairs (4 channels) professional 110Ω balanced digital audio (XLRs are shared with analog inputs)
|
| Dolby® Support Built In |
Dolby® AC-3 pass through in all conversions. Dolby® E pass through except during video frame rate conversions.
|
| Timecode Inputs |
Support for VITC/ATC. No support for LTC.
|
| Timecode Outputs |
Support for VITC/ATC. No support for LTC.
|
| Multi Rate Support |
SDI connections are switchable between standard definition, high definition and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD.
|
| Reference Input |
1x BNC – Black Burst in SD or Tri-level sync in HD.
|
| Reference Output |
1x BNC – Internal reference generator providing blackburst or tri-level sync output at the current output frame rate.
|
| Computer Interface |
1 x USB type C port for software updates. 1 x RJ45 Gigabit Ethernet for remote control and configuration.
|

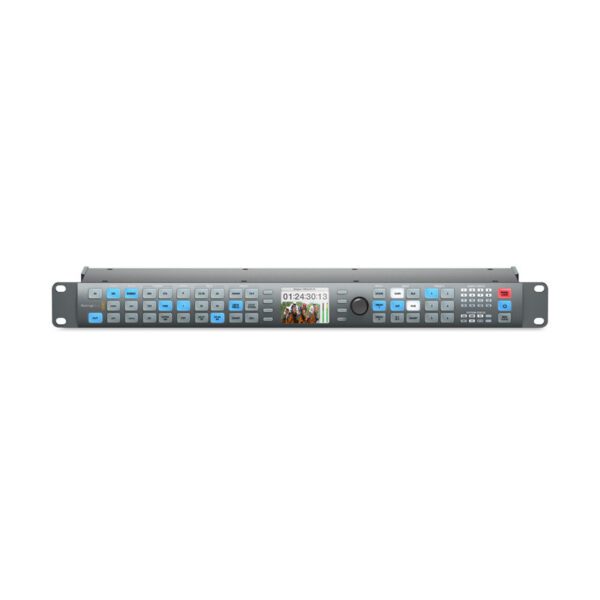

| Processor Interface |
Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.
|
