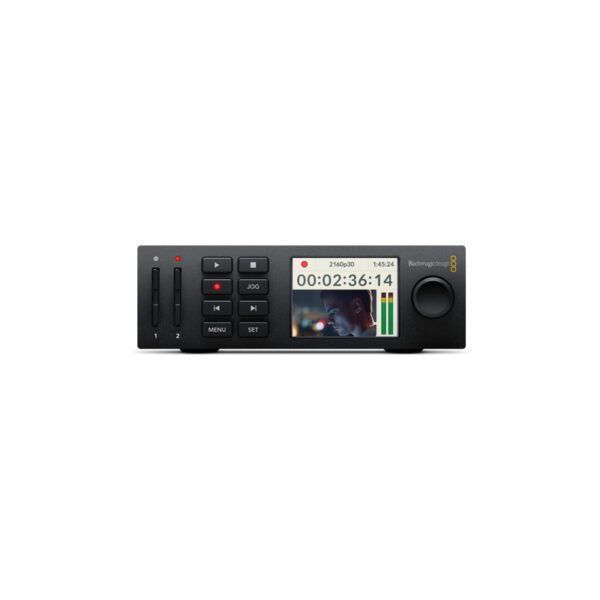

Blackmagic Design – Hyperdeck Studio Mini

Blackmagic Design

Portable broadcast quality deck that records ProRes onto commonly available SD cards.

Description

HyperDeck Studio Mini is a portable broadcast quality deck that records ProRes onto commonly available SD cards. You get 6G‑SDI for recording all formats up to 2160p30, dual SD card slots for non-stop recording, a built in LCD screen and familiar VTR style front panel controls, all in a design that can be used on a desktop or in ⅓ of a standard rack space! HyperDeck Studio Mini also features 720p and 1080p 4:4:4:4 file support with fill and key outputs so it can be used as a source to provide broadcast graphics to live production switchers for downstream keying over live video!

Additional information

SDI Video Inputs

1

SDI Video Outputs

2

SDI Rates

270Mb, 1.5G-SDI, 3G-SDI, 6G-SDI

HDMI Video Outputs

1 x HDMI type A connector.

Power over Ethernet

1 x Ethernet with Power over Ethernet

Analog Video Inputs

None.

Analog Video Outputs

None.

Analog Audio Inputs

None, embedded audio only.

Analog Audio Outputs

None, embedded audio only.

Timecode connection

None.

SDI Audio Inputs

16 channels embedded in SD and HD in QuickTime files.

SDI Audio Outputs

16 channels embedded in SD and HD in QuickTime files.

HDMI Audio Inputs

None.

HDMI Audio Outputs

8 channels embedded in SD, HD and UHD in QuickTime files.

Reference Input

Tri-Sync or Black Burst.

Reference Generator

Tri-Sync or Black Burst.

Computer Interface

1 x USB 2.0 type C for software updates and HyperDeck Utility software control.
