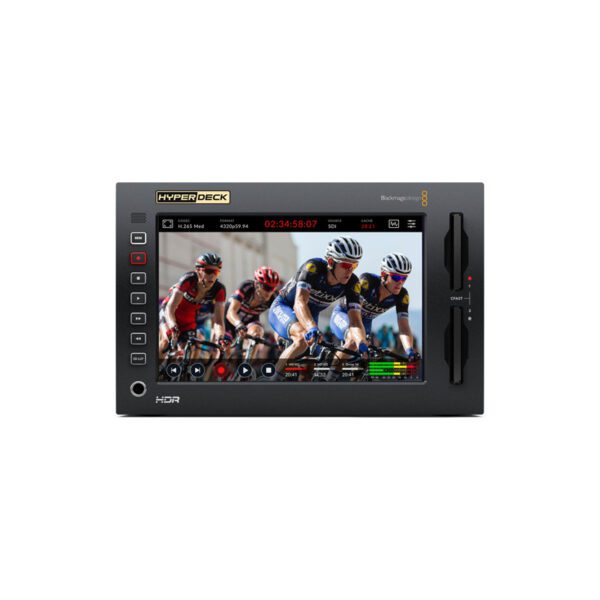

Trusted reliability of HyperDeck combined with advanced H.265 recording.
8K broadcast deck with the trusted reliability of HyperDeck combined with advanced H.265 recording, internal cache, 3D LUTs, native 8K and HDR support. Large touch screen to view your recording with dedicated buttons for play, stop and record, plus a mini timeline for scrolling through your recordings. You can even image swipe to jog! The LCD includes a heads up display of timecode, video standard, media status and audio meters and more!
| SDI Video Inputs | 4 |
|---|---|
| SDI Video Outputs | 5 (12G-SDI A,B,C,D and 3G-SDI Monitor Out) |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G. |
| HDMI 2.0 Video Inputs | 1 |
| HDMI 2.0 Video Outputs | 1 |
| Analog Video Inputs | 1 x Component YUV on 3 BNCs, |
| Analog Video Outputs | None. |
| Analog Audio Inputs | 4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors. |
| Built in Speaker | Mono |
| Screen | 7 inch 1920 x 1200. 2000 nit DCI-P3 100% HDR LCD |
| Timecode Connections | 1 x XLR in and 1 x XLR out. |
| Reference Input | Tri-Sync or Black Burst. |
| SDI Audio Inputs | 16 channels embedded audio. |
| SDI Audio Outputs | 16 channels embedded audio. |
| HDMI Audio Inputs | 8 channels embedded audio. |
| HDMI Audio Outputs | 8 channels embedded audio. |
| Remote Control | 1 x RS-422 In, 1 x RS-422 Out. |
| Recorder Configuration | Via user interface or Blackmagic HyperDeck Ethernet Protocol. |
| Ethernet | 10Gb/s |
| External Recording | 1 x USB-C 3.1 Gen 2 (up to 10Gb/s) for external disk recording. |
| Computer Interface | 1 x USB-C for software updates. |
