Blackmagic Design - Camera Control Panel for saleBlackmagic Design - Camera Control Panel for sale

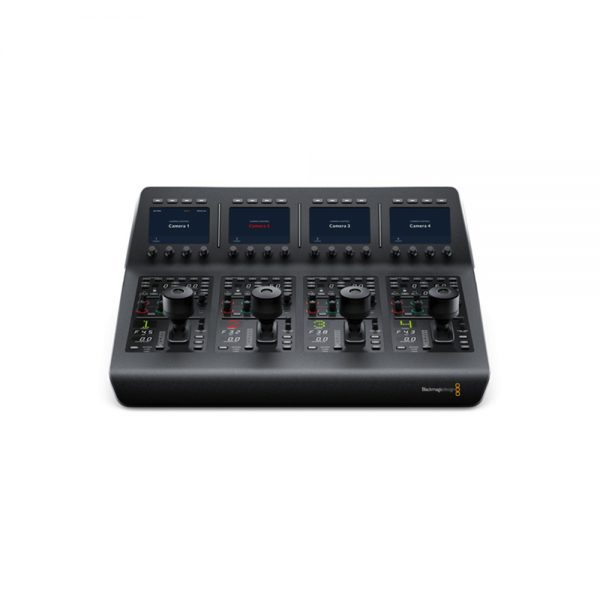

Blackmagic Design – Camera Control Panel

Blackmagic Design

ATEM Camera Control Panel

SKU: BLASWPANELCCU4 Categories: , ,

Description

The ATEM Camera Control Panel provides independent controls for up to 4 URSA Mini, URSA Broadcast, Blackmagic Studio and Micro Studio cameras from a single control panel. You get iris control, shutter speed, white balance, master gain, pedestal, RGB controls for white and black, and more.

Additional information

Connections

Ethernet:
2 x 10/100/1000 BaseT with loop
output for additional control panels or computers

Software Updates:
1 x USB-C for firmware updates
Product Specifics

Direct Cross Points:
10

Shifted Cross Points:
20

Crosspoint Button Type:
Tri-Color LED

Crosspoint Label:
3 rows 24 character LCD

Next Transition Selectors:
BKG, Key 1 – Key 4.

On-Air indicator:
4

Power Status Indicators:
None

DSK Transition Selectors:
Auto, Cut, Tie/Preview.

Preview Transition:
1

Transition Rate Displays:
Via main menu

LCD Menu Displays:
3

Menu Control:
20 buttons

Dedicated Macro Buttons:
10

Multi Control Buttons:
None

Destination Bus:
1

Source Select Bus:
1

Fader Bar:
1

3 Axis Joystick:
1

Numeric Keypad:
1
Software

Software Applications:
ATEM Software Control Panel.
Operating Systems

Mac 10.14 Mojave
Mac 10.15 Catalina or later
Windows 8.1 or Windows 10
Power Requirements

Input Voltage:
1 x Internal 100 – 240V AC.

Redundant Power:
Yes

Power Usage:
45W
Environmental Specifications

Operating Temperature:
0° to 40° C (32° to 104° F)

Storage Temperature:
-20° to 60° C (-4° to 140° F)

Relative Humidity:
Up to 95%
What's Included

ATEM 1 M/E Advanced Panel
Warranty

12 Month Limited Manufacturer's Warranty.
