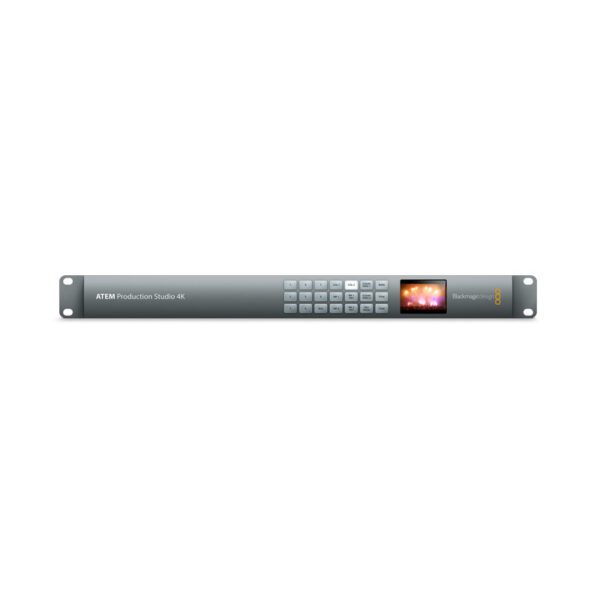

Connect up to 8 SD, HD or Ultra HD 4K video cameras
ATEM Production Studio 4K lets you connect up to 8 SD, HD or Ultra HD 4K video cameras, disk recorders and computers to do true broadcast quality work. You get all the features you expect from a professional switcher including chroma key, transitions, media pool, downstream keyers, audio mixer, multi view and the world’s first 6G-SDI and HDMI 4K video connections.
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
|---|---|
| HD Video Standards | 720p50, 720p59.94 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 424M. |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | REC 601, REC 709 |
| HDMI Input Resolutions for Computers | 720 x 480i 59.97Hz, 720 x 576i 50Hz, 1280 x 720 59.94Hz, 1280 x 720 50Hz and 1920 x 1080 59.94Hz, 1920 x 1080 50Hz, 3840 x 2160 23.98Hz, 3840 x 2160 24Hz, 3840 x 2160 25Hz, 3840 x 2160 29.97Hz. |
| Colorspace Conversion | Hardware based real time. |
| Processing Delay | 1 Line. |
| Audio Mixer | 10 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. Analog outputs may be used for separate monitoring. |
| 4K to HD Down Conversion | Yes, program x 1. |
