Perfectly match the features on the ATEM Constellation switche

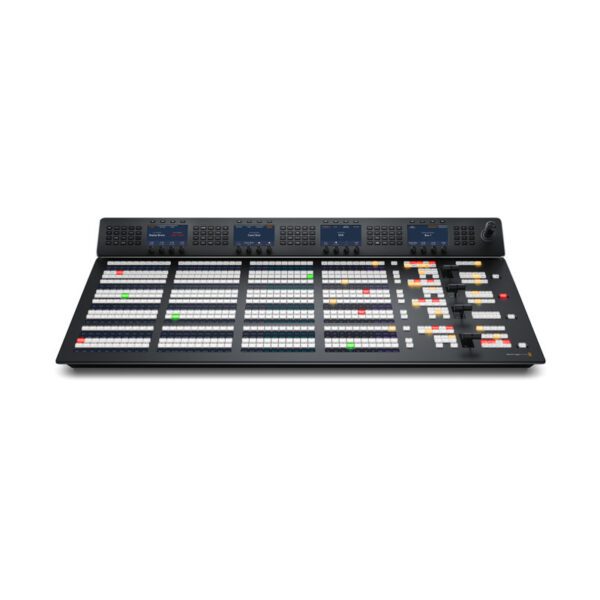

This massive model is big enough to perfectly match the features on the ATEM Constellation switcher! It features 4 M/E rows with 40 input buttons per row and 4 independent system control LCDs for each row. This massive panel includes 24 LCD’s for custom labeling of every button on every row!
| Number of Mix Effects Rows | 4 |
|---|---|
| Direct Cross Points | 40 |
| Shifted Cross Points | 80 |
| Crosspoint Button Type | Tri-Color LED |
| Crosspoint Label | 10 rows 24 character LCD |
| Next Transition Selectors | 4 x BKG, Key 1 – Key 4. |
| On-Air indicator | 20 |
| Power Status Indicators | None |
| DSK Transition Selectors | Auto, Cut, Tie/Preview x 4 |
| Preview Transition | 4 |
| LCD Menu Displays | 4 |
| Transition Rate Displays | Via main menu |
| Menu Control | 20 buttons x 4 |
| Dedicated Macro Buttons | 4 x 40 |
| Transport Control Buttons | 24 |
| Destination Bus | 4 |
| Source Select Bus | 4 |
| Fader Bar | 4 |
| 3 Axis Joystick | 1 |
| Numeric Keypad | 1 |
