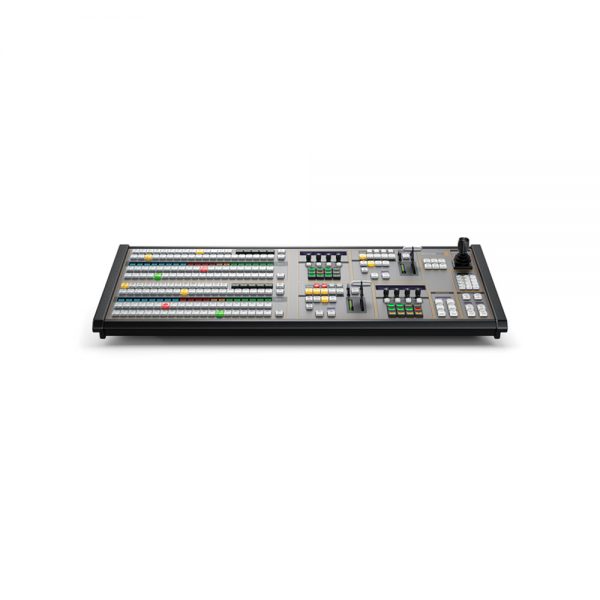

Blackmagic Design – ATEM 2 M/E Broadcast Panel

Blackmagic Design

ATEM 2 M/E Broadcast Panel

SKU: BLASWPANEL2ME Categories: , ,

Description

The incredible ATEM 2 M/E Broadcast Panel has the power for the most complex live broadcast events and it?s perfect when you have the space for a large panel and need all the control at your fingertips. The ATEM 2 M/E Broadcast Panel features an amazing design that not only looks incredible, but perfectly positions all controls just where you need them for the ultimate creativity on complex multi layer live production. The ATEM 2 M/E Broadcast Panel connects via ethernet and includes loop thru for your media management computer.

Additional information

Weight 15.25 kg
Connections

Ethernet:
2 x 10/100/1000 BaseT with loop
output for additional control panels or computers.

Software Updates:
1 x USB for firmware updates.
Product Specifics

Direct Cross Points:
20

Shifted Cross Points:
40

Crosspoint Button Type:
Tri-Color LED.

Crosspoint Label:
High Contrast RGB Bitmap.

Next Transition Selectors:
BKG, Key 1 – Key 2 (per M/E).

On-Air Indicator:
8

Power Status Indicators:
4

DSK Transition Selectors:
Auto, Cut, Tie/Preview.

Preview Transition:
2

Transition Rate Displays:
2

LED Menu Display:
2

Menu Control:
24 x LCD Bitmap Buttons.

Dedicated Macro Buttons:
10

Multi Control Buttons:
6

Destination Bus:
2

Source Select Bus:
2

Fader Bar:
2

3 Axis Joystick:
1

Numeric Keypad:
1
Software

Software Applications:
ATEM Software Control Panel.
Operating Systems

Mac 10.14 Mojave
Mac 10.15 Catalina or later
Windows 8.1 or Windows 10
Power Requirements

Power Supply:
2 x Internal 100 – 240V AC.

Redundant Power:
Yes

Power Usage:
70W
Environmental Specifications

Operating Temperature:
0° to 40° C (32° to 104° F)

Storage Temperature:
-20° to 60° C (-4° to 140° F)

Relative Humidity:
0% to 90% non‑condensing
What's Included

ATEM 2 M/E Broadcast Panel
Warranty

12 Month Limited Manufacturer's Warranty

Warranty details can be found in the ATEM Switchers Operation Manual in the support page at http://www.blackmagicdesign.com
