Description

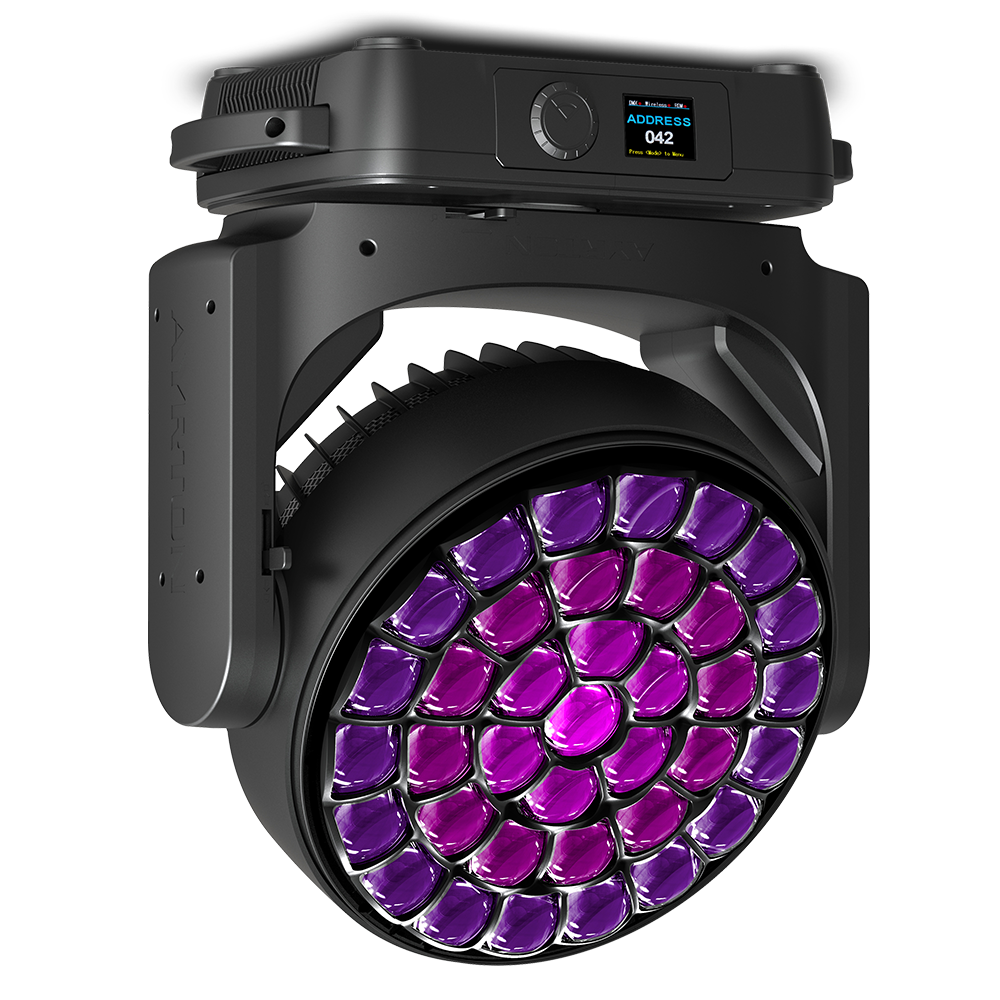

This fixture offers a proprietary optical system consisting of a wide dial of 37 lenses in PMMA, 384 mm in diameter, combined with 37 glass light guides with an output surface made of an optical micro-structure. This LED/optical system combination can produce powerful light output of 25,000 lumens and a perfectly homogeneous mixture of pastel and saturated colours, regardless of the colour mix chosen. The perfectly crisp separation between the light sources helps to reinforce the level of contrast. Endowed with a 50 mm truncated transmitting lens with an optical surface equivalent to that of a 70 mm round lens, Zonda 9 Wash can obtain a highly intensive beam with a zoom ratio of 14:1 and a wide zoom range of 4 ° to 56 °.
A new optimised cooling system, simplified lens guidance systems, and ever smarter design of the internal structure have made it possible to reduce the size and weight of the luminaire considerably Slim-21TM.
Zonda 9 Wash is a radical luminaire intended for stage lighting in the true sense. The careful colour mixing of the sources allows for perfect colour reproduction. You can control each concentric circle to adjust the size of the emitting surface and the luminaire’s power. A complete library of pre-programmed colours created in collaboration with lighting designers is instantly accessible. A silent ventilation mode was specially developed for this fixture. Zonda 9 Wash is a marvel of technology geared for creativity.
Features
- Luminous Flux: 25,000 lm
- Native CRI: < 86
- Zoom Aperture: 4 ° to 56 °
- Front Lens: 384 mm
- IP Rating: IP20
- Weight: 29.2 kg
