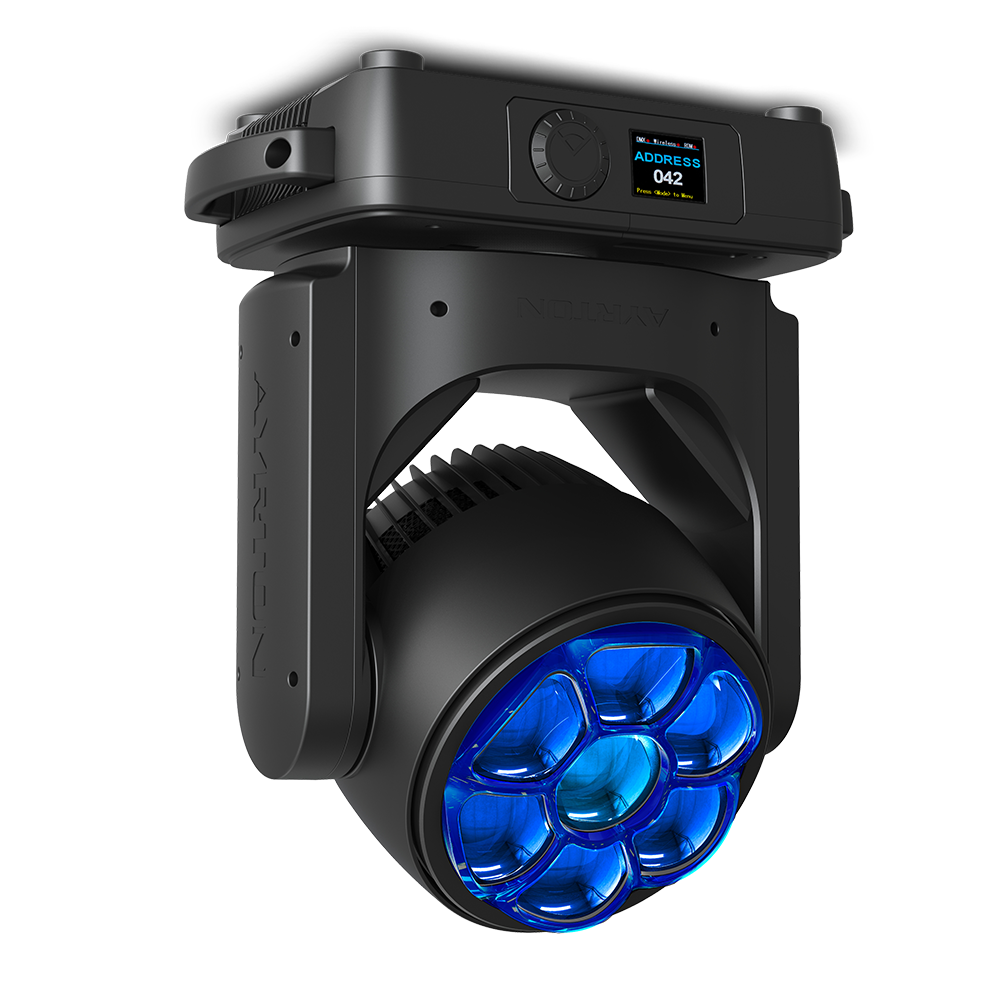

Ayrton Zonda 3 FX luminaire pan left tilt upAyrton Zonda 3 FX luminaire pan left tilt up

Ayrton – Zonda 3 FX

Ayrton

Akin to the Zonda 9, the latest addition to the Zonda family designed for stage lighting is an incredibly compact luminaire with unlimited creative potential.

SKU: 013250 Categories: , , , ,

Description

Zonda 3 is a versatile fixture with amazing effects that can switch from beam to wash with great ease. Its speed of movement and reduced dimensions increase its dynamic potential. Because of its size, it is easy to use in compositions with curtains or matrices. Fitted with seven high-performance 40 W LED sources with RGB+W, Zonda 3 offers a proprietary optical system made up of a unique 170 mm mono-block cluster in PMMA, which enhances beam coherence, and seven glass light guides with an output surface that has an optical micro-structure. A 50 mm truncated transmitting lens whose optical surface is equivalent to that of a 70 mm round lens, enables Zonda 3 to obtain a highly intensive beam with a zoom ratio of 14:1 and a wide zoom range of 4 ° to 56 °. This LED/optical system combination is capable of producing light output of 5,200 lumens and a perfectly homogeneous mixture of pastel and saturated colours regardless of the colour combination chosen.

Some luminaires have the power to transform the ordinary into the extraordinary. Zonda 3 FX is a creative, versatile and feature-rich luminaire that borrows from the main attributes of the WASH version.

It offers continuous rotation of the pan and tilt movement I.R.S.TM. Individual control of each LED allows you to achieve 3D volumetric effects. Perfect separation between the light sources helps to significantly boost the level of contrast and visual perception of multiple beams. This exceptional luminaire is equipped with a high-definition Liquid EffectTM located between its main lenses, which can generate complex graphic effects. It can be used alone or in combination with the main LED matrix. The library of effects in Zonda 3 FX provides a limitless source of inspiration. A new optimised cooling system, simplified lens guidance systems, and an ever smarter design of the internal structure have made it possible to reduce the size and weight of the luminaire considerably Slim-21TM. All these innovations are the exclusive patents of Ayrton. Zonda 3 FX opens the doors of creativity.

Features

  • Luminous Flux: 5,200 lm
  • Native CRI: < 86
  • Zoom Aperture: 4 ° to 56 °
  • Front Lens: 170 mm
  • IP Rating: IP20
  • Weight: 11.1 kg

Video

AYRTON – Zonda 3 – Presentation

Ayrton Zonda 3 – Multi Sources Luminaire
Creation: Marc & Brandon

Additional information

Weight 11.1 kg
Optics

2 elements 14:1 zoom high-resolution optic system
Beam aperture: 4 ° to 56 °
Fast motorised linear zoom
7 truncated edges 50 mm frontal lenses
170 mm front lens cluster
Light Source

7 x 1,000 lumens RGBW High-Power LED sources
Total luminaire output: up to 5,200 lumens
CRI: up to 86
Rated life: L70: up to 40,000 hours
Flicker free sources management, suitable for TV applications and all video recorded events
Movement

Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements
PAN and TILT automatic repositioning
Moving-head range: infinite pan & tilt rotation
Colours

Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index
Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
4.29 billion colours (8-bit resolution)
Virtual colour wheel, including most usuals white colour temperature presets
Effects

2D & 3D graphical effects capabilities
Effects can be coupled with beam, wash or matrix applications
Built-in pattern effects with speed and fade controls for scenic applications
Individual control of each pixels
LiquidEffectTM
Dimmers / Strobe

Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second
Software Features

Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
Hardware Features

Graphic LCD display for addressing and special functions settings, with flip function
Clicking jog wheel to set functions
Excess temperature protection
Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
XLR 5 pin male and female connectors for DMX connection
ethercon RJ45 IN / OUT connectors for ArtNet™ connection
powerCON TRUE1 IN / OUT connectors for power connection
Control

DMX 512 protocol, through DMX cable or wireless system
DMX-RDM compatible
Stand-alone mode and Main/Follow modes
ArtNet™ & sACN protocol through Ethernet cable
Local control panel, with LCD display
Choice of 3 DMX modes (from 26 to 79 DMX channels)
Power Supply

Electronic supply with active PFC
100 to 240 Volts – 50/60Hz
Power: 350 W maximum
Cooling System

Advanced cooling system
Self adjusting variable speed fans for quiet operation (Auto mode)
Selectable auto, stage & studio ventilation modes
Safety protection against temperatures excesses
Housing

Moving-head skeleton made of aluminium and steel metal plates
Base in die-cast aluminium
Heatsinks in aluminium
Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
Two-side handles for transportation
Four heavy-duty feet for better stability
IP20 protection rating
Exterior finish: black (Carbon)
Installation

Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps
Mounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
Safety cable attachment point
Operating Parameters

Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
Minimum usage distance: 1 m (3.28 ft)
Compliance

EU (EMC & LVD)
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US (Safety & EMC)
UL 1573
FCC Part 15, Subpart B: 2018
Substance regulations
RoHS
REACH
CP65
Size

Product: 365 x 404 x 233 mm (l x h x d)
Flight-case foam: 420 x 438 x 280 mm (l x h x d)
