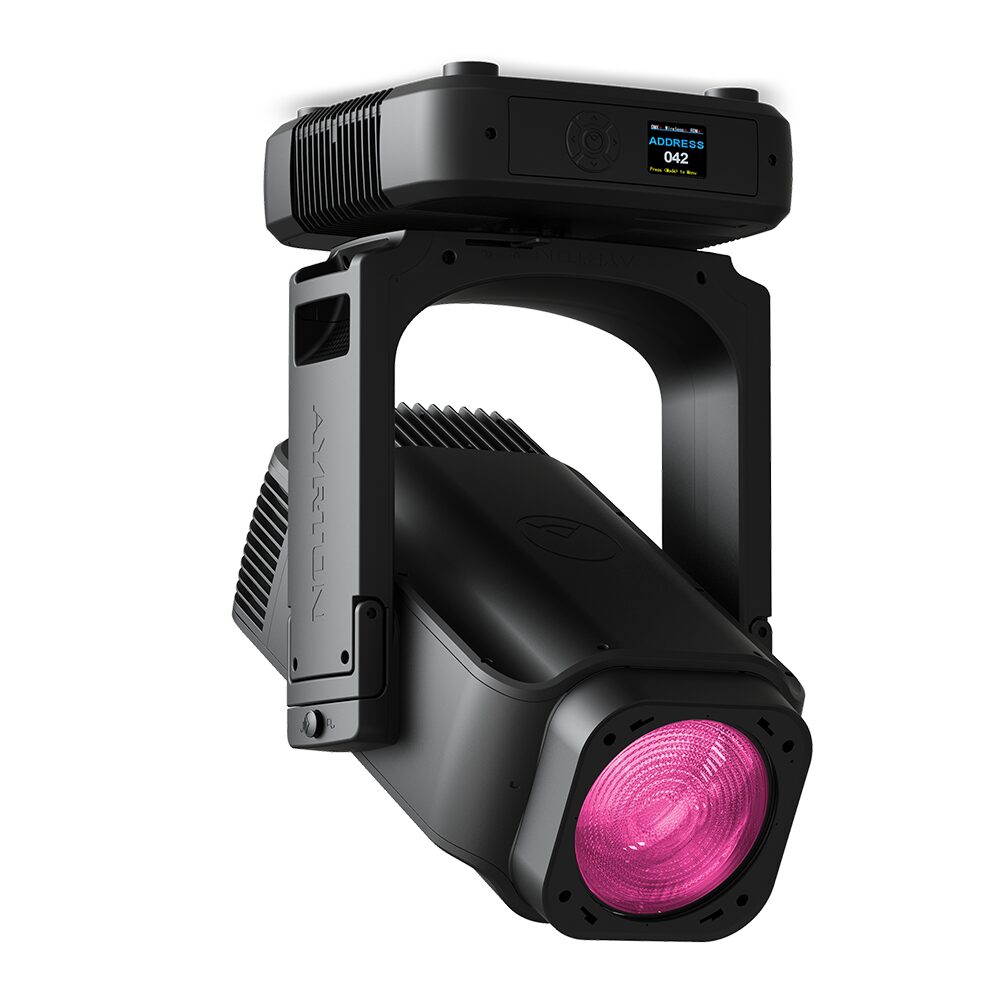

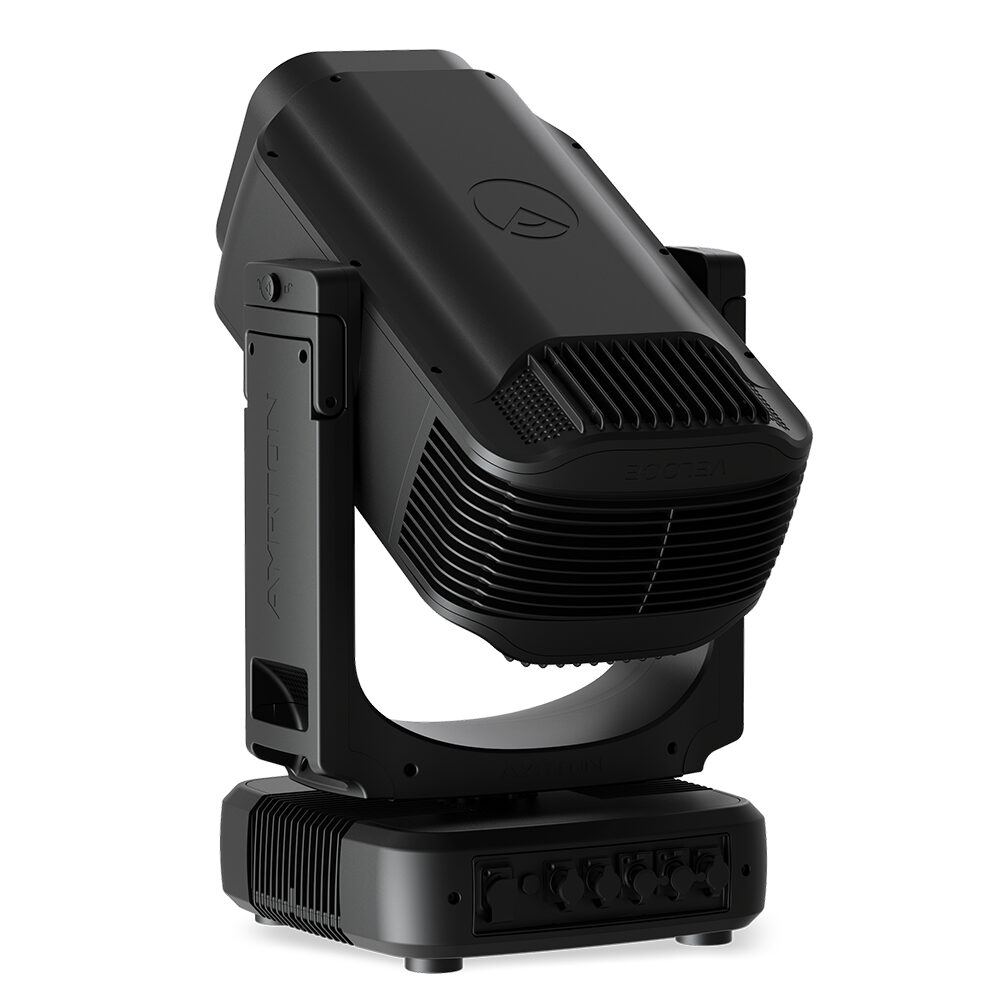

Ayrton - Veloce Wash Front right of moving headAyrton - Veloce Wash Front right of moving head

Ayrton – Veloce Wash

Ayrton

Following the launch and immediate success of the all-new Veloce Profile, Ayrton is proud to unveil Veloce Wash, the fourth luminaire in the “Ultimate” series, boasting a cutting-edge design and breathtaking performance.

SKU: 012541 Categories: , , ,

Description

Built on the advanced principle of perfect scalability, this ultra-compact luminaire pushes the boundaries of integration with a sealed 850 W high-efficiency LED module, calibrated at 6500 K, delivering a powerful 40,000-lumen output. With an optimal black body positioning, it ensures perfect light neutrality. Like all Ultimate series luminaires, Veloce Wash is a versatile tool designed to perform in all conditions—indoors, outdoors, and even in coastal environments. The use of lightweight aluminum components significantly reduces weight, achieving the best weight-to-power ratio on the market, without resorting to costly or unstable special alloys. Weighing just 39 kg, Veloce Wash is the lightest luminaire in its category. For greater creative freedom, it features continuous, unlimited pan & tilt rotation. Equipped with a 190 mm front lens, its proprietary 12-lens optical system delivers a 14:1 zoom ratio, covering a versatile range from 4° to 57°.

Veloce Wash integrates an ultra-fast CMY progressive colour-mixing system with a gradient disk that provides a continuous filtering surface, ensuring perfect homogeneity.

This innovative system enhances colour brightness and renders pastel shades with exceptional accuracy. A progressive extended CTO enables precise colour temperature adjustment from 2900 K to 6500 K, complemented by a 7-position colour wheel equipped with specialty filters for unparalleled creative potential. For greater flexibility, Veloce Wash features adjustable CRI tuning from 70 to 86. The framing system allows for precise shutter blade positioning across 100% of the surface, with ±90° rotation. A 15-blade iris diaphragm, with an adjustable aperture range from 15% to 100%, optimises the beam in Beam mode. The effects section includes a 6-position rotating glass gobo wheel, a multi-layer CMY+RGB animation wheel, a beam ovaliser, and an indexable rotating scrim filter. The all-new progressive frost system provides precise control over diffusion levels, offering seamless adjustment to match any creative need. Veloce Wash is a one-of-a-kind luminaire, balancing power, creativity, precision, and subtlety. A truly exceptional fixture with no equivalent on the market.

Features

  • Luminous Flux: 40,000 lm
  • Variable CRI: 70 to 86
  • Zoom Aperture: 4 ° to 57 °
  • Front Lens: 190 mm
  • IP Rating: IP65
  • Weight: 39 kg

Video

Ayrton – Veloce Wash – Presentation

Ayrton Veloce Wash – Ultimate IP65 6 Series
Creation: Marc & Brandon

Additional information

Weight 39 kg
Optics

12-element 14:1 zoom high-resolution optic system
Zoom aperture: 4 ° to 57 °
Fast motorised linear zoom
Tempered anti-reflective coated lenses
190 mm frontal Fresnel lens
Light Source

58,000 lumens white light engine
Total luminaire output: up to 40,000 lumens (integrating sphere measurement, Stage Fan mode)
Colour temperature output: 6500 K
Variable CRI: 70 to 86
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
Movement

Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt automatic repositioning
Moving-head range: infinite pan and tilt rotation
Colours

Sophisticated colour mixing system providing CMY color mixing
Variable CTO colour temperature correction
Variable CTP
Fixed colour wheel with seven complementary colours
Gobo

Indexable rotating gobo wheel with six high precision glass gobos and a scrim filter
Progressive scrim filter to reduce light intensity at shallow projection angles
Adjustable-speed rotating gobo in both directions
Gobo diameter: 30 mm
Image diameter: 18 mm
Gobo thickness: 1.1 mm
Framing System

4 individually positionable shutter blades on a 100% surface area in all positions
Rotation of the shutter blade module: +/- 90 °
Iris Diaphragm

Fast iris diaphragm with adjustable dynamic effects
Iris range: 15% to 100% open
Frost

0% to 100% variable linear frost
Effects

Focusable CMY & RGB graphic animation effect-wheel with continuous rotation in both directions
Beam ovalising filter, indexable and rotatable
Dimmer / Strobe

Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
Strobe effect, with speed adjustment from 1 to 25 flashes per second
Software Features

Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
Hardware Features

Graphic LCD display for addressing and special functions settings, with flip function
5 menu buttons to set functions
Excess temperature protection
Integrated wireless CRMX TiMo RDM receiver from LumenRadio
IP65 XLR 5 pin male and female connectors for DMX connection
IP65 RJ45 IN / OUT connectors for ArtNet connection
IP65 PowerCON TRUE1 male connectors for power connection
Control

DMX 512 protocol, through DMX cable or a wireless system
DMX-RDM compatible
Stand-alone mode and Main/Follow modes
ArtNet & sACN protocol through Ethernet cable
Local control panel, with IP65 LCD display
60 DMX channels footprint
Power Supply

Electronic supply with active PFC
100 to 240 Volts – 50/60Hz
Power: 1300 W maximum
Cooling System

Advanced liquid cooling system
IP68 Self-adjusting variable speed fans for quiet operation (Auto mode)
Selectable ventilation user modes including Super Silent Mode
Safety protection against excess temperature
Housing

Moving-head skeleton made of aluminium and steel metal plates
Head in die-cast aluminium
Base in die-cast aluminium
Heatsinks in aluminium and copper
Arms in self-extinguishing fire retardant ABS PC (V0 class)
Four-side handles for transportation
Four heavy-duty feet for better stability
IP65 protection rating
Exterior finish: black (Carbon)
Installation

Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
Safety cable attachment point
Operating Parameters

Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F)
Minimum usage distance: 4 m (13.123 ft)
Compliance

EU (EMC & LVD):
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US (Safety & EMC)
UL 1573
FCC Part 15, Subpart B:2018
Substance regulations
RoHS
REACH
CP65
Size

Product: 405 x 757 x 366 mm (l x h x d)
Flight-case foam: 680 x 640 x 500 mm (l x h x d)

Downloads

User Guide Download
