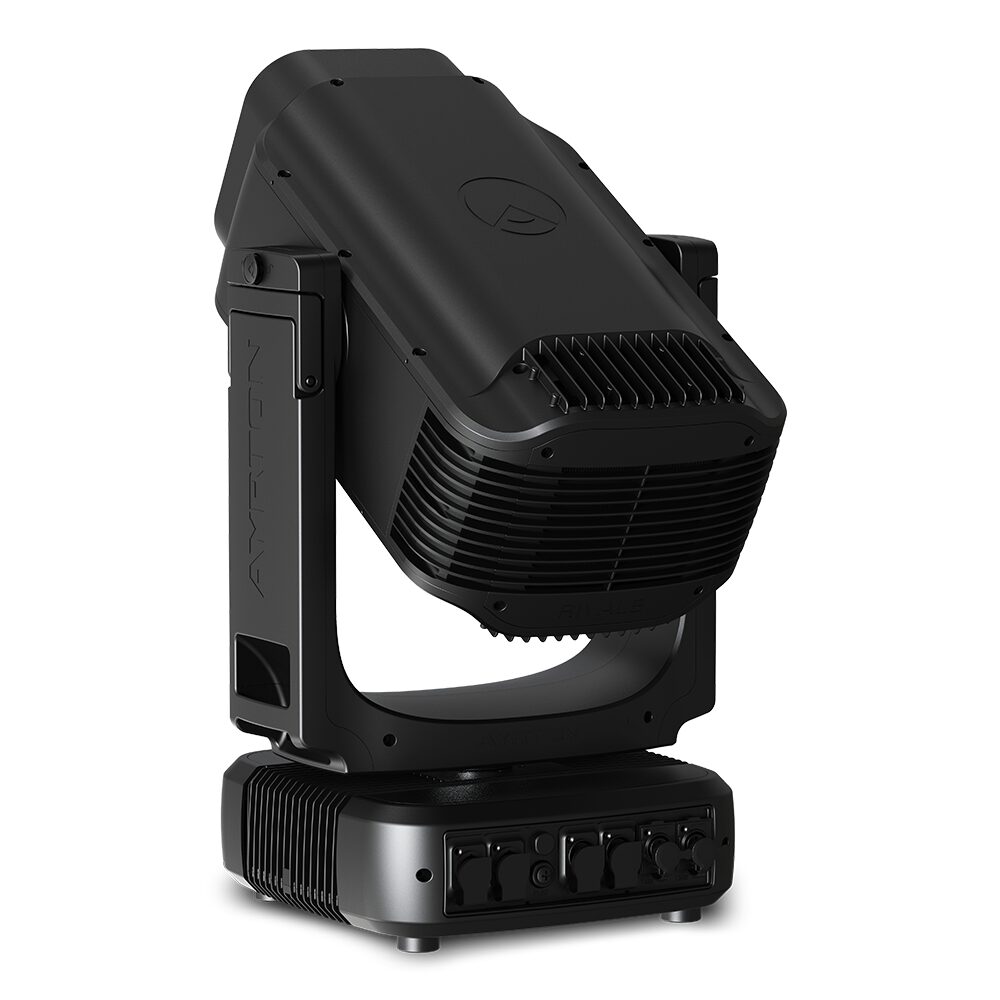

Ayrton – Rivale Wash

Ayrton

Rivale Wash is the first ultra-equipped wash luminaire in Ayrton’s brand new «ULTIMATE» range, developed for mixed indoor and outdoor use, including in salty environments.

SKU: 012341 Categories: , , ,

Description

Weight determines performance, Rivale Wash weighs just 30.8 kg, offering outstanding performance for a product in this category. Rivale Wash is without equal on the market, with a unique visual signature. An all-new Fresnel lens, with an optical structure, has been specially developed for use with framing shutters, while also facilitating the use of geometric gobos or ovalization lenses. Its incredible ability to create extremely subtle atmospheres makes it an outstanding Wash projector. Playing with light and shadow… highlighting a detail… mastering chiaroscuro… searching for the perfect nuance… chiselling space… this new-generation luminaire delivers incomparable satisfaction. A subtle progressive frost system allows the level of diffusion to be adapted to suit the application and the accessories or optical elements used. This new Fresnel lens also significantly improves colour mixing and delivers 10% more light compared with a conventional Fresnel lens.

Rivale Wash is equipped with a brand new 430 W high efficiency sealed monoblock LED module calibrated at 6500 K, offering a luminous flux of 28,000 lumens with optimum positioning on the black body to achieve perfect light neutrality.

The proprietary 12-lens optical system offers a zoom ratio of 14:1 and a range from 4 ° to 57 °. Featuring a 170 mm front lens, Rivale Wash provides an ultra-intensive 4° beam. Rivale Wash adopts a brand new high-definition progressive CMY colour mixing system that delivers perfect color reproduction as soon as the filter is inserted, regardless of the colour combination selected. An extended progressive CTO enables precise adjustment of colour temperature from 2900 K to 6500 K, and a 7-position colour wheel with special filters completes the palette of tools dedicated to colour creation. For greater flexibility of use, Rivale Wash offers subtle adjustment of the colour rendering index from 70 to 86. For greater creativity and design freedom, Rivale Wash comes as standard with infinite continuous rotation on both the pan & tilt axes. Rivale Wash, a unique spotlight that combines performance, creativity, subtlety and power. An extraordinary luminaire with no equivalent on the market.

Features

  • Luminous Flux: 28,000 lm
  • Variable CRI: 70 to 86
  • Zoom Aperture: 4 ° to 57 °
  • Front Lens: 170 mm
  • IP Rating: IP65
  • Weight: 29.7 kg

Video

AYRTON – Rivale Wash – Presentation

Ayrton Rivale Wash – Ultimate IP65 3 Series
Creation: Marc & Brandon

Additional information

Weight 30.8 kg
Optics

12-element 14:1 zoom high-resolution optic system
Zoom aperture: 4 ° to 57 °
Fast motorised linear zoom
Tempered anti-reflective coated lenses
170 mm frontal lens
Light Source

35,000 lumens white light engine
Total luminaire output: up to 28,000 lumens (integrating sphere measurement, Fan mode STAGE)
Colour temperature output: 6500 K
Variable CRI: 70 to 86
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
Movement

Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt automatic repositioning
Moving-head range: infinite pan and tilt rotation
Colours

Sophisticated colour mixing system providing CMY color mixing
Variable CTO colour temperature correction
Variable CTP
Fixed colour wheel with seven complementary colours
Gobo

Indexable rotating gobo wheel with six high precision glass gobos, and a scrim filter
Progressive scrim filter to reduce light intensity at shallow projection angles
Adjustable-speed rotating gobo in both directions
Gobo diameter: 25.5 mm
Image diameter: 18 mm
Gobo thickness: 1.1 mm
Framing System

4 individually positionable shutter blades on a 100% surface area in all positions
Rotation of the shutter blades module: +/- 90 °
Iris Diaphragm

Fast iris diaphragm with adjustable dynamic effects
Iris range: 15% to 100% open
Frost

0% to 100% variable linear frost
Effects

Focusable CMY & RGB graphic animation effect-wheel with continuous rotation in both directions
Beam ovalising filter, indexable and rotatable
Dimmer / Strobe

Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
Strobe effect, with speed adjustment from 1 to 25 flashes per second
Software Features

Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
Hardware Features

Graphic LCD display for addressing and special functions settings, with flip function
5 menu buttons to set functions
Excess temperature protection
Integrated wireless CRMX TiMo RDM receiver from LumenRadio
IP65 XLR 5 pin male and female connectors for DMX connection
IP65 RJ45 IN / OUT connectors for ArtNet connection
IP65 PowerCON TRUE1 TOP male and female connectors for power connection
Control

DMX 512 protocol, through DMX cable or a wireless system
DMX-RDM compatible
Stand-alone mode and Main/Follow modes
ArtNet & sACN protocol through Ethernet cable
Local control panel, with IP65 LCD display
Footprint of 60 DMX channels
Power Supply

Electronic supply with active PFC
100 to 240 Volts – 50/60Hz
Power: 700 W maximum
Cooling System

Advanced liquid cooling system
IP68 Self-adjusting variable speed fans for quiet operation (Auto mode)
Selectable ventilation user modes including Super Silent Mode
Safety protection against excess temperature
Housing

Moving-head skeleton made of aluminium and steel metal plates
Head in die-cast aluminium
Base in die-cast aluminium
Heatsinks in aluminium and copper
Arms in self-extinguishing fire retardant ABS PC (V0 class)
Four-side handles for transportation
Four heavy-duty feet for better stability
IP65 protection rating
Exterior finish: black (Carbon)
Installation

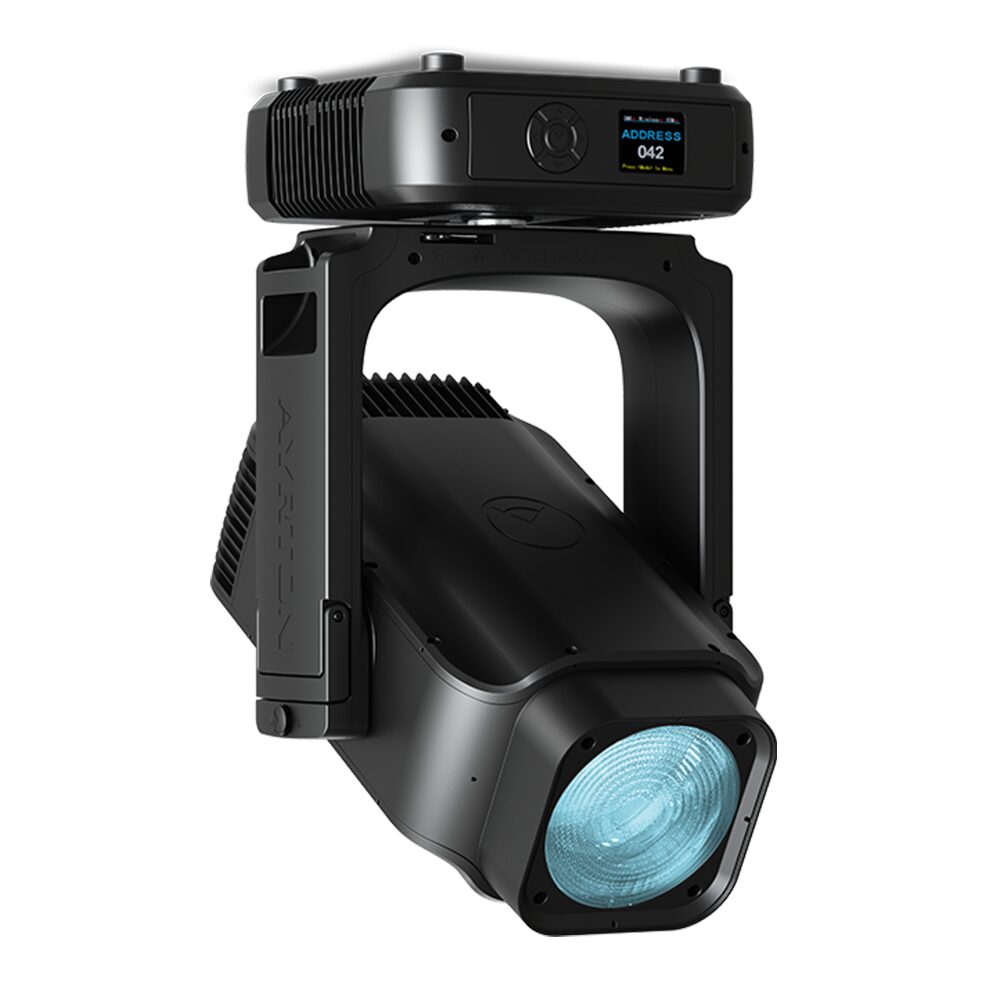

Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
Safety cable attachment point
Operating Parameters

Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F)
Minimum usage distance: 2 m (6.56 ft)
Compliance

EU (EMC & LVD):
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US (Safety & EMC)
UL 1573
FCC Part 15, Subpart B:2018
Substance regulations
RoHS
REACH
CP65
Size

Product: 360 x 676 x 316 mm (l x h x d)
Flight-case foam: 560 x 565 x 485 mm (l x h x d)
