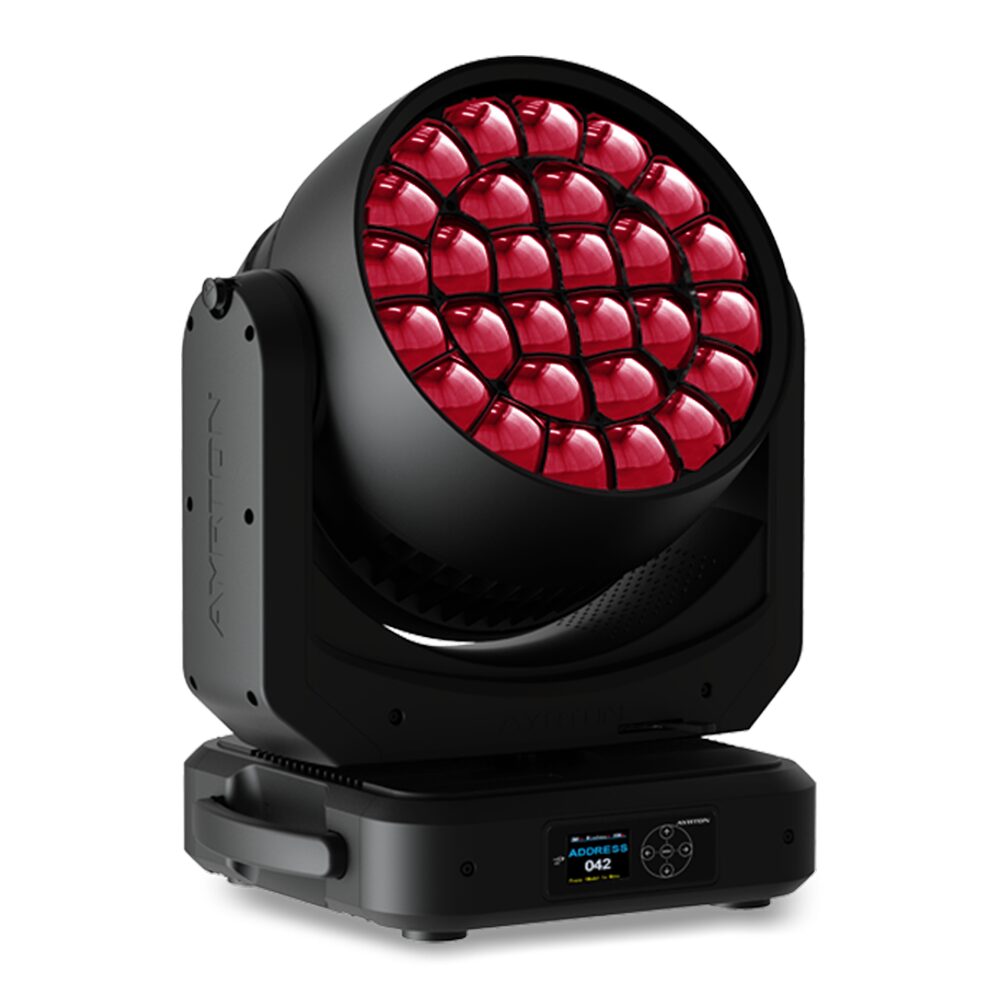

Ayrton - Nando 1202 Front right of moving head wash fixture head tilted upAyrton - Nando 1202 Front right of moving head wash fixture head tilted up

Ayrton – Nando 1202

Ayrton

Two years after the release of Nando 502, equipped with new RGB-L LED sources perfectly suited to stage lighting and met with extraordinary success, Ayrton decided to create a more powerful new version of this luminaire, which Ayrton named Nando 1202.

Features

  • Luminous Flux: 25,000 lm
  • Native CRI: > 86
  • Zoom Aperture: 3.5 ° to 53 °
  • Front Lens: 303 mm
  • IP Rating: IP65
  • Weight: 27.6 kg
SKU: 013920 Categories: , , ,

Description

Featuring 28 high-performance 50-watt additive colour-mixing LED sources, Nando 1202 offers a proprietary optical system built around a 303 mm PMMA cluster paired with 28 precision-machined glass light guides, each with a micro-structured optical exit surface. This new LED source brings the advantage of improved integration within the colour space and enables perfect colour repeatability with a CRI above 86. Nando 1202 delivers a luminous flux of 25,000 lumens and provides perfectly homogeneous mixing of pastel or saturated colours. This new luminaire shifts from Beam to Wash instantly and offers a 15:1 zoom ratio with an exceptionally wide operating range from 3.5° to 53°. Its black honeycomb louvre and the perfect isolation of the light sources from one another significantly enhance contrast. The design of the anti-reflective treated glass window guarantees an optimal visual result and delivers increased performance.

Nando 1202 is an incredibly compact luminaire intended for stage lighting and specifically designed for mixed use both indoors and outdoors, including in saline environments.

The entirely new minimalist design of Nando 1202 provides complete accessibility to the luminaire’s functions while keeping weight under tight control. Reducing the thickness of the aluminium parts, optimising the cooling system, simplifying lens guidance, and integrating low-density optical components have made it possible to achieve a significant 20% weight reduction. A new ventilation system, submersible within a non-sealed compartment, enables optimal cooling of the luminaire. Individual control of each LED source makes it possible to create breath-taking volumetric 3D effects. A comprehensive library of pre-programmed colours allows subtle, dense, or high-contrast washes to be created quickly. In a universe where standardisation dominates, Nando 1202 asserts its singularity with a minimalist design and impeccable manufacturing. An essential luminaire for creators in search of emotion.

Video

AYRTON – Nando 1202 – Presentation

Ayrton Nando 1202 – Multi Sources IP65 9 Series
Creation: Marc & Brandon

Additional information

Weight 27.6 kg
Optics

2-element 15:1 zoom high-resolution optic system
Beam aperture: 3.5° to 53°
Fast motorised linear zoom
28 truncated edges 70 mm frontal lenses
303 mm front lens cluster
Light Source

28 x 1,200 lumens RGB-L High-Power LED sources
Total luminaire output: up to 25,000 lumens
CRI: greater than 86
Rated life (L70): up to 40,000 hours
Flicker free sources management, suitable for TV applications and all video recorded events
Movement

Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movement.
Pan and tilt automatic repositioning
Moving-head range: 540° pan & 225° tilt
Colours

Sophisticated 4 colours RGB-L mixed, reaching high Colour Rendering Index
Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
4.29 billion colours (8 bit resolution)
Raw colour control with direct access to RGBL
Calibrated RGB mode with automatic Lime insertion
Virtual CTC channel with adjustable white point from 2500 to 8000 K
Tint control channel for ±green
Effects

2D & 3D graphical effects capabilities
Effects can be coupled with beam, wash or matrix applications
Built-in pattern effects with speed and fade controls for scenic applications
Individual control of each pixels
Dimmer / Strobe

Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second
Software Features

Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
Hardware Features

Graphic LCD display for addressing and special functions settings, with flip function
5 menu buttons to set functions
Excess temperature protection
Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
IP65 XLR 5 pin male and female connectors for DMX connection
IP65 RJ45 IN / OUT connectors for ArtNet™ and sACN connection
IP65 powerCON TRUE1 male connector for power connection
Control

DMX 512 protocol, through through IP65 DMX cable or a wireless system
DMX-RDM compatible
Stand-alone mode and Main/Follow modes
ArtNet™ & sACN protocol through Ethernet cable
Local control panel, with IP65 LCD display
Choice of 4 DMX modes (from 26 to 150 DMX channels)
Power Supply

Electronic supply with active PFC
120 to 240 Volts – 50/60Hz
Power: 1450 W maximum
Cooling System

Advanced cooling system
Self adjusting variable speed fans for quiet operation (Auto mode)
Selectable ventilation user modes including Super Silent Mode
Safety protection against excess temperature
Housing

Moving-head skeleton made of aluminium and steel metal plates
Head in die-cast aluminium
Base in die-cast aluminium
Heatsinks in aluminium and copper
Arms moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
Two handles on the base
Four heavy-duty feet for better stability
IP65 protection rating
Exterior finish: black (Carbon)
Installation

Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps
Mounting points: eight 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
Safety cable attachment point
Operating Parameters

Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45°C (113°F)
Minimum permitted ambient temperature (Ta min): -20°C (-4°F)
Minimum usage distance: 2.0 m (6.56 ft)
Compliance

EU (EMC & LVD)
EU (EMC & LVD):
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US (Safety & EMC)
UL 1573
FCC Part 15, Subpart B:2023
Substance regulations
RoHS
REACH
CP65
Size

Product: 446 x 562 x 356 mm (l x h x d)
Flight-case foam: 495 x 590 x 400 mm (l x h x d)
