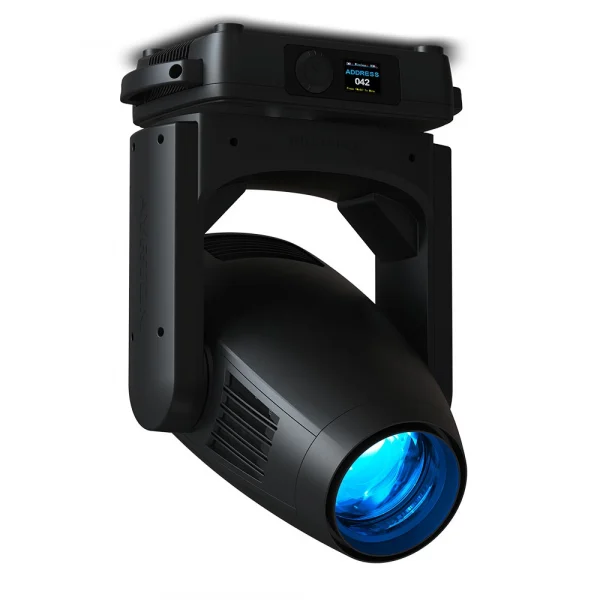

Ayrton - Mistral Moving head in hanging orentationAyrton - Mistral Moving head in hanging orentation

Ayrton – Mistral

Ayrton

Ayrton has once again pushed the limits with Mistral

SKU: N/A Categories: , , , ,
Clear

Description

A versatile, new fully equipped 300 W spot luminaire in the same ultra-compact format as Merak. Its new 13-lens proprietary optical system delivers a 8:1 zoom ratio with a zoom range of 6.7 ° to 53 °. The optics, equipped with a 119 mm frontal lens, can achieve an extremely uniform flat beam that can render images perfectly in all conditions and at any beam angle. Mistral comes in two versions, each to meet the specific requirements of lighting professionals. Mistral S is designed for scenic applications. It is equipped with a new LED module, delivering powerful metallic white light with record-breaking output of 18,000 lumens and a colour temperature of 7000 K. Devised specifically for applications that require perfect colour reproduction, Mistral TC is equipped with an entirely new LED module using a monochromatic light source with a native colour rendering index greater than 90, extremely high TM30 readings and a colour temperature of 6000 K.

Feature-rich from the factory

Mistral includes a CMY colour mixing system combined with a variable CTO and a seven-position complementary colour wheel for producing an infinite palette of vivid pastels and saturated colours. The effects section includes 16 interchangeable HD glass gobos on two wheels: one rotating wheel with seven positions and one fixed wheel with nine positions. Its continuous dynamic effects wheel can be used in combination with the two gobo wheels to create unique graphical effects. Mistral also features a 15-blade iris diaphragm, a five-facet rotating prism, and a soft-edge frost filter as standard equipment. Mistral has a highly efficient phase-change liquid cooling system using a heat pipe that includes a particularly effective Silent ventilation mode, designed for studio and theatre applications.

Features

  • Luminous Flux: 18,000 lm Mistral S
  • Native CRI: greater than 90 Mistral TC
  • Zoom Aperture: 6.7 ° to 53 °
  • Front Lens: 119 mm
  • IP Rating: IP20
  • Weight: 18.9 kg

Video

AYRTON – Perseo – Presentation

Ayrton Mistral – 300W Spot Luminaire

Additional information

Weight 18.9 kg
Optics

13 elements 8:1 zoom high-resolution optic system
Beam aperture: 6.7 ° to 53 °
Fast motorised linear zoom
Tempered anti-reflective coated lenses
119 mm front lens for ultimate performance
Light Source

Mistral S
26,000 lumens 8000 K white light engine
Total luminaire output: up to 18,000 lumens
Colour temperature output: 7000 K
CRI: greater than 70
Mistral TC
21,000 lumens 7000 K white light engine
Total luminaire output: up to 14,000 lumens
Colour temperature output: 6500 K
CRI: greater than 90
Mistral S & Mistral TC
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
Movement

Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements
Pan and tilt with automatic repositioning
Moving head range: 540 ° (pan) & 263° (tilt)
Colours

Sophisticated colour mix system providing CMY colour mixing
Variable CTO colour temperature correction
Fixed colour wheel with seven saturated colour filters
Gobos

Indexable rotating gobo wheel with 7 high precision glass gobos plus open position
Adjustable speed rotating gobo in both directions
Fixed gobo wheel with 9 high precision glass gobos plus open position
Gobo diameter: 25.5 mm
Image diameter: 20 mm
Gobo thickness: 1.1 mm
Iris Diaphragm

Fast iris diaphragme with adjustable dynamic effects
Iris range : 15 to 100% open
Frost

Light frost filter
Heavy frost filter (optional)
Effects

Focusable graphic animation effect-wheel with continuous rotation in both directions
5-facet circular indexable rotating prism
Dimmers / Strobe

Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
Strobe effect, with speed adjustment from 1 to 25 flashes per second
Software / Features

Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
Hardware Features

Graphic LCD display for addressing and special functions settings, with flip function
Clicking jog wheel to set functions
Excess temperature protection
Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
XLR 5 pin male and female connectors for DMX connection
powerCON TRUE1 male and female connectors for power connection
Control

DMX 512 protocol, through DMX cable or a wireless system
DMX-RDM compatible
Stand-alone mode and Main/Follow modes
Local control panel, with LCD display
Choice of 3 DMX modes (from 26 to 39 DMX channels)
Power Supply

Electronic supply with active PFC
100 to 240 Volts – 50/60 Hz
Power: 550 W maximum
Cooling Systems

Advanced liquid cooling system
Self-adjusting variable speed fans for quiet operation (Auto mode)
Selectable ventilation user’s modes with a new Silent Mode
Safety protection against temperatures excesses
Housing

Moving-head skeleton made of aluminium and steel metal plates
Base in die-cast aluminium
Heatsinks in aluminium and copper
Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
Two-side handles for transportation
Four heavy-duty feet for better stability
IP20 protection rating
Exterior finish: black (Carbon)
Installation

Fastening brackets system: two Omega ¼ turn brackets designed for use with standard clamps
Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
Safety cable attachment point
Operation Parameters

Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
Minimum usage distance: 1.5 m (4.92 ft)
Compliance

EU (EMC & LVD):
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US (Safety & EMC):
UL 1573
FCC Part 15, Subpart B: 2018
Substance regulations
RoHS
REACH
CP65
Size

Product: 365 x 591 x 212 mm (l x h x d)
Flight-case Foam : 450 x 620 x 280 mm (l x h x d)

Downloads

Data Sheet Download
User Guide Download
