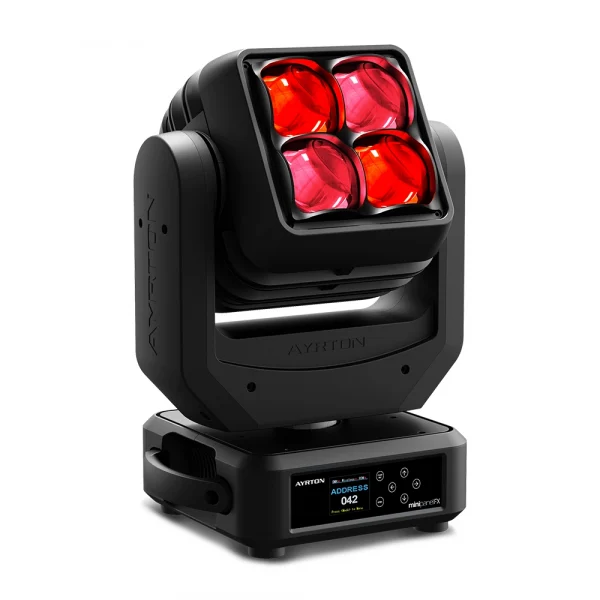

Ayrton - MiniPanel-FX Front Right of small moving headAyrton - MiniPanel-FX Front Right of small moving head

Ayrton – MiniPanel-FX

Ayrton

MiniPanel FX is a versatile new multi-function and multi-use luminaire that combines the same main features and essential components as the MagicPanel FX, in an ultra compact format.

SKU: 015450 Categories: , , ,

Description

Fitted with four squared 65 mm lenses, the proprietary optical zoom system ensures a 15:1 zoom ratio, with a wide range of 3.6 ° to 53 °. The crisp separation between the beams that enhances contrast, combined with an optical system using no visible moving parts and a stationary transmitting lens, offers new possibilities for creating graphical effects. Effects capabilities can be coupled with beam, wash or matrix applications to produce superb results whether performing in front of the audience or camera.

Highly compact, light, ultra-fast and powerful, MiniPanel FX is equipped with four new low-etendue 35 W RGBW multi-chip LED emitters paired with a high-efficiency optical system.

The fixture offers an overall luminous flux of 2400 lumens and a centre-beam luminous intensity of 331,200 candelas for an overall consumption of only 200 W. The continuous, unlimited, rotation on pan and tilt, first introduced on the legendary MagicPanel 602 in 2013, is standard. MiniPanel FX is equipped with extended serial connectivity and can be controlled via DMX-RDM or a wireless link using CRMX TiMo RDM from LumenRadio™.

Features

  • Light Source: 4 x 35W – RGBW
  • Luminous Flux: 2,400 lm
  • Zoom Aperture: 3.6 ° to 53 °
  • Mouvement: Infinite Pan & Tilt
  • Front Lenses: 4 x square 65 mm

Video

AYRTON – MiniPanel-FX – 54 Unit Demo

Additional information

Weight 8.9 kg
Optics

2-elements 15:1 zoom high-resolution optic system
Beam aperture: 3,6° to 53°
Fast motorised linear zoom
4 squared 65 mm frontal lens
Light source

4 x 1,000 lumens RGBW High-Power LED source
Total luminaire output: up to 2,400 lumens
Luminous intensity: 331,200 cd (narrow beam)
Rated life (L70): up to 40,000 hours
Flicker free sources management, suitable for TV applications and all video recorded events
Movement

Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
Pan and tilt automatic repositioning
Moving-head range: infinite pan and tilt rotation
Colours

Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index
Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
4.29 billion colours (8 bit resolution)
Virtual colour wheel, including most usuals white colour temperature presets
Dynamic colour macro effect with variable speed
Effects

2D & 3D graphical effects capabilities
Effects can be coupled with beam, wash or matrix applications
Built-in pattern effects with speed and fade controls for scenic applications
Dimmer / strobe

Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second
Software features

Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version

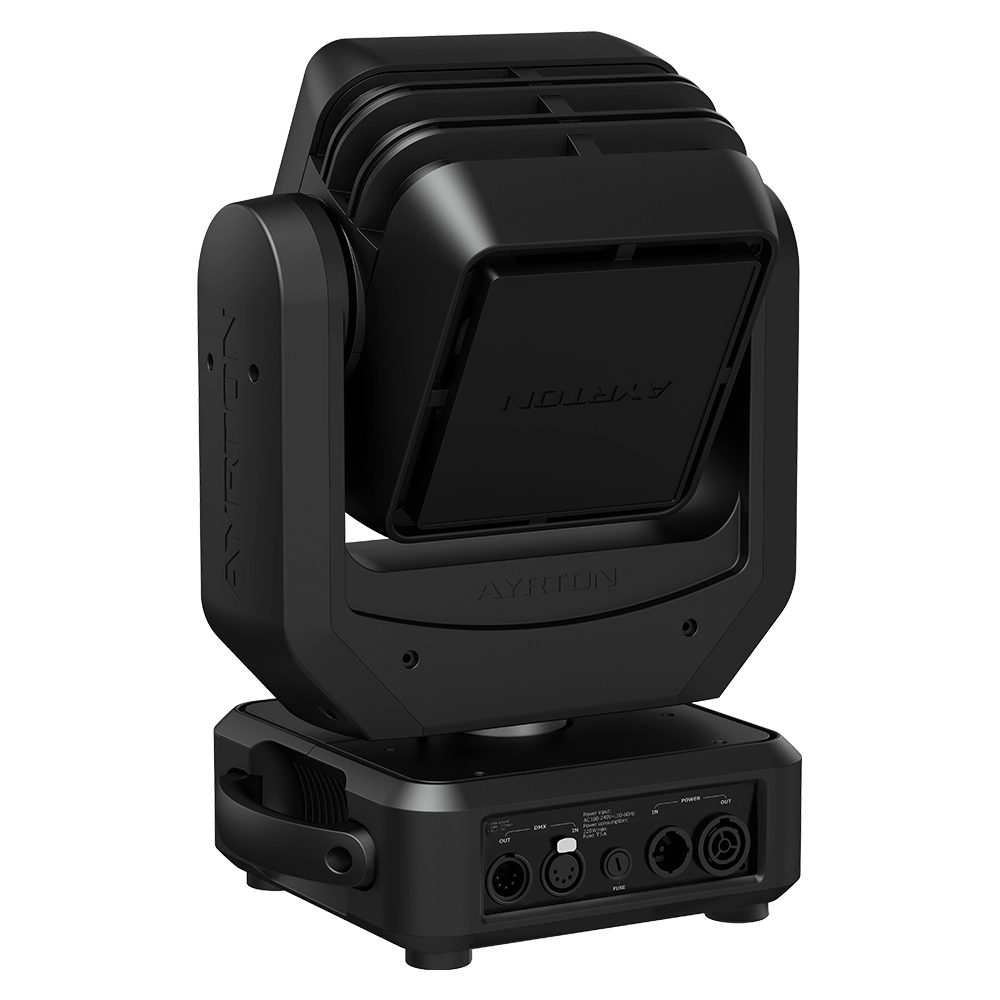

Hardware features

Graphic LCD display for addressing and special functions settings, with flip function
6 menu buttons to set the functions
Excess temperature protection
Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
XLR 5 pin male and female connectors for DMX connection
powerCON TRUE1 male and female connectors for power connection
Control

DMX 512 protocol, through DMX cable or wireless system
DMX-RDM compatible
Stand-alone mode and Primary/Secondary modes
Local control panel, with LCD display
Choice of 3 DMX modes (from 19 to 34 DMX channels)
Power supply

Electronic supply with active PFC
100 to 240 Volts – 50/60 Hz
Power 220 W maximum
Cooling system

Advanced cooling system
Self adjusting variable speed fans for quiet operation (Auto mode)
Selectable auto, stage & studio ventilation modes
Safety protection against temperatures excesses
Housing

Moving-head skeleton made of aluminium and steel metal plates
Heatsinks in aluminium
Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
Two sides handles for transportation
Four heavy-duty feet for better stability
IP20 protection rating
Exterior finish: black (Carbon)
Installation

Fastening brackets system: one Omega 1/4 turn brackets designed for use with standard clamps
Mounting points: two 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
Safety cable attachment point
Operating parameters

Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
Minimum usage distance: 1.5 m (4.92 ft)
Compliance

EU (EMC):
EMC Directive 2014/30/EU
EU (LVD):
LVD Directive 2014/35/EU
Size

Product: 285 x 397 x 220 mm (l x h x d)
Flight-case foam: 340 x 425 x 275 mm (l x h x d)
