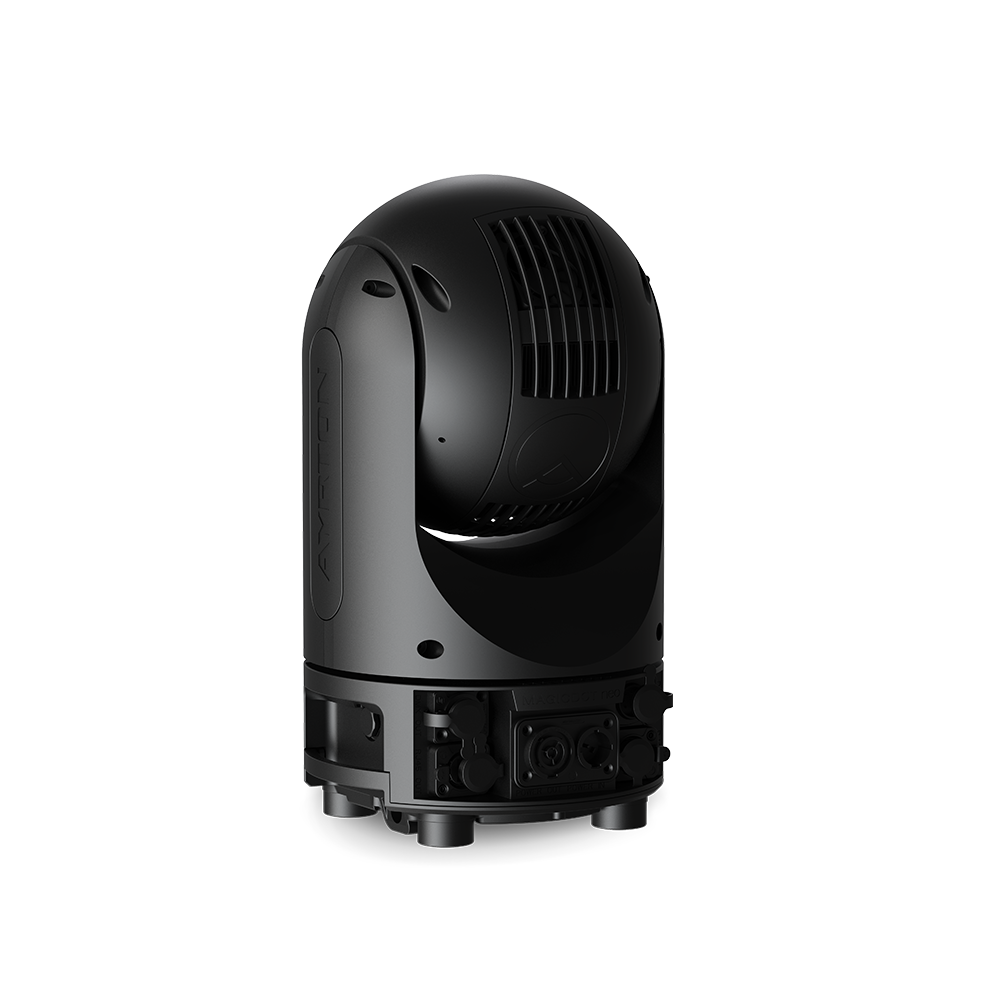

Ayrton – MagicDot Neo

Ayrton

Very compact, lightweight, ultra-fast and powerful, MagicDot Neo represents the ultimate evolution of this innovative family of fixtures.

SKU: 015180 Categories: , , , ,

Description

Designed for stage lighting and engineered for mixed indoor and outdoor use—even in saline environments—it features a brand-new 120 W multi-chip RGB-L LED source paired with a high-efficiency 100 mm optic, delivering a total output of 3,000 lm for just 160 W of power consumption. The high output of this LED source required a bespoke cooling solution based on a phase-change heat pipe. MagicDot Neo switches from Beam to Wash in an instant, offers a 10:1 zoom ratio and covers a wide beam angle from 3° to 30°. Continuous dual rotation on the pan and tilt axes allows fixtures to be clustered so that each light source can be individually controlled in every direction, and the minimal spacing between units makes previously impossible configurations achievable.

The intense beam, combined with the High-Definition Liquid effect—featuring 60 RGB LEDs around the beam’s periphery—creates mesmerising multi-colour effects.

MagicDot Neo generates organic light and astonishingly complex volumetric effects, enabling truly breathtaking stage presentations. Extensive Ethernet connectivity supports unlimited system configurations. By drastically reducing the thickness of aluminium components, optimising the cooling system, simplifying lens mounts and integrating low-density optical parts, the overall weight has been significantly reduced to just 6.6 kg. The fixture’s performance stems from its singular design, extreme miniaturisation and minimalist cylindrical form. Enter a new creative sphere that is as inspiring as it is radical. An elegant, meticulously crafted projector with a unique visual signature, MagicDot Neo is the obvious choice—a technological powerhouse in a compact package, capable of delivering spectacular stage effects.

Features

  • Illuminance at 5m: 16,000 lux
  • Native CRI: < 86
  • Zoom Aperture: 3 ° to 30 °
  • Front Lens: 100 mm
  • IP Rating: IP65
  • Weight: 6.6 kg

Video

PLASA 2025 – Our Product Highlights | Ayrton Magicdot Neo

Join White light’s Dominic Yates as he talks to Jon Constable from Ambersphere about The Ayrton MagicDot Neo at Plasa 2025. As he highlights some of the features that make this fixture the ideal choice for theaters looking for a compact beam and eye candy fixture.

Additional information

Weight 6.6 kg
Optics

2-elements 10:1 zoom
Beam aperture: 3 ° to 30 °
Fast motorised linear zoom
100 mm front lens
Light Source

5,000 lm RGB-L LED source
Total luminaire output: up to 3,000 lm
Illuminance at 5m : 16,000 lux
CRI: up to 86
Rated life (L70): up to 40,000 hours
Flicker free sources management, suitable for TV applications and all video recorded events
Movement

Highly accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
Pan and tilt automatic repositioning
Moving-head range: infinite pan and tilt rotation
Colours

Sophisticated 4 colours RGB-L mixed, reaching high Colour Rendering Index
Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
4.29 billion colours (8-bit resolution)
Virtual CTC channel, from 2500 to 8000K
Virtual Tint channel
Effects

Liquid Effect with 60 individual pixels
Built-in pattern effects with speed and fade controls
Dimmer / Strobe

Electronic dimmer from 0 to 100%
Strobe effect: 1 to 25 flashes per second
Hardware Features

Graphic LCD display with flip function
4 menu buttons to set functions
Integrated wireless CRMX TiMo RDM receiver from LumenRadio
IP65 XLR 5 pin male and female connectors for DMX connection
IP65 RJ45 IN / OUT connectors for ArtNet connection
IP65 PowerCON TRUE1 TOP male and female connectors for power connection
Control

DMX 512 protocol, through IP65 DMX cable or wireless system
DMX-RDM compatible
Stand-alone mode and Main/Follow modes
ArtNet & sACN protocol through IP65 Ethernet cable
Local control panel, with IP65 LCD display
Footprint of 35 DMX channels
Power Supply

Electronic power supply with active PFC
100 to 240 Volts – 50/60Hz
Power: 160 W maximum
Cooling System

Advanced liquid cooling system
IP68 Self-adjusting variable speed fans
Selectable ventilation user modes
Excess temperature protection
Housing

Moving-head skeleton made in die-cast aluminium
Base in die-cast aluminum
Heatsinks in aluminium and copper
Moulded covers ABS PC (V0 class)
Two handles for transportation
Four heavy-duty feet
IP65 protection rating
Exterior finish: black (Carbon)
Installation

Fastening brackets system: One Omega ¼ turn brackets designed for use with standard clamps
Mounting points: Two ¼ turn locking fittings allowing installation of Omega brackets on luminaire
Safety cable attachment point
Operating Parameters

Operating positions: all (device on floor or fixed to a support)
Maximum temperature (Ta max): 45 °C (113 °F)
Minimum temperature (Ta min): -20 °C (-4 °F)
Minimum usage distance: 0.5 m (1.64 ft.)
Compliance

EU (EMC & LVD):
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU

Substance regulations
RoHS
REACH
CP65
Size

Product: 197 x 353 x 197 mm (l x h x d)
Flight-case foam (dual): 500 x 310 x 250 mm (l x h x d)
