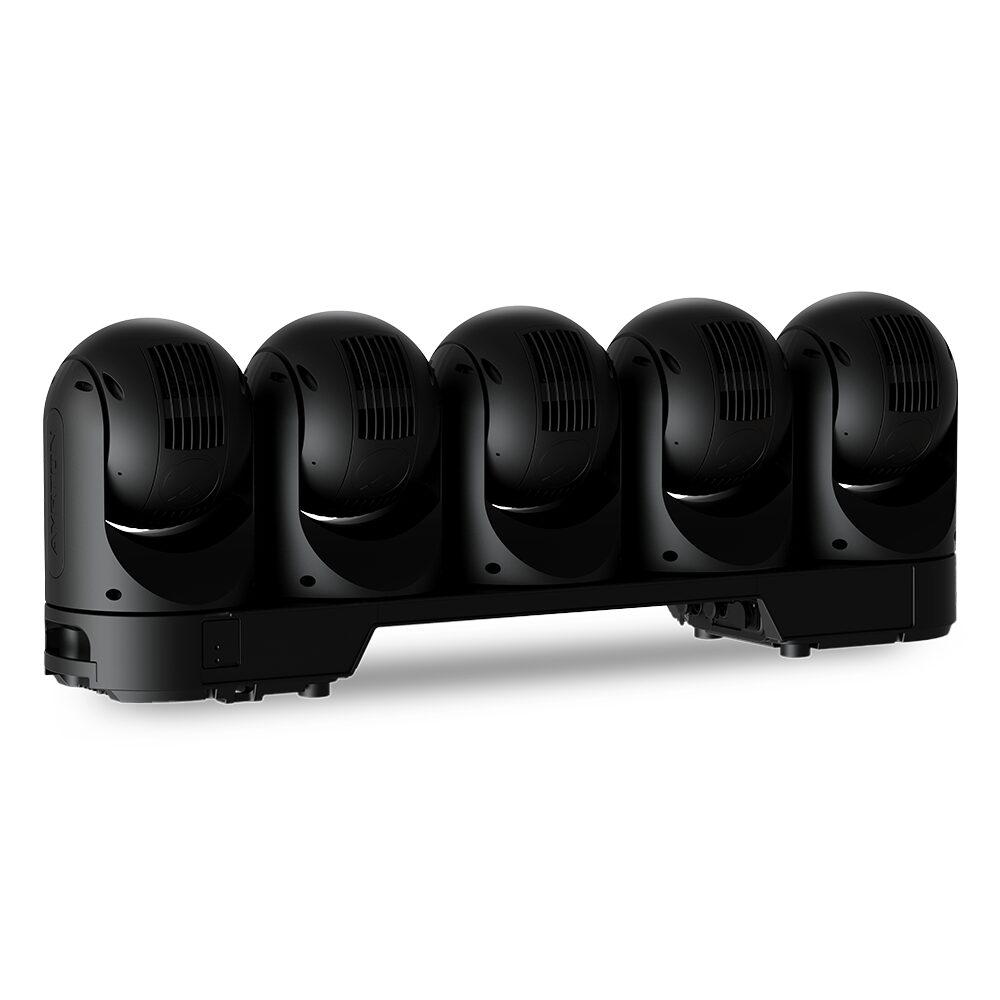

Ayrton - MagicBlade Neo Front right five connected moving headsAyrton - MagicBlade Neo Front right five connected moving heads

Ayrton – MagicBlade Neo

Ayrton

Ayrton has always innovated and made an impact with luminaires that are surprising, inspiring, and radical. MagicBlade Neo is a brand-new concept: an innovative organic fixture designed to create multi-form curtains of light, reconfigurable ad infinitum—unreal vortices, and striking volumetric effects

SKU: 015380 Categories: , , ,

Description

Built on the all-new MagicDot Neo platform, it features five independent moving heads, spaced 5 mm apart, with continuous rotation on both pan and tilt axes. Its innovative ‘Shortcut’ function expands the scope for building complex effects. Fitted with five individual 120 W RGB-L multi-chip LED sources, each paired with a high-efficiency 100 mm optic integrated into a perfect sphere, it delivers a total luminous flux of 15,000 lm. MagicBlade Neo offers an extended colour space and smooth mixing of pastel or saturated colours, enabling perfect colour repeatability with a CRI above 86. Each MagicBlade Neo beam can switch instantly from Beam to Wash, with a 10:1 zoom ratio and a very wide usable range from 3° to 30°.

Each powerful, intensive beam is paired with a LiquidEffect™ ring, featuring 60 RGB LED sources around its perimeter to create hypnotic multi-colour lighting effects. MagicBlade Neo is an injection-moulded aluminium luminaire for stage lighting, specifically designed for mixed indoor and outdoor use, including saline environments.

A drastic reduction in aluminium part thicknesses, optimisation of the cooling system, simplified lens guiding, and the integration of low-density optical components have enabled a significant weight reduction: MagicBlade Neo weighs just 32.4 kg. The high power of this new LED source has required the use of specific cooling systems based on phase-change heat pipes. With extended Ethernet connectivity, it allows the creation of unlimited configurations. MagicBlade Neo is an impressive concept that, at first glance, suggests infinite possibilities: a luminaire with a strong visual signature, impeccable finishes, and an unprecedented level of integration.

Features

  • Illuminance at 5 m (1 head)16,000 lux
  • Native CRI< 86
  • Zoom Aperture3° to 30°
  • Front Lens5 x 100 mm
  • IP RatingIP65

Video

Ayrton – MagicBlade Neo – Presentation

Creation: Marc & Brandon

Additional information

Optics

2-element 10:1 zoom high-resolution optic system
Beam aperture: 3° to 30°
5 x Fast motorised linear zoom
Tempered anti-reflective coated lenses
5 x 100 mm front lens
Light Source

5 x 5,000 lm RGB-L LED sources
Total luminaire output: up to 15,000 lumens (integrating sphere measurement, Fan mode STAGE)
Illuminance at 5m: 16,000 lux (one head)
CRI: up to 86
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
Movement

Highly accurate positioning
Moving-head operated via 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt automatic repositioning
Moving-head range: 5 x infinite pan and tilt rotation
Colours

Sophisticated 4 colours RGB-L mixed, reaching high Colour Rendering Index
Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
4.29 billion colours (8-bit resolution)
Virtual CTC channel, from 2500 to 8000K
Virtual Tint channel
Effects

Individual control of each head
Liquid Effect with 60 individual pixels
Built-in pattern effects for main leds and Liquid Effect, with speed and fade controls
Dimmer / Strobe

Electronic dimmer from 0 to 100%
Strobe effect: 1 to 25 flashes per second
Hardware Features

Graphic LCD display with flip function
4 menu buttons to set functions
Integrated wireless CRMX TiMo RDM receiver from LumenRadio
IP65 XLR 5 pin male and female connectors for DMX connection
IP65 RJ45 IN / OUT connectors for ethernet connection
IP65 Power male and female connectors for power connection
Maximum current available at the output socket : 12 A
Control

DMX 512 protocol, through DMX cable or a wireless system
DMX-RDM compatible
Stand-alone mode and Main/Follow modes
ArtNet & sACN protocol through Ethernet cable
Local control panel, with IP65 LCD display
Footprint of 175 or 184 DMX channels
Power Supply

Electronic power supply with active PFC
100 to 240 Volts – 50/60Hz
Power: 800 W maximum
Cooling System

Advanced liquid cooling system
IP68 Self-adjusting variable speed fans
Selectable ventilation user modes
Excess temperature protection
Housing

Moving-head skeleton made in die-cast aluminium
Base in die-cast aluminium
Heatsinks in aluminium and copper
Moulded covers in ABS PC (V0 class)
Tow-side handles for transportation
Four heavy-duty feet
IP65 protection rating
Exterior finish: black (Carbon)
Installation

Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
Mounting points: eight ¼ turn locking fittings allowing installation of two Omega brackets on luminaire
Safety cable attachment point
Operating Parameters

Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45° C (113° F)
Minimum permitted ambient temperature (Ta min): -20° C (-4° F)
Minimum usage distance: 0.5 m (1.64 ft.)
Compliance

EU (EMC & LVD):
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US (Safety & EMC)
CFR 47, FCC Part 15, Subpart B:2023
Substance regulations
RoHS
REACH
CP65
Size

Product: 1008 x 200 x 352.5 mm (l x h x d)
Flight-case foam: 1080 x 270 x 380 mm (l x h x d)
Weight

Product: 32.4 kg
