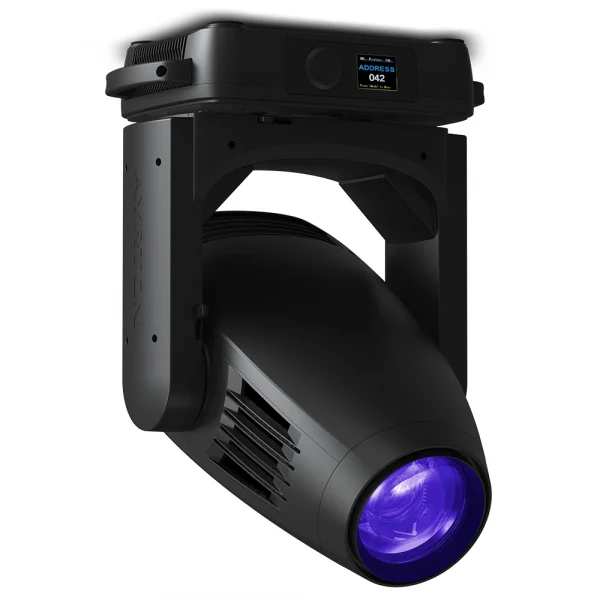

Ayrton_Khamsin-Profile_Front-of-fixture-hangingAyrton_Khamsin-Profile_Front-of-fixture-hanging

Ayrton – Khamsin Profile

Ayrton

Ayrton has once again pushed the limits with a newly designed “profile” luminaire… Khamsin… squeezing a 750 W LED module into the highly compact Ghibli format, while offering 60% more light output.

SKU: N/A Categories: , , , ,
Clear

Description

To make the luminaire this compact, Ayrton has completely redesigned its internal structure by using cast aluminium sides. The size of the cooling system also had to be dramatically reduced and made even more efficient. This high-end luminaire also features a double rotating gobo wheel on a single axis that will allow you to achieve astonishing high-definition morphing effects. Like all luminaires in the Ayrton product line, Khamsin is available in two versions: Khamsin S is designed for scenic applications. It is equipped with a new LED module, delivering powerful metallic white light with record-breaking output of 40,000 lumens and a colour temperature of 7000 K. Devised specifically for applications that require perfect colour reproduction, Khamsin TC is equipped with an entirely new LED module using a monochromatic light source with a native colour rendering index greater than 90, extremely high TM30 readings and a colour temperature of 6400 K.

In its quest for perfection, Ayrton has developed a fixture that will turn heads. With such a versatile and compact luminaire you can only imagine the creative possibilities!

The proprietary optical system, fitted with 13 lenses, features a 158 mm frontal lens and delivers an 8:1 zoom ratio and a zoom range of 7 ° to 58 °. The high-quality optics offer excellent image reproduction and produce an extremely uniform flat beam with no hot spot, ensuring a perfectly homogeneous colour mix regardless of the colour combination selected. Feature-rich from the factory, Khamsin includes a CMY colour mixing system, which, combined with a variable CTO and one wheel with six complementary colours, produces an infinite palette of vivid pastels and saturated colours. The framing section allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. The effects section includes two wheels with six interchangeable HD glass gobos; a continuous dynamic effects wheel; a 15-blade iris diaphragm; two frost filters: one light frost, one heavy frost; two rotating prisms: one circular with 5 facets, one linear with 4 facets. Khamsin is the perfect lighting solution for large venues, such as arenas and stadiums dedicated to major events.

Features

  • Luminous Flux: 40,000 lm Khamsin S
  • Native CRI: > 90 Khamsin TC
  • Zoom Aperture: 7 ° to 58 °
  • Front Lens: 158 mm
  • IP Rating: IP20
  • Weight: 39.8 kg

Video

AYRTON – Khamsin – Presentation

Ayrton Khamsin – 750W Profile Luminaire

Additional information

Weight 39.8 kg
Optics

13 elements 8:1 zoom high-resolution optic system
Beam aperture: 7 ° to 58 °
Fast motorised linear zoom
Tempered anti-reflective coated lenses
158 mm frontal lens for greater performance
Light Source

Khamsin S
60,000 lumens 8000 K white light engine
Total luminaire output: up to 40,000 lumens
Colour temperature output: 7000 K
CRI: greater than 70
Khamsin TC
48,000 lumens 7000 K white light engine
Total luminaire output: up to 31,000 lumens
Colour temperature output: 6400 K
CRI: greater than 90
Khamsin S & Khamsin TC
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
Movement

Extremely accurate positioning
Moving-head operated via either 8 or 16 bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt automatic repositioning
Moving-head range: 540 ° (pan) & 262 ° (tilt)
Colours

Sophisticated colour mix system providing CMY colour mixing
Variable CTO colour temperature correction
Fixed colour wheel with six complementary colours
Gobos

2 indexable rotating gobo wheels with 6 high-precision glass gobos, plus open position
Adjustable-speed rotating gobo in both directions
Gobo diameter: 34 mm
Image diameter: 24 mm
Gobo thickness: 1.1 mm
Framing system

4 individually positionable shutter blades on a 100% surface area in all positions
Rotation of the framing system module: +/- 45 °
Iris Diaphragm

Fast iris diaphragm with adjustable dynamic effects
Iris range: 15% to 100% open
Frosts

2 frost filters: one light, one heavy
Effects

Focusable graphic animation effect-wheel with continuous rotation in both directions
2 rotating and indexable prisms: one 5-facet circular, one 4-facet linear
Dimmer / Strobe

Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
Strobe effect, with speed adjustment from 1 to 25 flashes per second
Software features

Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
Hardware features

Graphic LCD display for addressing and special functions settings, with flip function
Clicking jog wheel to set functions
Excess temperature protection
Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
XLR 5 pin male and female connectors for DMX connection
etherCON RJ45 IN / OUT connectors for ArtNet™ connection
powerCON TRUE1 male connector for power connection
Control

DMX 512 protocol, through DMX cable or a wireless system
DMX-RDM compatible
Stand-alone mode and Main/Follow modes
ArtNet™ & sACN protocol through Ethernet cable
Local control panel, with LCD display
Choice of 3 DMX modes (from 40 to 64 DMX channels)
Power supply

Electronic supply with active PFC
120 to 240 Volts – 50/60 Hz
Power: 1,150 W maximum
Cooling system

Advanced liquid cooling system
Self-adjusting variable speed fans for quiet operation (Auto mode)
Selectable ventilation user’s modes with a new Silent Mode
Safety protection against temperatures excesses
Housing

Moving-head skeleton made of aluminium and steel metal plates
Base in die-cast aluminium
Heatsinks in aluminium and copper
Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
Two-side handles for transportation
Four heavy-duty feet for better stability
IP20 protection rating
Exterior finish: black (Carbon)
Installation

Fastening brackets system: two Omega ¼ turn brackets designed for use with standard clamps
Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
Safety cable attachment point
Operating parameters

Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
Minimum usage distance: 2 m (6.56 ft)
Compliance

EU (EMC & LVD):
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US (Safety & EMC):
UL 1573
FCC Part 15, Subpart B: 2018
Substance regulations
RoHS
REACH
CP65
Size

Product: 494 x 778 x 280 mm (l x h x d)
Flight-case foam: 655 x 590 x 555 mm (l x h x d)
