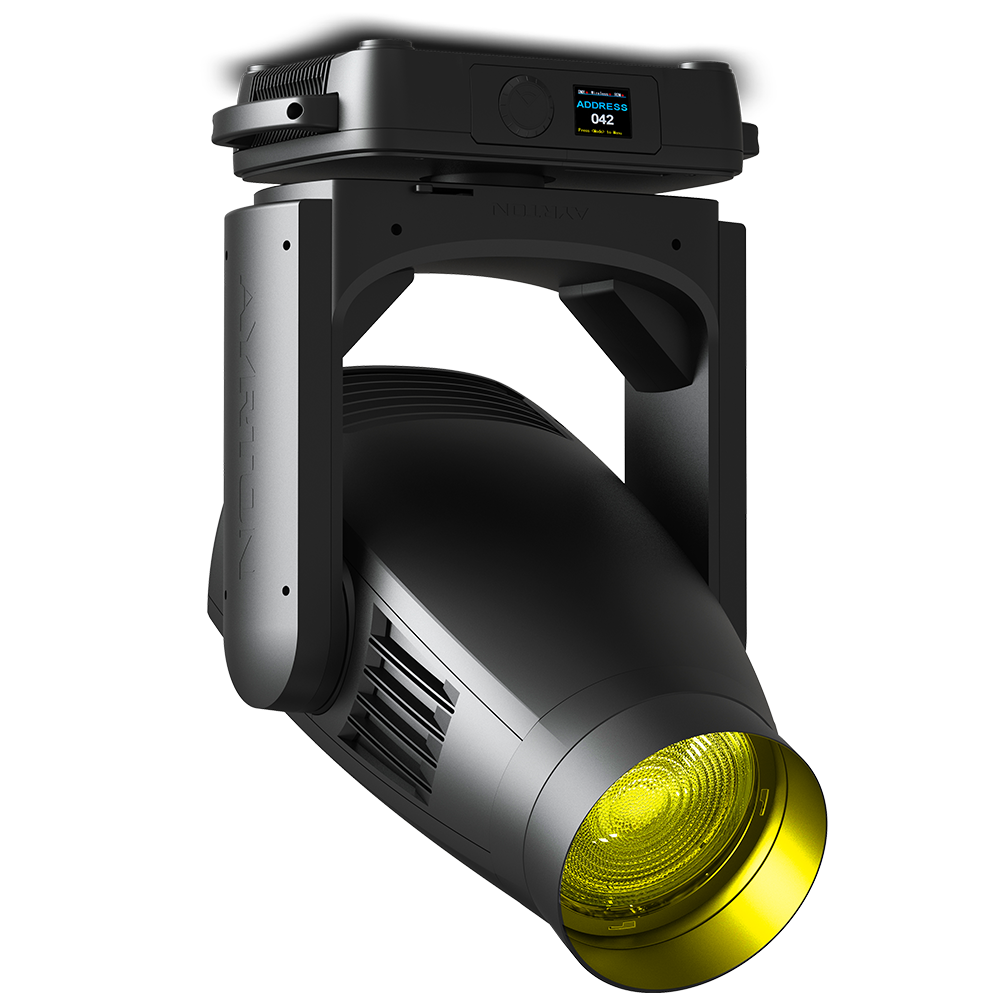

Ayrton - Huracán Wash Moving head in hanging OrentationAyrton - Huracán Wash Moving head in hanging Orentation

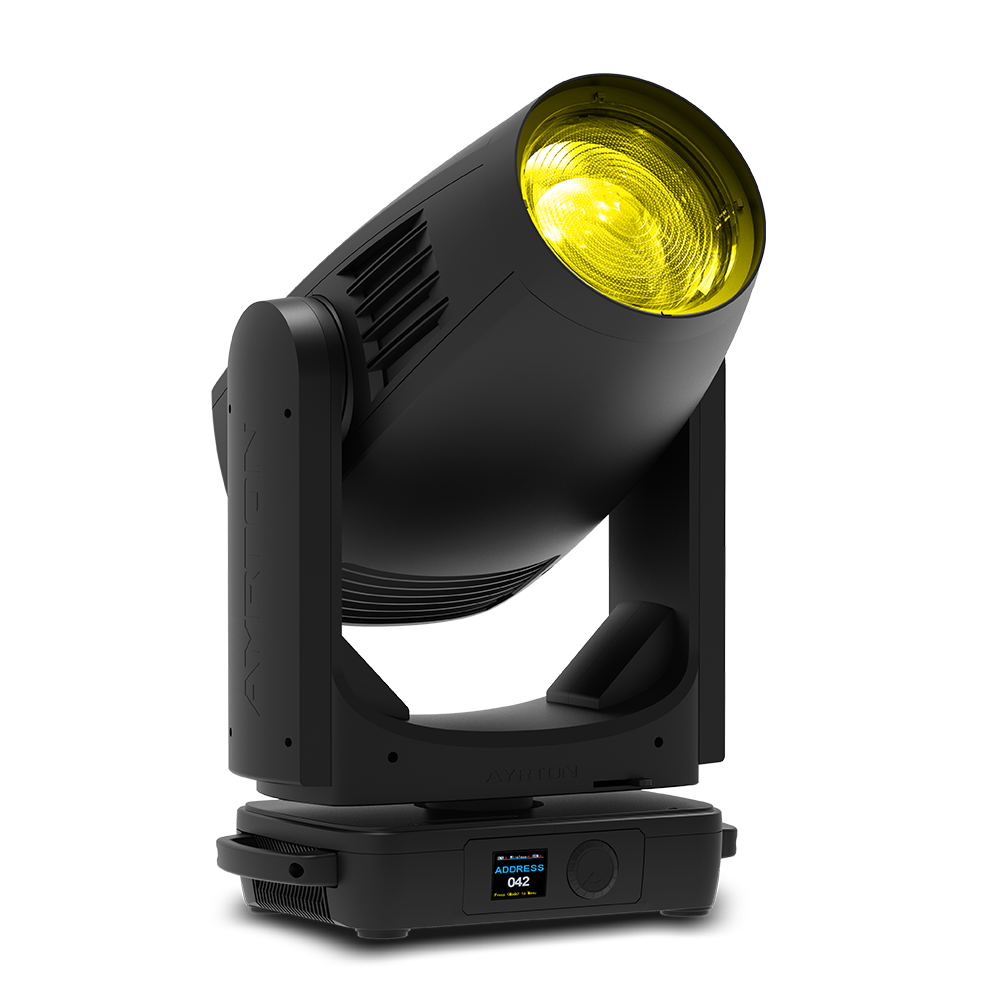

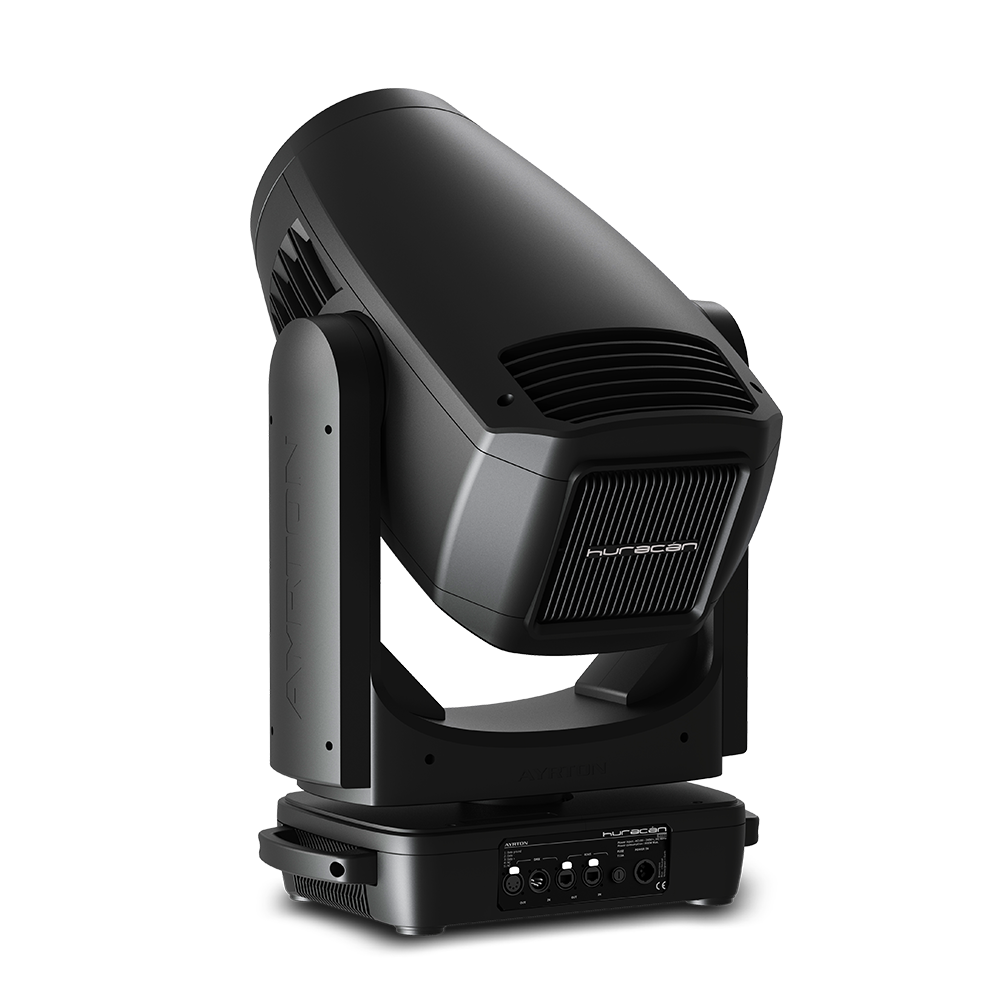

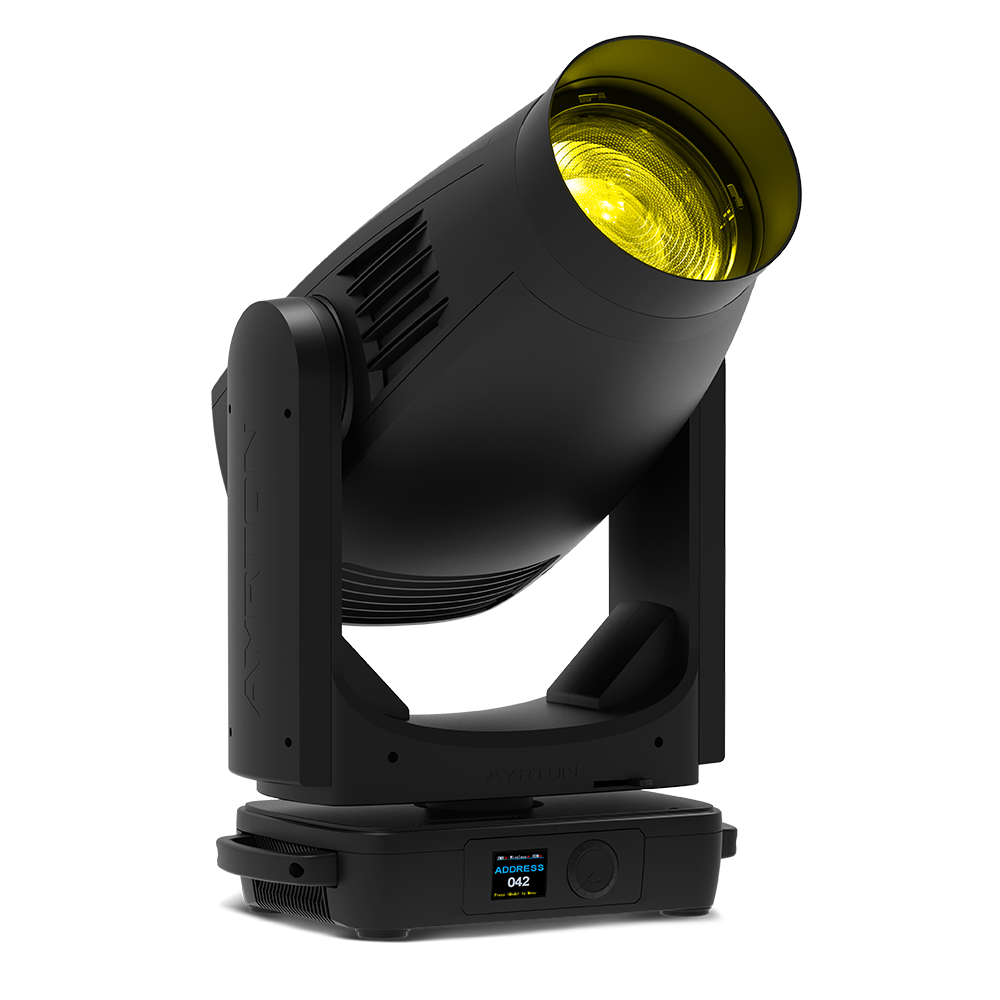

Ayrton – Huracán Wash

Ayrton

For the latest wash-type luminaire of the Huracán family, Ayrton has designed an entirely new Fresnel lens with an optical structure specially developed for use with framing barndoors, also favouring use with geometric gobos or ovalisation lenses, without constraints.

SKU: N/A Categories: , , ,
Clear

Description

A subtle progressive diffusion system allows the diffusion level to be adapted according to the application and accessories or optical elements used. The Fresnel lens also significantly improves the colour mix and can obtain 10% more light than when using a conventional Fresnel lens F.O.S.™. The proprietary optical system of Huracán Wash delivers a 12:1 zoom ratio and a zoom range of 6.2° at half peak to 75° at one-tenth peak. This new luminaire adopts the complex colour mixing system of Huracán Profile, offering a double level of CMY saturation that can obtain 281 trillion colours and a triple corrector for variable colour temperature allowing subtle adjustment from 2700 K to 15000 K and significant CRI improvement. T.C.S.™ (patent pending).

Huracán Wash introduces a brand new 1000 W monochromatic LED source specially developed for studio and theatre applications, called the ST.

This LED source delivers light output of 45,000 lumens and a D65 white point that allows perfect colour reproduction with a CRI greater than 80. For shows that need cooler metallic white light, the S version offers a record luminous flux of 52,000 lumens, a colour temperature of 7,000 Kelvin and a CRI of 70. For applications requiring perfect colour rendering, the TC version offers a CRI greater than 95 with extremely high TM30 values and a colour temperature of 6000 K. Huracán Wash is factory-equipped with full features, including a framing section that allows accurate positioning of four barndoors on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. Huracán Wash also offers a wheel of seven rotating gobos, a 15-blade iris diaphragm and a beam ovaliser filter. Huracán Wash is an exceptional luminaire designed to satisfy the most demanding users.

Features

  • Luminous Flux: 52,000 lm Huracán Wash S
  • Native CRI: > 95Huracán Wash TC
  • Beam Aperture: 6.2 ° to 75 °
  • Front Lens: 210 mm
  • IP Rating: IP20
  • Weight: 42.5 kg

Video

AYRTON – Huracán Wash – Presentation

Ayrton Huracán Wash -Classical 9 Series
Creation: Marc & Brandon

Additional information

Weight 42.5 kg
Optics

13-element 12:1 zoom high-resolution optic system
Beam aperture: 6.2 ° (half peak) to 75 ° (one-tenth peak)
Fast motorised linear zoom
Tempered anti-reflective coated lenses
210 mm Fresnel frontal lens
Light Source

Huracán Wash S
80,000-lumen white light engine
Total luminaire output: up to 52,100 lumens (integrating sphere measurement, Auto Fan Mode)
Colour temperature output: 7000 K
CRI: greater than 70
Huracán Wash ST
68,000-lumen white light engine
Total luminaire output: up to 45,300 lumens (integrating sphere measurement, Auto Fan mode)
Colour temperature output: 5800 K
CRI: greater than 80
Huracán Wash TC
49,000-lumen white light engine
Total luminaire output: up to 33,900 lumens (integrating sphere measurement, Auto Fan mode)
Colour temperature output: 6000 K
CRI: greater than 95
Huracán Wash (all versions)
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
Movement

Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt automatic repositioning
Moving head range: 540 ° (pan) & 260 ° (tilt)
Colours

Complex colour mixing system with a double CMY saturation level capable of generating trillions of colours (patent pending).
Variable CTB colour temperature correction
Variable CTO colour temperature correction
Variable CTP colour temperature correction
Fixed colour wheel with six complementary colours
Gobos

Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open position
Adjustable-speed rotating gobo in both directions
Gobo diameter: 30 mm
Image diameter: 25 mm
Gobo thickness: 1.1 mm
Framing System

4 individually positionable shutter blades on a 100% surface area in all positions
Rotation of barndoor module: +/- 60 °
Iris Diaphragm

Fast iris diaphragm with adjustable dynamic effects
Iris range: 15% to 100% open
Frost

0% to 100% variable linear frost
Effects

CMY & RGB colour graphic animation effects-wheel with continuous rotation in both directions
Beam ovalising filter, indexable and rotatable
Dimming / Strobe

Electronic dimmer allowing perfect light adjustment from 0 to 100% without colour variation
Strobe effect, with speed adjustment from 1 to 25 flashes per second
Software / Features

Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
Hardware Features

Graphic LCD display for addressing and special functions settings, with flip function
Clicking jog wheel to set functions
Excess-temperature protection
Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
XLR 5-pin male and female connectors for DMX connection
Ethercon RJ45 IN / OUT connectors for ArtNet™ connection
PowerCON TRUE1 male and female connectors for power connection
Control

DMX 512 protocol, through DMX cable or a wireless system
DMX RDM-compatible
Stand-alone mode and Main/Follow modes
ArtNet & sACN protocol through Ethernet cable
Local control panel, with LCD display
Choice of 3 DMX modes (from 39 to 61 DMX channels)
Power Supply

Electronic supply with active PFC
100 to 240 Volts – 50/60Hz
Power: 1,470 W maximum
Cooling System

Advanced liquid cooling system
Self-adjusting variable speed fans for quiet operation (Auto mode)
Selectable ventilation user modes with a new Super Silent Mode
Safety protection against temperatures excesses
Housing

Moving-head skeleton made of aluminium and steel plates
Base in die-cast aluminium
Heatsinks in aluminium and copper
Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
Two-side handles for transportation
Four heavy-duty feet for better stability
IP20 protection rating
Exterior finish: black (carbon)
Installation

Fastening-bracket system: two Omega ¼ turn brackets designed for use with standard clamps
Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
Safety-cable attachment point
Operating Parameters

Operating positions: all (device on floor or fixed to a support)
Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
Minimum usage distance: 3 m (9.84 ft)
Compliance

EU (EMC & LVD):
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US (Safety & EMC)
UL 1573
FCC Part 15, Subpart B:2018
Substance regulations
RoHS
REACH
CP65
Size

Product: 494 x 788 x 294 mm (l x h x d)
Flight-case foam: 715 x 555 x 630 mm (l x h x d)
